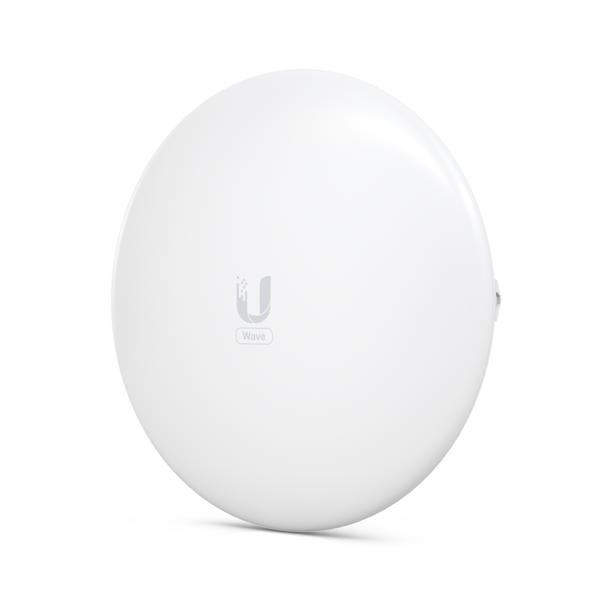

Ubiquiti Networks UISP Wave Nano 60 GHz PtMP station
- SKU: Wave-Nano-US
$279.00
Product Information
Ubiquiti Networks Wave-Nano
UISP Wave Nano 60 GHz PtMP station
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
- 5 GHz backup radio
- Link range: up to 5 km
- Router mode support
- Integrated GPS antenna
- Link planning support via ISP Design Center
- Managed with UISP application: Version 1.4.5 and later
Specifications
Specifications Wave-Nano
| Mechanical | |

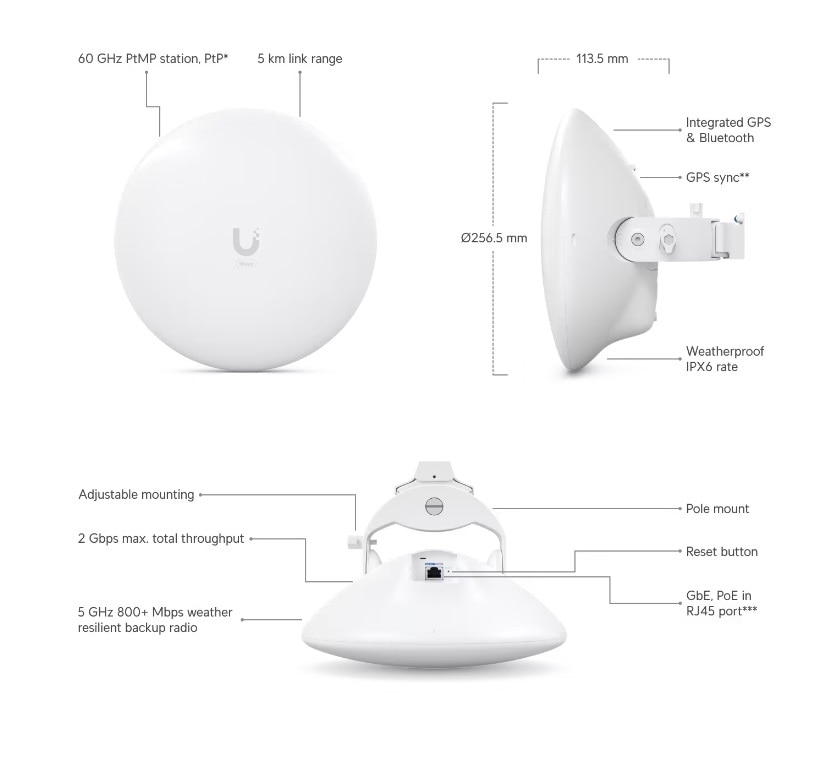

| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5") |
| Weight | Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized plastic |
| Mount materials | Aluminum alloy, UV stabilized plastic |
| Pole mount diameter | 25 to 63.5 mm (1 to 2.5") on pipe outer diameter |
| Wind loading | 127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual ARM® Cortex®-A53 cores at 1 GHz |
| Memory | DDR3L 512 MB |

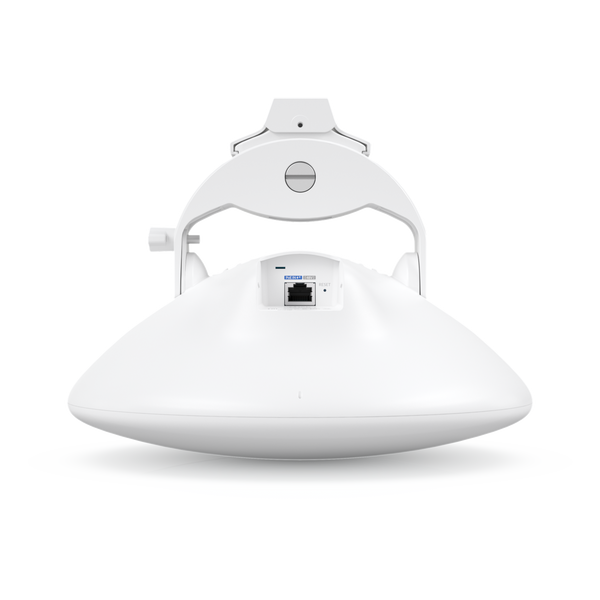

| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 18W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| GPS | Yes |
| Button | Factory reset |

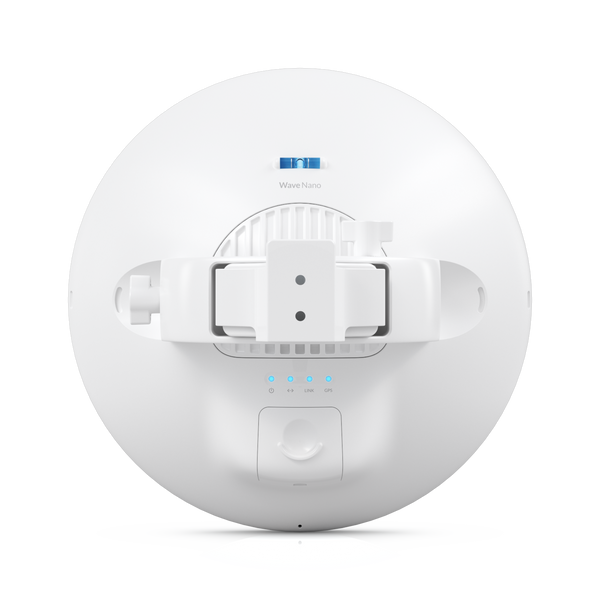

| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP station |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router mode |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Maximum range | 5+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 41 dBi |
| Azimuth and elevation beamwidth | 3 dB: 1° 6 dB: 1.4° Back-Up RF |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
| Worldwide | 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 19 dBi |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Beamwidth | Azimuth: 3 dB BW 14 to 17° Elevation: 3 dB BW 14 to 17° |
| Azimuth and elevation beamwidth | 3 dB: 14 to 17° |
| LEDs | |
| Power | |
| Flashing white | bootup in progress |
| White | not connected to UISP application |
| Blue | connected to UISP application |
| Flashing blue | locate in progress |
| Blue/white | firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links | White: 5GHz link Blue: 60GHz link |
