  • Ubiquiti PowerBeam 5AC Gen2 5 GHz High Performance airMAX® ac Bridge

Ubiquiti PowerBeam 5AC Gen2 5 GHz High Performance airMAX® ac Bridge

(0) No Reviews yet
  • SKU: PBE-5AC-ISO-GEN2-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 40 In Stock (updated live)
$135.00

Specifications PBE-5AC-ISO-GEN2

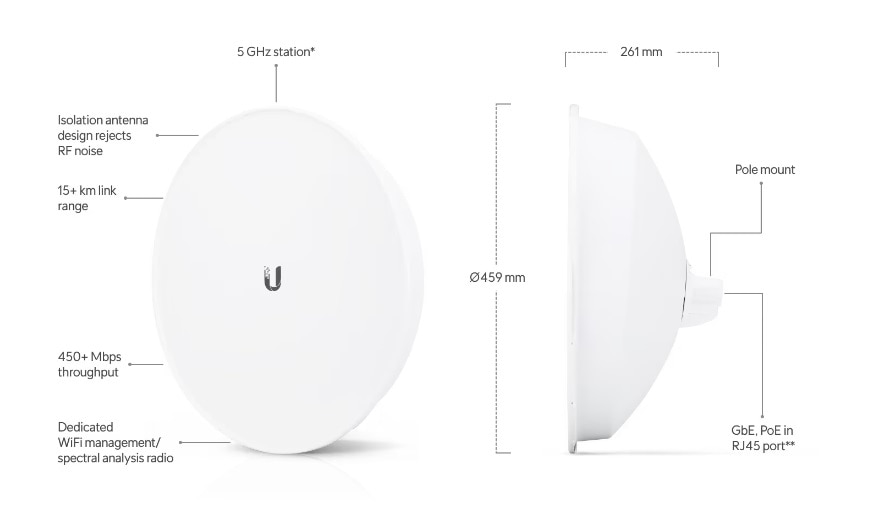

Dimensions 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
Weight (Mount Included) 3.22 kg (7.10 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel SizesPtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC

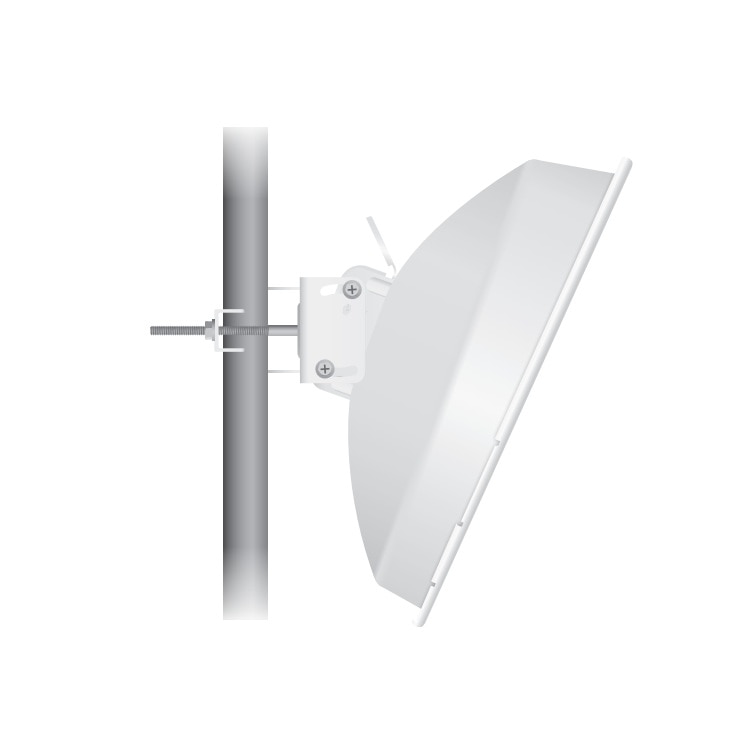

Mounting Pole-Mounting Kit (Included)
Wind Loading 559 N @ 200 km/h (125.7 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications CE, FCC, IC
Management Radio (MHz)
Worldwide 2412 - 2472
USA 2412 - 2462

Ubiquiti Networks PBE-5AC-ISO-GEN2

Ubiquiti PowerBeam 5AC Gen2 5 GHz High Performance airMAX® ac Bridge

Ubiquitis PowerBeam 5AC Gen 2 supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection. It has a built-in mechanical tilt mouting bracket for conviently offers elevation adjustments ± 20° tilt. The PBE-5AC-ISO-Gen2 offers a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest element.


Features:

  • airMAX ac Protocol Support
  • Long-Range Point-to-Point Link Mode
  • Selectable Channel Width PtP: 10/20/30/40/50/60/80 MHz PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strangest WPA2 Security
