Ubiquiti U Fiber, Nano, GPON CPE Gigabit Optical Network Unit

  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: 53 In Stock    (updated live)
    13 In stock at College Station
    40 In stock at Mississippi

Ubiquiti UF-NANO

U Fiber, Nano, GPON CPE Optical Network Unit

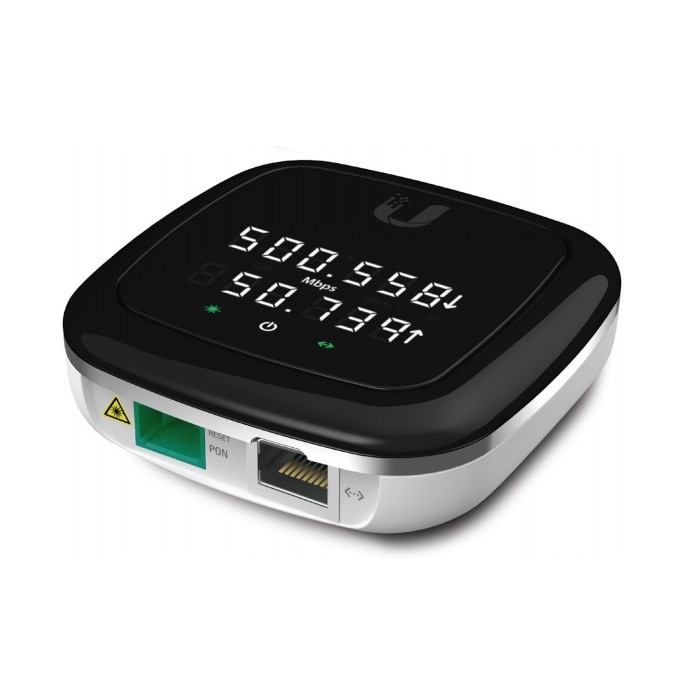

The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.

Status Display

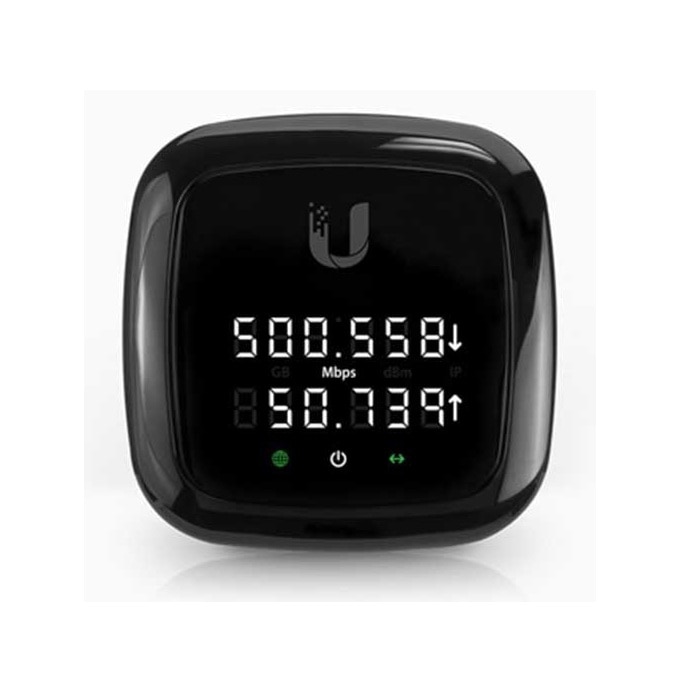

The easy-to-read display provides status information: IP address, signal strength, and current throughput.

Power over Ethernet

The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.

Designed for Integration

Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and third-party OLT devices.

Specifications UF-NANO

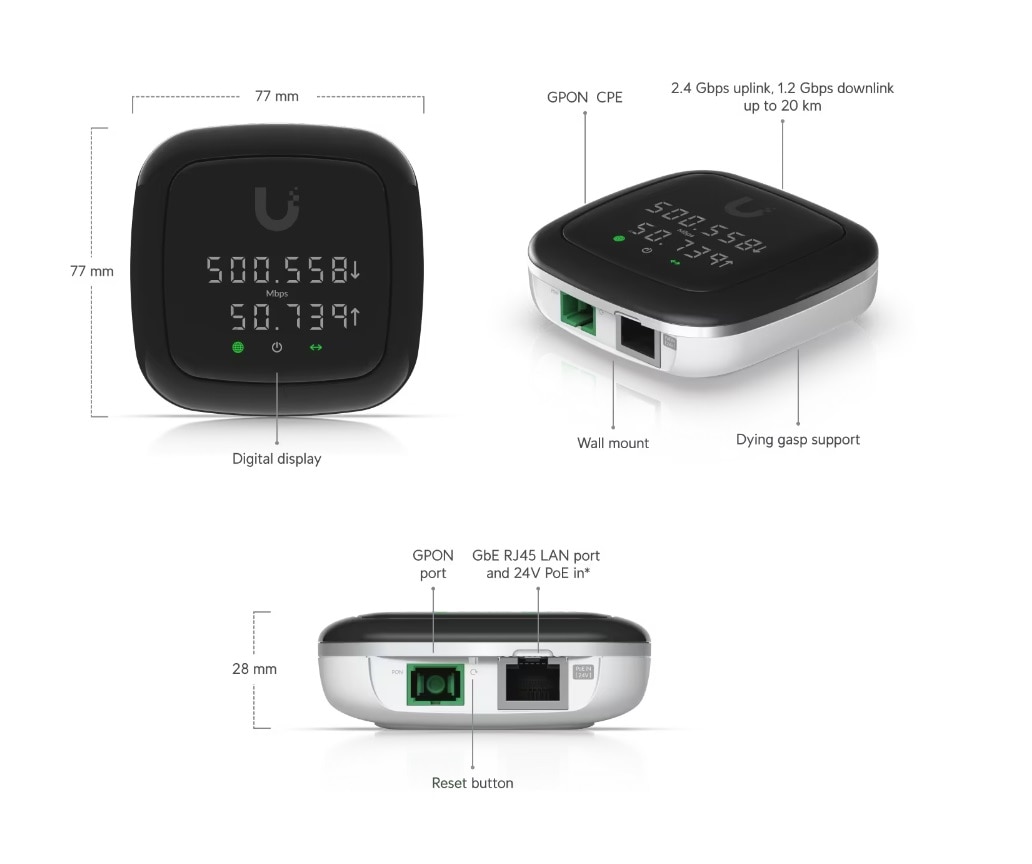

Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")
Weight 110 g (3.88 oz)
Networking Interface Speeds (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps
Management Interface In-Band Ethernet/PON
Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm
Power Method Passive PoE (Pins +4, 5; -7, 8) Dying Gasp Support
Power Supply PoE Adapter: 24V, 0.3A (Included)
Max. Power Consumption 7W
Supported Voltage Range 20V to 28V
Processor Specs MIPS-32, 240 MHz
Memory Information 128 MB DDR3
Buttons (1) Display Information (1) Reset
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
