Cambium Networks ePMP 5 GHz Force 4518 SM Radio (FCC) (US Cord)
- SKU: C058940C132A
$169.00
- Manufacturer: Cambium Networks
- Datasheet: Download
Product Information
Cambium Networks C058940C132A
ePMP 5 GHz Force 4518 SM Radio (FCC) (US Cord)
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The ePMP Force 4518 Subscriber Modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.
- High-performance for PTP and PMP fixed wireless broadband applications
- Gbps capacity leveraging 80MHz channels
- Compatible with ePMP 4500 Series APs for MU-MIMO performance
- 3-year hardware warranty
Product Features
- Small form factor popular for dense areas and where aesthetic is critical, with an integrated 18dBi panel antenna.
- High performance with up to 80MHz channels, 1024QAM and low-latency performance when using ePTP technology
- Interoperability with the ePMP 4500, which uses MU-MIMO to achieve up to multiple Gbps per sector by transmitting to 3 ePMP 4500 SMs simultaneously
- Multiple levels of QoS (Quality of Service) for voice, video, and data applications, supporting a wide variety of service packages for both residential and enterprise users
- Security features meeting the requirements of enterprise, industry, government, and service provider users
- Management by Cambium Networks cnMaestro™ network management system for easy provisioning, monitoring, and upgrades
- Network planning with LINKPlanner and cnHeat
- Cambium Networks’ 3-year hardware warranty and support

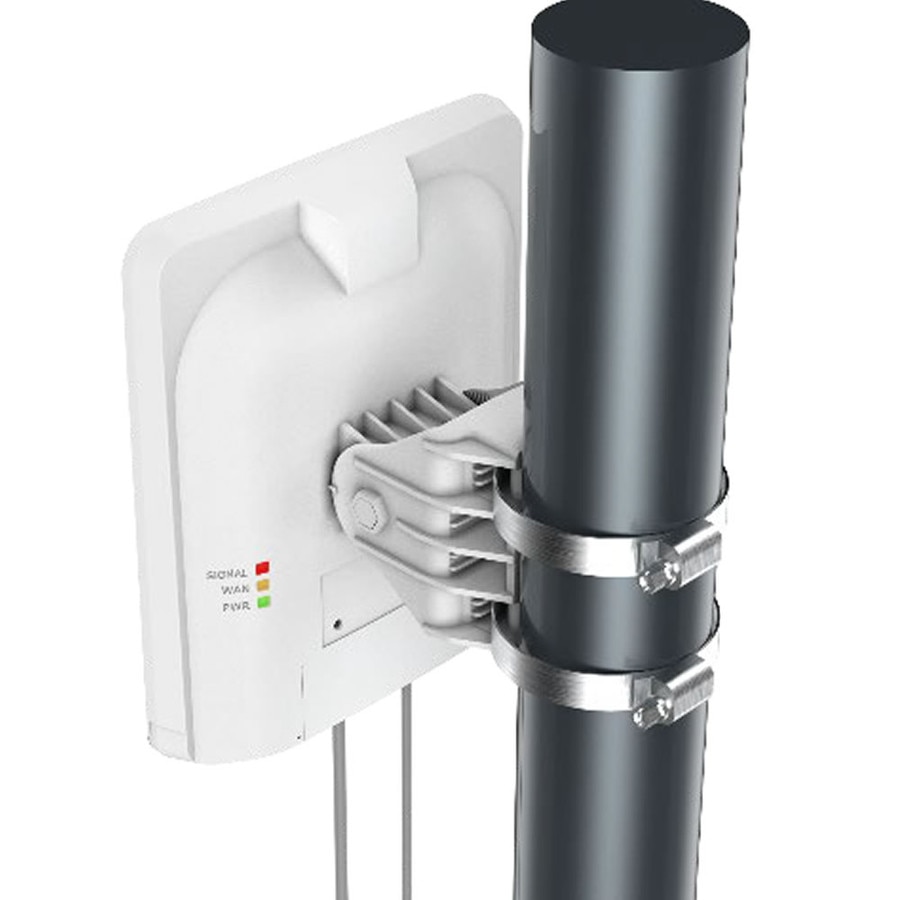

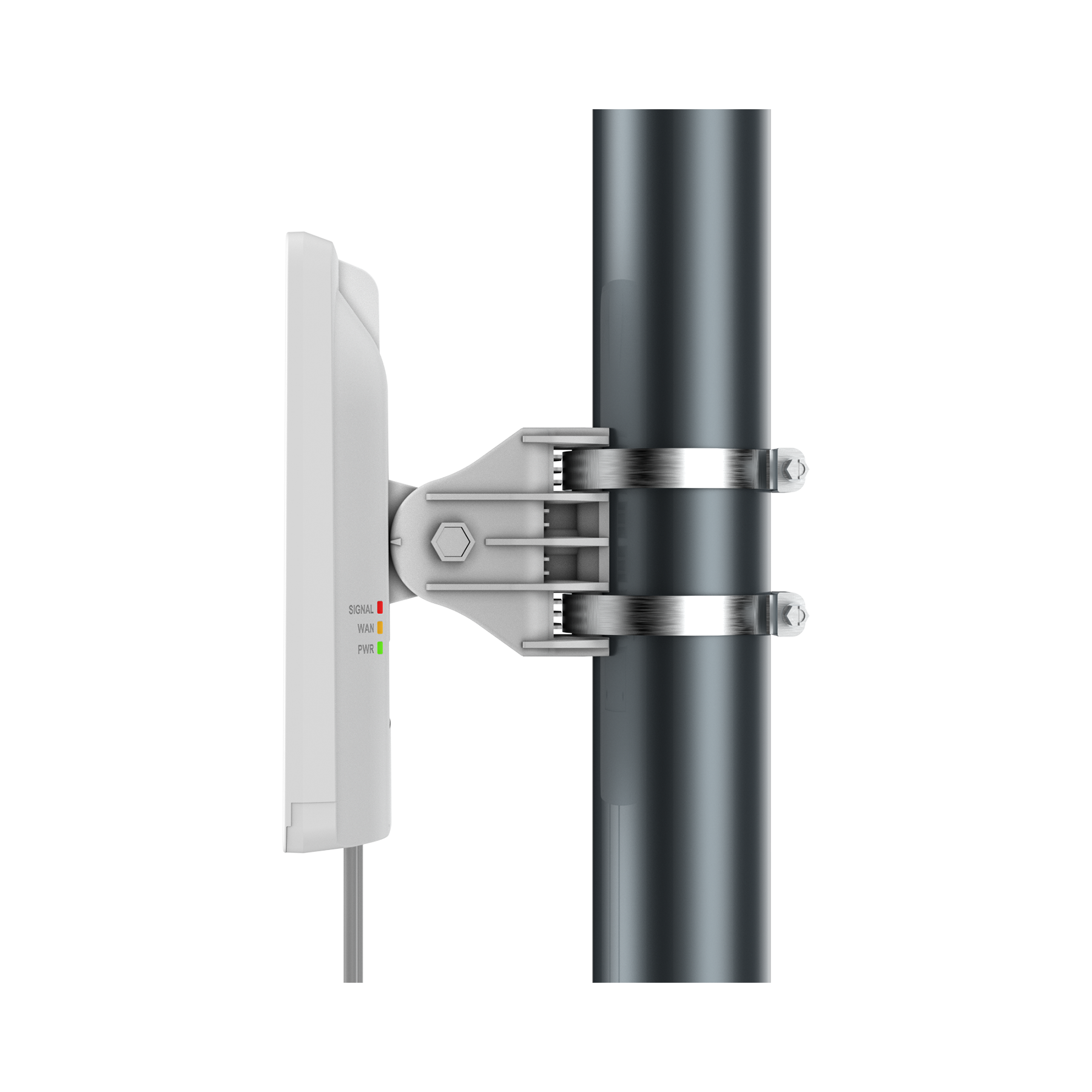

- Includes Power over Ethernet (PoE) injector and pole mount hardware
Specifications
Specifications C058940C132A
| Spectrum | |
| Channel Width (MHz) | 20 | 40 | 80 MHz |
|---|---|
| Proprietary Physical Layer | 2×2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range* | Wide band operation 5150–5920 MHz |
| MAC Layer (Media Access Control) | Cambium proprietary |
| Ethernet Interface | 100/1000 Base-T, compatible with Cambium PoE & standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPS, SNMPv2c, SSH, cnMaestro |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @ 20 MHz | MCS 1 = −84 dBm to MCS 11 (1024 QAM-5/6) = −53 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @ 40 MHz | MCS 1 = −82 dBm to MCS 11 (1024 QAM-5/6) = −52 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @ 80 MHz | MCS 1 = −80 dBm to MCS 11 (1024 QAM-5/6) = −50 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 1 (QPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) in 1 dB intervals |
| QoS (Quality of Service) | Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast and station priority, MIR/CIR* support |
| Physical | |
| Surge Suppression | 1 joule integrated |
| Environmental | IP55 |
| Temperature | −30 °C to 55 °C (−22 °F to 131 °F) |
| Weight | 0.66 kg (1.45 lb) |
| Wind Survival | 200 km/hr (124 mi/hr) |
| Dimensions (Dia × Depth) | 180 × 210 × 39 mm (7.08 × 8.27 × 1.54 in) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 in) |
| Power Consumption | 13 W |
| Input Voltage | Passive PoE 27–59 V |
| Certifications | |
| FCCID | Z8H89FT0088 |
| Industry Canada Cert | 109W-0088 |
| CE | See Cambium website for Declaration of Conformity |
