Cambium ePMP 5 GHz Force 4525 SM Bulk packaging (FCC) Single price sold in 4 packs (US Cord)

(0)No Reviews yet
US$‎269.00
  • SKU: C058940M142A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
1360 in stock
College Station
1360 In stock

Product Information

Cambium Networks C058940M142A

ePMP 5 GHz Force 4525 SM Bulk packaging (FCC) (US Cord) Single price sold in 4 packs

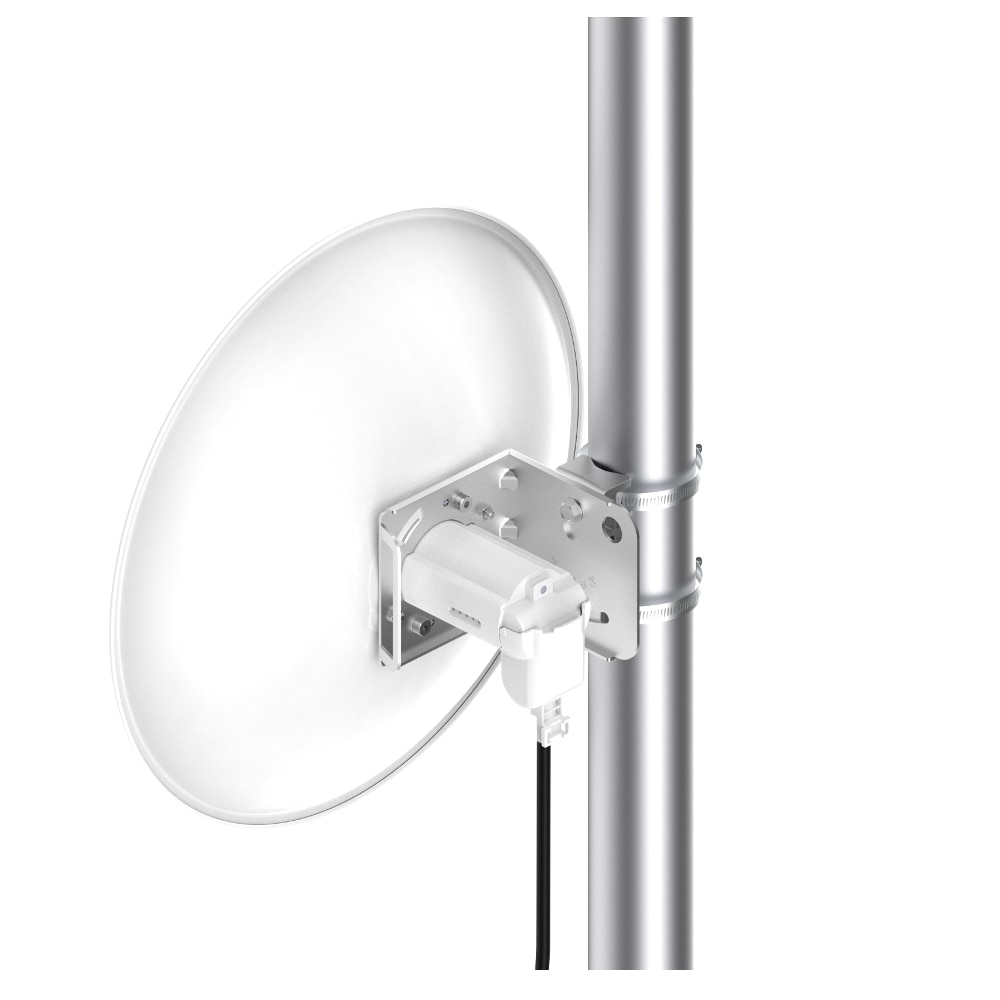

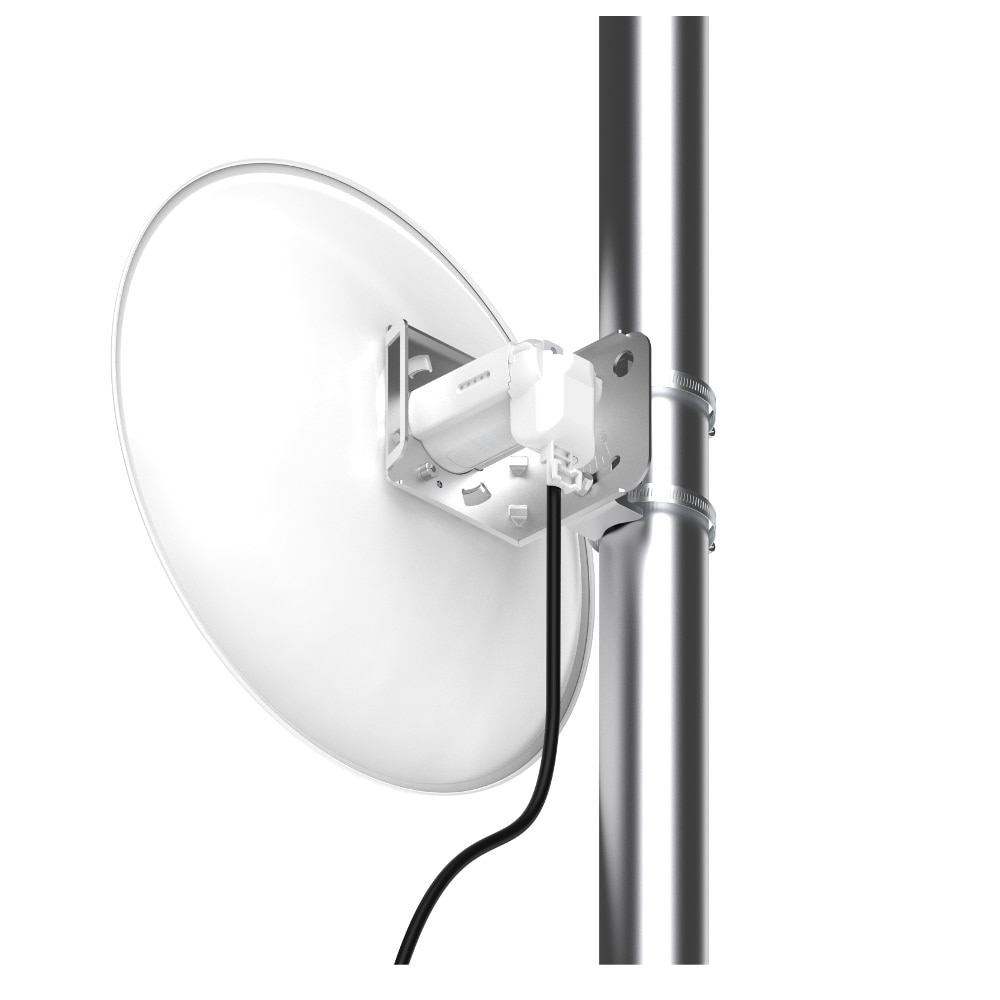

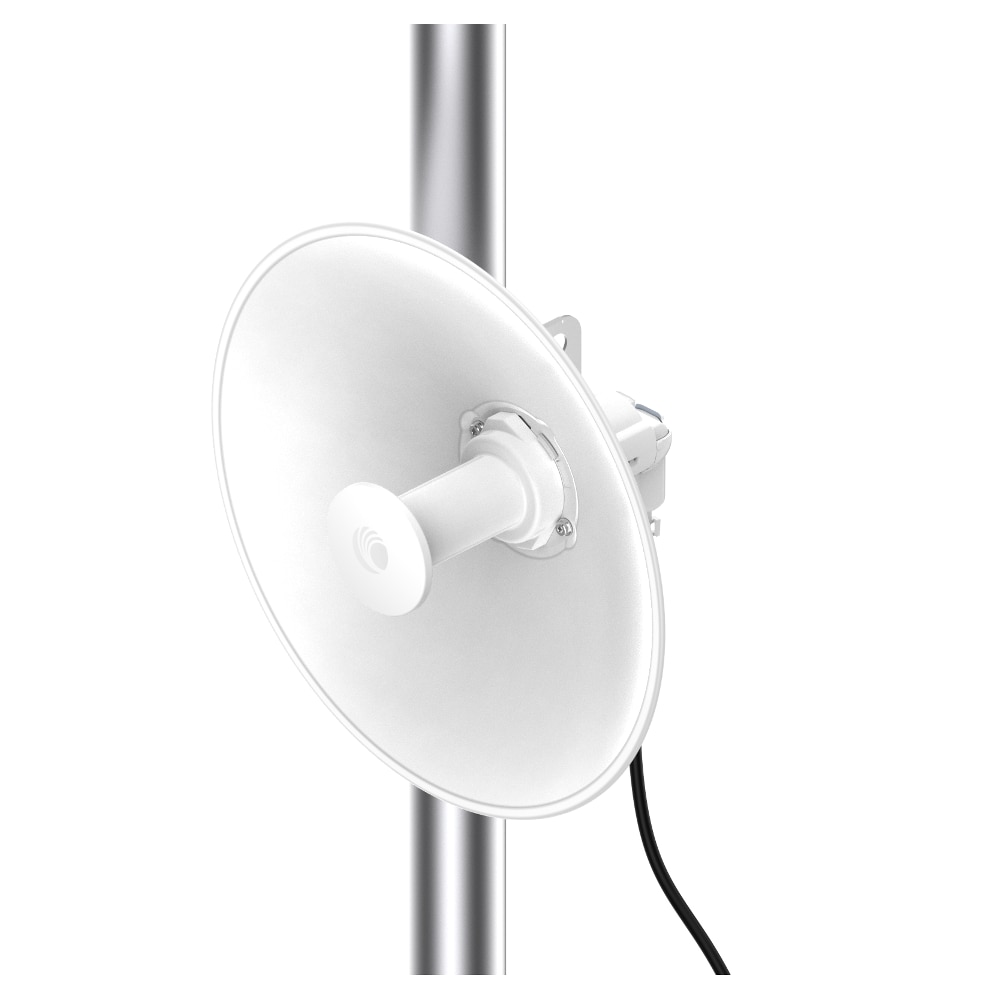

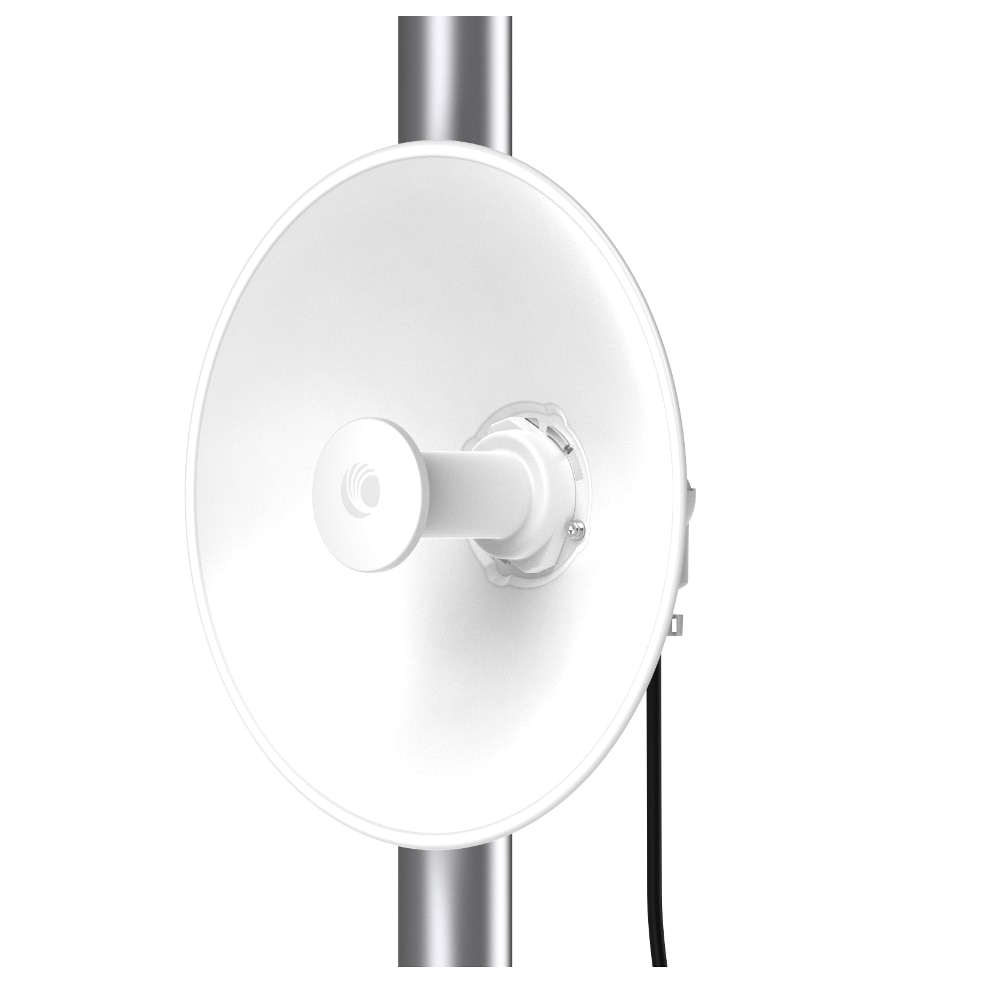

Force 4525 Subscriber Module with an integrated 25 dBi dish antenna for long-range connections.

Service providers face an ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.

Features:

  • High capacity and latencies less than 5 ms when using ePTP technology
  • Proven air interface on top of 802.11ax technology
  • Interoperability with the ePMP 4500 which uses MU-MIMO to achieve more than 4 Gbps per sector by transmitting to two ePMP 4500 SM’s simultaneously
  • 1024QAM and an integrated 25 dBi dish antenna
  • Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
  • Security features meeting the requirements of enterprise, industrial, government and service provider users
  • Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
  • Network planning with LINKPlanner and cnHeat
  • 3-year hardware warranty and support from Cambium Networks
  • Each SM comes with a Power over Ethernet injector and pole mount hardware included

Specifications

Specifications C058940M142A Single price sold in 4 packs

Channel Width MHz20 | 40 | 80 MHz
Proprietary Physical LayerAir Interface on top of 802.11ax technology (2x2 MIMO/OFDMA)
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 5150–5920 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) Operation under AFC (Automatic frequency coordination) control in FCC jurisdictions.
MAC Layer (Media Access Control)Cambium Proprietary
Ethernet Interface100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols UsedIPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network ManagementIPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
VLAN802.1Q with 802.1p priority
Performance

ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain)
Modulation Levels (Adaptive)MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
Transmit Power Range+3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
QoS (Quality of Service)Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support
Surge Supression*1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to 55°C (-22°F to 131°F)
Weight2.76 Kg (6.1 lbs)
Wind Survival200 km/hour (124 mi/hour)
Dimensions (Dia x Depth)472 x 472 x 296 mm (18.5 x 18.5 x 11.7 in)
Pole Diameter RangeCenter: 3.1 to 7.6 cm (1.25 to 3.0 inches)
Power Consumption13W (Up to 15W in extreme cold temperatures when heater is activated)
Input VoltagePassive PoE 27–59V
Security
EncryptionAll models: 128-bit AES (CCMP mode), 256-bit AES optional where allowed
Certifications
 Force 4525
FCCIDZ8H89FT0074
FCC Regulatory Part #C058940P142A
ETSI Regulatory Part #C058940P142A
Industry Canada Cert109W-0074
CESee Cambium Website for Declaration of Conformity
