Cambium ePMP 4500 5 GHz 8x8 Integrated Access Point Radio (FCC) (US cord

(0)No Reviews yet
US$‎2,499.00
  • SKU: C058940A122A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
138 in stock
College Station
138 In stock

Product Information

Cambium Networks C058940A122A

ePMP 4500 5 GHz 8x8 Integrated Access Point Radio (FCC) (US cord

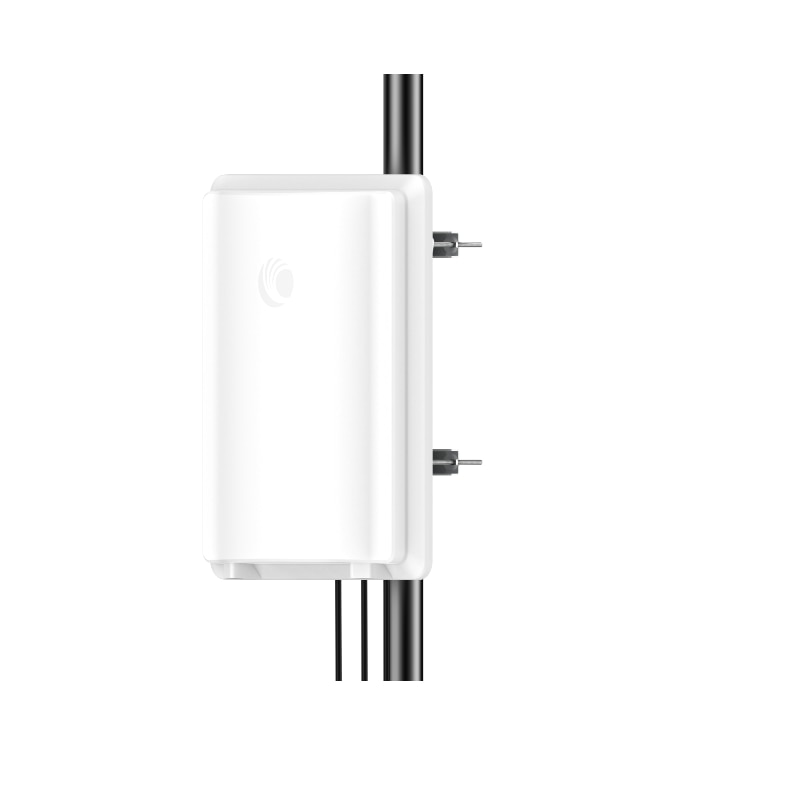

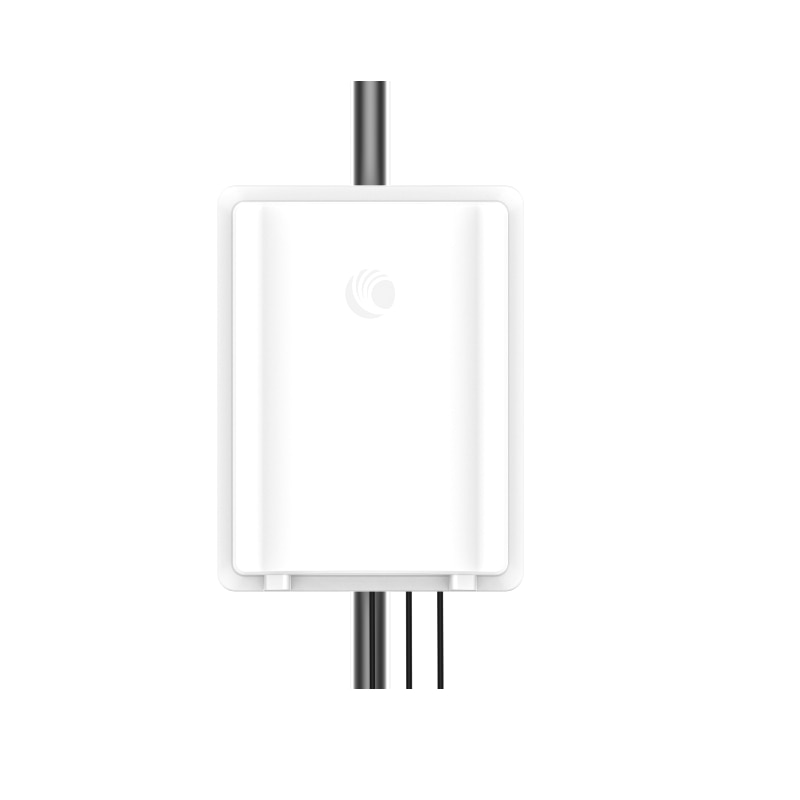

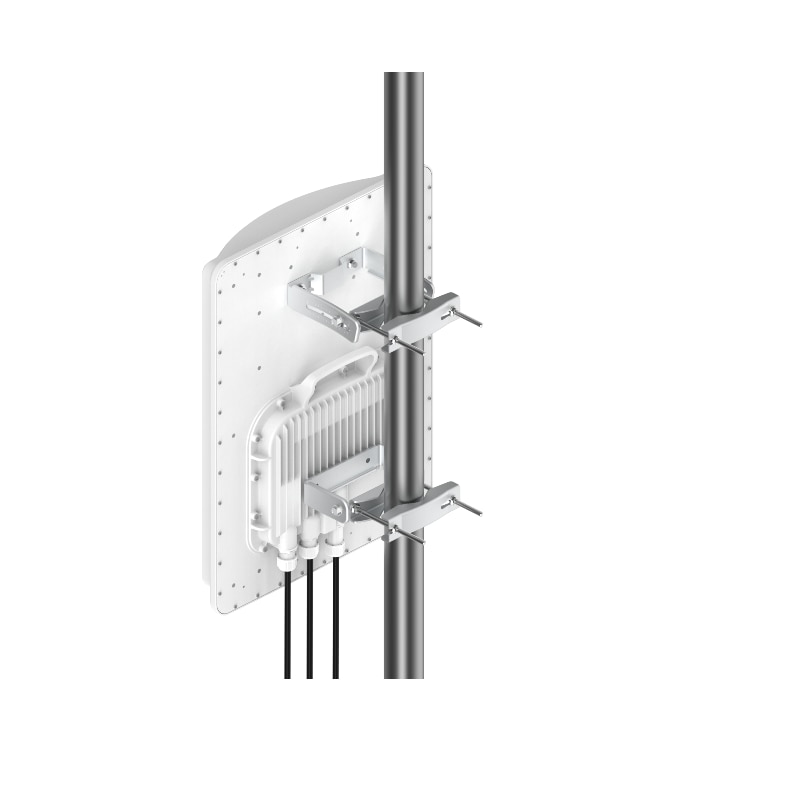

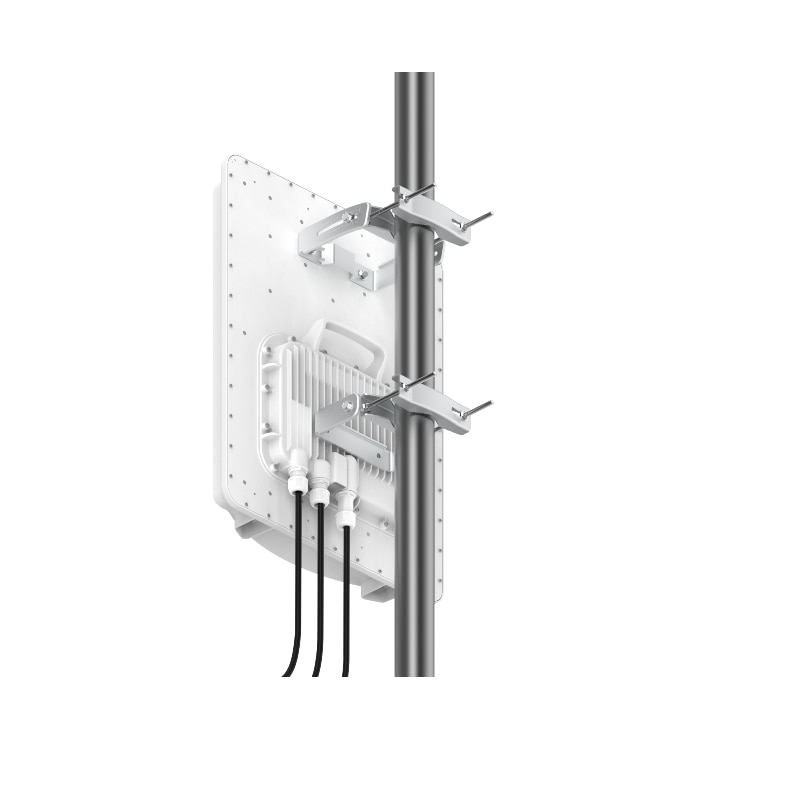

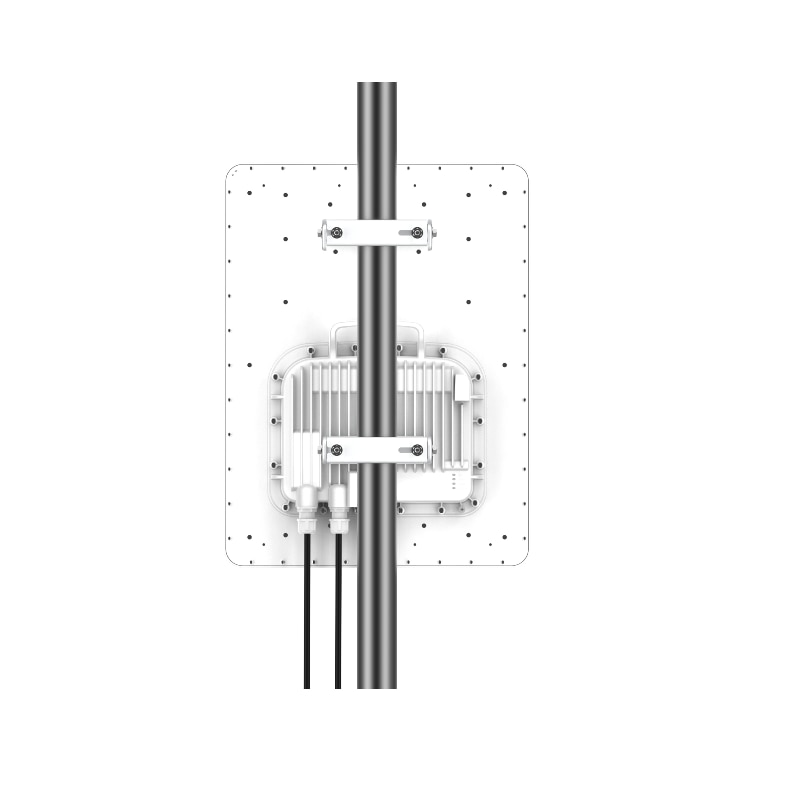

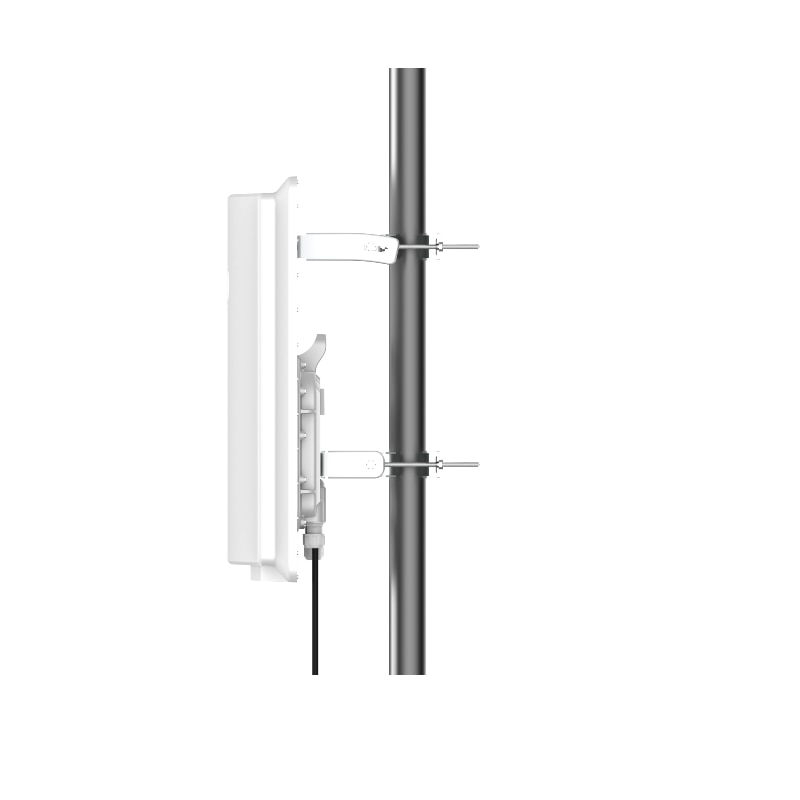

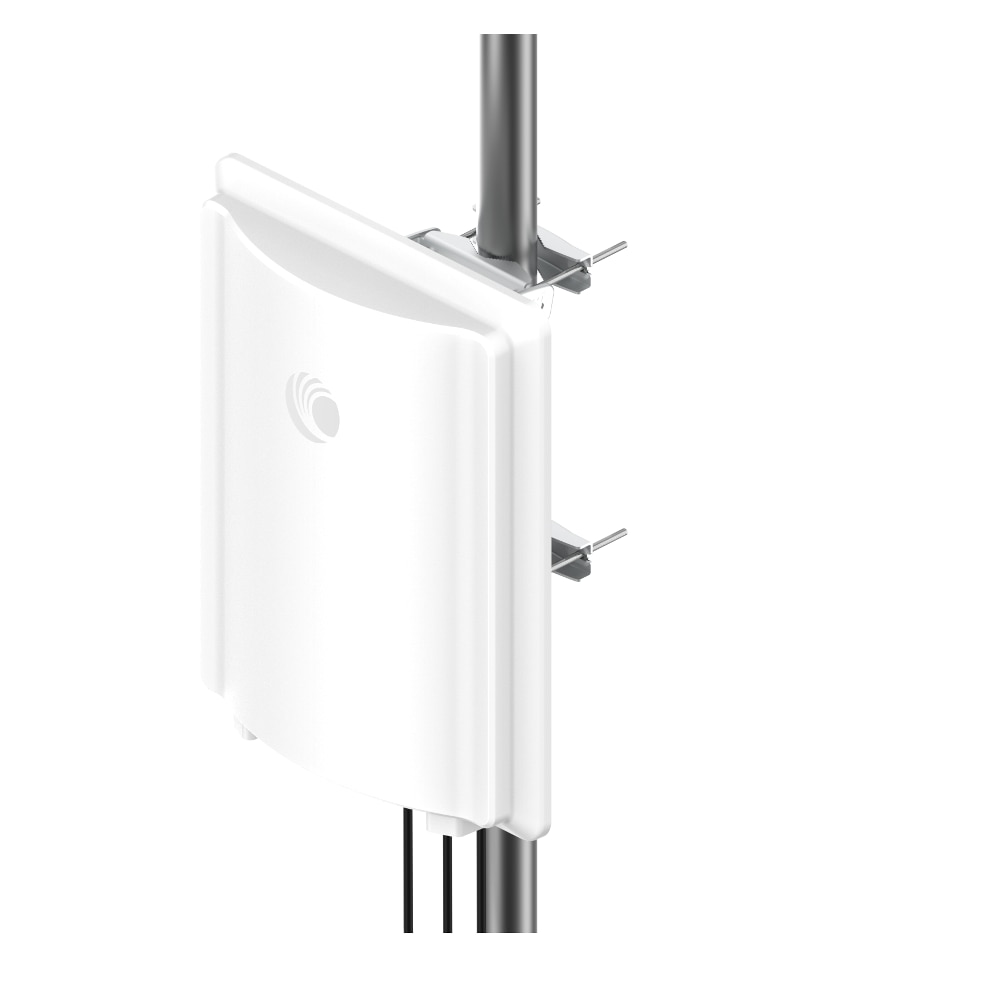

ePMP 4500 Access Point: 8x8 MU-MIMO AP with an integrated 90-degree sector delivering more than 3 Gbps.

The ePMP 4500 delivers more than 4 Gbps and supports up to 120 subscriber modules. Featuring 8x8 MU-MIMO, the 5 GHz ePMP 4500 can transmit to four Force 400 SM’s at the same time. This effectively quadruples the capacity of 2x2 systems and in the process, increases link budgets by 6 dB with downlink beamforming. The ePMP 4500 has an integrated 90º 8x8 MU-MIMO sector antenna. With TDD synchronization, ePMP 4500 networks can scale to thousands of end users leveraging a small number of channels.

Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP 4500 Access Point series is the fourth generation ePMP based on 802.11ax technology. ePMP 4500 Access point interoperate with Force 400 Subscriber modules and support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 4500 to deliver consistently high-quality service plans to a large number of end users.

All ePMP 4500 Access point series are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.

Features:

  • High-performance, scalable and reliable
  • access points for fixed wireless broadband
  • ePMP 4500 features MU-MIMO and up to 4 Gbps in performance
  • Low TCO with three-year hardware warranty
  • Planned compatibility with legacy ePMP client modules

Specifications

Specifications C058940A122A

Channel Width20 | 40 | 80 MHz
Proprietary Physical Layer8x8 MU-MIMO/OFDMA based on 802.11ax underlying technology
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 4910–6135 MHz
(Note: Allowable frequencies and bands are dictated by individual country regulations)
MAC Layer (Media Access Control)Cambium Proprietary
Ethernet Interfaced100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP port
Supported Powering Methods56V 30W PoE (included), standard 802.3bt PoE Supply, or cnMatrix Tower Switch, or wired DC input
Protocols UsedIPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network ManagementHTTPS, SNMPv2c, SSH
VLAN802.1Q with 802.1p priority
Performance

Subscribers per SectorUp to 120
ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -62 dBm (per chain
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain)
Modulation Levels (Adaptive)MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
GPS SynchronizationYes, via Internal GPS or Cambium Sync
QoS (Quality of Service)Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Performance cont’d
 ePMP 4500
Transmit Power Range0 to +34 dBm (combined, to regional EIRP limit) (1 dB interval)
AntennaIntegrated 8x8 MU-MIMO 90º Sector 17 dBi gain
Surge Supression*1 Joule Integrated
EnvironmentalIP67
Temperature-30°C to 55°C (-22°F to 131°F)
Weight14.66 kg (32.32 lbs) with clamp
Dimensions (H x W x D)643 x 487 x 157 mm (25.3 x 19.2 x 6.2 in)
Power Consumption32W Maximum
Input Voltage44V to 59V
Sector Antenna ConnectionIntegrated 90º Sector
GPS Antenna Connection1 x 50 ohm, SMA; Integrated GPS Antenna
Security
EncryptionAll models: 128-bit AES (CCMP mode)
Certifications
 ePMP 4500
FCCIDZ8H89FT0065
Industry Canada Cert109W-0065
CESee Cambium Website for Declaration of Conformity
