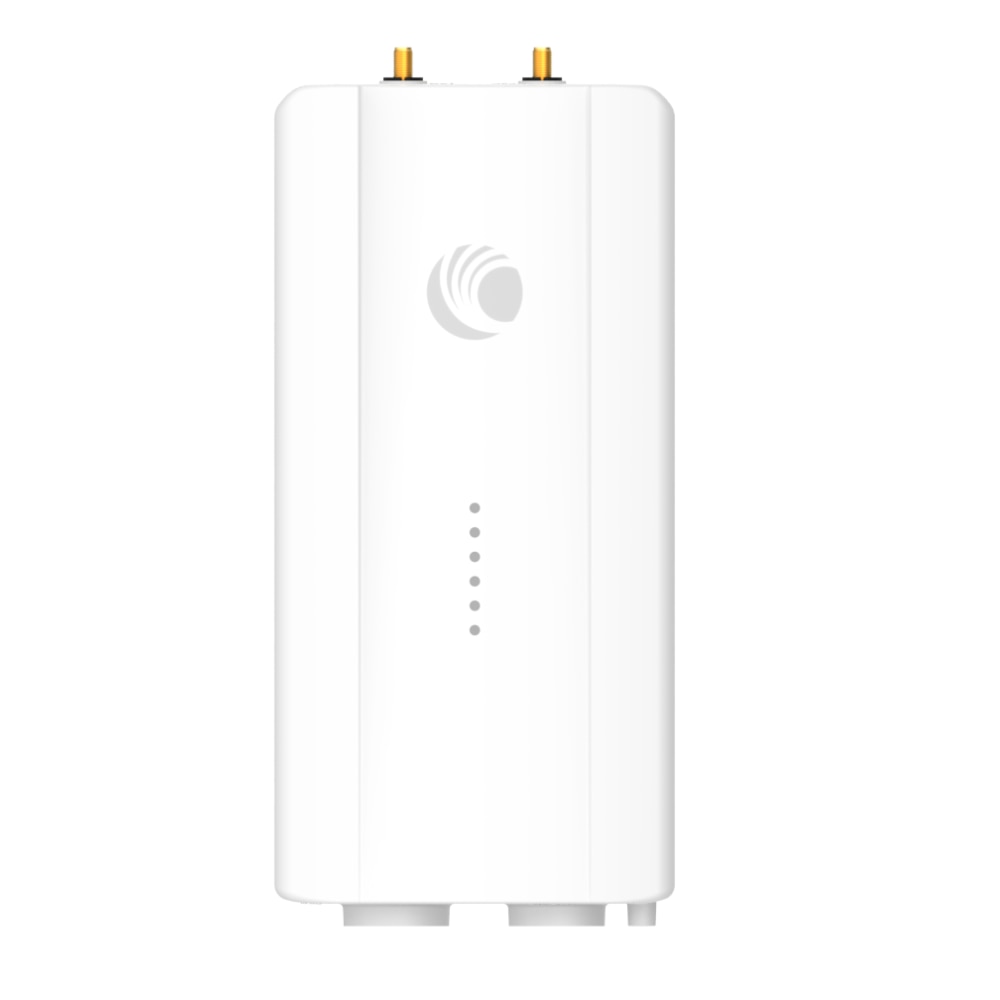

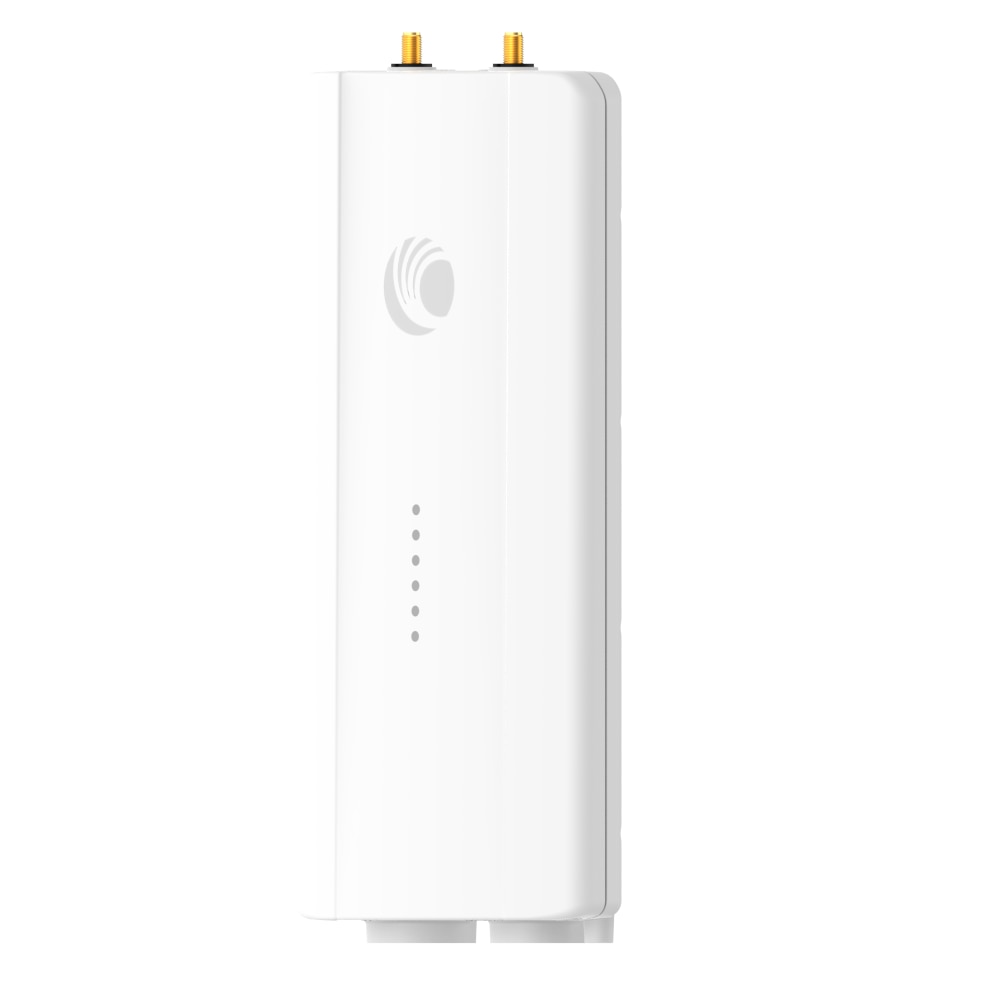

Cambium ePMP 4600L 6 GHz 2x2 Access Point Radio (FCC/IC) (US cord)
- SKU: C068940A152A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C068940A152A
ePMP 4600L 6 GHz 2x2 Access Point Radio (FCC/IC) (US cord)
The ePMP 4600L is a 2x2 MIMO Access Point that delivers up to 2 Gbps and it can support as many as 120 end users. Utilizing GPS synchronization, the ePMP 4600L mitigates self-interference and increases subscriber density.
Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP 4600 Access Point series is the fourth generation based on 802.11ax technology. ePMP 4600 Access Points series interoperate with Force 4600 Subscriber Modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 4600 Access Point series to deliver consistently high-quality service plans to a large number of end users.
Features:
- High-performance, scalable and reliable access points for fixed wireless broadband
- Features MU-MIMO for up to 4 Gbps in 6 GHz
- Low TCO with three-year hardware warranty
- Interoperable with all Force 4600 radios
- Cloud or on-premises network management with cnMaestro
Specifications
Specifications C068940A152A
| Weight | 2 lbs |
| Dimensions (HxWxL) | 4" x 7" x 14.5" inches |
| Channel Width | 20 | 40 | 80 | 160 MHz |
| Proprietary Physical Layer | 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range Note: Allowable frequencies and bands are dictated by individual country regulations. | Wide Band Operation 5725–7125 MHz 1 |
| 1) Performance of radio from 5725–5925 MHz is TBD | |
| MAC Layer (Media Access Control) | Cambium Proprietary |

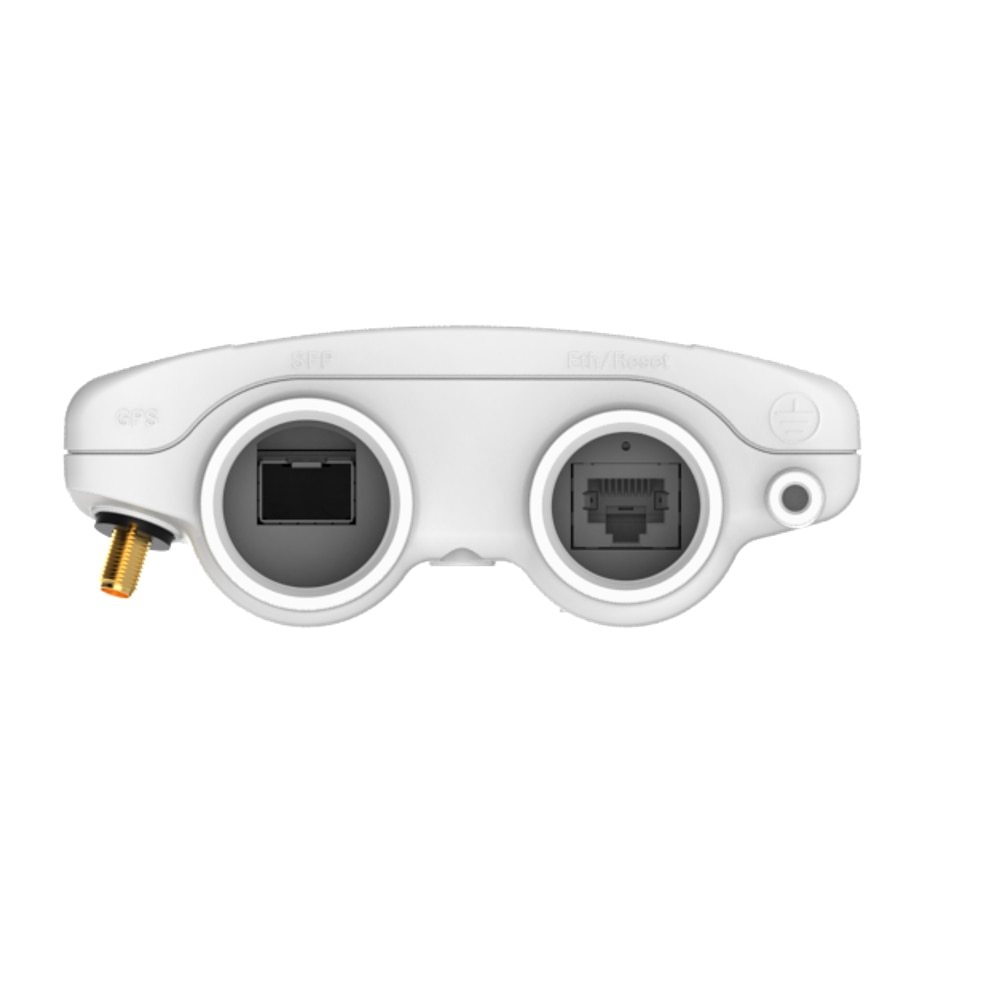

| Ethernet Interfaced | 100/1000 BaseT, rate auto negotiated, 802.3at compliant & Aux SFP+ port |
| Supported Powering Methods | 56V 30W PoE (included), standard 802.3at PoE Supply, or cnMatrix Tower Switch |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTP/HTTPS, SNMPv2c, SNMPv3, SSH |
| Performance | |
| Subscribers per Sector | Up to 120 |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -92 dBm to MCS 13 (4096 QAM-5/6) = -53 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -89 dBm to MCS 13 (4096 QAM-5/6) = -50 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -86 dBm to MCS 13 (4096 QAM-5/6) = -47 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @160 MHz Channel | MCS 0 = -83 dBm to MCS 13 (4096 QAM-5/6) = -44 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 13 (4096 QAM-5/6) |
| GPS Synchronization | Yes, via Internal GPS or Cambium Sync |
| QoS (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support |
| Link Budget | |
| Transmit Power Range | 0 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna | 2x2 Sector Antenna |
| Physical | |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 0.73 kg (1.61 lbs) without bracket |
| Power Consumption | 28W Maximum |
| Input Voltage | 44V to 59V |

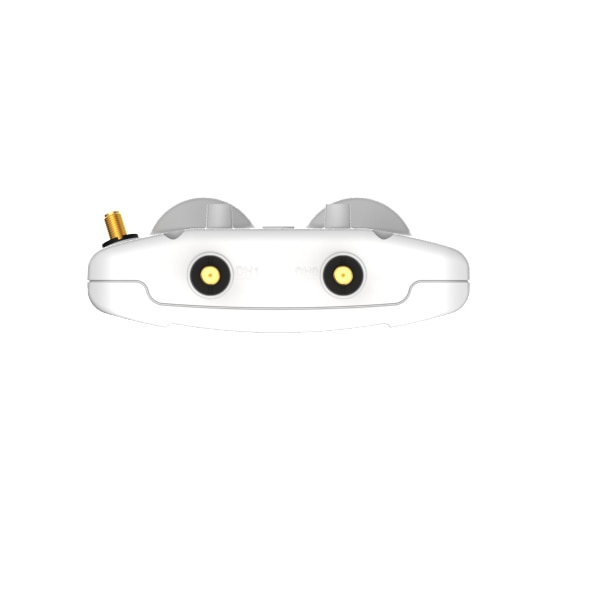

| Sector Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP |
| GPS Antenna Connection | 1 x 50 ohm, SMA; external GPS Puck Antenna - Part # N000900L030A |
| Security | |
| Encryption | All models: 128-bit AES (CCMP mode) |
| Certifications | |
| FCCID | Z8H89FT0069 |
| Industry Canada Cert | 109W-0069 (Certification Pending) |
| CE | See Cambium Website for Declaration of Conformity |
| FCC Regulatory Part Number | C068940P151A |
| ETSI Regulatory Part Number | C068940P151A |
