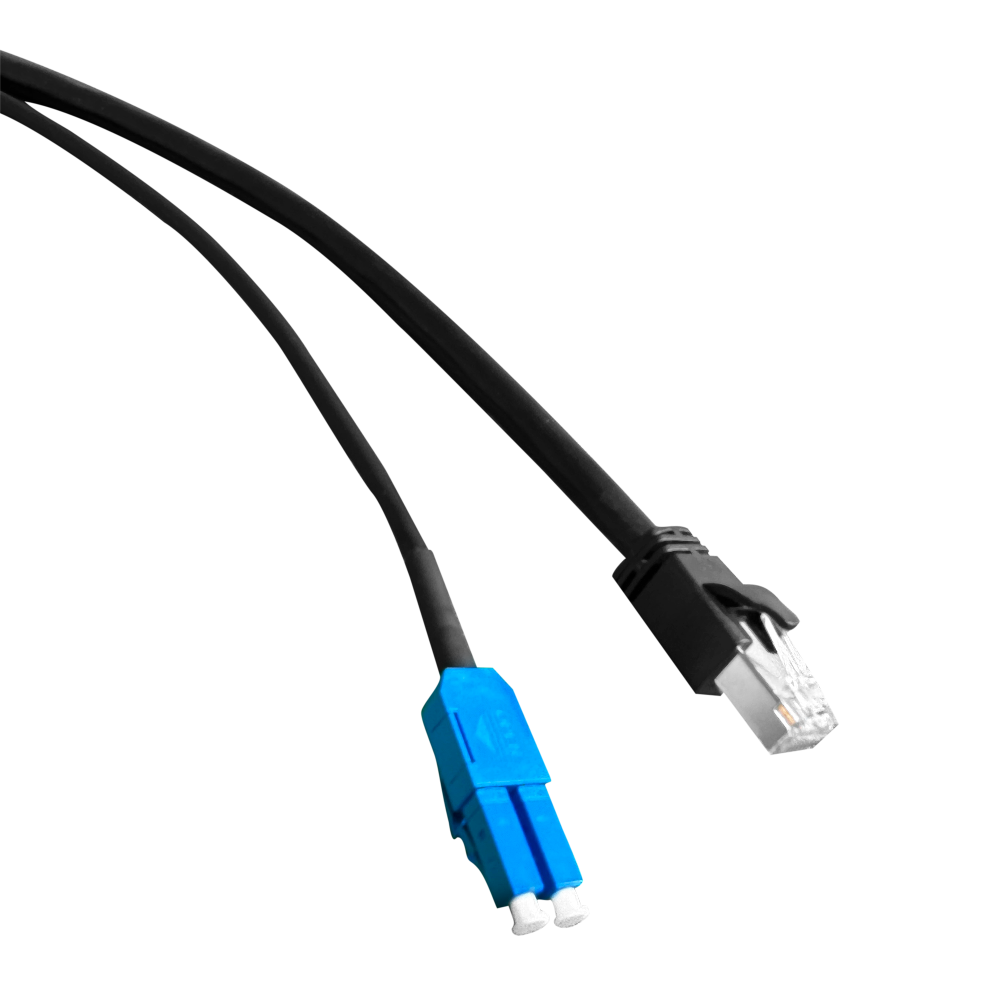

LightSaber Cat6 23AWG Solid S/FTP Shielded Ethernet + 2F SM Armored Fiber Hybrid Cable, Black PE UV-resistant Jacket
- SKU: LSO-ODA-CAT6/SM-LC2F
$25.81 to $5,171.00Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
LightSaber Optics LSO-ODA-CAT6/SM-LC2F
Cat6 23AWG Solid S/FTP Shielded Ethernet + 2F SM Armored Fiber Hybrid Cable, Black PE UV-resistant Jacket
- ANSI/TIA-568.2-D & ISO/IEC 11801; IEC60794-2 & ITU-T G651.
- All-scenario applications.
- Network cable: 1000 Base-T & 1000 Base-TX; Optical cable: 1000 Base-SX.
Specifications
Specifications
| Outside diameter | 11.8 ± 0.05mm | |
| Sheath material | HDPE | |
| Outer sheath average thickness | 0.57 ± 0.05mm | |
| Weight | 110 ± 3KG/KM | |
| Color | Black | |
| Printing Type | Spray printing | |
| Printing content | Customized | |
| Tight Buffer Fiber | ||
| Count | 2 | |
| Color | Blue, White | |
| Sheath material | PVC | |
| Diameter | 0.6 ± 0.05 mm | |
| Fiber Type | G657A2 | |
| Fiber Brand | YOFC | |
| Protective Layer | Spiral steel strip armor + Armid Yarn (import) | |
| Steel strip material | SUS204 | |
| Number of armid yarn | 6 | |
| Inner sheath | Outer Diameter 3.0 ± 0.15 mm | |
| Sheath material | LSZH(UV,ROHS) | |
| Sheath color | Yellow | |
| Inner sheath average thickness | 0.45 ± 0.05 mm | |

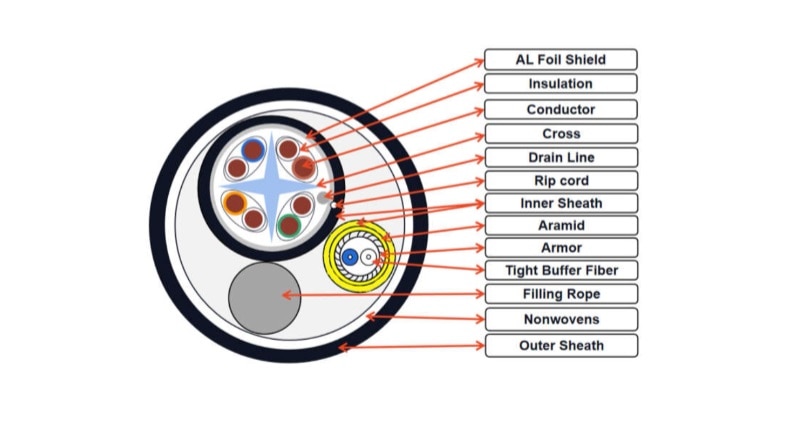

| Structure | ||
| Shielding | FTP | |
| Number of line pairs | 4pairs | |
| Conductor | ||
| AWG | 23AWG | |
| Material | BC | |
| Outer diameter of the conductor | 0.57 ± 0.01 mm | |
| Insulation | ||
| Insulation material | PVC(UV Resistance) | |
| Outer diameter of the insulation | 1.15 ±0.05 mm | |
| Insulation average thickness | 0.29 ± 0.01 mm | |
| Pairs | ||
| 1 | White-blue/Blue | |
| 2 | White-orange/Orange | |
| 3 | White-green/Green | |
| 4 | White-brown/Brown | |
| Filler | ||
| Drain Line | CCA | |
| Rip Cord | Nylon | |
| Shielding | ||
| FTP | Aluminum Foil | |
| Inner Seath | ||
| Outside diameter | 7.5 ± 0.2 mm | |
| Sheath material | PVC | |
| Inner sheath average thickness | 0.58 ± 0.05 mm | |
| Performance and Application | ||
| Fiber Test Standards | 850nm | ≤0.35 dB/km |
| 1300nm | ≤0.3 dB/km | |
| Network Test Standards | Fluke DTX-1800 | PASS |
| Performance | ||
| Tensile strength | Long-term: 100N/Short-term: 200N | |
| Performance "Minimum bend radius: Static: 10D/Dynamic: | 10D/Dynamic: 20D (“D” is the diameter of the cabIe | |
| Installation & Operation temperature: | -30 ~+ 65°C | |
