LightSaber Optics 12RU 24" Wide x 25" Deep Double Hinged Outdoor Pole Mount Enclosure, NEMA 4X Rated|Grey

  • SKU: LSO-12UOD-600600-DHPM
  • Manufacturer: LightSaber
  • Data Sheet: Download
  • Spec Sheet: Download
  • Availability: Pre-Order Now! Email me when this product is in stock!
US$‎737.29

Add-Ons (click to select)

Open Box Items

LightSaber Optics LSO-12UOD-600600-DHPM

12RU 24" Wide x 25" Deep Double Hinged Outdoor Pole Mount Enclosure, NEMA 4X Rated|Grey

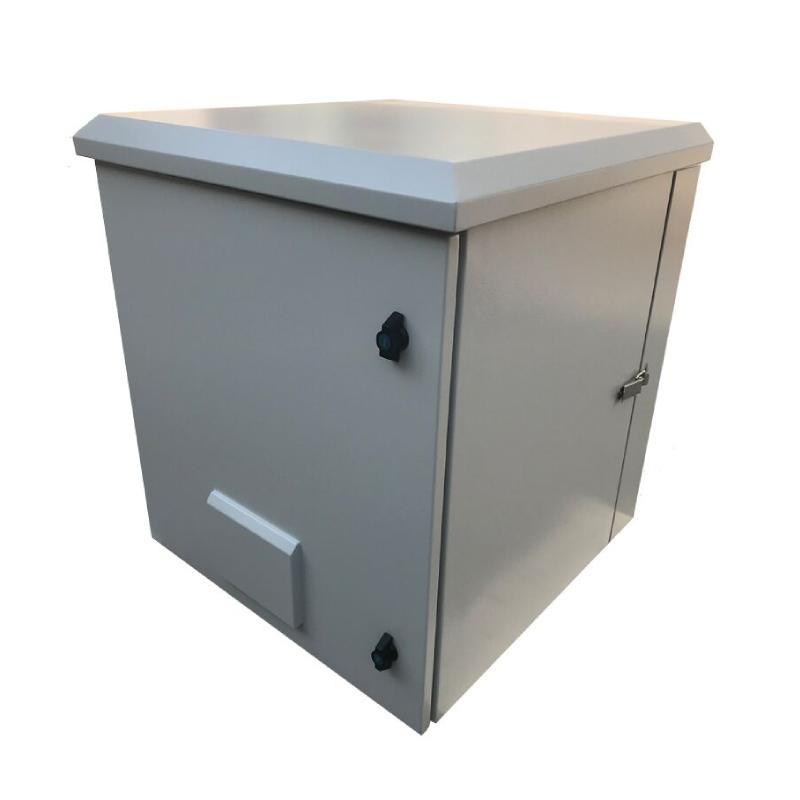

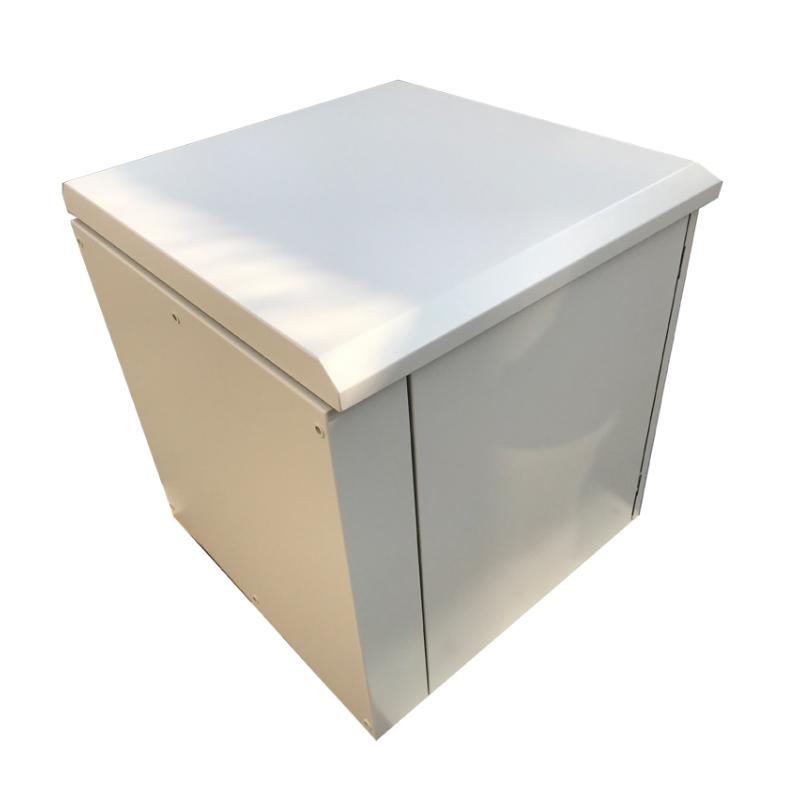

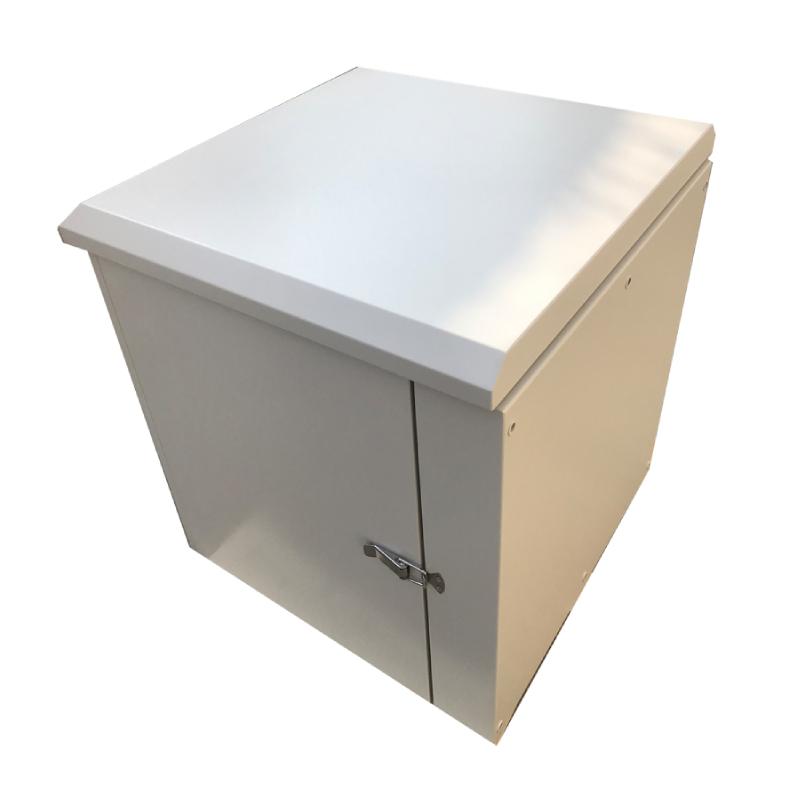

Designed for housing network access equipment in harsh environments using 19"" mounting rails. The LSO-12UOD-600600-DHPM hinged double outdoor enclosure features dual access to both the front and rear of the equipment that allows for easy installation and connection between the main cable route and equipment, it provides outstanding protection against dust, oil and water with both solid and window door options.

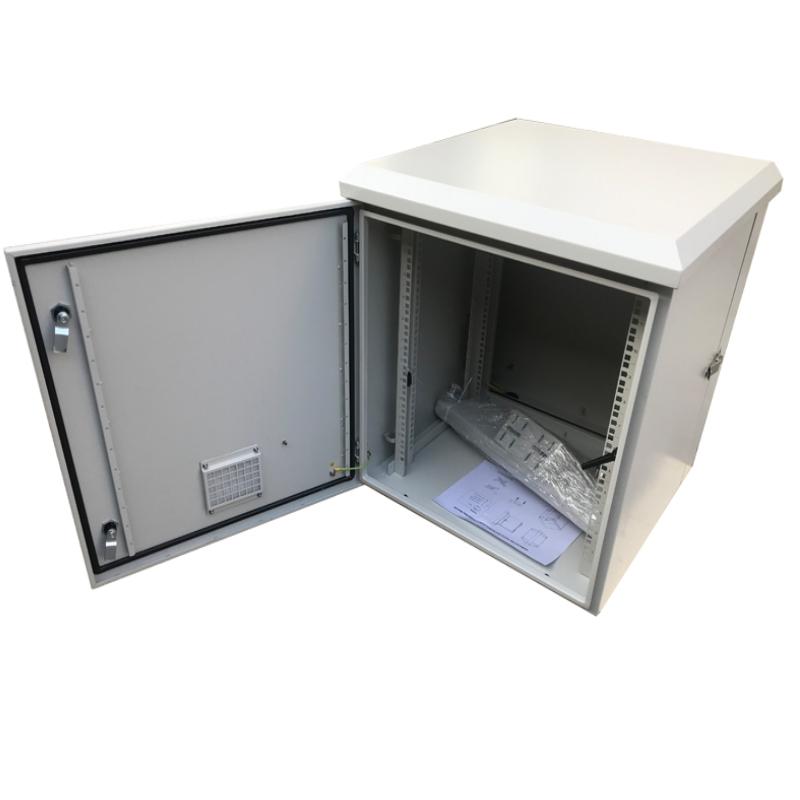

The cabinet design allows natural wind cooling through filtered vents on the front door. For added protection, there is a water and dust proof polyurethane door joint strip.

The swing-out hinged outdoor enclosure has a dual fan kit included in the roof with a dust proof cover for greater airflow/cooling. The fans are serviceable by lifting pivoting the rain hood, and the front door dust filters are easily accessible for cleaning. All fixtures are internal to the cabinet to provide a secure solution.


Features:

  • Fully assembled

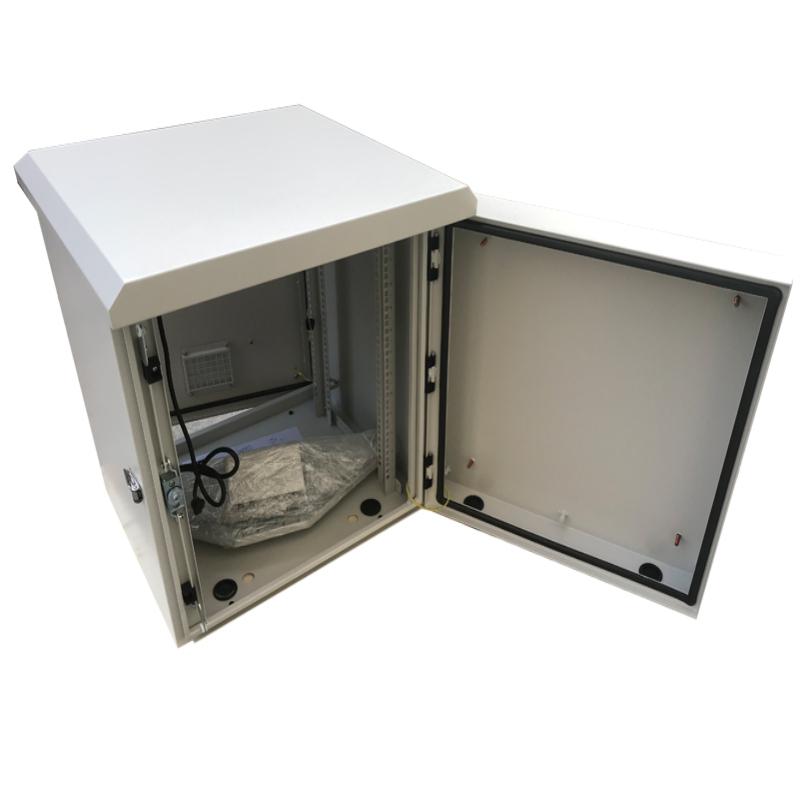

  • Dual access to equipment via the double hinge design.
  • Allows for access to both front and rear of equipment allowing for easy maintenance.

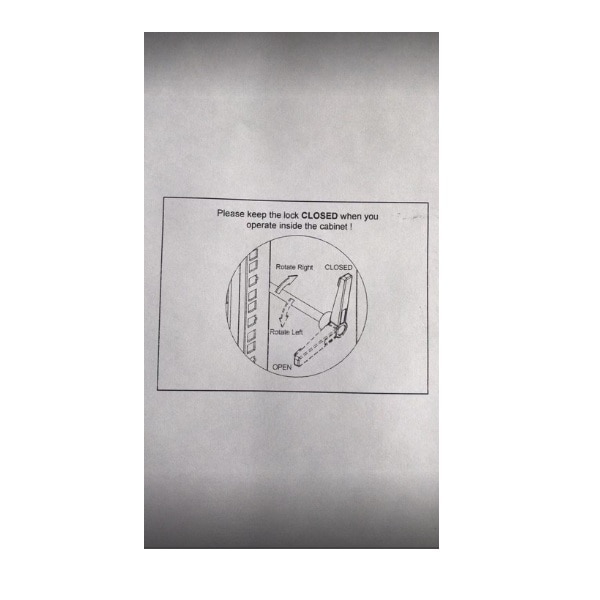

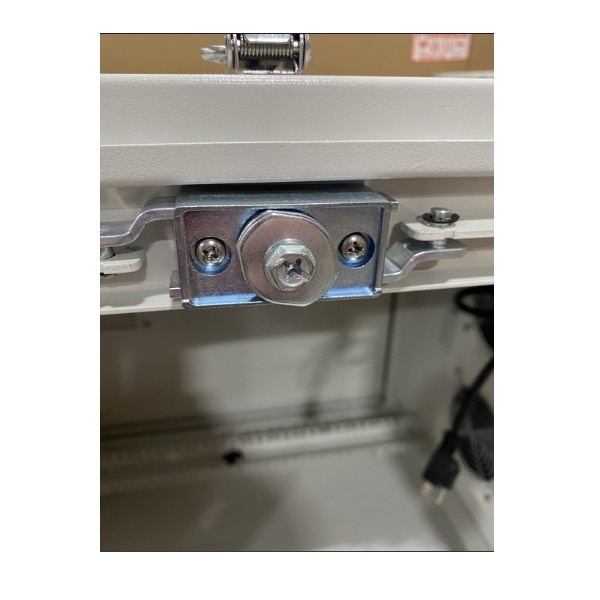

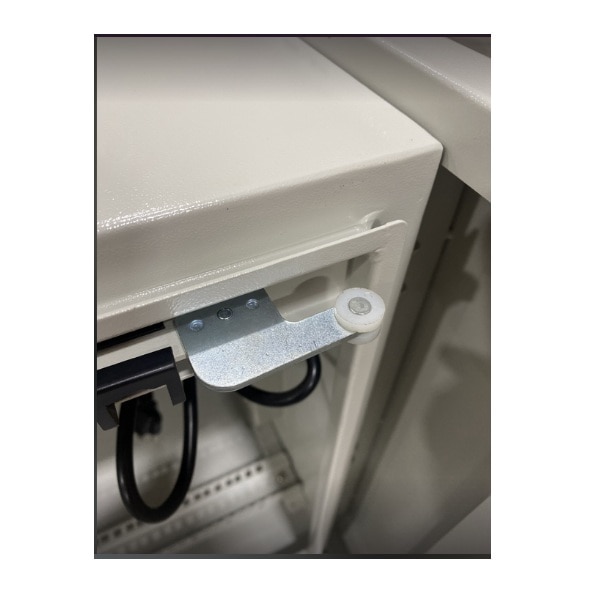

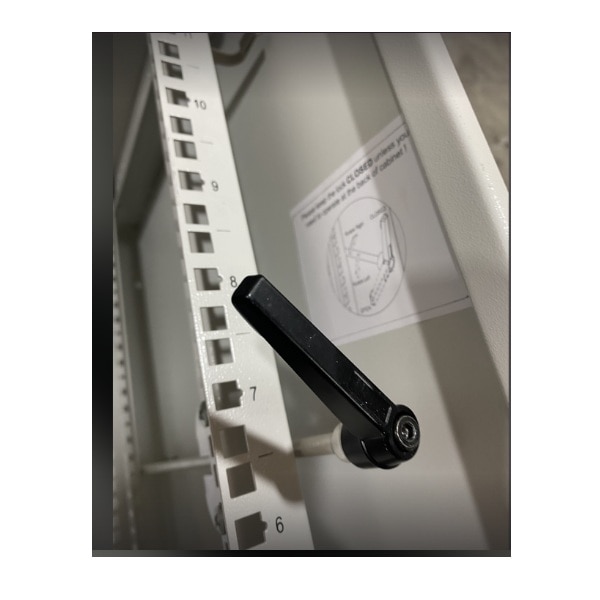

  • Interior latch releases the center section for added security, no tools required.
  • 12U equipment space,NEMA 4X Rated
  • Adjustable 19inch equipment rail, with cable rings included

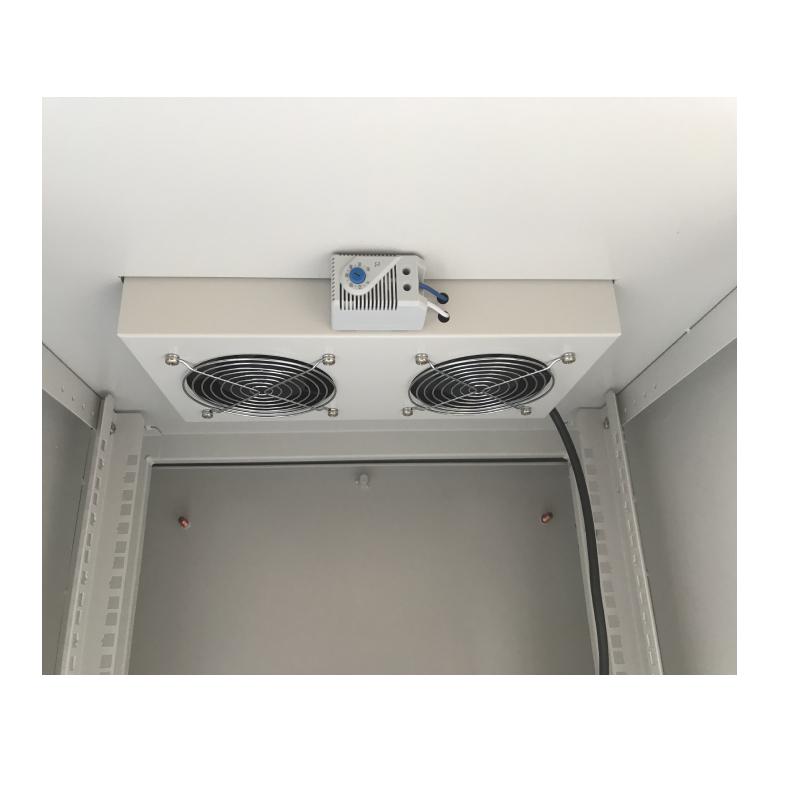

  • AC110V 60Hz Cooling Fan Unit (2pcs) on the top roof(with temperature controller)
  • Grounding wires
  • Cable entry holes with gromment on the bottom

Also comes with:

  • 4 x wallmount bracket(includes mounting hardware)
  • 2 x side lifting bracket (includes mounting hardware)
  • 1 x polemount bracket kits (includes mounting hardware)
  • 10 x M6 cagenut
  • 2 x Keys

Specifications LSO-12UOD-600600-DHPM

Physical
Protection ClassNEMA 4X
Rack Unit Size12U
Cabinet TypeWall Mount or Pole Mount Outdoor Enclosure
ColorGrey RAL7035
MaterialCold-rolled Steel
Unit Dimension(WxDxH)23.62 x 25.00 x 26.10 inches (without extrude rain roof dim.)
Unit Weight(lbs.)123.42
Internal Depth (Front Rail to Back Door)22.24 inches
Rail to Rail Depth14.96 inches
Shipping Dimension(WxDxH)27.56 x 27.95 x 28.35 inches
Shipping Weight(lbs.)128.93
Electrical
Cooling AC110V Cooling Fans x 2 (with tem. controller)
Certifications
SafetyCE
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty1 Year
