LightSaber Optics Pushable/Pullable SC/APC to SC/APC Simplex SM G.657.A2 Armored Fiber Cable
- SKU: LSO-PFA-SC/APC-SC/APC-SM
$10.50 to $132.10Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
LightSaber Optics LSO-PFA-SC/APC-SC/APC-SM
Pushable/Pullable SC/APC to SC/APC Simplex SM G.657.A2 Armored Fiber Cable

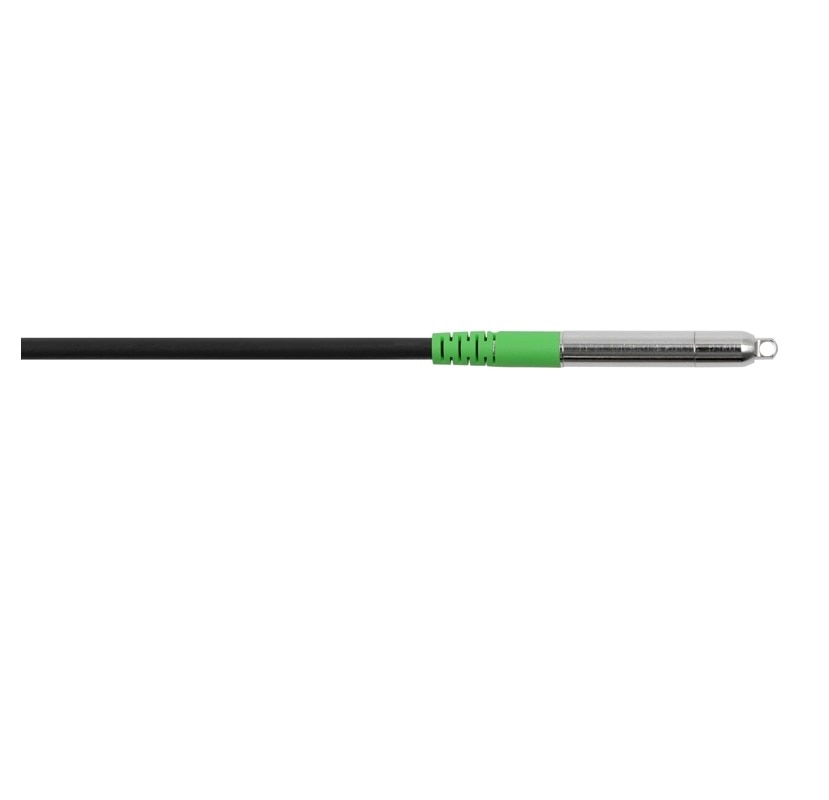

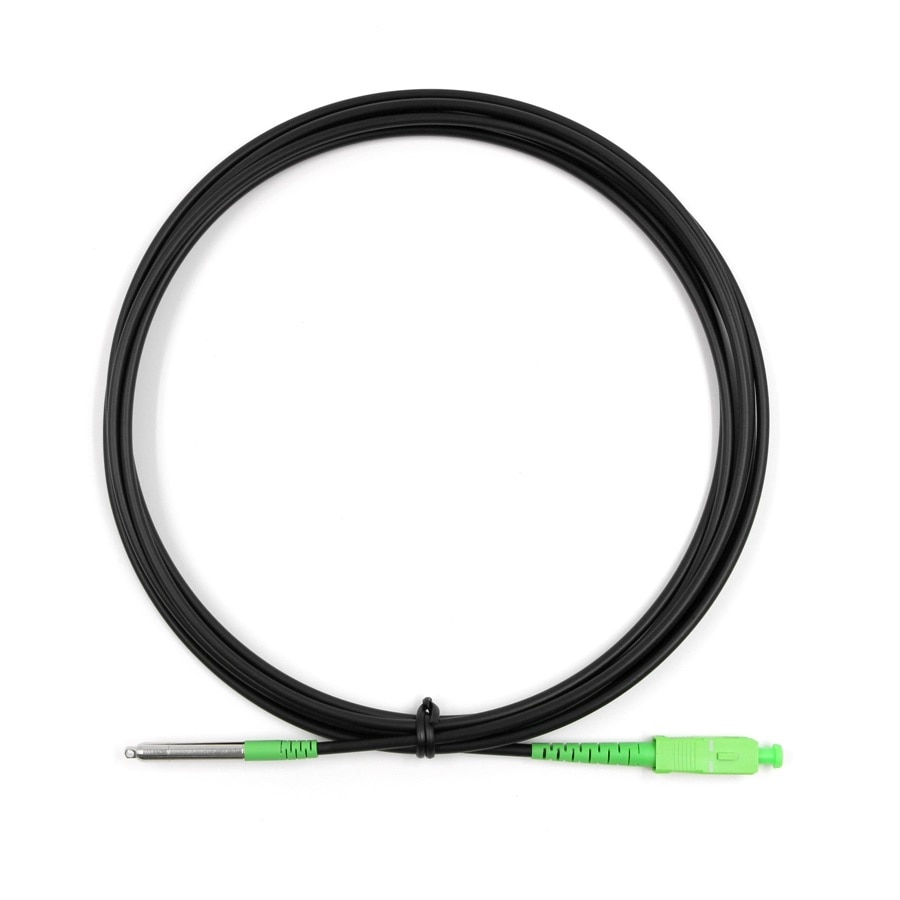

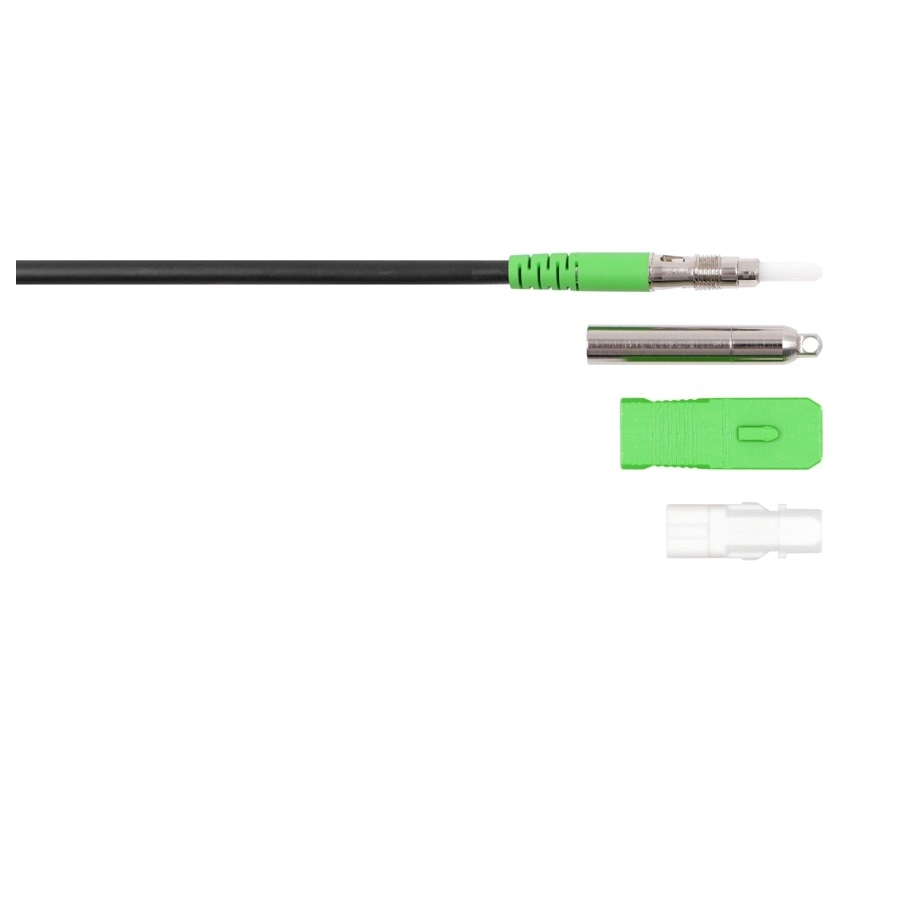

Pushable SCAPC to SCAPC Fiber to the Home Jumper, from NID box to Inside Home.
Features:
- Push or pull the fiber through wall or ducted pathway.
- Simply push/pull fiber through microduct or wall (drill 1/4 in. hole) if pushing long.
- distance use SlimFIT Tool (drill 5/16 in. hole).
- Decreased deployment times and reduced installation costs by eliminating in-field splicing.
- Terminations designed and tested to Telcordia GR-326.
Standards Compliance:
- TIA/EIA-598-B (armored)
- Terminations designed for Telcordia GR-326
- RoHS Compliant
Specifications
Specifications LSO-PFA-SC/APC-SC/APC-SM
| Fiber type | Armored |
| Insertion loss | <0.25dB |
| Macro-bending loss | <0.75dB (10mm radius at 1550nm) |
| Minimum bending radius | Long-term 30mm, Short-term 60mm |
| Tensile resistance | Long-term 22.5 lbs. (100N), Short-term 45 lbs. (200N) |
| Pressure resistance | Long-term 225 lbs./10 cm (1000N), Short-term 675 lbs./10 cm (3000N) |
| Operating temperature | -40°C to 85°C (-40°F to 185°F) |
