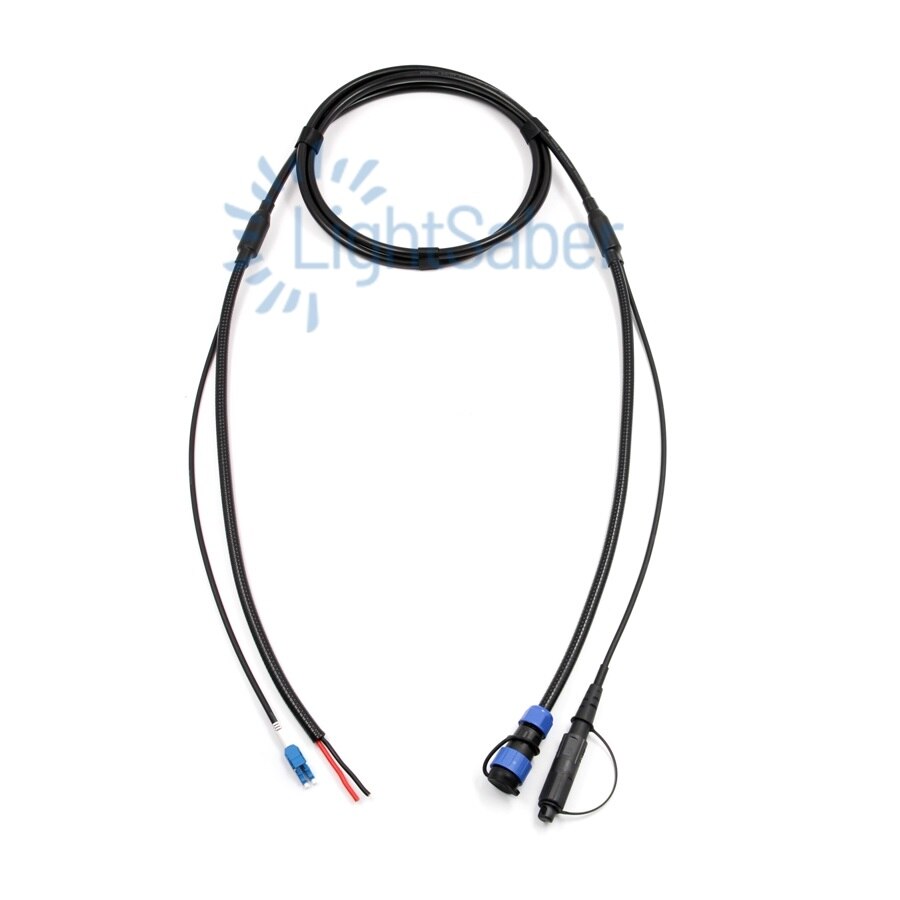

LightSaber 2F+2x12 AWG fiber/power hybrid cable, connects MST to radio
- SKU: LSO-TowerPOP-Jumper-2F+2x12AWG
$39.44 to $190.24 $50.00 to $238.00 Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
LightSaber Optics LSO-TowerPOP-Jumper-2F+2x12AWG
2F+2x12 AWG fiber/power hybrid cable, connects MST to radio.
Specifications
Specifications LSO-TowerPOP-Jumper-2F+2x12AWG
| Fiber Cable | |
| Connector | LC Duplex Uniboot |
| Cable | Armored SM 3.0mm, 2F, Black |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Min Bending Radius | 10D(Static); 20D(Dynamic) |
| Operating Temperature | -40 TO +70°C |
| Standard | ANSI/TIA/EIA 568-C.3 |
| Power Cable | |
| Core | 2C |
| Wire Gauge | 12AWG |
| Cable Color | Red/Black |
| Diameter | 3.6mm |
| Conductor Material | Bare Copper |
| Jacket Material | PVC |
| Rated Voltage | 300V/500V |
