Tarana Wireless 6GHz Remote Node Bundle (5-Pack) priced single
- SKU: 35-0175-001
$1,180.00
- Manufacturer: Tarana Wireless
- Data Sheet: Download
Product Information
Tarana Wireless 35-0175-001
5.725-5.850, 5.925–6.425 6.525–6.875 GHz Remote Nodes (RN) include 100Mbps Perpetual Licenses, PoE Power Supplies, and Mounts (5-Pack) Priced Single

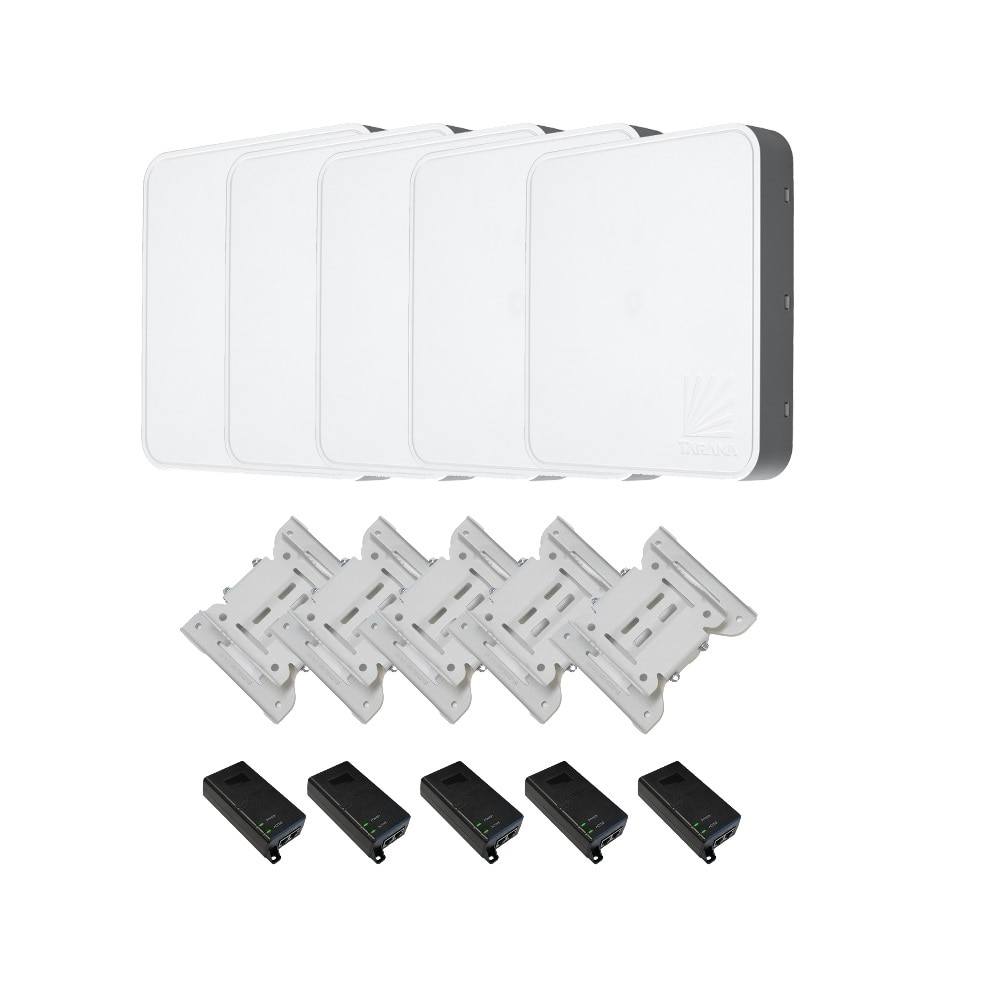

Kit Includes:
- 5x Tarana 6Ghz Remote Nodes
- 5x 100Mbps Perpetual Licenses
- 5x Power over Ethernet (PoE) Power Supplies (44-0027-001)
- 5x Remote Node Mounts (34-0027-001)
US cord sold separately:
- CYG-CPCNAC13-6FT
- CYG-CPCNAC13-3FT
Specifications
| Part Number | 35-0175-001 |
| Frequency support (subject to local regulations) | 5.725–5.850 GHz (UNII-3 FCC/ISED) 5.850–5.895 GHz (UNII-4 FCC)3 5.925–6.425 GHz (UNII-5 FCC) 6.525–6.865 GHz (UNII-7 FCC) |
| Deployment morphology / Use case | LoS, nLoS, NLoS (Gigabit speeds & largest spectrum selection) |
| Throughput (aggregate) | 1.6 Gbps1, 2 |
| Channel bandwidth | 80 MHz (2 x 40 MHz) / 160 MHz (4 x 40 MHz)1, 2 |
| MIMO streams | 1x1, 2x2, 4x42 |
| Antenna | Fully integrated |
| Compatible BNs (base nodes) | 5 & 6 GHz (only UNII-3,4 for 5 GHz) |
| Model numbers | G1-RN6AHB012 |
| Weight | 5 lbs (2.3 kg |
| Dimensions (H x W x D) | 10.3 x 11.3 x 2.1 in (262 x 287 x 53 mm) |
| Power consumption (typical at 55ºC) | 40 W |
| Power input | 48V 802.3bt PoE, type 3, part #44-0027-001 or #44-0037-001 (For G1-RN5ASI012, use 48V PoE part #44-0017-001) |
| Mounting | Band clamp for pole mount (1.5–2.5 inches OD); mount weights 1.2 lbs |
| Form factor | Outdoor, single enclosure with fully-integrated antenna, RF, and baseband |
| Interfaces | 1 Gbps Ethernet interface with PoE support, RJ45 pinout T568B |
| Environmental rating | IP66 |
