MikroTik hEX S 5X Gigabit Ethernet Ports, DDR3 512MB RAM, Dual-Core EN7562CT 950 MHz, RouterOS v7, License level 4
- SKU: E60iUGS
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik E60iUGS
hEX S 5X Gigabit Ethernet Ports, DDR3 512MB RAM, Dual-Core EN7562CT 950 MHz, RouterOS v7, License level 4
MikroTik E60iUGS hEX S is a small, efficient and easy-to-use router, Need a wired router that won’t slow you down or drain your budget?
The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.
With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box.
That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more — so you can build the wired network you’ve always wanted.
hEX S is a router designed for locations where wireless connectivity is not required. It is perfect for use in businesses or homes where there is a need for advanced network control. The device has a black desktop casing, different from those used in older hEX series products.
Features:
- 2.5G SFP UPLINK: Supercharged speed for NAS, fiber, and modern ISP plans
- 5X GIGABIT ETHERNET + BONDING SUPPORT: Run multiple 1G links — share fast uplinks or connect multi-port storage
- POE-IN & POE-OUT: Clean setup with power and data over a single cable (PoE-in on Ether1, PoE-out on Ether5)
- USB 3 PORT FOR STORAGE & FILE SHARING: Plug in a drive and share files locally or remotely easier than ever
- DUAL-CORE ARM CPU + 512 MB RAM: Responsive performance for smart homes, labs, and small offices
- ROUTEROS V7 INSIDE: Custom port configs, VLANs, advanced routing — no feature gates, no upsells, just pure networking

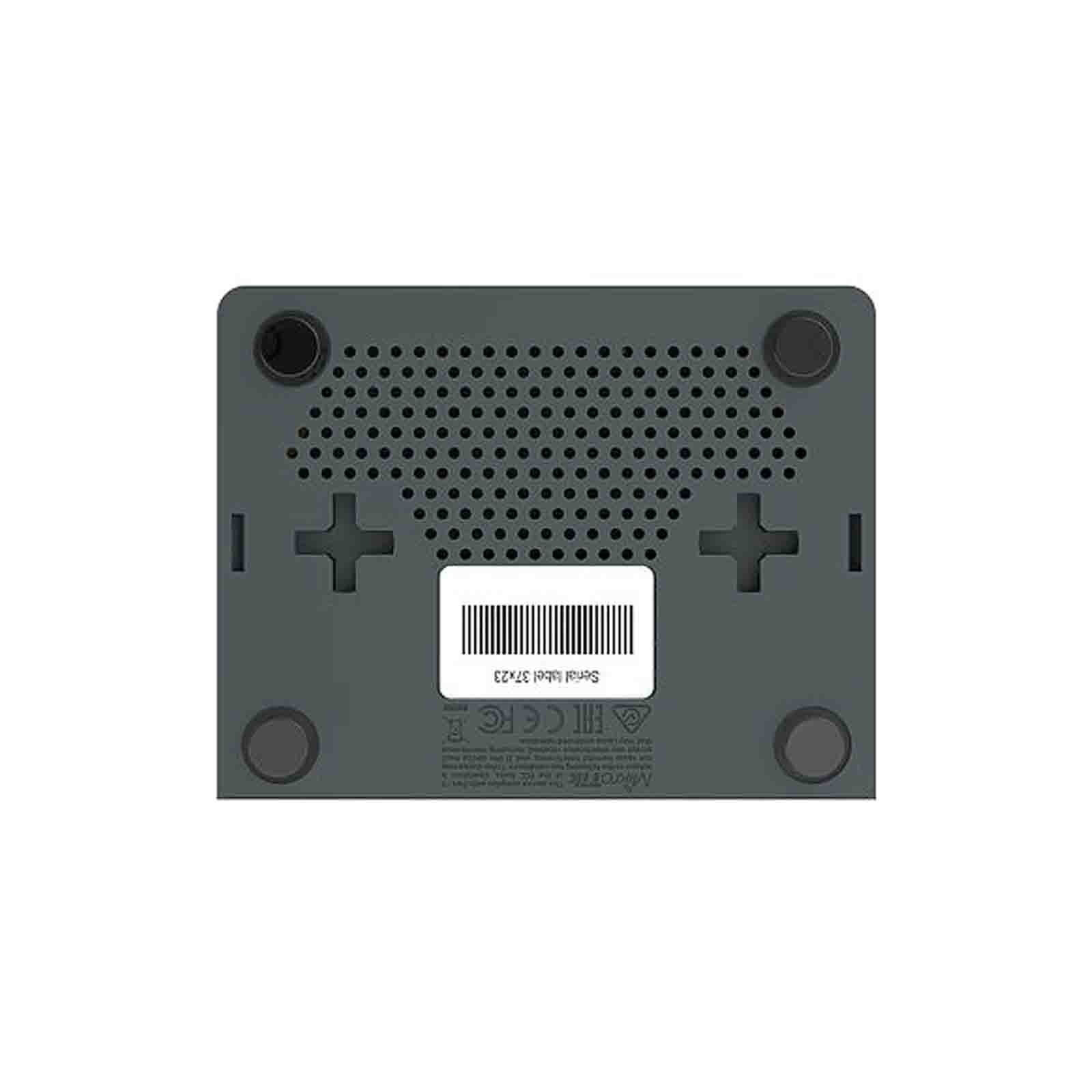

- WALL-MOUNTABLE DESIGN: Flexible form factor fits anywhere — on a desk, wall, or cabinet
- FLEXIBLE POWERING (12–57 V): Compatible with PoE, off-grid power, and standard DC jacks
Specifications
Specifications E60iUGS
| CPU | Dual-Core EN7562CT 950 MHz |
| Size of RAM | 512 MB |
| RAM type | DDR3 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 5 |
| Number of 1G SFP ports | 1 (2.5G supported) |
| USB port | 1 type A |
| Switch chip model | EN7562CT |
| Dimensions | 113 x 89 x 28 mm 4.44" x 3.5" x 1.1" inch |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-In) |
| DC jack input Voltage | 12-57 V |
| PoE-In input Voltage | 18-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| PoE-In | 802.3af/at |
| PoE-out | Passive PoE up to 57V |
| Smart PoE | Injector |
| PoE-out ports | Ether5 |
| Max out per port output (input < 30 V) | 0.5 A |
| Max out per port output (input > 30 V) | 0.5 A |
| Max power consumption (without attachments) | 5 W |
| Max power consumption | 23 W |
