MikroTik 1.4GHz per core 1 GB RAM RouterOS L5 Ultimate Heavy-Duty Home Lab Router

(0)No Reviews yet
  • SKU: RB5009UG+S+IN

Product Information

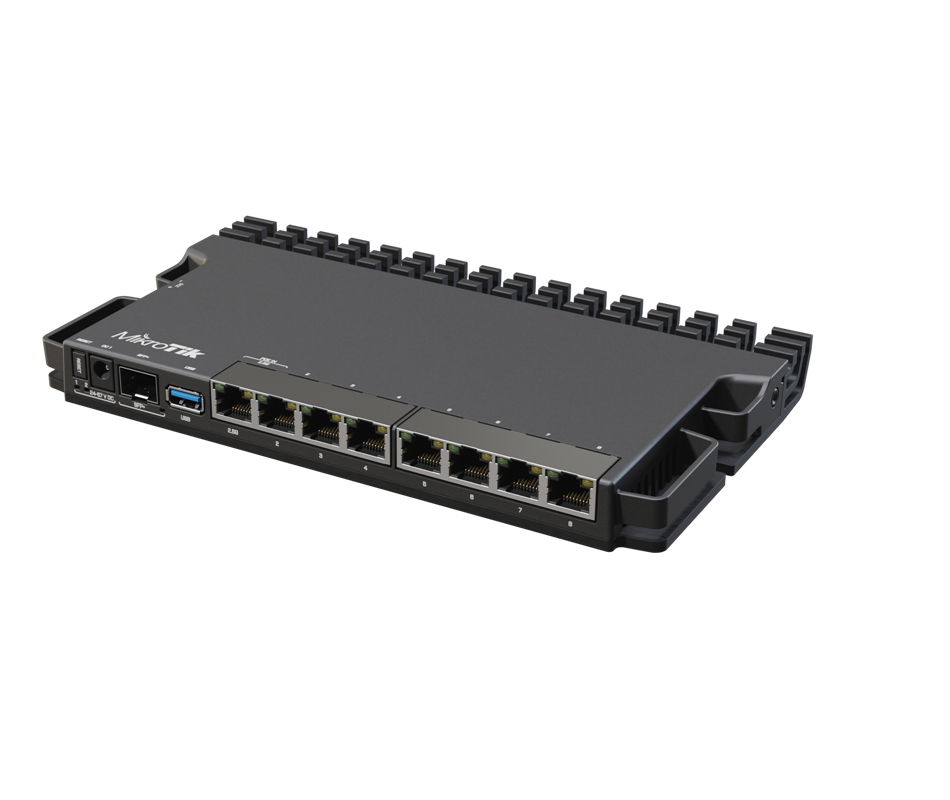

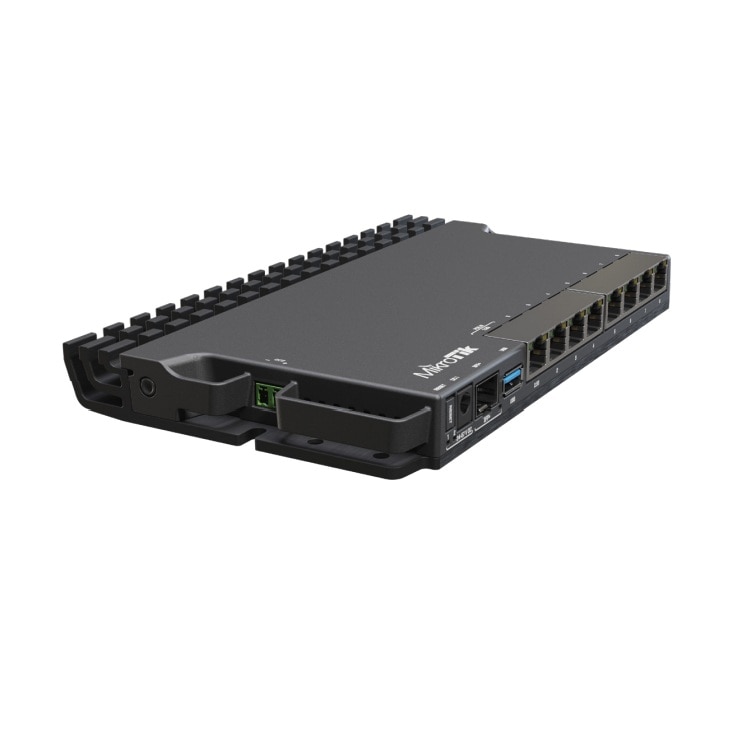

MikroTik RouterBOARD RB5009UG+S+IN

RouterBORD 5009UG+S+ with Marvell Armada ARMv8 CPU (4-cores, 1.4GHz per core), 1GB of DDR4 RAM, 1GB NAND storage, 1x 2.5Gbit LAN, 7x 1Gbit LAN, 1xSFP+ port, RouterOS L5, metal desktop case, PSU

We took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling. RB5009 has it all, and even more!

Unprecedented processing power in such a small form factor. Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.


RB5009UG+S+IN can be powered in 3 different ways:

  • a) PoE-in from Ethernet port #1
  • b) DC Jack
  • c) 2-pin terminal on the side

Features:

  • 7x Gigabit Ethernet ports
  • 1x 2.5 Gigabit Ethernet port
  • 10G SFP+
  • Durable metallic case
  • Powerful quad-core CPU
  • 1 GB DDR4 RAM
  • 1 GB NAND
  • RouterOS v7
  • Multiple powering options

Specifications

Specifications RB5009UG+S+IN

CPU88F7040 1.4 GHz
CPU architectureARM 64bit
CPU core count4
Size of RAM1 GB
RAM typeDDR4
Storage1 GB, NAND
Number of 1G Ethernet ports7
Number of 2.5G Ethernet ports1
Number of 10G SFP+ ports1
USB port1 (3.0 type A)
Operating systemRouterOS (License level 5)
Switch chip model88E6393
Dimensions220 x 125 x 22 mm (8.66" x 4.92" x 0.86" in)
Operating temperature-40°C to +60°C
Powering
PoE-in802.3af/at
Number of DC inputs3
Supported input voltage24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage24 V
Power adapter nominal current1.5 A
Max power consumption (without attachments)14 W
Max power consumption20 W
CertificationCE, FCC, IC
