Mikrotik RBM33G Powerful OEM board with three Gigabit LAN and two miniPCIe slots

  • SKU: RBM33G
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: 129 In Stock    (updated live)

Specifications RBM33G

Product code RBM33G
CPU MediaTek MT7621
CPU nominal frequency 880 MHz
CPU core count 2
Size of RAM 256 MB
Storage Flash, 16 MB
10/100/1000 Ethernet ports 3
MiniPCIe slots 2
PoE in Yes
SSD M.2 slot
Serial port RS232
USB 1 USB 3.0 type A
Supported input voltage 11 V - 32 V (Passive PoE)
Dimensions 105 x 150 mm
Operating temperature -40°C .. +70°C tested
License level 4
Operating System RouterOS
Max Power consumption19 W

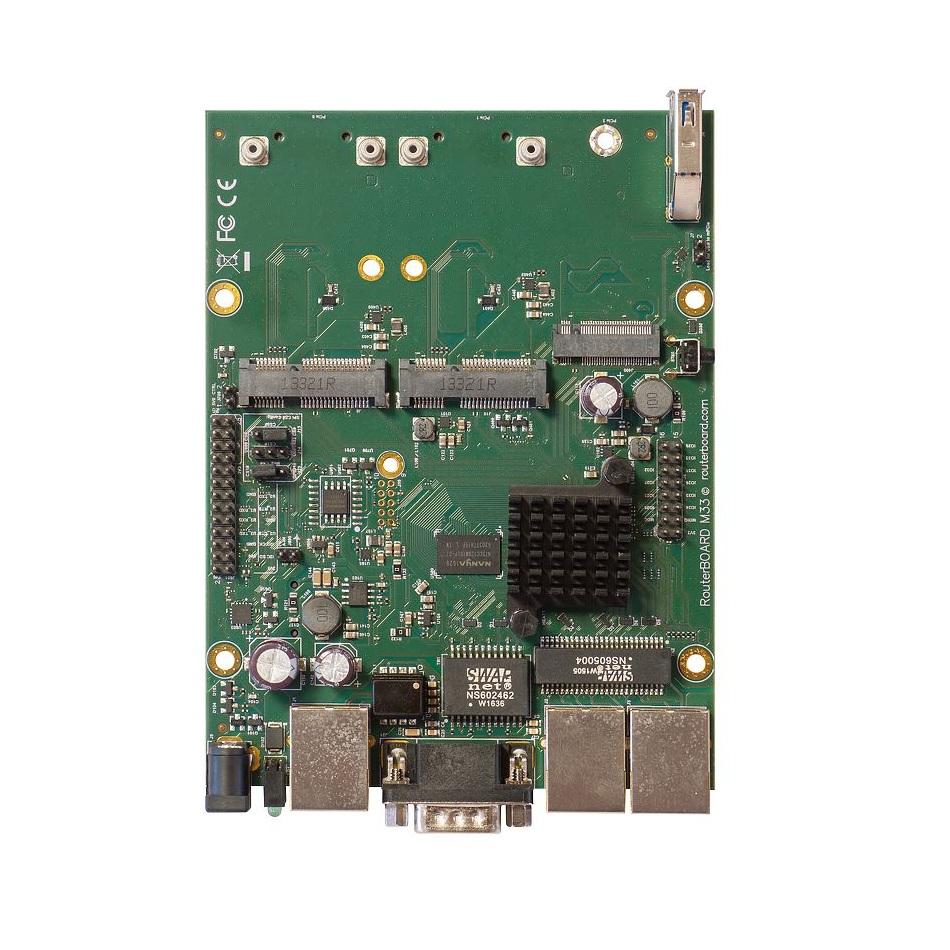

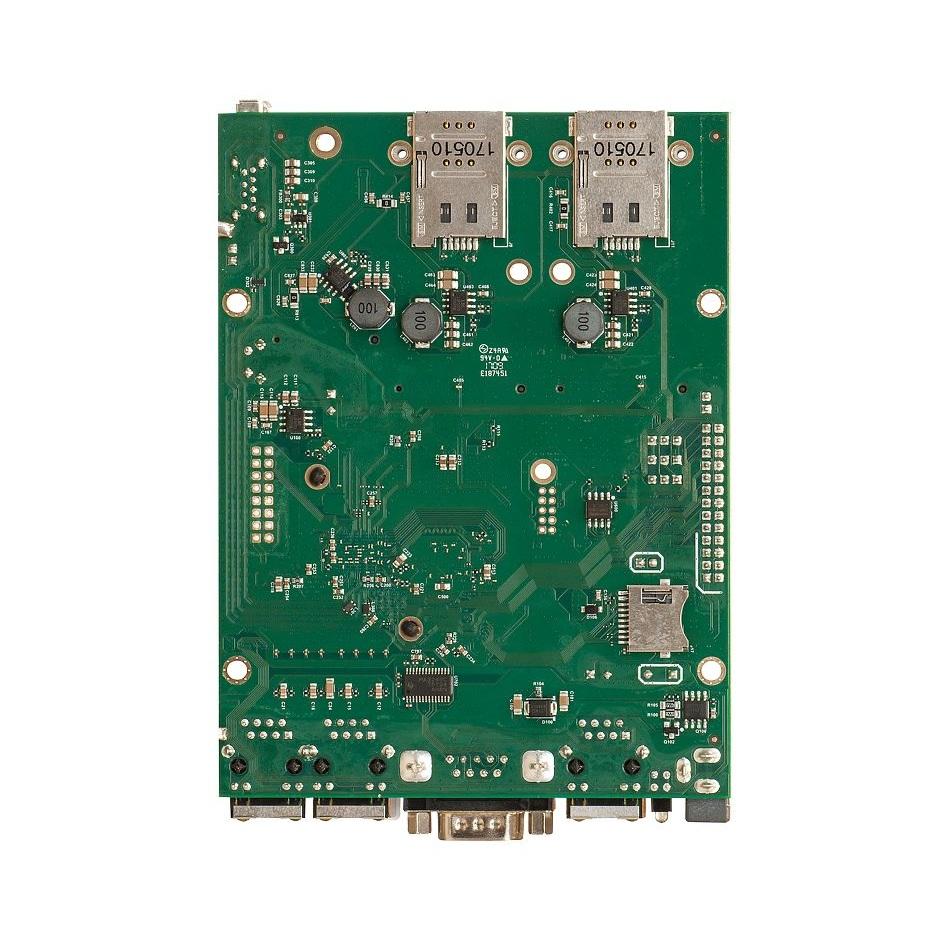

MikroTik RouterBOARD RBM33G

OEM board with two miniPCI-e slots for 3G/LTE

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).

The RBM33G features a new MediaTek four core CPU running at 880 MHz, 256MB of DDR3 RAM and three Gigabit Ethernet ports. It is specially designed for setups that require two 3G/LTE modems in miniPCI-e slots, but can also support one wireless miniPCI-e card (up to two chains).

The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive. For expanding storage, microSD and a PCIe M.2 slots are provided, unit is equipped with RouterOS L4 (Wireless CPE, backbone or AP support) license.

The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
