MikroTik R11e-5HacD 5GHz HP miniPCI-e 802.11ac 2x2 Card
- SKU: R11e-5HacD
US$47.53 US$49.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

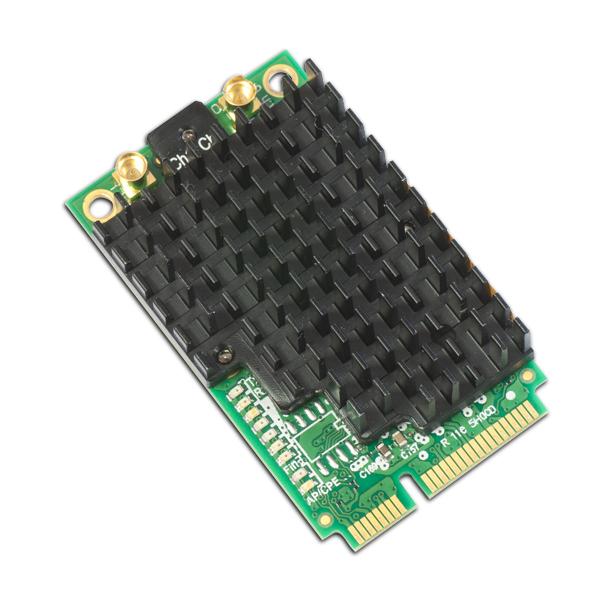

MikroTik RouterBOARD R11e-5HacD
5GHz HP miniPCI-e 802.11ac 2x2 Card
R11e-5HacD is our new 802.11ac card in miniPCI-express format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
Specifications
Specifications R11e-5HacD
| Chipset | QCA9882 |
| Frequency range | 4920-6100MHz |
| Standards | 802.11a/c |
| Max output power | 500mW |
| Format | miniPCIe |
| Dimensions | 51x30x13mm |
| Connectors | 2x MMCX |
| Features | 9 LED indicators, ESD protection |
| Temperature Starting | -5C to +65C; |
| Operating | -30C to +65C |
| MAX power consumption | 5W |
| TX/RX at MCS0 | 26dBm / -96dBm |
| TX/RX at MCS7 | 23dBm / -76dBm |
| TX/RX at 6Mbit | 27dBm / -96dBm |
| TX/RX at 54Mbit | 24dBm / -76dBm |
