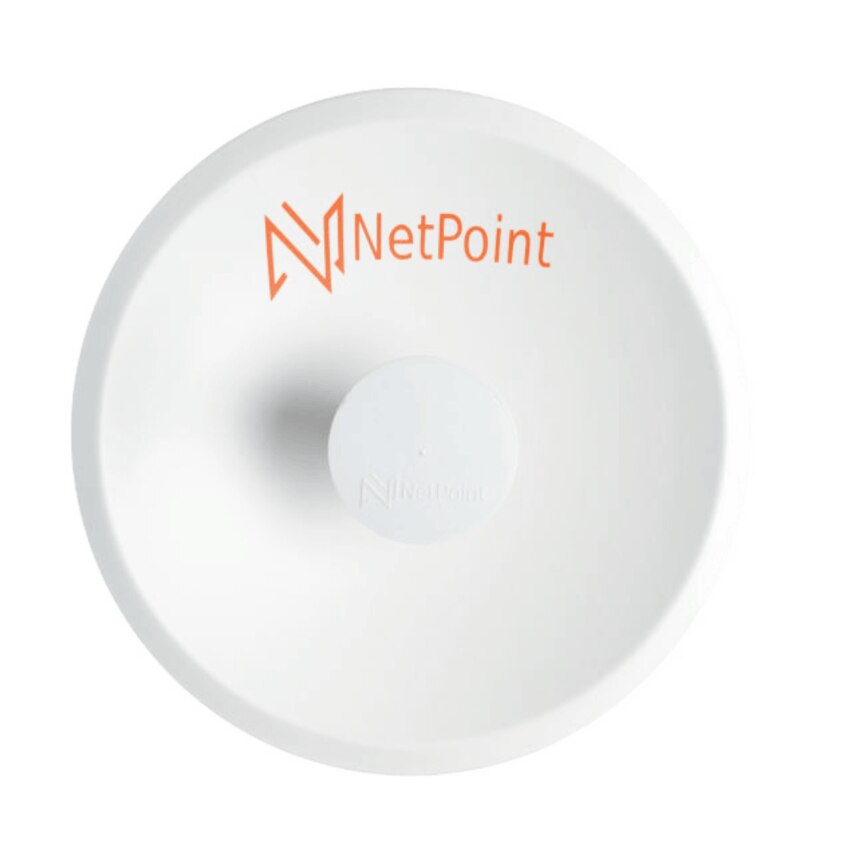

NetPoint 1FT Twist-On Parabolic Antenna, DP 4.9-6.4 GHz, 27 dBi
- SKU: NPPRO5-S-DP-1FT
$296.25
- Manufacturer: NetPoint
- Datasheet: Download
Product Information
1FT Twist-On Parabolic Antenna, DP 4.9-6.4 GHz, 27dBi
NetPoint's NPPRO5-S twist-on high-performance dish antenna is designed to work with very high performance in unlicensed bands with excellent gain. The NPPRO5-S model has dual polarization twist-on compatibility with B5x and C5X, as well as exceptional VSRW performance in the 4.9 to 6.4 GHz operating band.
The antenna comes pre-assembled and ready to install, as does an integrated radome for high performance and reliable operation in the most demanding conditions. This 1-foot parabolic antenna can be used for PTP backhaul, CPE and public safety applications.
Product Features:
- Gain of up to 27dBi with low VSWR and high port isolation across the entire 4.9-6.4GHz band
- One antenna that covers 5 and 6Ghz
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type Twist-on
Specifications
Specifications
| Weight | 14 lbs |
| Dimensions (LxWxH) | 17” x 17” x 11” inches |
| Antenna type | Modular dish twist-on |
| Frequency | 4.9 - 6.4Ghz |
| Connector Type | Twist-on |
| Gain (dBi) | 25dBi for 4.9GHz, 26dBi for 5.4GHz, and 27dBi for 5.7GHz |
| VSWR HPOL | < 2.0 |
| Beamwidth VPOL | > 8.2° |
| Beamwidth HPOL | < 8.0° |
| Radius F/B (dB) | 40dB |
| Polarization | Dual slant 45°Mechanical Specifications |
| Wind max survival speed (MPH) | 124 miles with Radome |
| Azimuth adjustment (°) | ±60° |
| Elevation adjustment (°) | ±15° |
| Mounting Pipe Diameter, Min | 1 inch - 25.4mm |
| Mounting Pipe Diameter, Max | 2.750 in 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
