Mikrotik Dual chain 5GHz integrated 802.11a/n/ac AP/Backbone/CPE with an additional miniPCI-e slot
|CPU nominal frequency||720 MHz|
|CPU core count||1|
|Size of RAM||128 MB|
|10/100/1000 Ethernet ports||1|
|Wireless chip model||QCA9882|
|Number of USB ports||1|
|Supported input voltage||8 V - 30 V|
|PCB temperature monitor||Yes|
|Max Power consumption||19W|
|USB slot type||USB type A|
|Number of chains||2|
|Storage size||128 MB|
Mikrotik RouterBOARD RB922UAGS-5HPacD-NM-US (US Version)
5GHz NetMETAL 5 720MHz 128MB 2x2 11ac
By supporting the 802.11ac wireless standard, the NetMETAL allows to use datarates of up to 1.3Gbps (for the T models), 256-QAM modulation and 20/40/80MHz channels. With it’s huge speed improvements, 802.11ac opens up new possibilities.

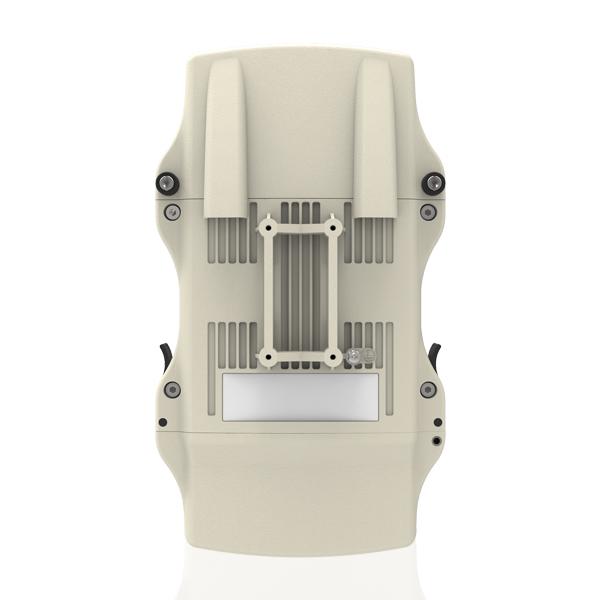

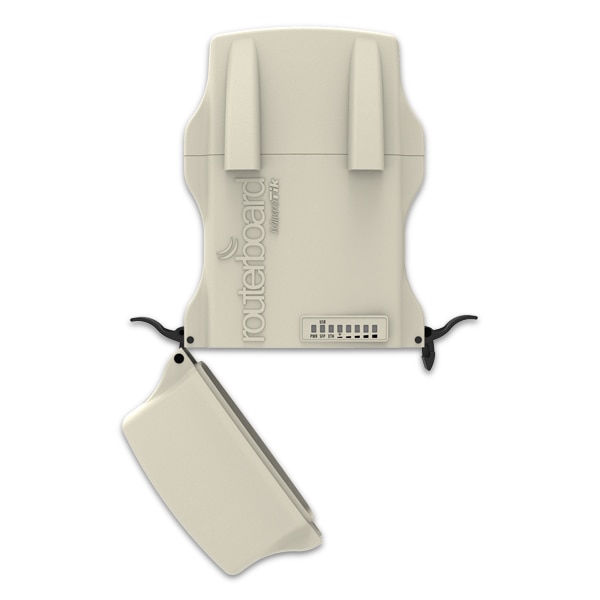

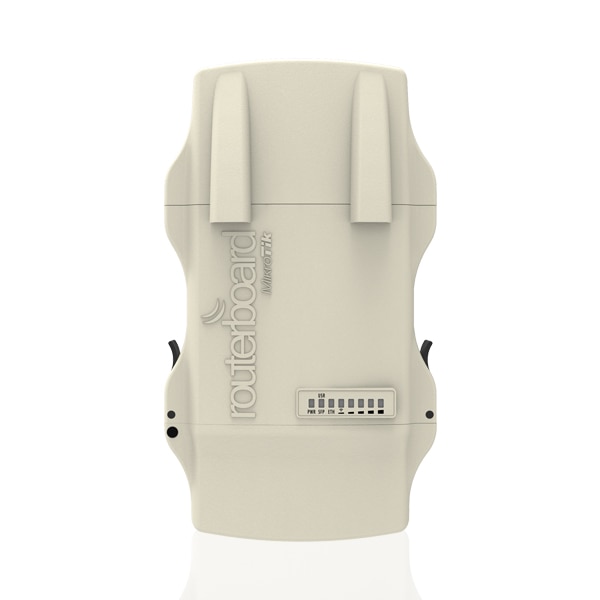

The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.
The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
RB922UAGS-5HPacD-NM version is equipped with miniPCI-express slot and SIM slot for 3G/4G device or additional wireless card, High power 2x2 Dual Chain 802.11ac wireless and two RP-SMA connectors for external antennas.
