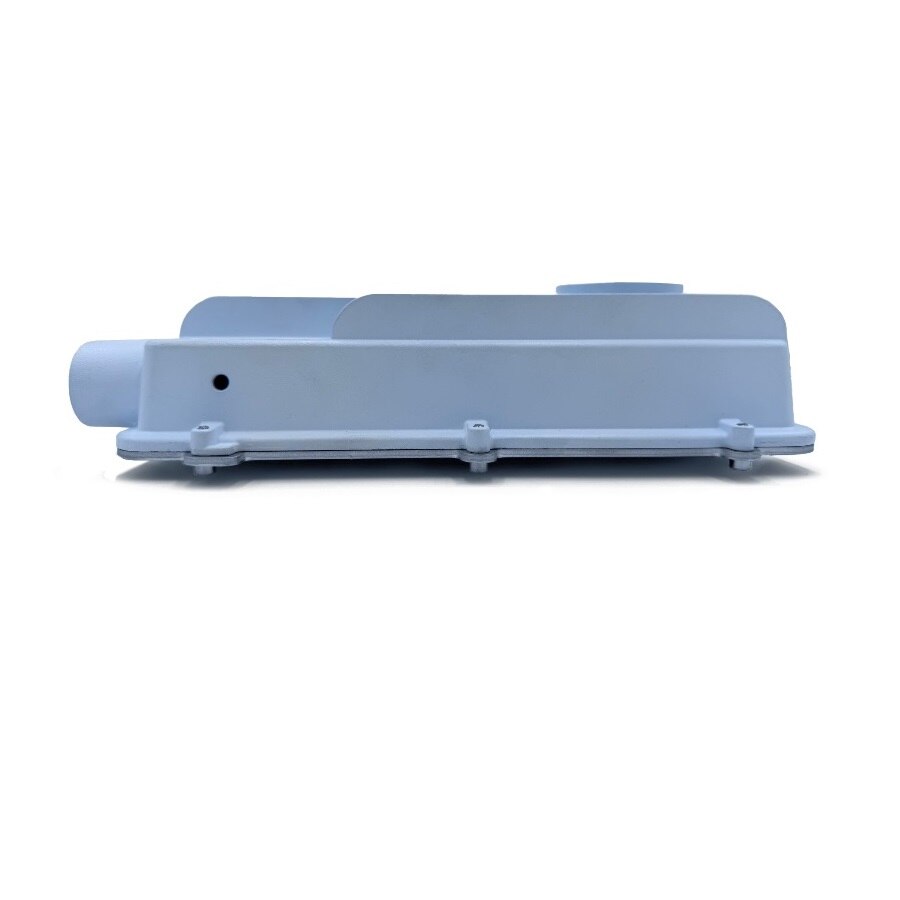

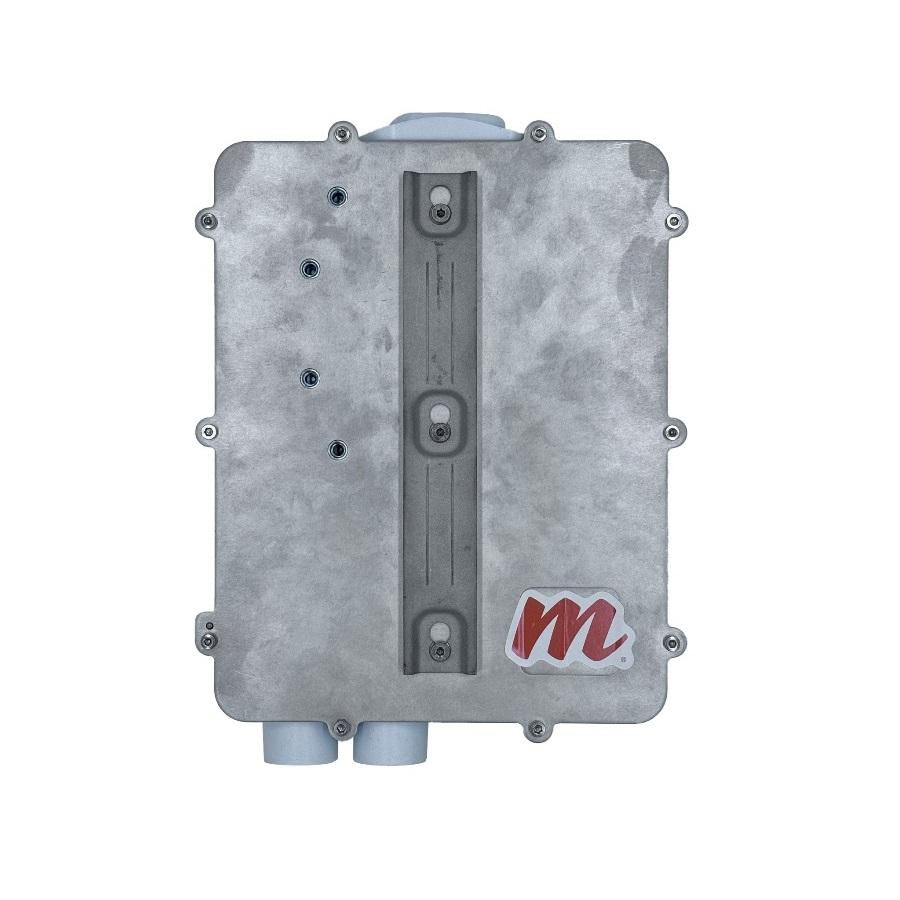

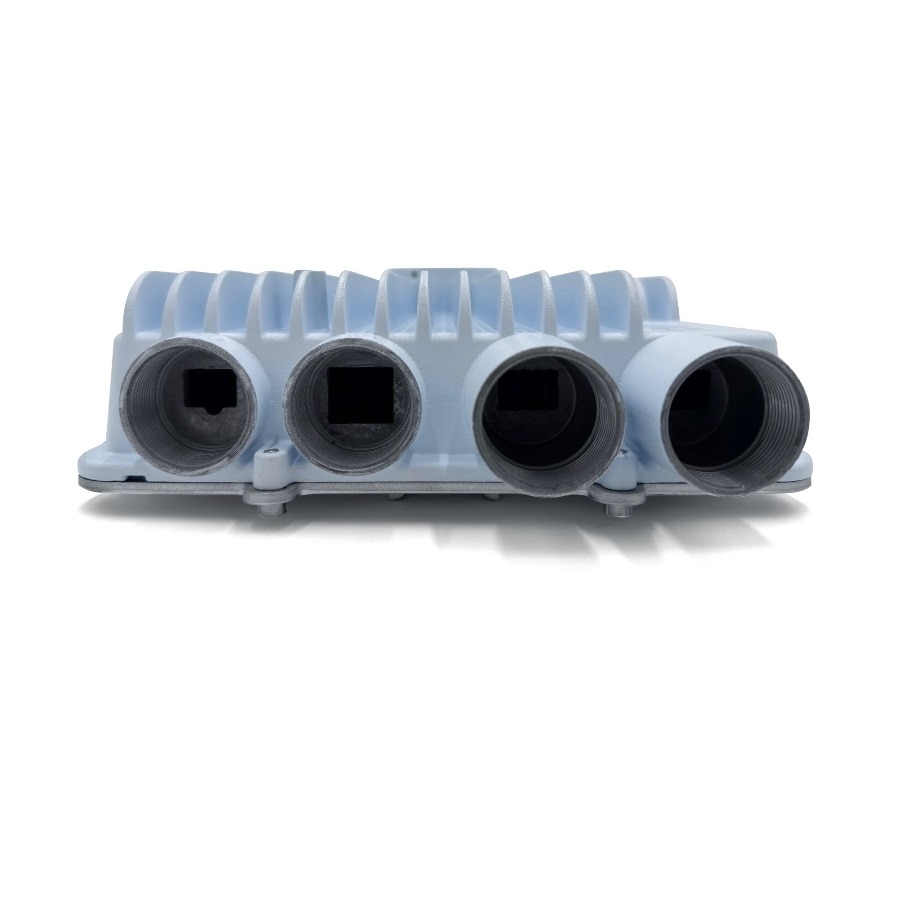

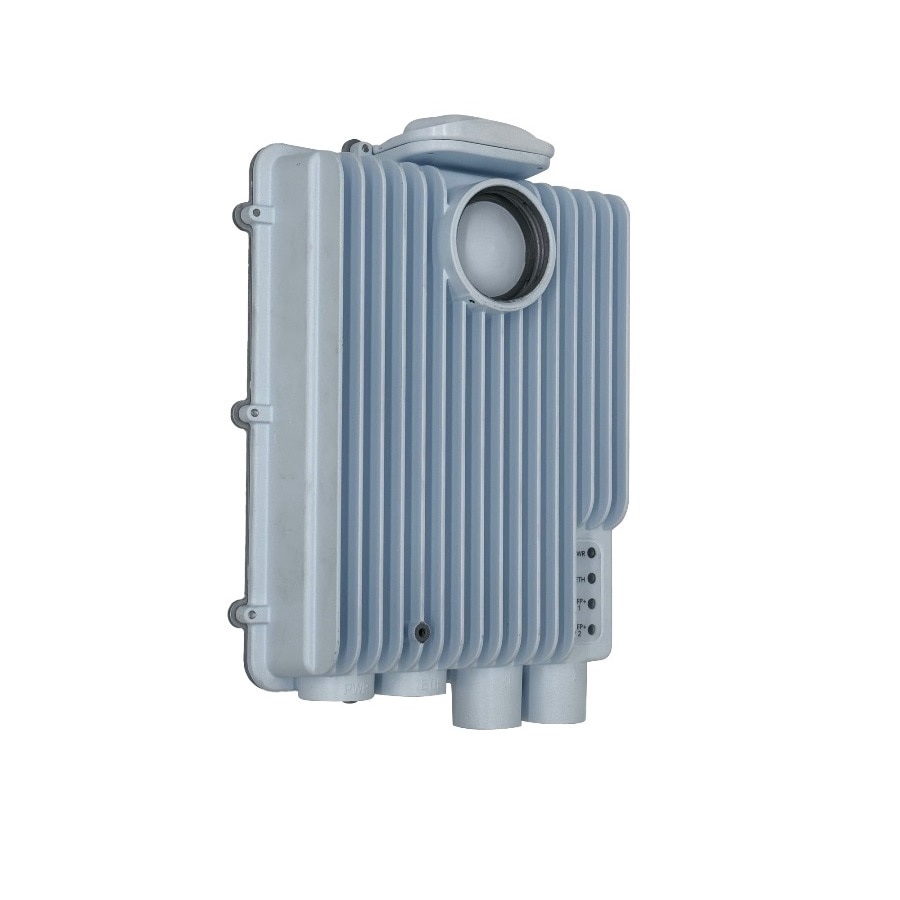

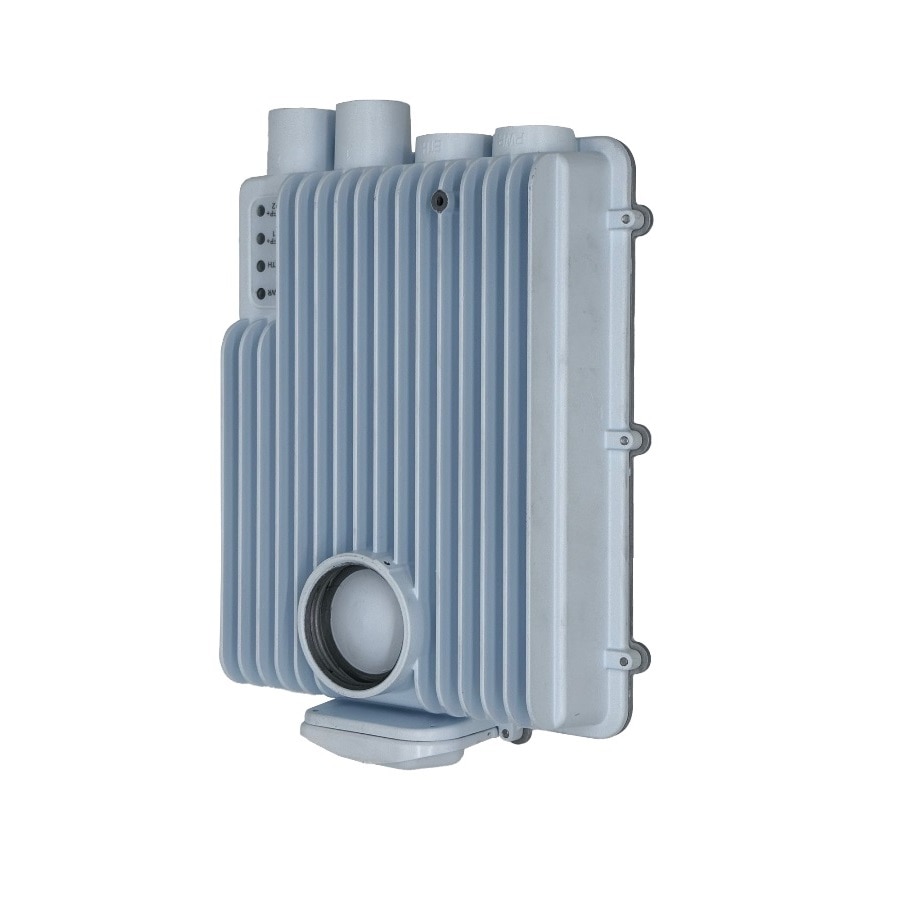

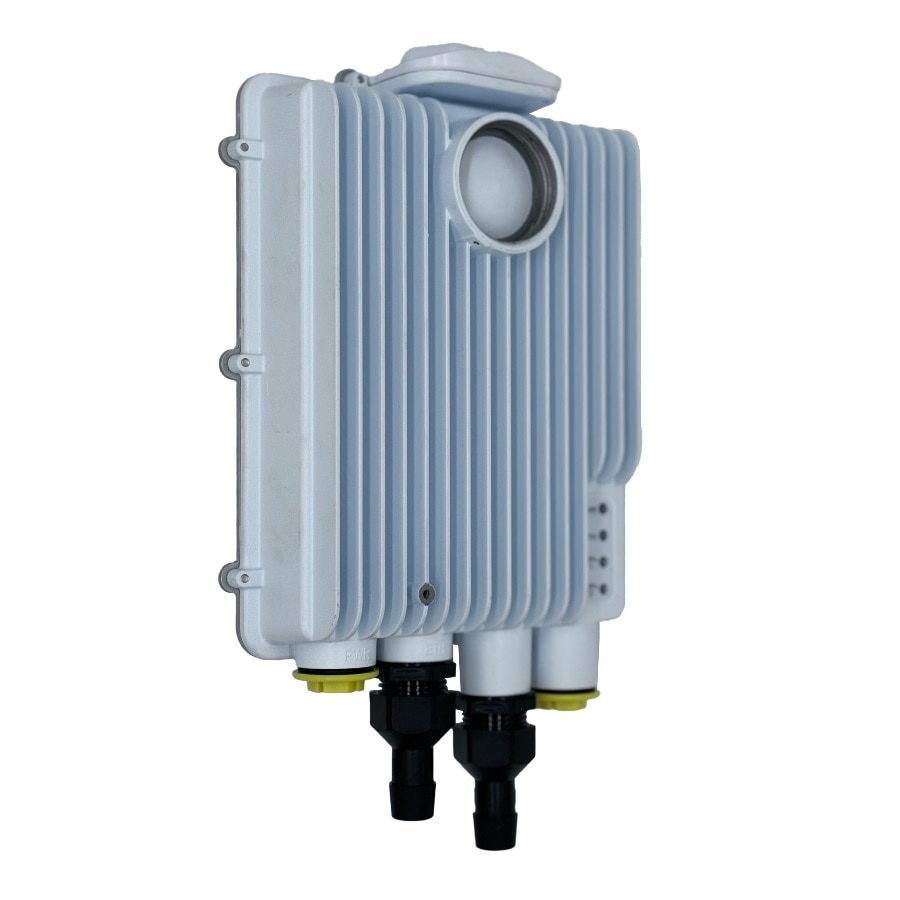

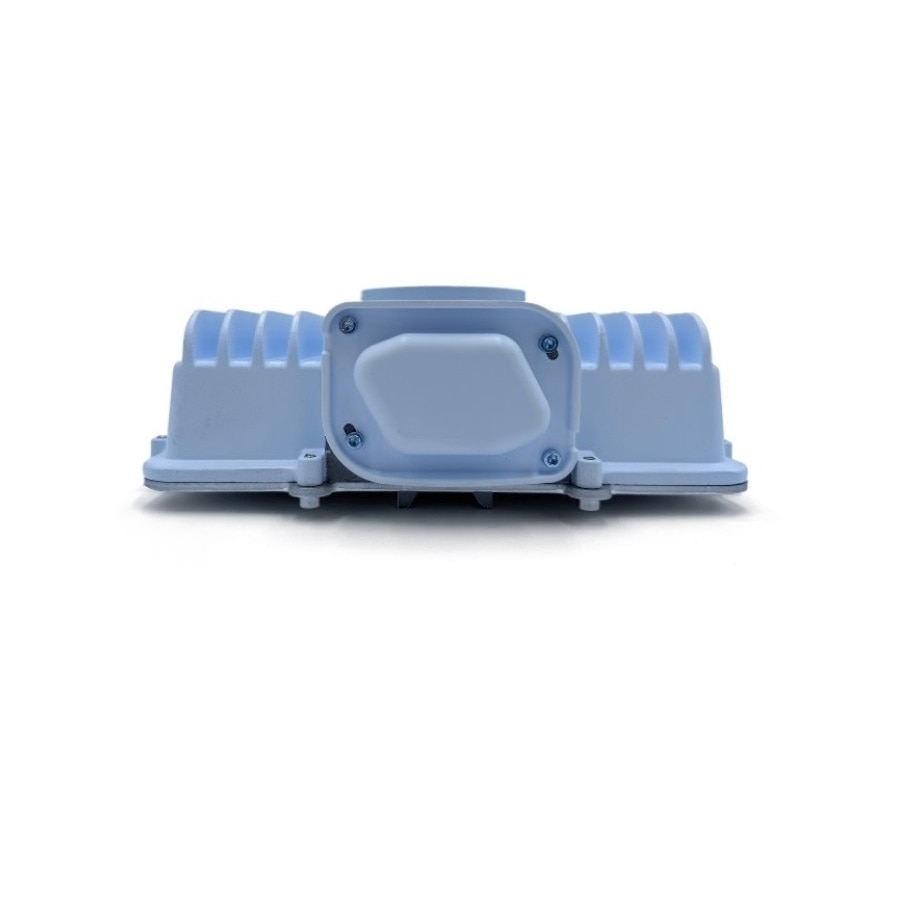

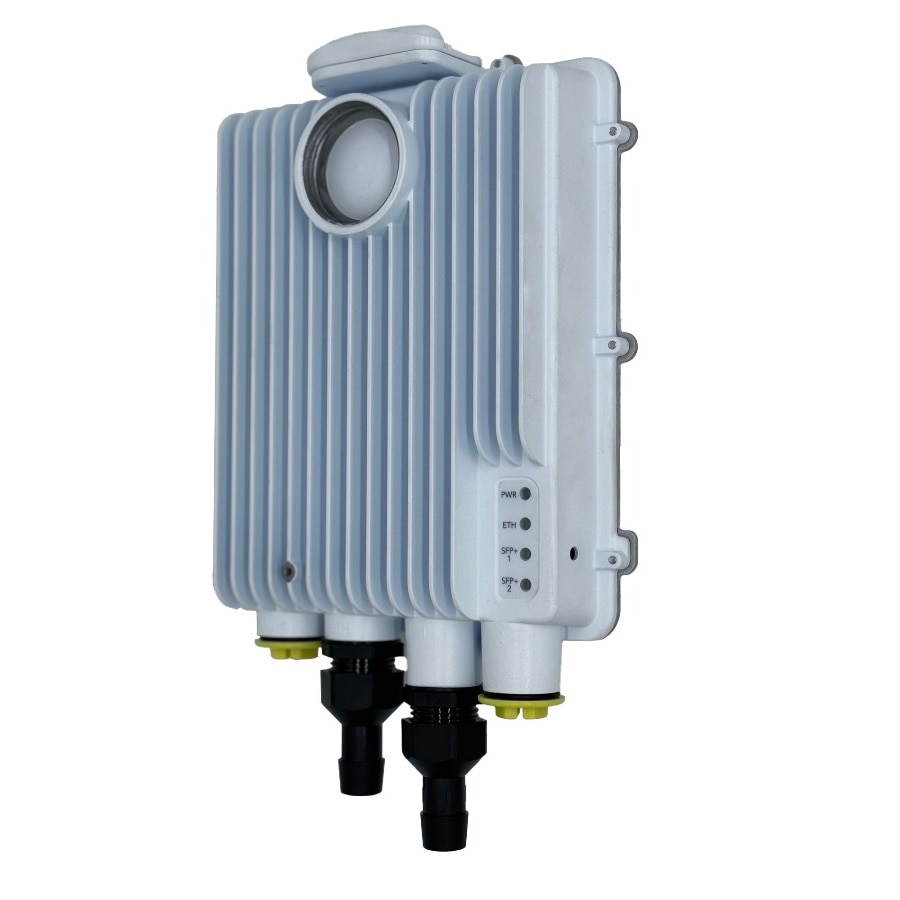

Mimosa B6x 5.15-6.4 GHz, 24 dBm 3.4Gbps Capable Modular PTP Backhaul Radio, with GPS sync, uses N5-X Antennas (POE NOT INCLUDED)

Mimosa Networks B6x 100-00116

5.15-6.4 GHz, 24 dBm 3.4Gbps Capable Modular PTP Backhaul Radio, with GPS sync, uses N5-X Antennas - POE NOT INCLUDED 502-00022

The Mimosa B6x is one of the industry’s fastest unlicensed backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and unlicensed 5.15-6.4 GHz spectrum. It’s modular, with the ability to connect N5-X compatible twist on antennas (dish—not included). With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands, the B6x achieves extremely low latency with speeds of up to 3.4 Gbps and high reliability with new noise fighting features.

Fast and Flexible

Deliver industry-leading unlicensed point-to-point connectivity together with the N5-X antenna, offering up to 3.4 Gbps (IP) across various models (12 to 30+ dBi). Benefit from 320 MHz aggregate channel capacity and GPS Sync mode for peak performance flexibility

Extended Frequency

Rise above the noise with extended frequency support from 5.15–6.425 GHz. N5-X antennas also offer best-in-class sidelobe noise rejection.

OFDMA Modulation

Unlicensed spectrum interference mitigation using OFDMA modulation coupled with dual-channel and auto-everything technology.

GPS Sync for Rapid Expansion

Collocate in close proximity with other Mimosa GPS enabled radios to quickly expand network.

Ultra Rugged

Carrier-grade IP67 design allows the B6x to withstand the harshest of environmental conditions.

Monitor With Ease

Assessing link health and identifying potential problems has never been easier. Links are instantly monitored from Mimosa Management Platform.

Features:

• Accessory: 502-00022
• Dual SFP+: 10 Gbps Fiber via SFP+ cage. Single or multi-mode compatibility. (SFP insert modules not included)
• Gigabit Ethernet: 10/100/1000 BASE-T
• Dual Link Operation: Dual 2x2 radios operating with independent asymmetric channel and link auto-adaption for each radio channel pair; Automatic load balancing of traffic across 2 non-contiguous channels (4 total MIMO streams)
• Management Services: Mimosa Cloud, MMP; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
• Security: 128-bit AES PSK with hardware acceleration
• QoS: 4 classes of QoS, with user configurable priority queuing, weighted fair queuing, MIR, CIR, and rate limiting
• GPS Location: GNSS-1 (GPS + GLONASS)
• Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio.
