NetPoint Twist on Adaptor Twinwaves for connectorized Radio Mimosa B5X and C5X
- SKU: NPTW-RV
$87.50
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information
NetPoint Antennas NPTW-RV

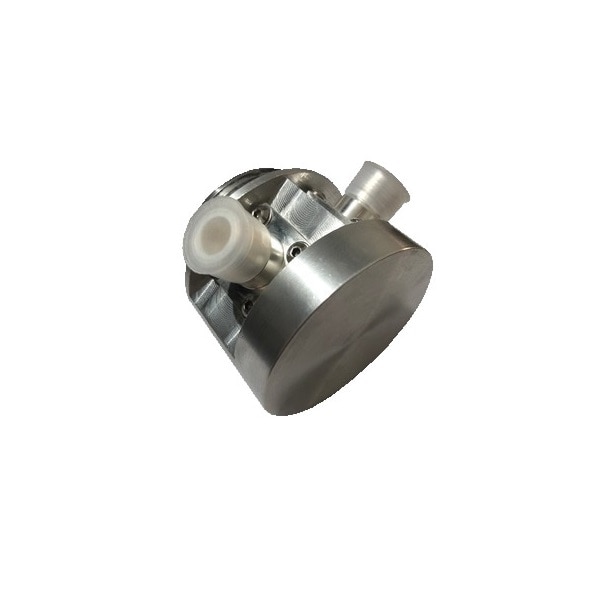

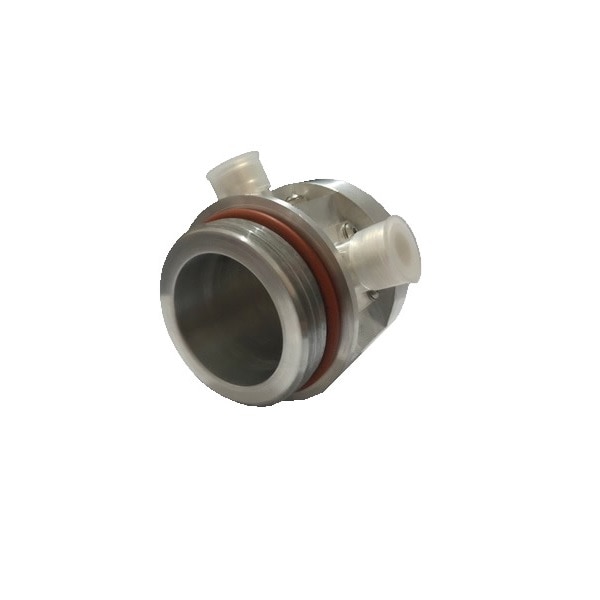

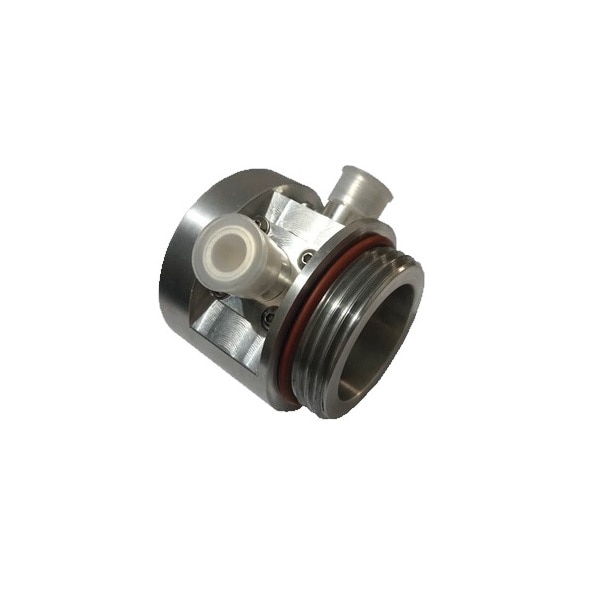

Netpoint Twist on Adaptor Twinwaves for connectorized Radio Mimosa B5X and C5X

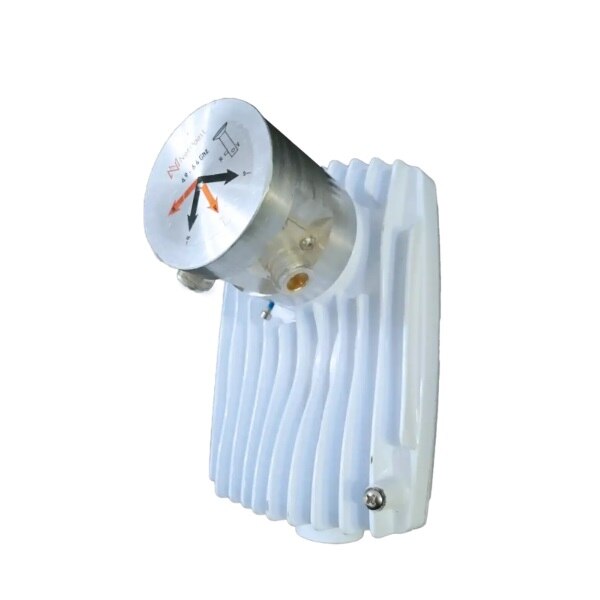

This Twinwave guide from NetPoint will connect directly onto the Mimosa C5x, B5x, C6x, and B6x radios and allows for 2 N-Female connectors, so it will be flexible for use with connectorized antennas.
Specifications
Specifications NPTW-RV
| Dimension | 6 x 4 x 4 inch |
| Weight | .6 lbs. |
| Frequency Range | 4.9 to 6.5 GHz |
| VSWR | < 1:1.8 |
| Polarization | Dual (V/H) |
| Isolation | 30 dB |
| Product Type | Waveguide |
| Connector | 2 * N-Female |
| Color | Silver |
| Antenna Material | Aluminum |
