RF Elements TwistPort™ Adaptor 6Ghz for ePMP B Form Factor - 4600L, 4600C
- SKU: TPA-EPMP-B-6
$45.00
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements TPA-EPMP-B-6
TwistPort™ Adaptor 6Ghz for ePMP B Form Factor - 4600L, 4600C
Integrates Epmp Connectorized Radios Into Twistport™ Eco-System

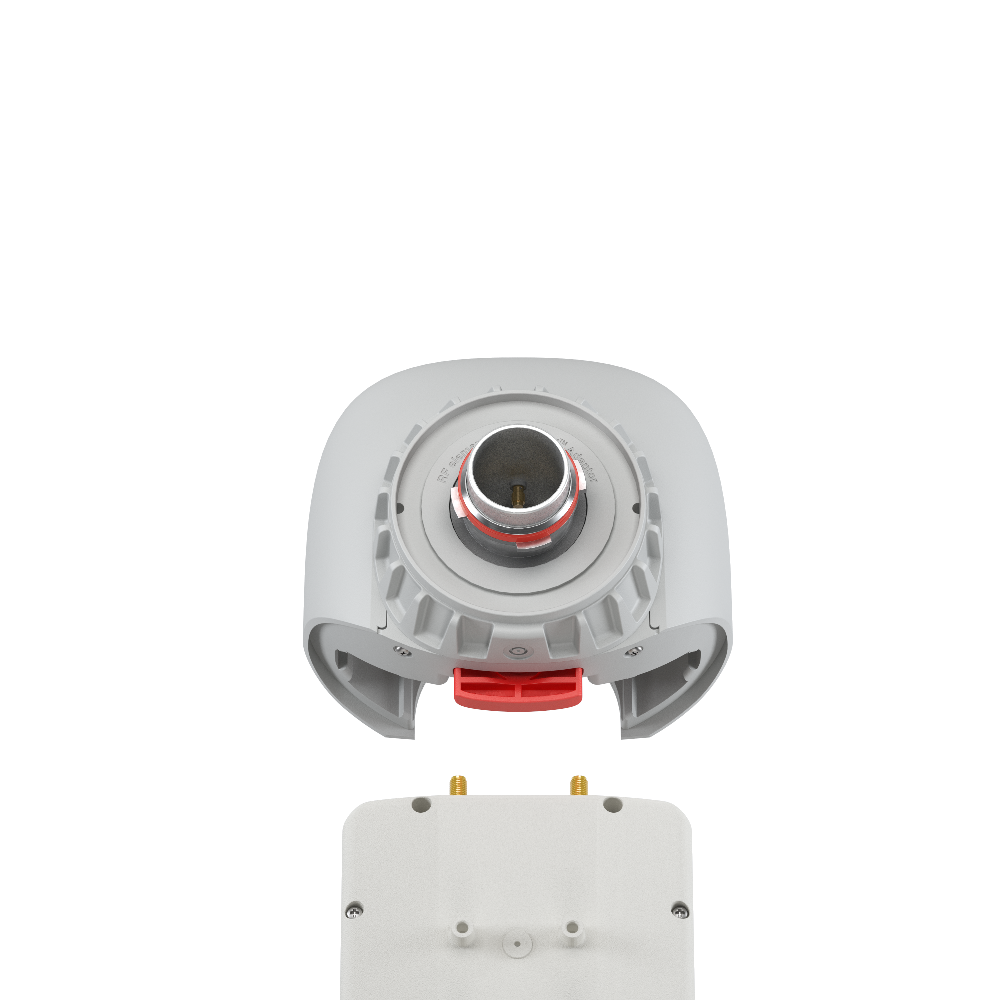

The TwistPort™ Adaptor TPA-ePMP-B-6 makes the ePMP™ 4600L and ePMP™ 4600C radio compatible with TwistPort™ Antennas that support 6 GHz band. TwistPort™ Adaptors are equipped with our original quick-locking waveguide port. Connecting and disconnecting the radios with the TwistPort™ Adaptor is very simple and requires no tools.
Specifications
Specifications TPA-EPMP-B-6
| Antenna Connection | TwistPort™ - Quick-Locking Waveguide Port |
| Radio Connection | 2x Slide-On RP-SMA |
| Materials | UV Resistant ABS plastic, Aluminium Alloy |
| Flame Rating | UL 94 HB |
| Enviromental | IP65 |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) 0.45 kg / 1.0 lbs – single unit |
| Weight | 0.45 kg / 1.0 lbs – single unit 0.55 kg / 1.2 lbs – single unit incl. package 12.0 kg / 26.4 lbs – wholesale box (20 units) |
| Dimensions | Single unit retail box: 157 × 171 × 128 mm (6.2 x 6.7 x 5.0 inch) Wholesale box (20 units): 273 × 330 × 872 mm (10.7 x 13.0 x 34.3 inch) |
| PERFORMANCE | |
| Frequency Range | 5700 - 7125 MHz Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Polarization | Dual Linear H + V |
| VSWR | Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Impedance | 50 Ohm |
| COMPATIBLE WIRELESS PLATFORMS | |
| RF elements® | any UWB antenna: SH30UWB, SH60UWB, SH90UWB, AH60UWB, AH90UWB, UD29UWB 5 GHz Antennas: UH-TP-5-24, HG3-TP-S30, UD-TP-21, UD-TP-24, UD-TP-27 |
| Cambium Networks™ | ePMP 4600L, ePMP 4600C |
