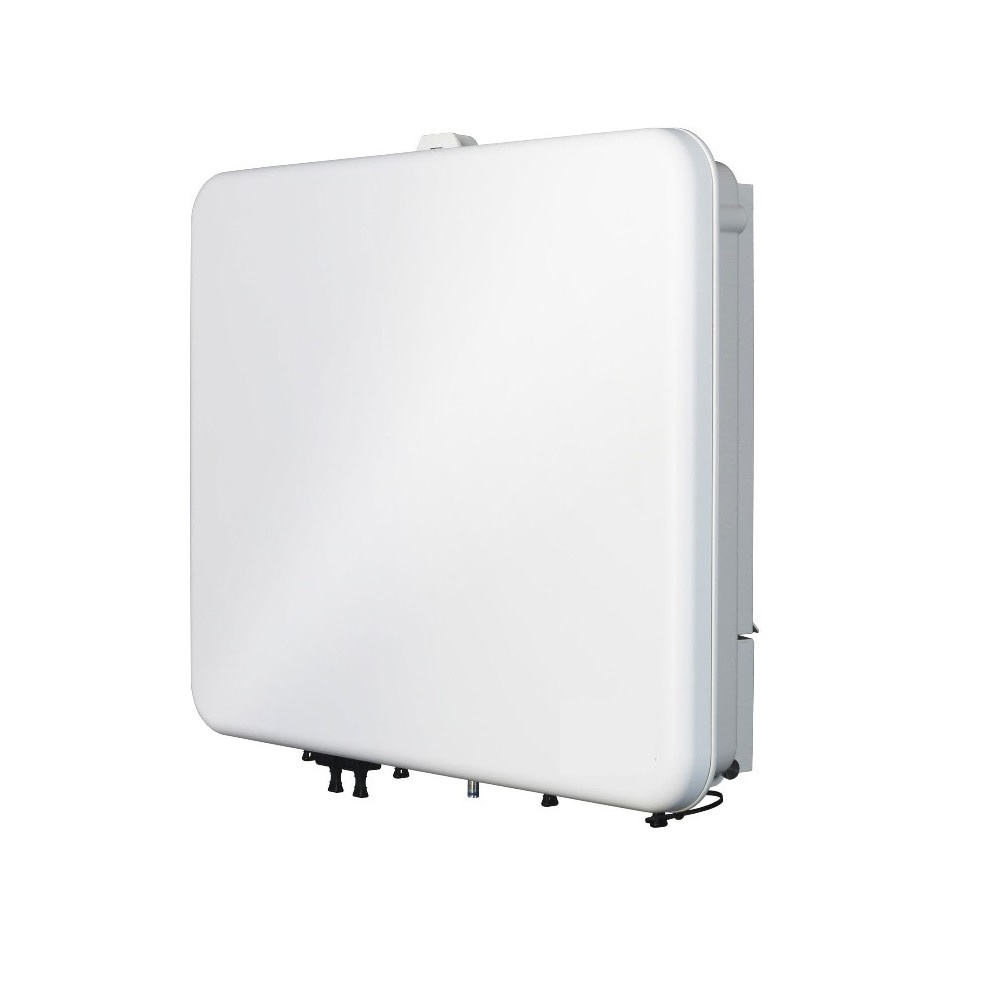

Tarana Wireless G1 6GHz Outdoor Base Node (BN) with Integrated Antenna, 5.725-5.850GHz / 5.925-6.425GHz / 6.525-6.875GHz, FCC
- SKU: 35-0171-001
- Manufacturer: Tarana Wireless
- Data Sheet: Download
Product Information
Tarana Wireless 35-0171-001
G1 6GHz Outdoor Base Node (BN) with Integrated Antenna, 5.725-5.850GHz / 5.925-6.425GHz / 6.525-6.875GHz, FCC
Large portions of both developed and especially developing economies remain underserved in an ongoing digital divide that makes real broadband ever more urgent, as evolving modes of work, education, commerce, health care, and entertainment increase dependence on great connectivity. Copper-based fixed access networks are increasingly exhausted. Wireless alternatives continue to fail in the face of the significant technical challenges in carrier-class fixed access, including pervasive obstructions, spectrum scarcity, interference, changing conditions, and unworkable deployment models.
Tarana innovation has solved all these problems. Our Gigabit 1 platform (G1) is powered by the results of more than 10 years of focused R&D, and crafted from its custom silicon up to its cloud-based service automation with a completely fresh approach to fixed wireless. Extensively validated by tier-1 operators and well proven in carrier scale networks, our fundamental advances in multi-radio performance completely transform the economics of delivering gigabit-class access. The G1 platform features the base node (BN), remote node (RN), and Tarana Cloud Suite (TCS) for management.
Features:
- Up to 1.6Gbps aggregate throughput per link
- Up to 12.8Gbps capacity/site (4BNs)
- 1000 clients/cell (250 / sector)
- Industry-first cancellation of unlicensed band interference
- Simple cellular deployment model
- ~2x cellular range in NLoS or LoS conditions
- Compact, integrated base node and low-cost remote node
- Enhanced TR101 Broadband Forum network architecture (no complex packet core required)
- Comprehensive cloud suite for planning, zero-touch config, monitoring, SDN management, and support automation
- Software-defined radios, enabling automated, cloud-managed performance upgrades
Specifications
Specifications
| Weight | 49 lbs |
| Dimensions (H x W x D) | 16.6 x 21.2 x 4.7 inches |
| Radio Network Elements | Base Node |
| Frequency support | 5.725–5.850 GHz (UNII-3 FCC/ISED) 5.925–6.425 GHz (UNII-5 FCC) 6.525–6.865 GHz (UNII-7 FCC) |
| Throughput (aggregate PHY maximum) | 800 Mbps / 1.6 Gbps* |
| Maximum number of RNs | 250 per BN 1000 Per cell (4 BNs) |
| Channel bandwidth | 80 MHz (2 x 40 MHz) / 160 MHz (4 x 40 MHz)* |
| MU-MIMO streams (maximum) | 6 / 4* (Per BN) 24 / 16* (Per cell - 4BNs) |
| Power consumption (typical at 55ºC) | 275W |
| Power input | -48V DC typical (-44 to -58V DC operating range) |
| Mounting | Saddle clamp, band clamps for pole mount (2.375–5 inches OD); mount weighs 12 lbs |
| Form factor | Outdoor micro enclosure with fully-integrated antenna, RF, and baseband; 360º coverage with 4 BNs |
| Antenna | Fully integrated |
| Interfaces | Dual 10 Gbps SFP+ and single 1 Gbps data interfaces, additional 1 Gbps management Ethernet interface, -48V DC power |
| Environmental rating | IP67 |
