Ubiquiti Networks Ethernet Surge Protection Outdoor
- SKU: Ethernet Surge Protection Outdoor
$12.50 to $19.00Select options
- Manufacturer: Ubiquiti Networks
- Installation Guide - 10kA: Download
- Installation Guide - 20kA: Download
Product Information
Ubiquiti Networks ETH-SP-G2
Ethernet Surge Protection Outdoor
ESD protection for outdoor high-speed networks.
Features:
- Protects outdoor Ethernet devices
- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 2.5 GbE networks

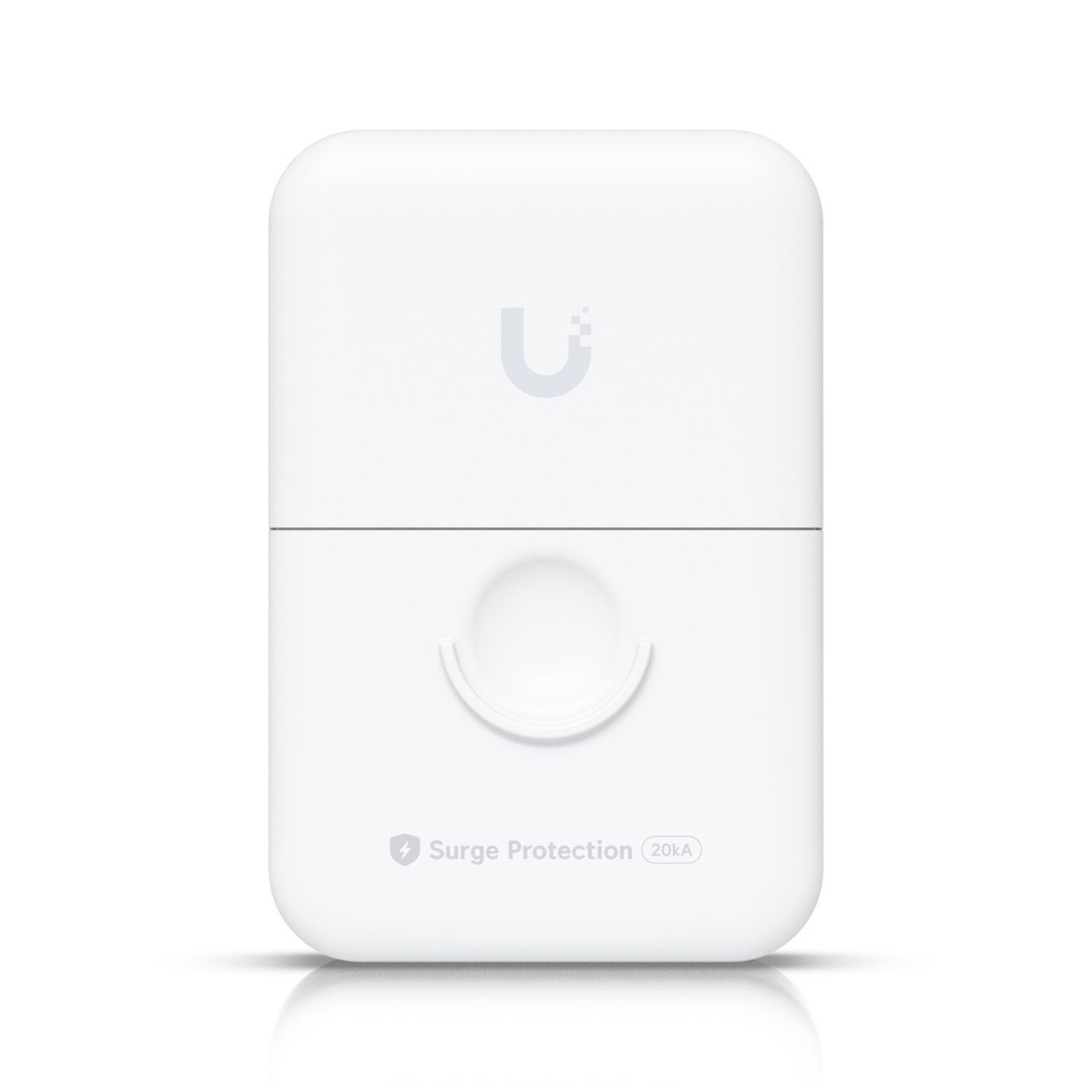

Ubiquiti Networks UACC-ETH-SP-Pro
ESD protection for outdoor high-speed networks.
Features:
- Protects outdoor Ethernet devices, up to 20kA discharge current.
- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 10 GbE networks
Specifications
Specifications ETH-SP-G2
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 80 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 2.5 Gbps |
| PoE Support | Yes |
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
Specifications UACC-ETH-SP-Pro
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 95 g (3.35 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | Yes |
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
