Ubiquiti UniFi Intercom
- SKU: Intercom
$399.00 to $479.00Select options
- Manufacturer: Ubiquiti Networks
- Installation Guide - G3 Intercom: Download
- Installation Guide - G2 Intercom: Download
Product Information

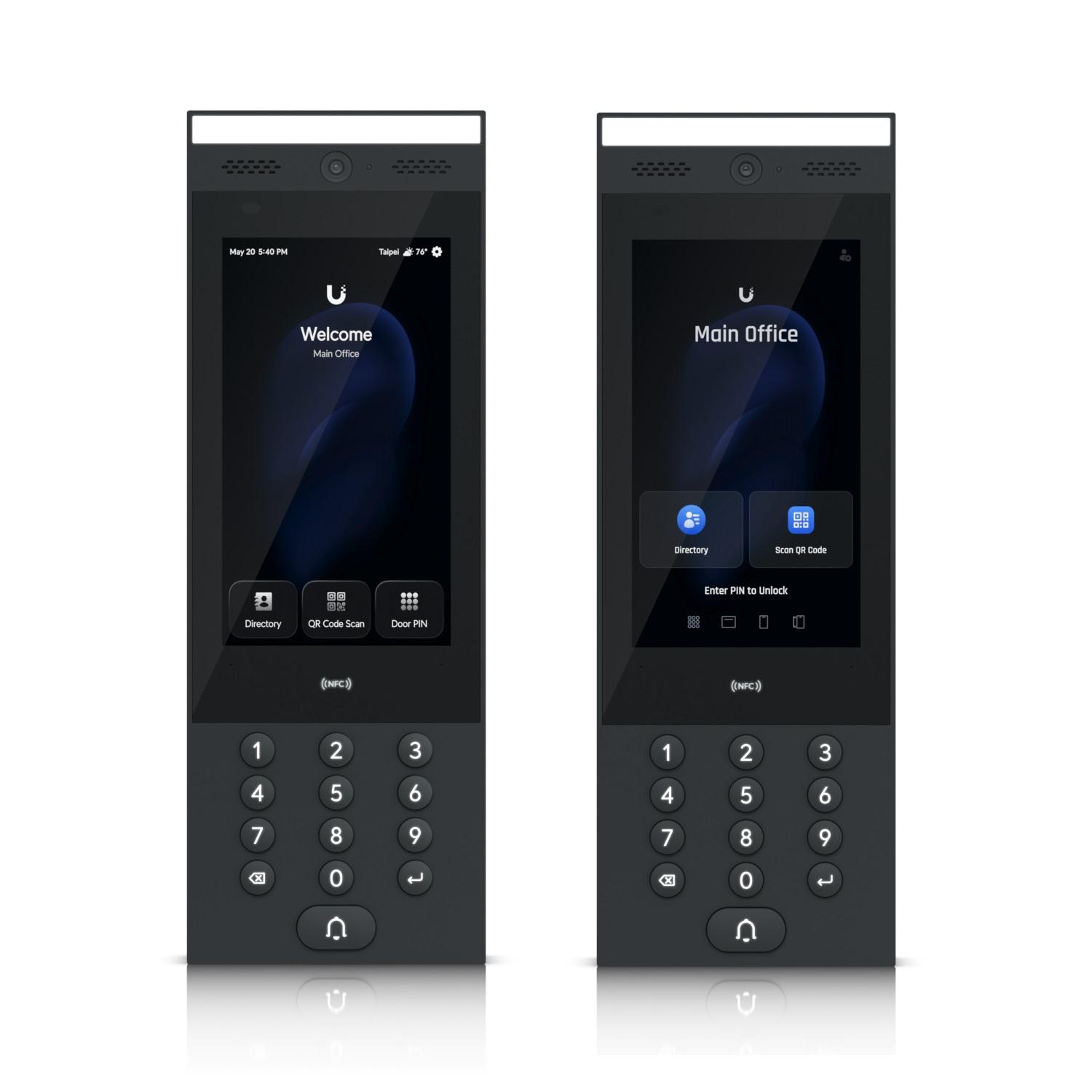

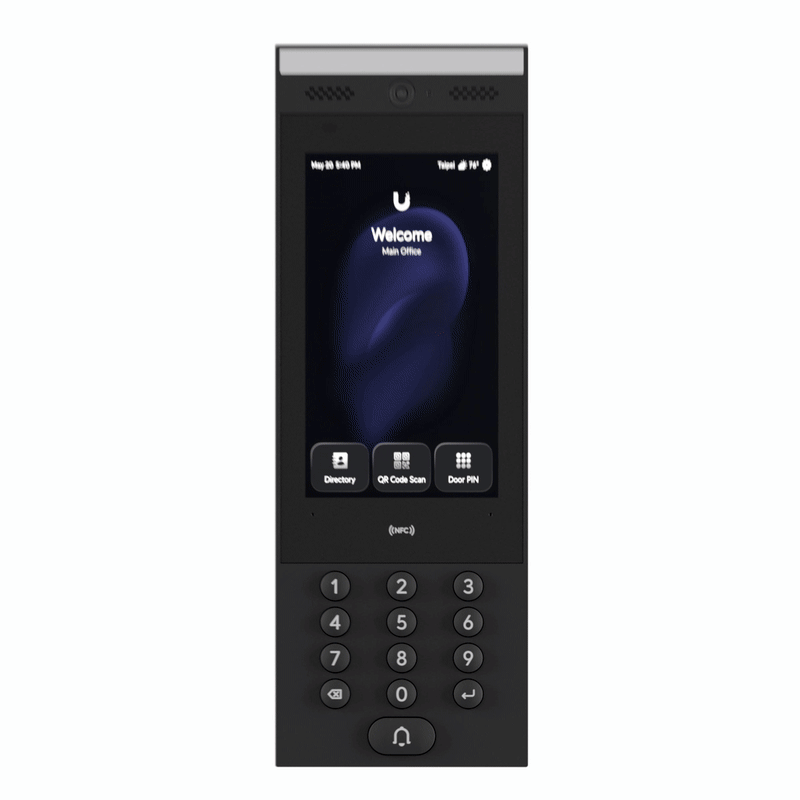

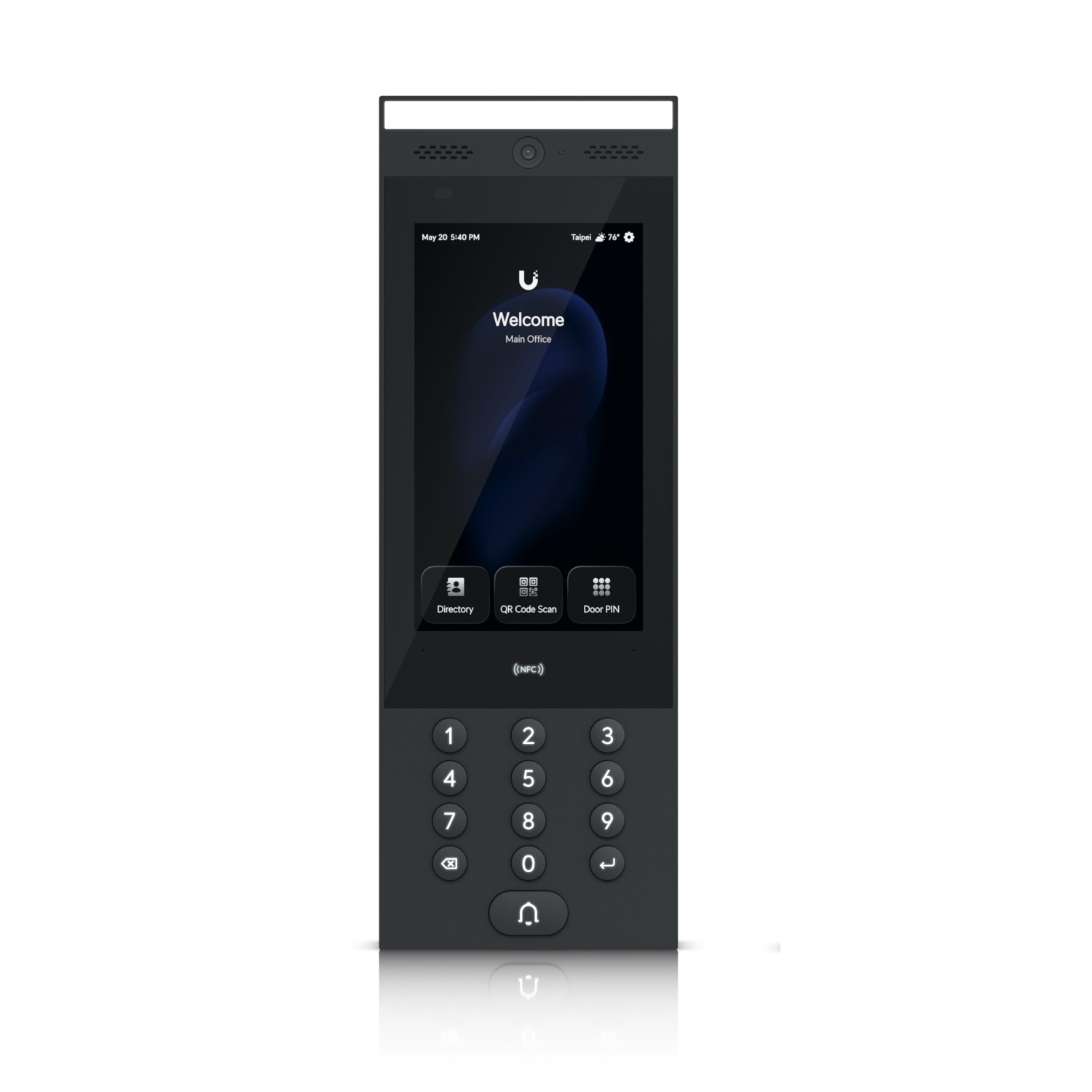

Ubiquiti Networks G3 Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Features:
- Unlock using Apple Wallet or an NFC card or UniFi Identity mobile app, face unlock and Touch Pass*
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)

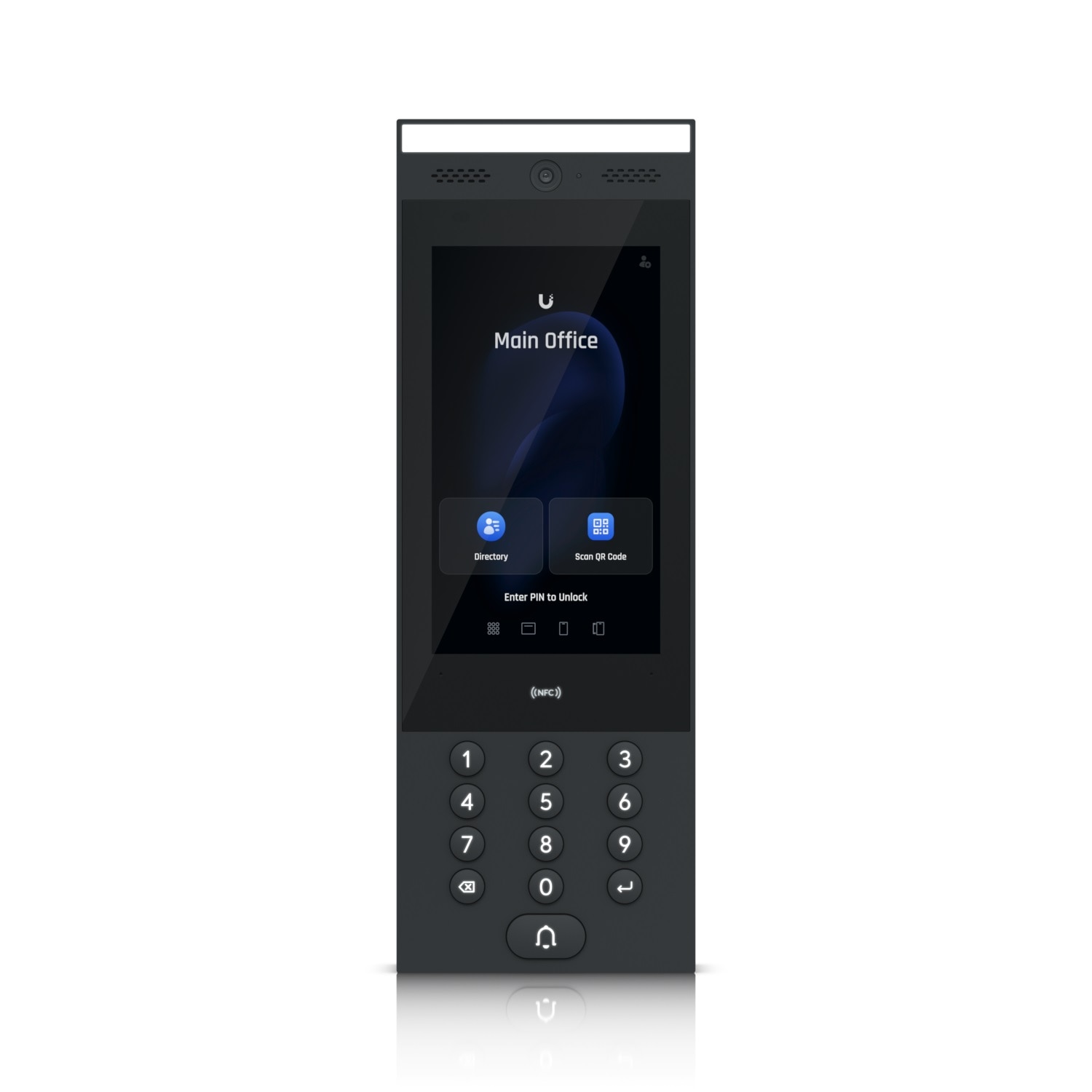

Ubiquiti Networks G2 Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests.
Features:
- Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)
Specifications
Specifications
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Integrated Camera | Yes |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Mobile Unlock | Yes |
| Two-Way Intercom & Doorbell Access | Yes |
| Weatherproofing | IP65 |
| Mechanical | |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Sensors | Proximity sensor ALS sensor |
| Display | 177 mm (7") diagonal |
| Touch Screen Technology | Capacitive multi-touch |
| Display Luminance | Max. 1000 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| Microphone | Yes |
| Speaker | Yes |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| LEDs | Amber Learn More |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| UA-Intercom, V01 | UA-G3-Intercom, V01 |
| Software | |
| Management Application | Access |
