Ubiquiti UniFi Switch 48 PoE

(0)No Reviews yet
  • SKU: USW-48-POE
US$‎589.00

Out of Stock

Availability: Week of 6/24/2024 x 10

Product Information

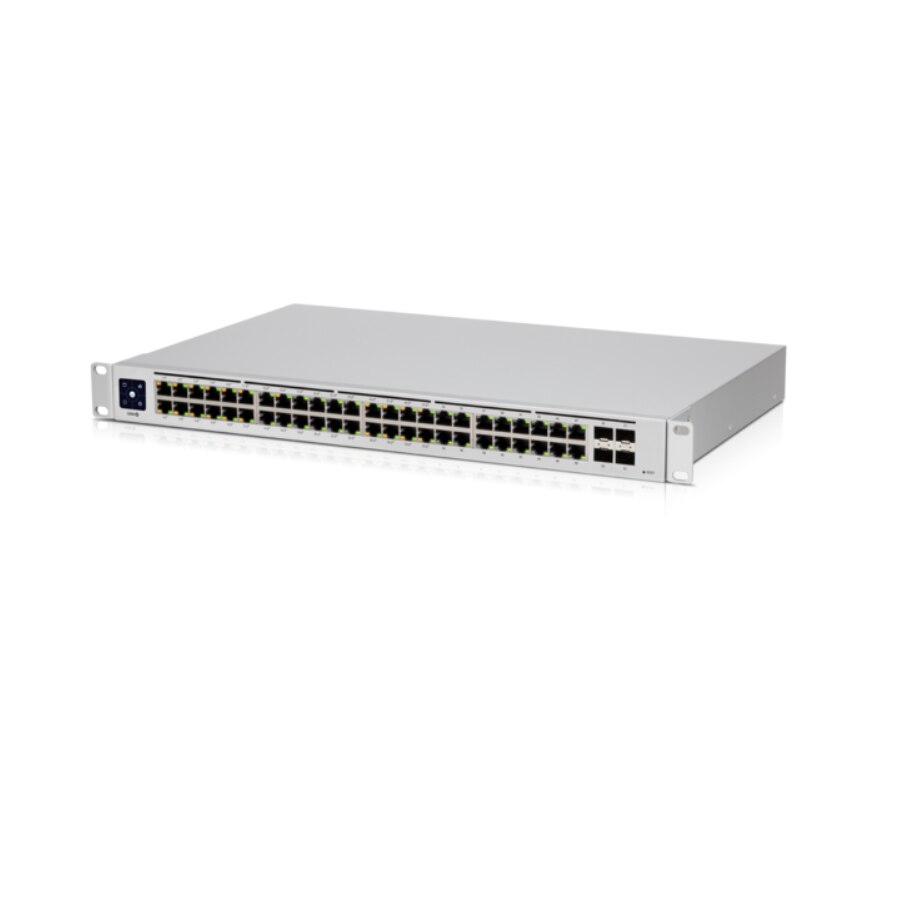

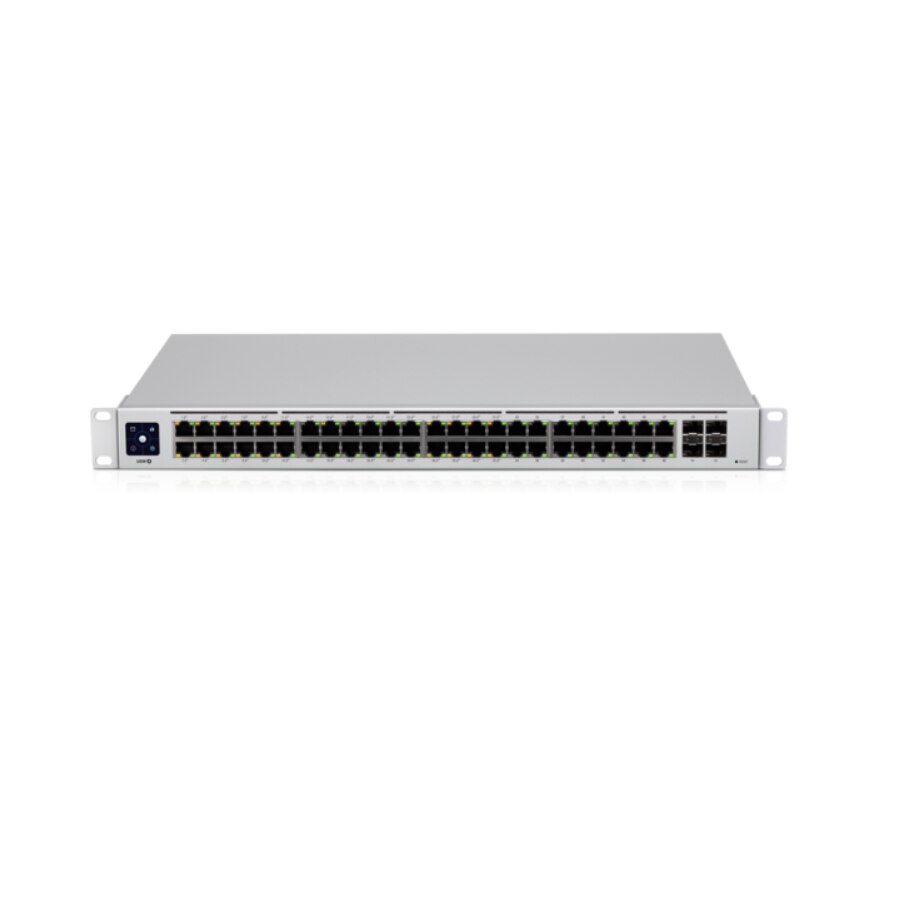

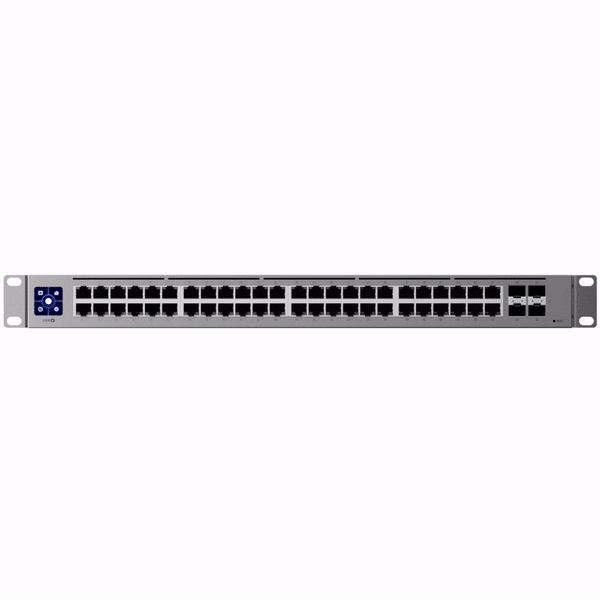

Ubiquiti Networks USW-48-POE

UniFi Switch 48 PoE

48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.

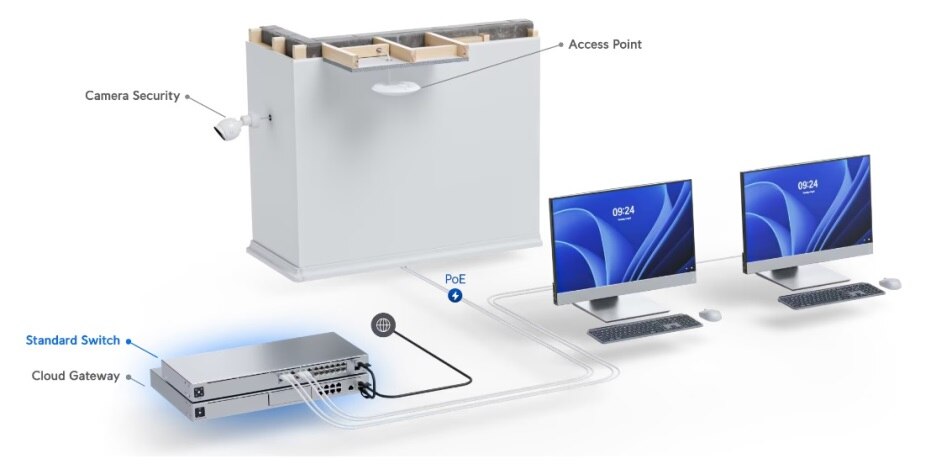

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.


Features:

  • (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
  • (4) 1G SFP Ports
  • 1.3" touch LCM
  • Managed by UniFi Controller
  • 210W Power supply
  • Managed by UniFi Network Controller version: 5.12.32 or higher

Works with UniFi Network Controller

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support

Specifications

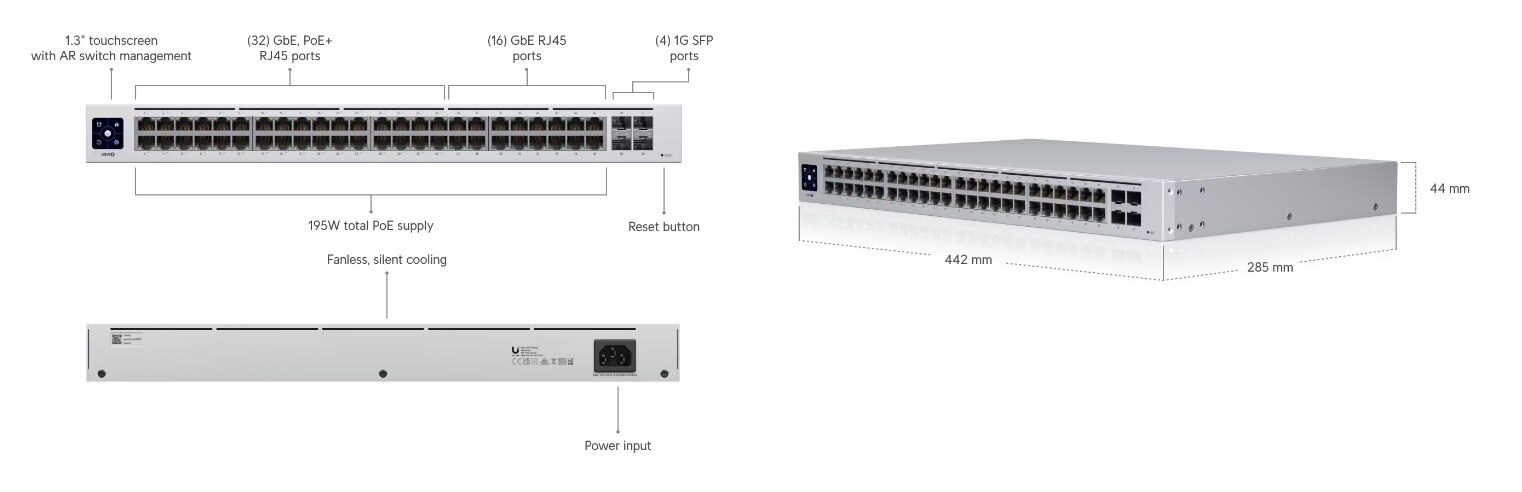

Specifications USW-48-POE

Dimensions442.4 x 285 x 43.7 mm
(17.42 x 11.22 x 1.72")
Weight
With Rackmount Brackets
4.52 kg (9.97 lb)
4.61 kg (10.16 lb)
Interfaces Networking

Management
(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports Ethernet In-Band

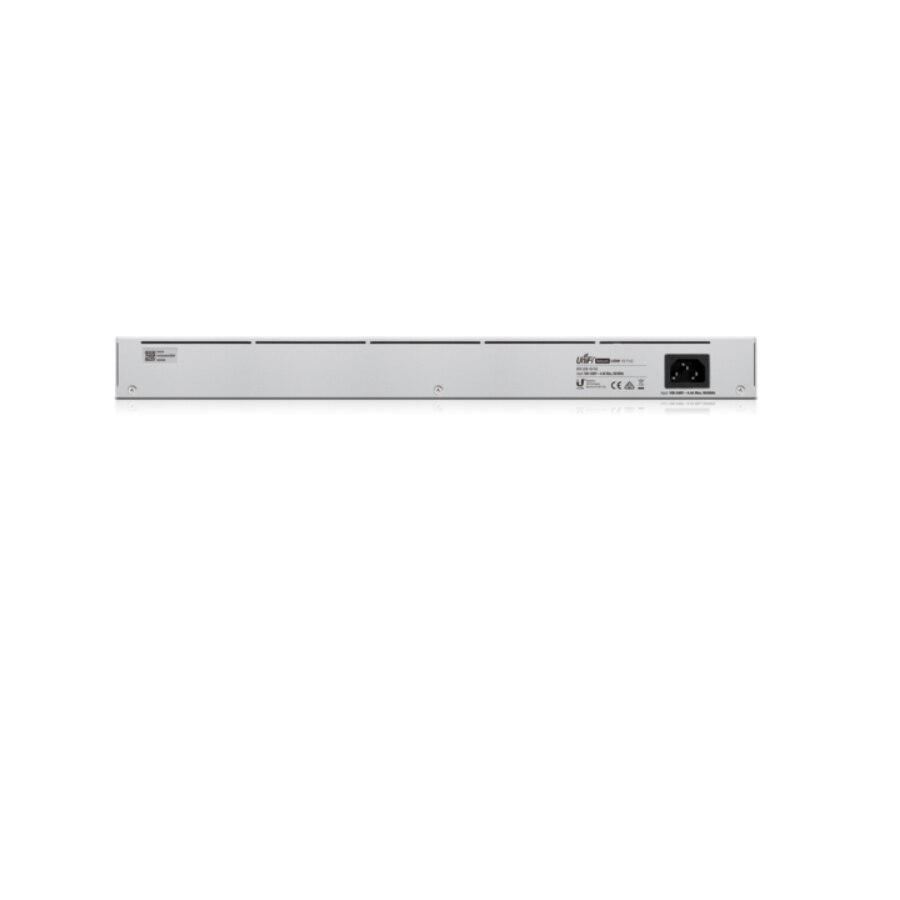

Power Method100-240VAC, 50/60 Hz, Universal Input
Power SupplyAC/DC, Internal, 240W
Supported Voltage Range100 to 240VAC
Max. Power Consumption (Excluding PoE Output)45W
LEDs
RJ45 Data Ports
SFP Data Ports

PoE; Speed/Link/Activity
Link/Activity
ESD/EMP ProtectionAir: ± 16 kV, Contact: ± 12 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity10 to 90% Noncondensing
CertificationsCE, FCC, IC
POE
PoE Interfaces Ports 1-32 POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at32W
Voltage Range 802.3af Mode44-57V
Voltage Range 802.3at Mode50-57V
