Ubiquiti Networks USW-Aggregation UniFi Switch Aggregation

  • SKU: USW-AGGREGATION
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 296 In Stock    (updated live)
    4 In stock at College Station
    292 In stock at Mississippi
US$‎269.00

Ubiquiti Networks USW-Aggregation

Ubiquiti Networks USW-Aggregation UniFi Switch Aggregation

USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.


Features:

  • (8) 10G SFP+ Portsv
  • 160 Gbps switching capacity
  • 1.3 Touchscreen with AR switch managementv
  • Fanless, 4.7" depth compact enclosure

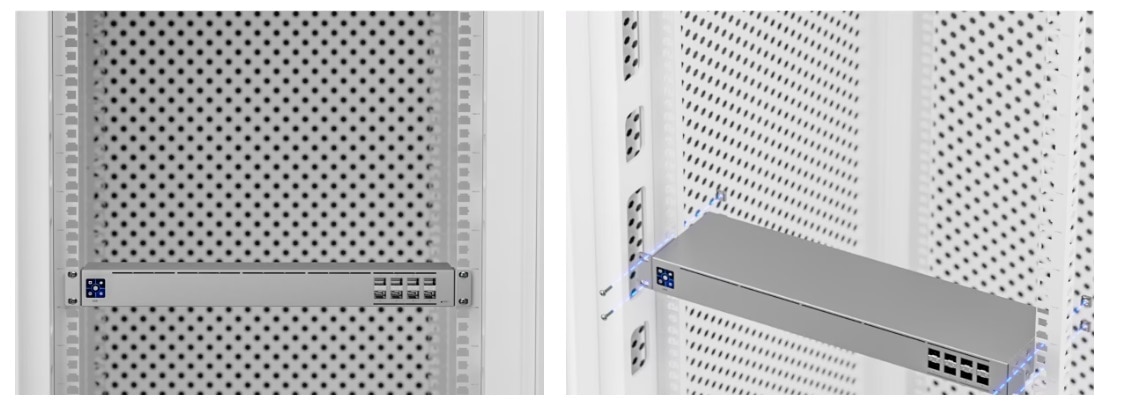

  • 1U Rackmountable (kit included)

Specifications USW-Aggregation

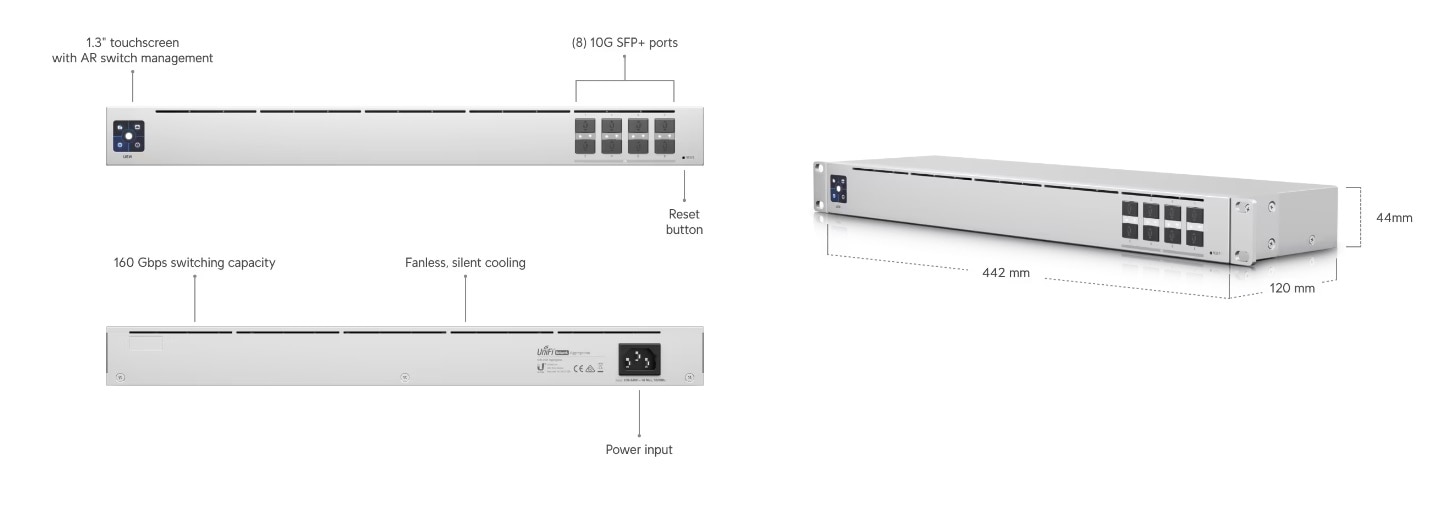

Dimensions442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
WeightWithoutMount: 2.65 kg (5.84 lb), With Mount: 2.74 kg (6.04 lb)
Enclosure MaterialSGCC Steel
Total Non-Blocking Throughput80 Gbps
Switching Capacity160 Gbps
Forwarding Rate119.04 Mpps
Max. Power Consumption30W
Power MethodUniversal ACInput: 100-240VAC, 50/60 Hz
Power SupplyAC/DC, Internal, 36W
ManagementInterfaceEthernetIn-Band
ModesSMB Layer 2 GigabitEthernetSwitch
ESD/EMPProtectionAir: ± 16kV, Contact: ± 12kV
Operating Temperature-5 to 40° C(23 to 104° F)
Operating Humidity10 - 90%Noncondensing
CerticationsCE, FCC, IC
System(1) Bootup Animation: Bootup in Progress FirmwareUpgrade Icon: FirmwareUpgrading SteadyWhite: Factory Defaults, Awaiting Adoption
SteadyBlue: Device isAdopted
SFP+White: 1/10G
