Product Information

LightSaber Optics LSO-18UOD-650600-AC400W with 500w Heater function

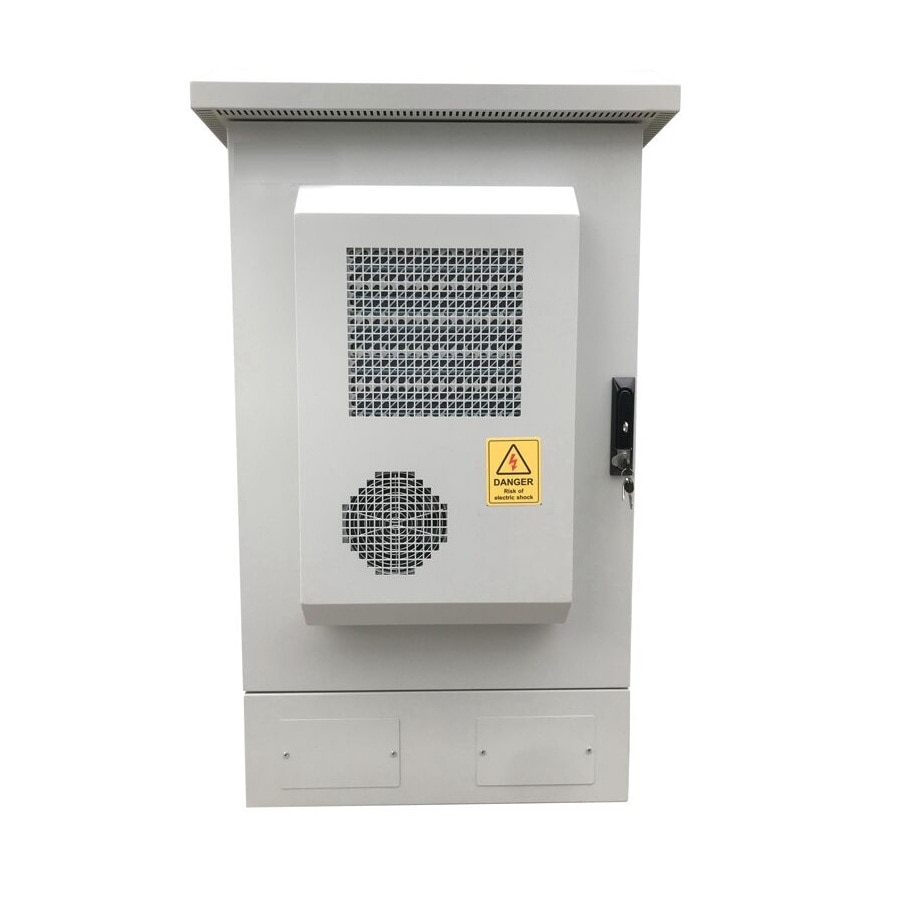

18RU  25.5" Wide x 23.6" Deep OUTDOOR Cabinet with AC 400W Air conditioner w 500W Heater function, NEMA 4X Rated | Grey

Outdoor Telecommunication Cabinet with Air Conditioner (sandwich panel double-wall structure design) and Heater is mainly used for wireless communications to house a variety of batteries and equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.

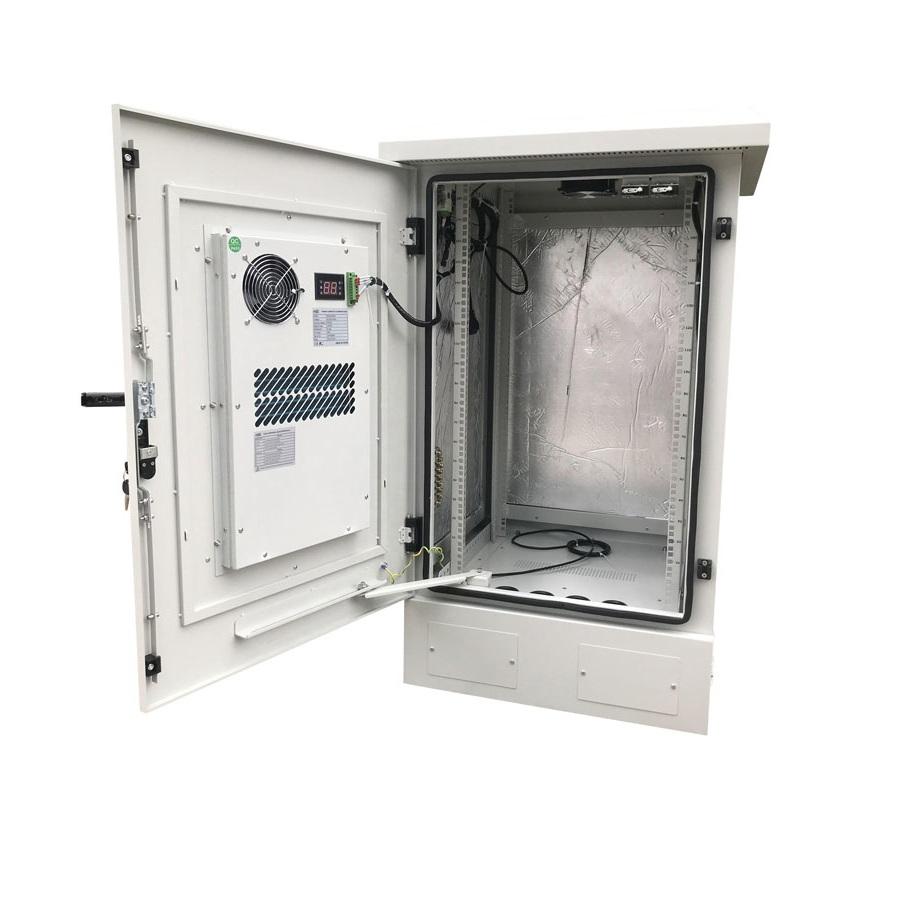

Air conditioner is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provides a secure, thermally managed environment for backup battery systems for telecommunications and cable applications.


  • Fully assembled
  • Sandwich structure for better cooling efficiency
  • 18U equipment space
  • 4-point locking system
  • 19inch equipment rail, with cable rings, included
  • Front door and rear door opening access
  • Wind stop bracket to hold the doors when opening
  • 150mm Height Plinth (includes mounting hardware)
  • Copper grounding bar
  • Cabinet made for low thermal conductivity and fireproof heat insulation material.

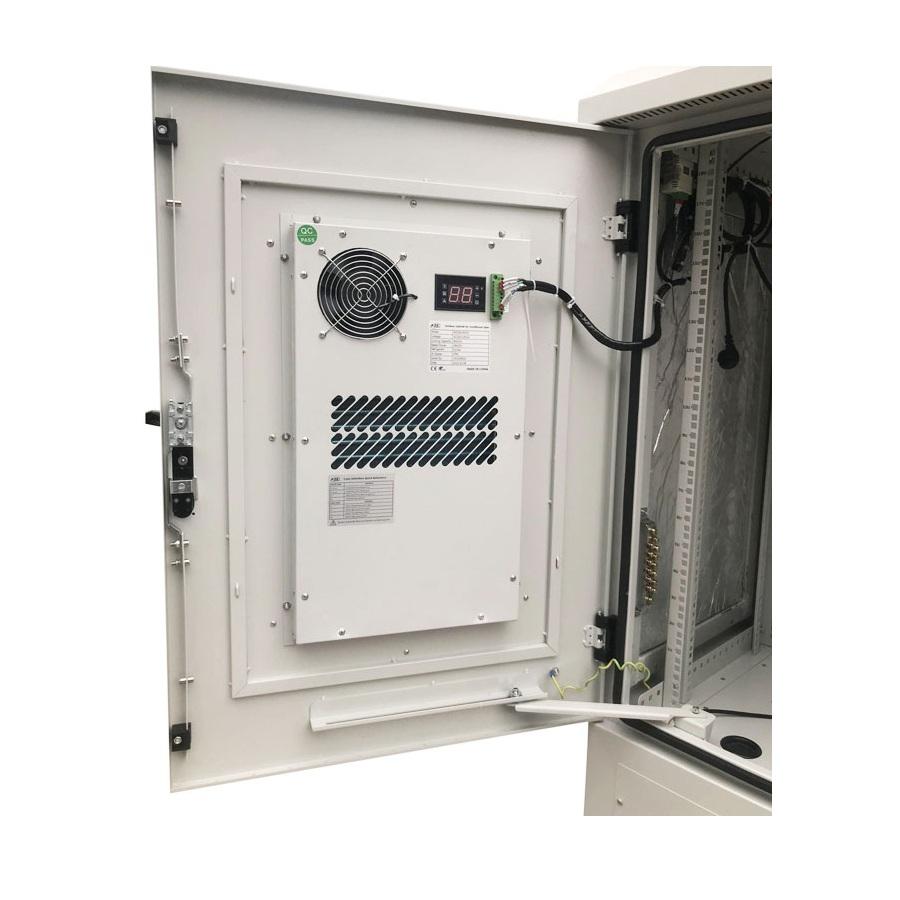

  • AC110V 60Hz 400W(1364 BTU) Air conditioner
  • Document box at the rear door for storing the equipment manual or useful document
  • Cable entry holes with grommet on the bottom
  • Wind-proof, sand-proof, rain-proof, sun-proof, and anti-theft, protection level NEMA 4X.

Also Includes:

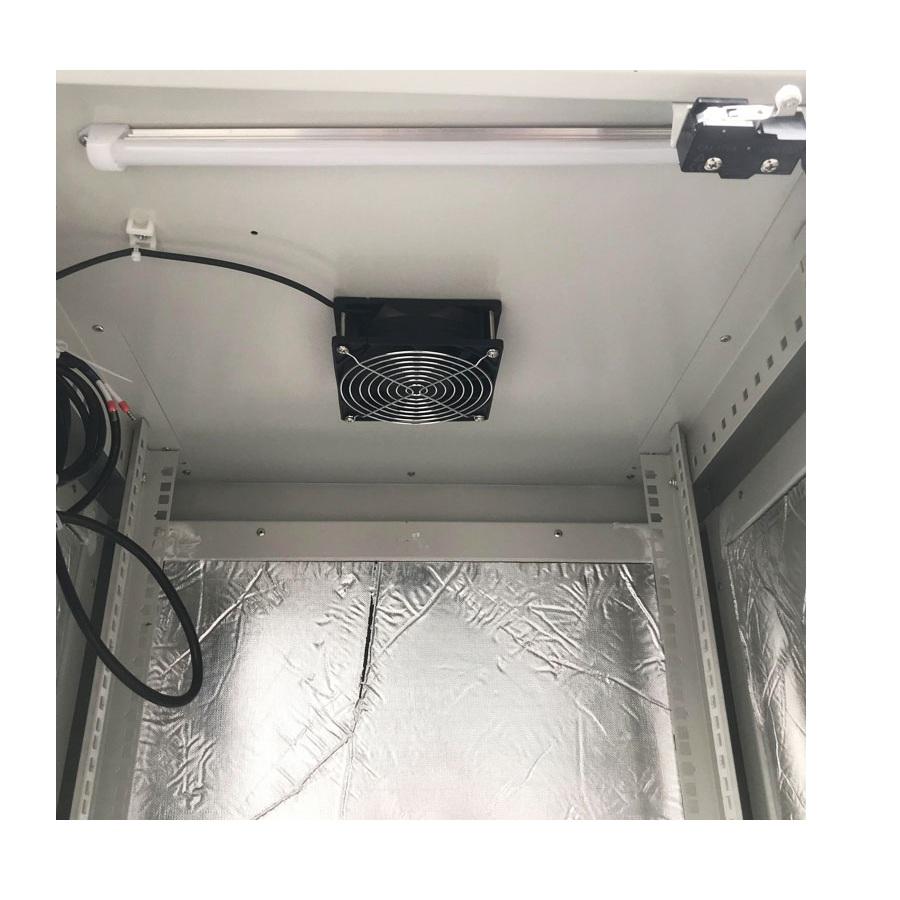

  • 1x DC48V emergency fan (with temperature controller)
  • 2x DC48V LED lights (Front and rear top)
  • 2x Front Door alarm sensors and 2 x rear door alarm sensors (1 sensor is connecting to the DC48V LED light, the light will be ON when the door opens and OFF when the door closed; 1 sensor is pre-configured with the EMS unit)
  • 30 x M6 cage nut
  • 2 Keys
  • 1 Manual


  • Telecommunication
  • Wireless/Broadband
  • Base station
  • Solar based installations
  • Wireless cell sites & switches
  • Transmission terminals
  • Data and Control
  • Transportation


Specifications LSO-18UOD-650600-AC400W with 500w Heater function

Model name LSO-18UOD-650600-AC400W
Protection Glass NEMA 4X
Rack Unit Size 18U
Cabinet Type Floorstanding Outdoor Cabinet w/ Air conditioner & Heater
Color Grey RAL7035
Material Galvanized Steel
Unit Dimension(WxDxH) 25.59 x 23.62 x 45.28 inches (without extrude rain roof dim.)
Unit Weight(lbs.) 231.42
Internal Depth (Front Rail to Back Door) 20.59 inches
Rail to Rail Depth 19.69 inches
Shipping Dimension(WxDxH)32.68 x 34.25 x 51.18 inches
Shipping Weight(lbs.)319.58
Cooling AC110V/60Hz, 400W(1364.8 BTU) air conditioner (Refrigerant: R134a) DC48V Cooling Emergency Fans x 1 (with tem. controller)
Grounding Earthing Copper Bar,Grounding Wires
Other DC48V LED Lights Door Alarm Sensors
Safety CE
Approvals DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Product Warranty 1 Year
