LightSaber Optics 17-inch Outdoor Battery Box with Sliding Tray, Outdoor Cabinet
- SKU: LSO-BATBOX
$623.64 $1,040.00
+ $167.05 Tariff
Product Information
LightSaber Optics LSO-BATBOX

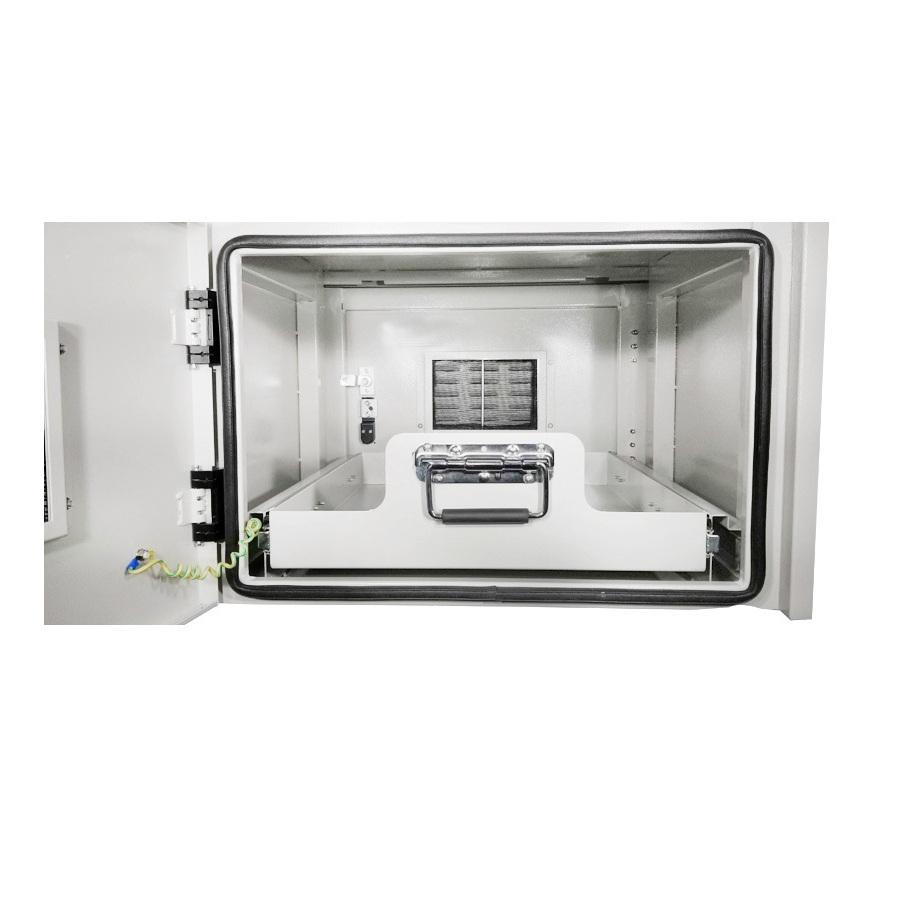

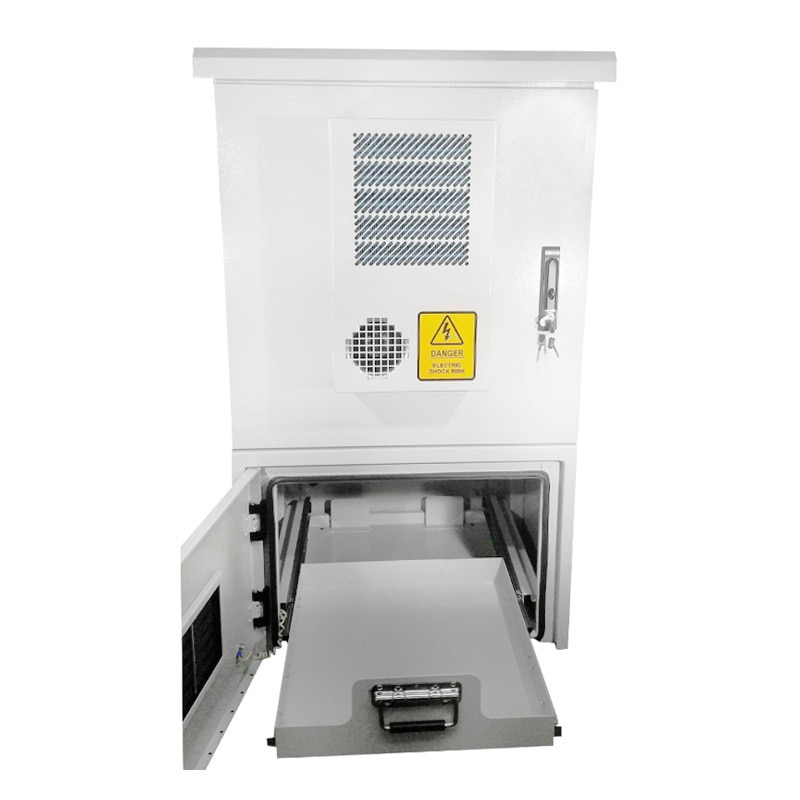

The LSO-BATBOX battery enclosure has a 17inch height battery storage box,which can be slided out for installation or maintenance,it can be mounted under the outdoor enclosures or between enclosures and bottom plinth for additional battery needs. These durable boxes are stocked and available for quick shipping or can be customized to fit your specific needs.
Compatible with:
- LSO-12UOD-650600PM-AC300W
- LSO-18UOD-650600-AC400W
Features:
- Fully assembled

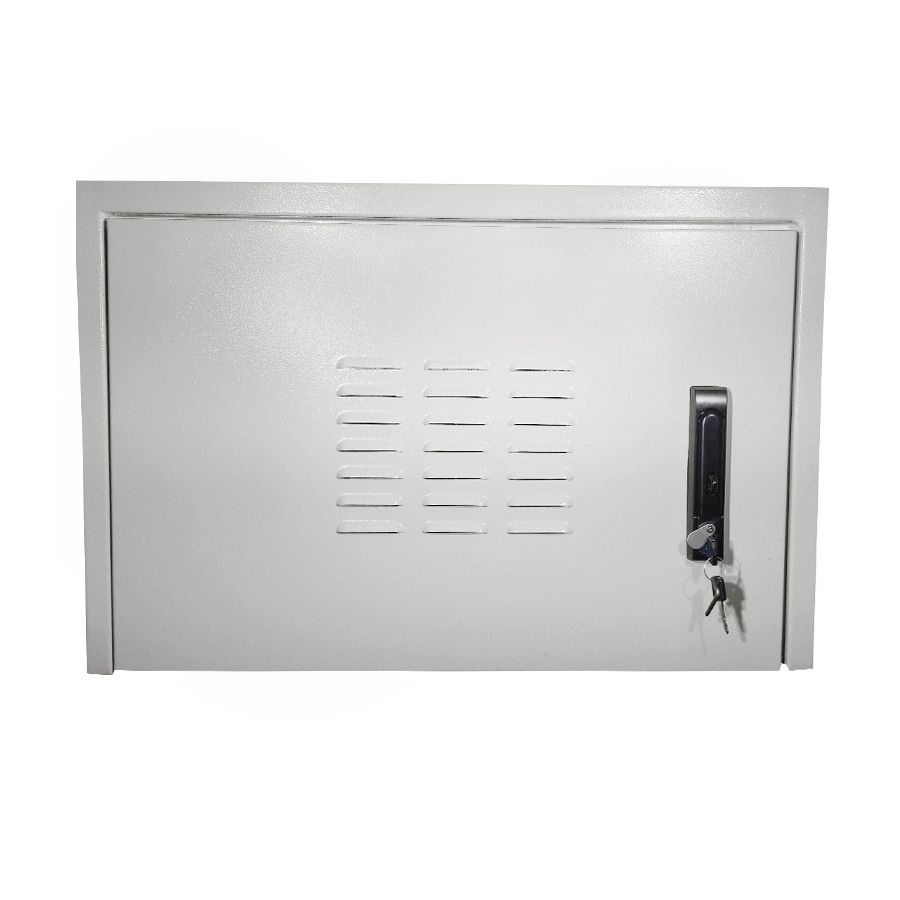

- Front door and rear door opening access
- Grounding wires
- Cable entry holes with gromment on the top

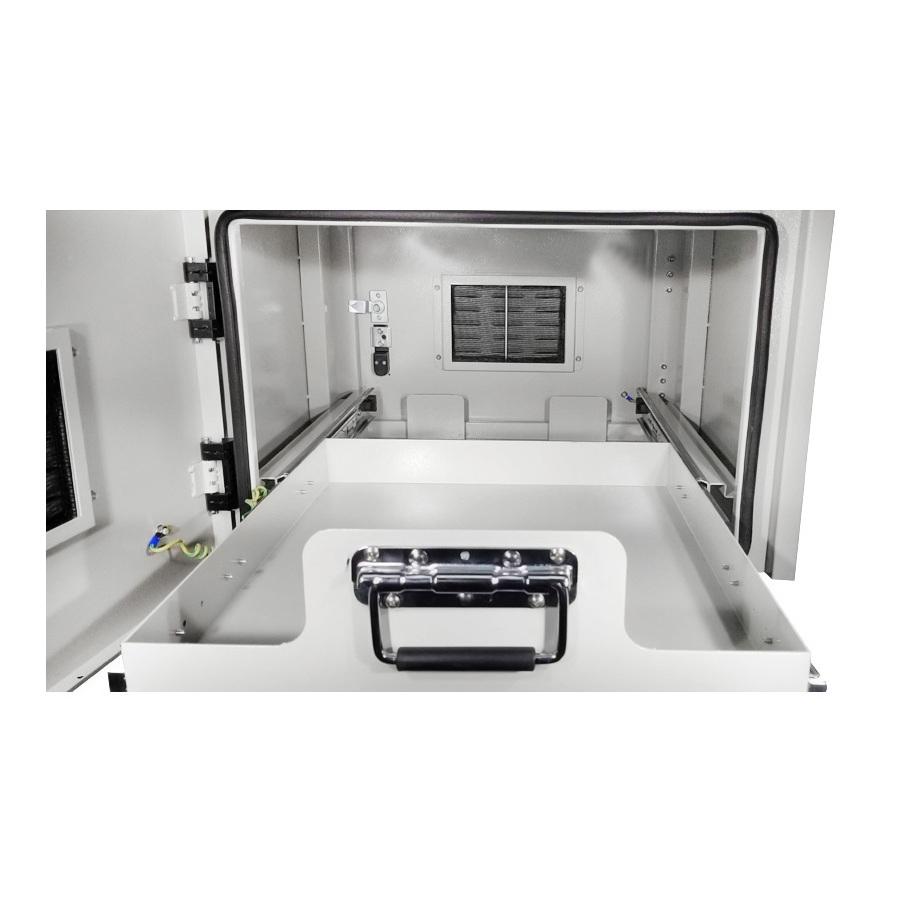

- Sliding Tray for the battery
- Sealed with rubber-filled gasket

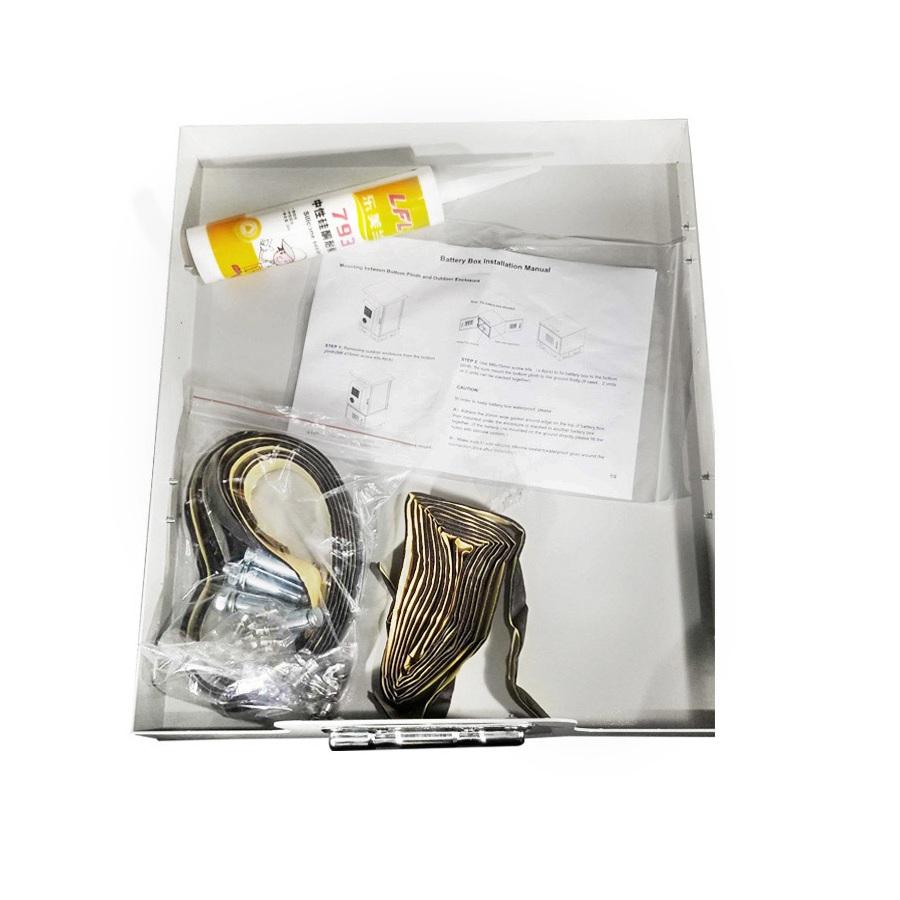

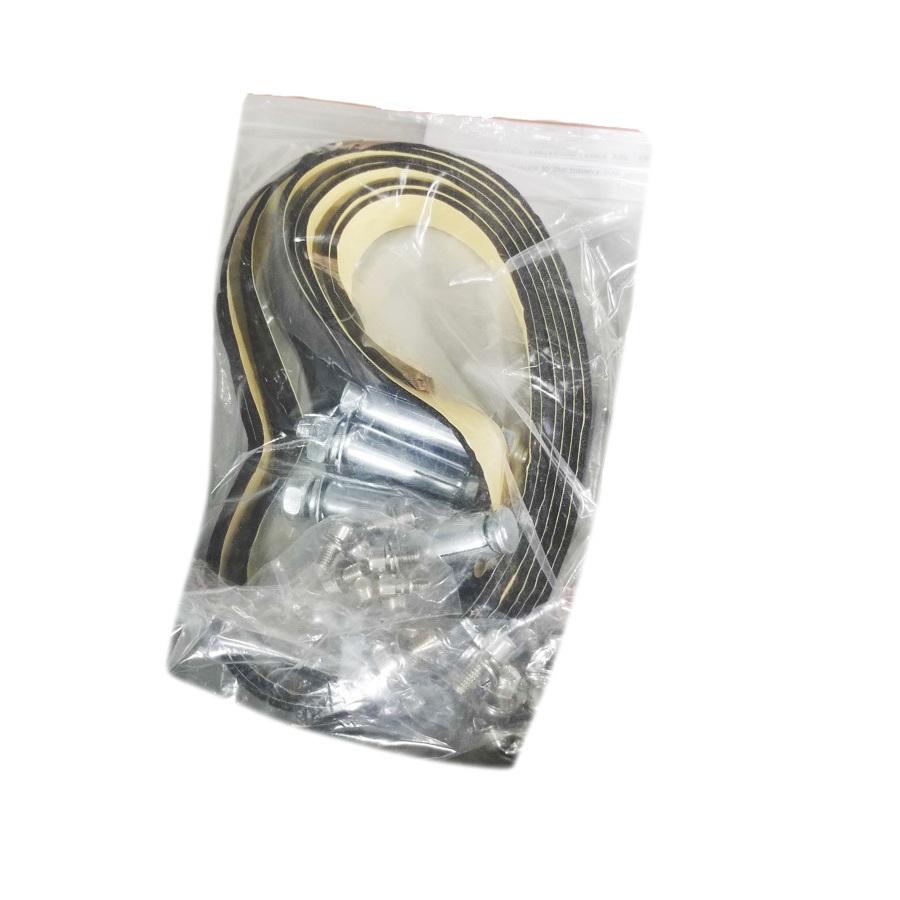

Also comes with:
- 4 x L mounting bracket
- 8 x M6*12mm stainless screw
- 8 x M8*15mm stainless screw
- 4 x M12*60mm explosure bolt
- 3 Meter gasket
- 1 bottle silicone sealant
- 2 x Keys
- 1 x Manual
Specifications
Specifications LSO-BATBOX
| Model name | LSO-BATBOX |
| Rack Unit Size | N/A |
| Cabinet Type | Pole-Mount Outdoor Cabinet |
| Color | Grey RAL7035 |
| Material | Galvanized Steel |
| Unit Dimension(WxDxH) | 25.59 x 23.62 x 17 inches |
| Tray Dimension(WxDxH) | 2.28 x 17.32 x 20.08 inches |
| Unit Weight(lbs.) | 114.61 |
| Loading Capacity(lbs.) | 110 |
| Shipping Dimension(WxDxH) | 30.71 x 27.56 x 18.5 inches |
| Shipping Weight(lbs.) | 147.77 |
| Electrical | |
| Cooling | N/A |
| Grounding | Earthing Copper Bar,Grounding Wire |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
Compatible Enclosures
LSO-18UOD-650600-AC400W-HLightSaber Optics 18RU 25.5" Wide x 23.6" Deep Outdoor Cabinet with 400W Air conditioner and 500w Heater function | Grey
