MikroTik Cloud Router Switch CRS125-24G-1S-2HnD-IN

(0) No Reviews yet
$209.00
Tariff Fee: $38.25
  • SKU: CRS125-24G-1S-2HND-IN
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: 3 In Stock (updated live)
$209.00

Specifications CRS125-24G-1S-2HnD-IN

Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 285x145x45mm
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -35C to +65C tested
Max Power consumption 19W
PoE in Passive PoE
802.3af support yes
PoE in input Voltage 8-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model AR9344
10/100/1000 Ethernet ports 24
SFP DDMI yes
SFP ports 1
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

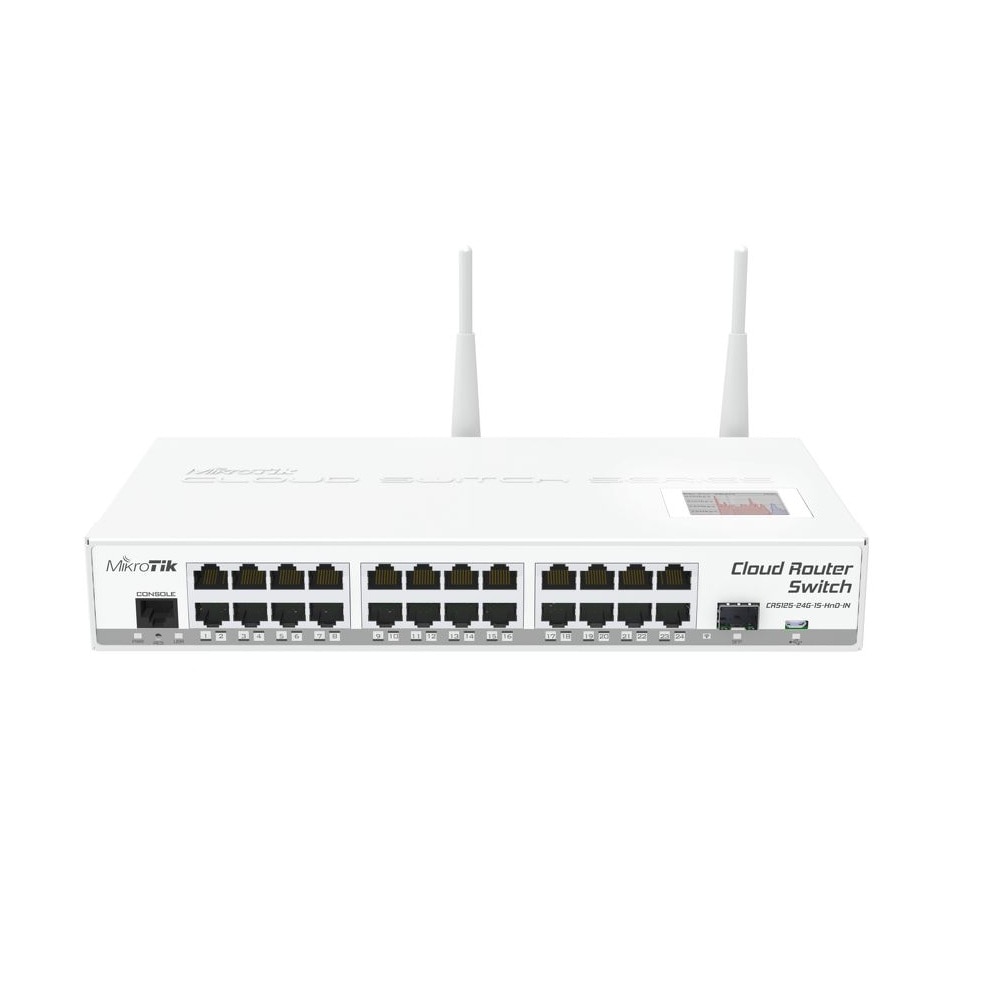

Mikrotik RouterBOARD CRS125-24G-1S-2HnD-IN

Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.


Product Features:

  • Fully manageable L3 switch, full wire speed switching
  • Configure ports as switch, or for routing
  • If required, full RouterOS power right there
  • Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
  • RouterOS gateway/firewall/VPN router
  • Up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
  • 1000mW high power 2.4GHz 11n wireless AP
