  • MikroTik Dual-core 512 MB RAM, 98DX8208 800 MHz CPU, Cloud Router Switch

MikroTik Dual-core 512 MB RAM, 98DX8208 800 MHz CPU, Cloud Router Switch

(0) No Reviews yet
  • SKU: CRS309-1G-8S+IN
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: 11 In Stock (updated live)
$269.00

Specifications CRS309-1G-8S+IN

Product code CRS309-1G-8S+IN
CPU Dual-core 98DX8208 800 MHz
RAM 512 MB
Storage Flash 16 MB
Switch chip model 98DX8208
Dimensions 141 x 115 x 28 mm
Operating temperature -40°C .. +70°C tested
Operating system SwOS / RouterOS (Dual boot)
License level 5
Interfaces
10/100/1000 Ethernet ports 1
10G SFP+ ports 8
Serial port RS232
Powering
PoE in Yes, Passive POE and 802.3af/at compliant
Supported input voltage 12 - 57 V (DC jack), 18 - 57 V (PoE in)
Number of DC jacks 1
Max power consumption 33 W / 19 W (without attachemnts)

MikroTik RouterBOARD CRS309-1G-8S+IN,

Dual-core 512 MB RAM, 98DX8208 800 MHz CPU, Cloud Router Switch

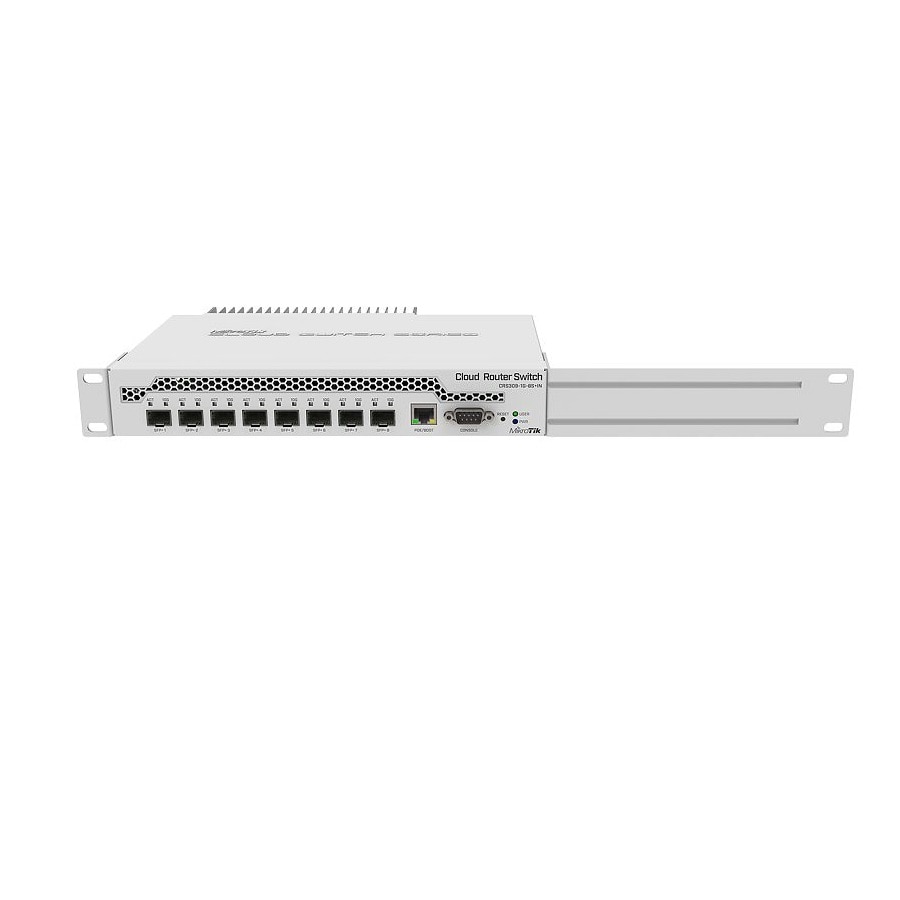

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

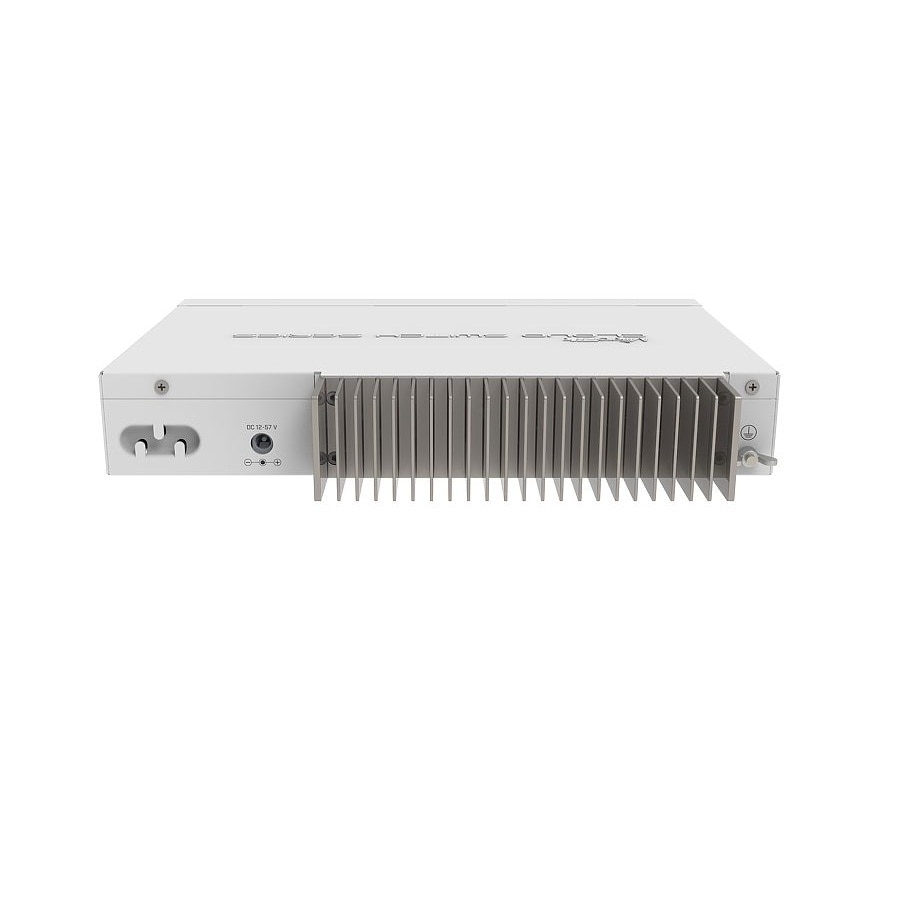

The compact and sleek metallic enclosure also acts as a heatsink, making this device passively cooled - no fan noise and no dust accumulation inside. Special rackmount ears for installing unit into the standard rack are provided.
