MikroTik 2.5 Gigabit Ethernet, 10 Gigabit SFP+, 1.4 GHz CPU, 1GB RAM, v7 RouterOS

(0)No Reviews yet
US$‎290.03 US$‎299.00
49 in stock
College Station
50 In stock

Product Information

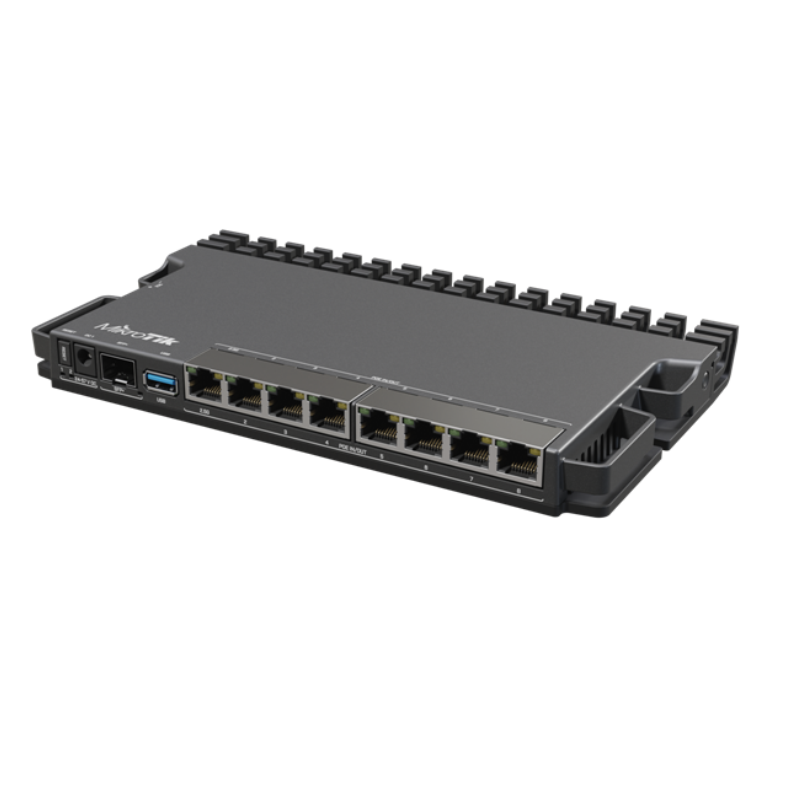

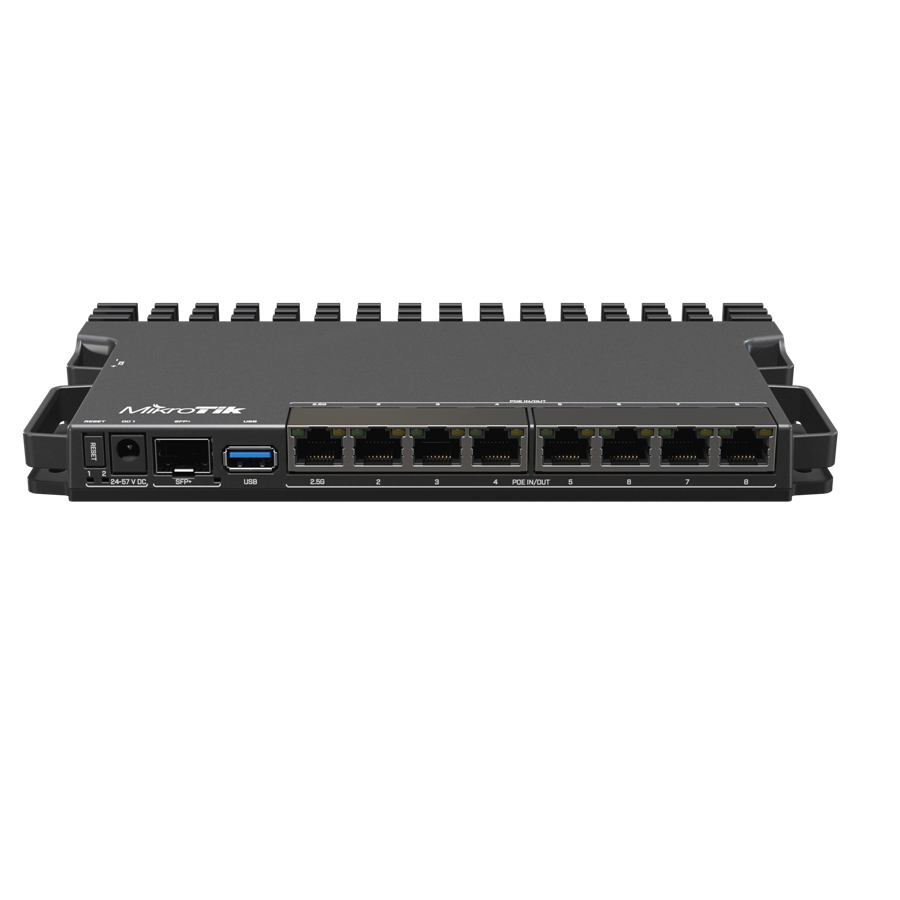

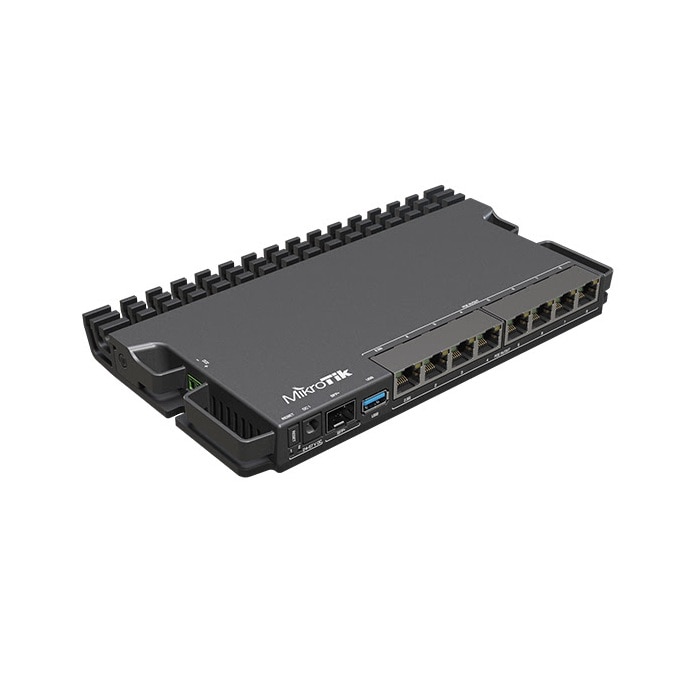

MikroTik RouterBOARD RB5009UPr+S+IN

2.5 Gigabit Ethernet, 10 Gigabit SFP+, 1.4 GHz CPU, 1GB RAM, v7 RouterOS

This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!

All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.

Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!

This tiny form-factor shines anywhere: from confined research facilities and offices to huge corporate server rooms. And don’t forget that you can mount FOUR of these routers in a single 1U rackmount space! With the new RB5009, we want to empower all the small and medium ISPs that are always on the lookout for the most cost-effective and robust solutions. It is a perfect addition to our previous GPEN devices – a line of products designed to replace the expensive GPON solutions.

Specifications

Specifications

CPU88F7040 1.4 GHz
CPU architectureARM 64bit
CPU core count4
Size of RAM1 GB
RAM typeDDR4
Storage1 GB, NAND
Number of 1G Ethernet ports7
Number of 2.5G Ethernet ports1
Number of 10G SFP+ ports1
USB port1 (3.0 type A)
Operating systemOnly v7 RouterOS
Switch chip model88E6393
Dimensions220 x 125 x 22 mm
8.66 x 4.92 x 0.86 in
Operating temperature-40°C to +60°C
PoE-in802.3af/at
PoE-Out802.3af/at
PoE-Out portsEther1 - Ether8, max out per port output (input < 30 V): 640 mA,max out per port output (input > 30 V): 420 mA
Smart PoEController
Max total out2.59 A
Total output power130 W
Total output current2.28 A
Number of DC inputs3
Supported input voltage24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage48 V
Power adapter nominal current2 A
Max power consumption (without attachments)15 W
Max power consumption150 W
