RF Elements 30° Symmetrical Horn WB Horn Antenna with Wideband Performance
- SKU: SH30WB
$220.00 $240.00
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements SH30WB

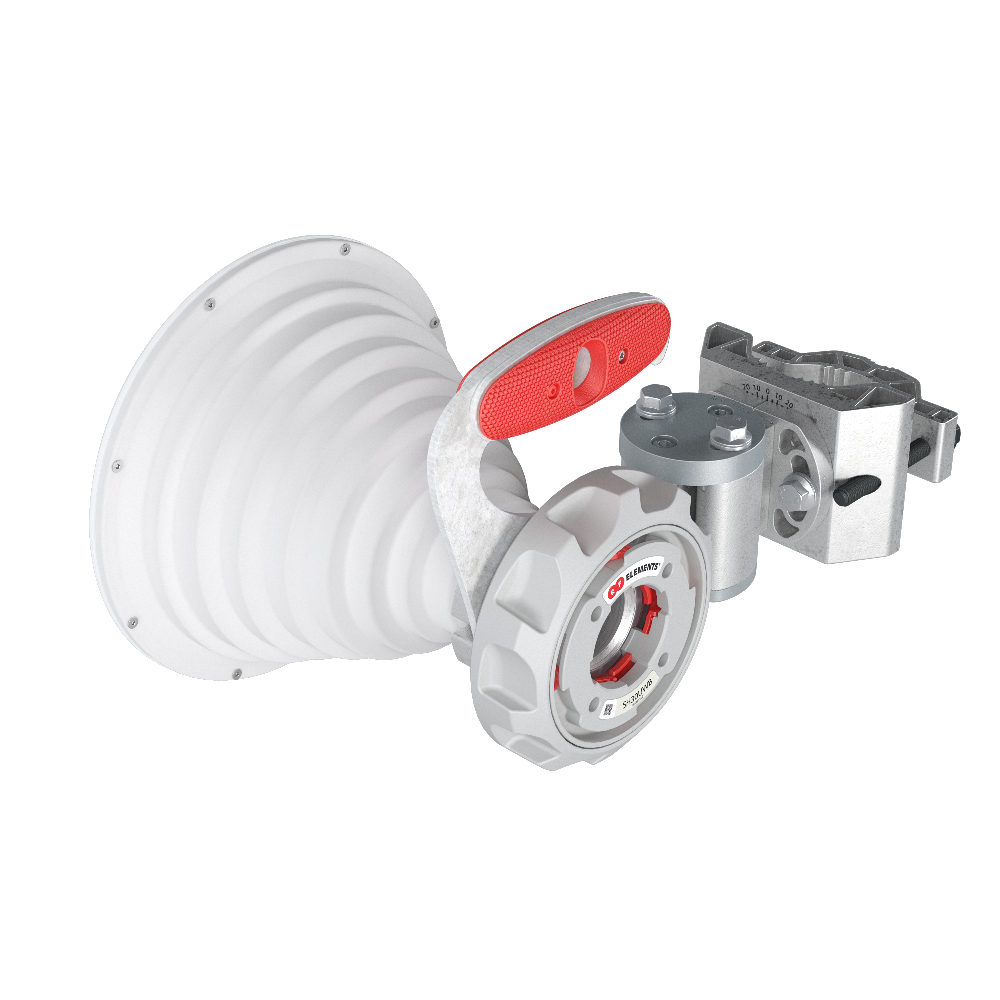

30° Symmetrical Horn WB Horn Antenna with Wideband Performance
30° Symmetrical Horn Antennas have a symmetrical beam pattern with depressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.
Features:
- Wideband performance covering 5 & 6 GHz unlicensed spectrum bands.
- Industry-changing TwistPort™ waveguide connector. Connect directly to waveguide ported radios or use TP Adaptor to common coaxial connectors.
Industry leading design
- Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments.
- Extremely lightweigth for low tower load.
- Compact for low wind loading.
- UBR mounting bracket with stainless steel hardware with anti-seize coating.
- Industry leading ergonomics with integrated handle for easy deployment.
Specifications
Specifications SH30WB
| Radio Connection | TwistPort™ Waveguide Connector |
| Antenna Type | Horn |
| Materials | UV Resistant ABS plastic, Aluminium, Stainless Steel |
| Enviromental | IP65 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 46/23 N - Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 386/179 cm2 - Front/Side (59.8/27.7 in2 ) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 2.3 kg / 5.1 lbs – single unit 3.1 kg / 6.8 lbs – single unit incl. package 23.2 kg / 51.1 lbs – wholesale box (5 units) |
| Single Unit | Single unit retail box: 373 × 236 × 258 mm (14.6 x 9.3 x 10.1 inch) Wholesale box (5 units): 1200 × 392 × 274 mm (47.2 x 15.4 x 10.8 inch) |
| PERFORMANCE | |
| Frequency Range | 4900 - 7125 MHz Antenna on WG Port Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Gain | 18 dBi |
| Azimuth Beam Width -3 dB/-6dB | H 20°, V 20° / H 30°, V 30° |
| Elevation Beam Width -3 dB/-6dB | H 20°, V 20° / H 30°, V 30° |
| Beam Efficiency | 96 %* |
| Front-to-Back Ratio | 30 dB |
| VSWR | Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
