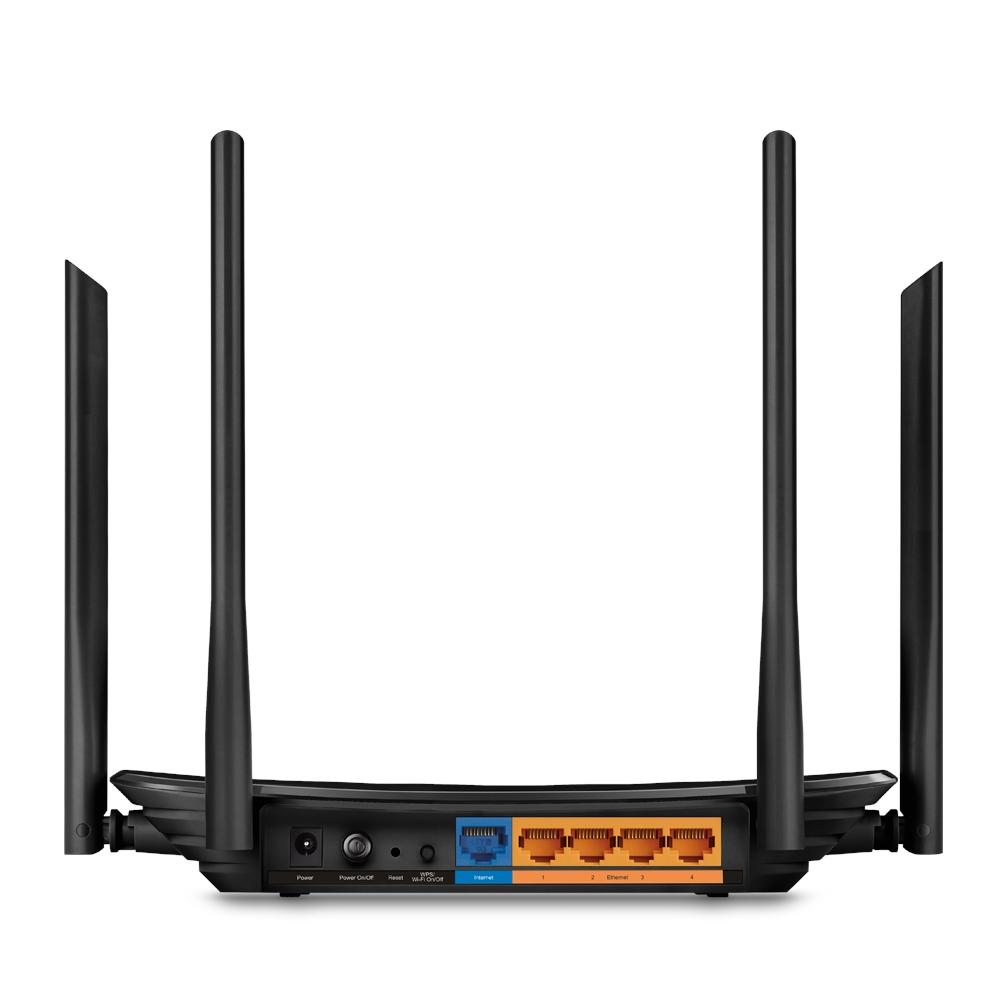

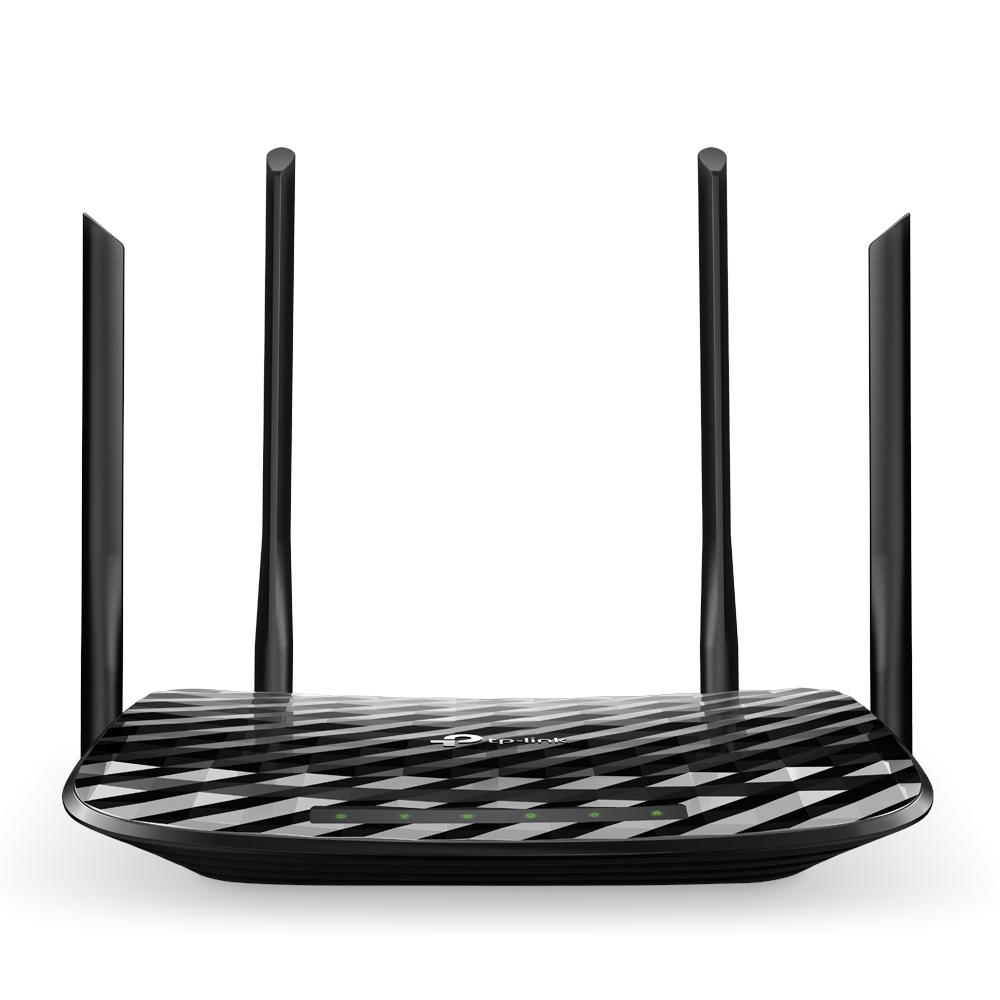

TP-Link AC1200 Wireless MU-MIMO Gigabit Router Archer A6
- SKU: Archer A6
- Manufacturer: TP-Link
- Data Sheet: Download
Product Information
TP-Link Archer A6
AC1200 Wireless MU-MIMO Gigabit Router Archer A6
Smooth Entertainment with AC1200 Dual Band WiFi
The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4GHz band delivers speeds up to 300Mbps for everyday tasks like emailing and web browsing while the 5GHz band delivers speeds up to 867Mbps making it ideal for HD video streaming and lag-free online gaming.
5 High-Performance Antennas for WiFi Coverage throughout Your Home*
Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer A6 provides ideal WiFi coverage.
Access Point Mode
Switch to Access Point Mode to share your wired network with other wireless devices.
MU-MIMO Increase Speed, Throughput, Capacity
MU-MIMO enables the Archer A6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.
Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet connection. Connect your favorite wired devices to the Archer A6 and get impressed!
Easy Setup and Management with the Tether APP
Features:
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of bandwidth*
- Four external antennas and one internal antenna provide a stable wireless connection and optimal coverage*
- Easy network management at your fingertips with the TP-Link Tether app
- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once**
- Beamforming technology delivers wider wireless coverage Supports Access Point mode to create a new WiFi access point
Specifications
Specifications Archer A6
| Hardware | |
| Ethernet Ports | 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port |
| Buttons | Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button |
| Antennas | 4 Fixed External Antennas + 1 Internal Antenna |
| External Power Supply | 12V/1A |
| Dimensions (W x D x H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Software | |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Server | PPTP VPN, OpenVPN |
| Access Control | Parental Controls, Local Management Control, Host List,White List, Black List |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Management | Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz Guest Network, 5GHz Guest Network |
| Wireless | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Transmit Power | FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz) |
| Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； |
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Schedule |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| Others | |
| Certification | FCC, RoHS |
| Environment Operating Temperature | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
