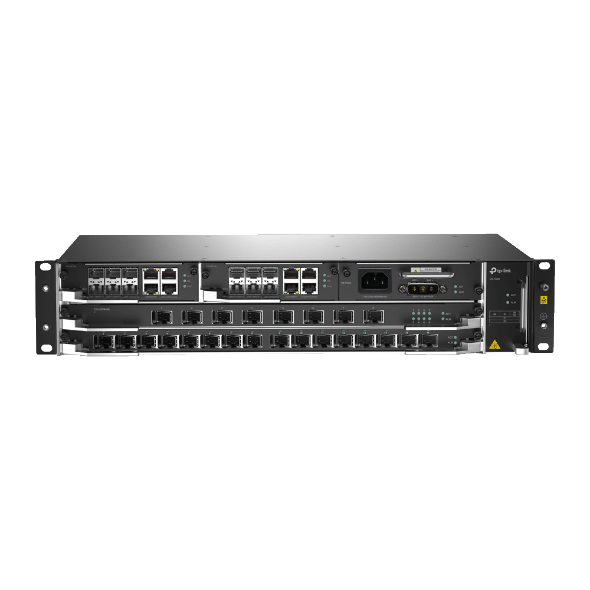

TP-Link DeltaStream Chassis Optical Line Terminal-X2
- SKU: DS-P8000-X2
$3,999.99
Product Information
OLT DeltaStream Chassis Optical Line Terminal-X2 GPON | XGS-PON
DS-P8000-X2
- GPON / XGS PON connectivity: Support for two GPON or XGS-PON service cards
- Upstream Connectivity: DS-MCUA Controller with 6 10GE SFP+ Ports + 1 Gigabit Ethernet Port
- Management Ports: 1 x RJ45 Management + 1 x RJ45 Console + 1 Alarm port.
- Power sources: AC or DC power sources.
- Full L2 and Advanced L2+/L3 Features: Static Routing, IGMP Snooping, DHCP Server/Relay, IEEE 802.1p/DSCP QoS, VoIP QoS.
- Security: ACL, 802.1x Authentication, ARP Inspection, IP Source Guard, Rouge ONU Detection, Encryption.
- Centralized Management: through the Free DeltaStream PON (DPMS) management system, SNMP, CLI and webUI.
- ONTs Compatibility : Third Party License NOT necessary for the use of ONTs from other manufacturers.
Specifications
Specifications
| Hardware Features | |
| Interface | 2x Service Boards up to 32x GPON Ports or 32x XGS-PON & GPON Combo Ports* Dual Main Control Unit: 6x 10G SFP+ 1x 1000M RJ45 Port 1x RJ45 Console Port 1x RJ45 Management Port 1x Alarm Port |
| Button | Reset Button |
| Power Supply | Dual Power Supply, AC+DC AC: 100V~240V, 50/60Hz DC: -38.4V -57.6V |
| Power Consumption | 2x DS-MCUA + 2x DS-LGPA-16 + DS-PSUA + DS-FANA: Max 262W |
| Dimensions ( W x D x H ) | Witdout angle iron and fiber manager: 443 x 271.3 x 88 mm Witd angle iron, witdout fiber manager: 446 x 271.3 x 88 mm (excluding angle iron mounting ears) 483 x 271.3 x 88 mm (including angle iron mounting ears) Witd angle iron and fiber manager: 447.2 x 271.3 x 88 mm (excluding angle iron mounting ears) 484.2 x 271.3 x 88mm (including angle iron mounting ears) |
| Software Features | |
| Security | ACL |
| DHCP | DHCP Server DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Autdentication | ONU Auto Autdentication |
| ONU Security | Rouge ONU Detection and Isolation |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Routing | Static Routing |
| Mulitcast | IGMP Snooping MLD Snooping |
| Centralized Management | Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview |
| GPON Port Attribute | |
| Max. Splitting Ratio | 1:128 for GPON, 1:256 for XGS-PON |
| Transmission distance | 20 km |
| Data rate | GPON Downstream: 2.5 Gbps, Upstream: 1.25 Gbps XGS-PON Downstream: 9.953 Gbps, Upstream: 9.953 Gbps |
| Wavelengtd | Tx: 1490 nm Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
| Others | |
| Certification | CE,FCC |
| Environment | Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -40°C - 70°C (-40°F - 158°F) Operating Humidity: 10% - 90% non-condensing Storage Humidity: 5% - 90% non-condensing |
