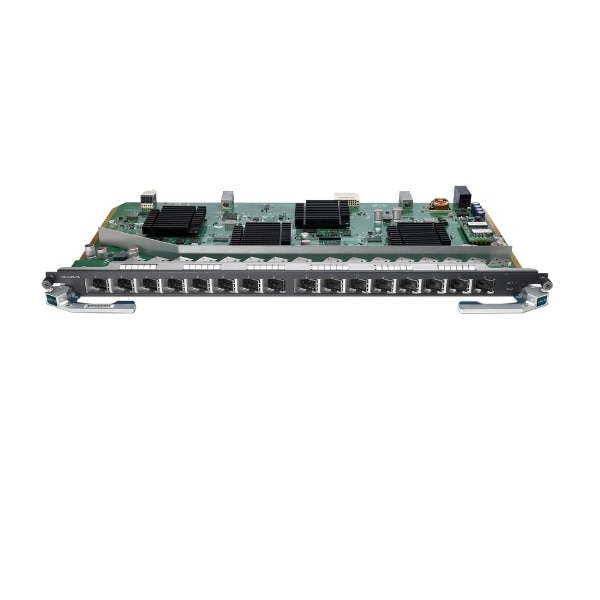

TP-Link DeltaStream Chassis Optical Line Terminal 16 GPON Service Board
- SKU: DS-LGPA-16
$2,999.99
- Manufacturer: TP-Link
Product Information
TP-Link DS-LGPA-16
DeltaStream Chassis Optical Line Terminal 16 GPON Service Board
The GPON connection system offers GPON connections with an impressive high-speed transfer rate of up to 2.488 Gbps downstream and 1.244 Gbps upstream per port. This high scalability enables a splitting ratio of 1:128 for GPON services per port, providing flexible deployment options. The system supports hot-swapping for seamless upgrades, increasing flexibility and future-proofing. Additionally, it offers extensive L2 and advanced L3 features that meet flexible deployment and scaling requirements. For efficient management, the system supports various management options including DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI to enable central control and monitoring.
Features:
- 16× GPON Ports: Delivers high-speed transition rate up to 2.488 Gbps downstream and 1.244 Gbps upstream (per port).
- High Scalability: Supports 1:128 splitting ratio for GPON services (per port).
- Flexible Deployment: Comaptible with TP-Link's Chassis optical line terminals and supports hot swapping for seamless upgrading.
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs.
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.
Specifications
Specifications DS-LGPA-16
| HARDWARE FEATURES | |
| Interface | 16× GPON Ports |
| Power Supply | Power Supplies: via DS-PSUA Module DC: -38.4V~-57.6V |
| Power Consumption | Max. 56.2W |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 15.4 × 10.1 × 0.9 in (390.8 mm × 257.5 mm × 22.5 mm) |
| SOFTWARE FEATURES | |
| Security | ACL 802.1x Authentication |
| DHCP | DHCP Server DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | Rouge ONU Detection and Isolation |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Routing | Static Routing |
| Mulitcast | IGMP Snooping MLD Snooping |
| Centralized Management | Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview |
| GPON PORT ATTRIBUTE | |
| Max. Splitting Ratio | 1:128 for GPON |
| Transmission distance | 20 km |
| Data rate | GPON *Per Port |
| Wavelength | Tx: 1490 nm Rx: 1310 nm |
| Certification | CE,FCC |
| Environment | Operating Temperature: 0℃–50℃ (32℉–122℉) Storage Temperature: -40℃–70℃ (-40℉–158℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
