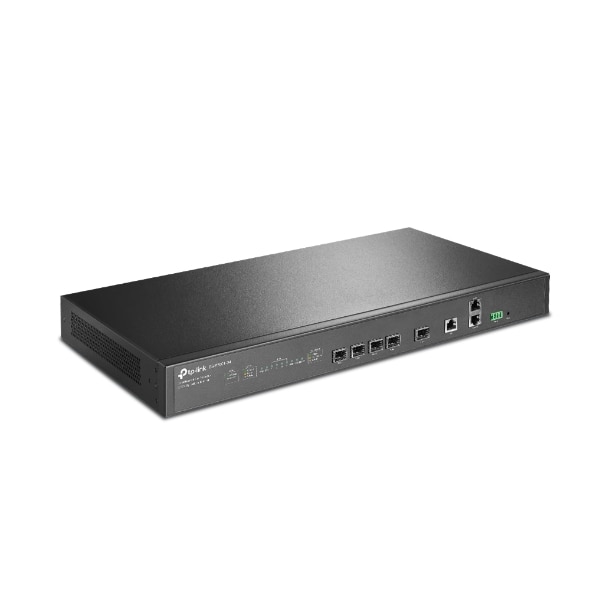

TP-Link DeltaStream 4-Port Pizza-box Optical Line Terminal
- SKU: DS-P7001-04
- Manufacturer: TP-Link
Product Information
DeltaStream 4-port Pizza-box GPON Optical Line Terminal
DS-P7001-04
- 4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
- High-Speed Uplink Ports: Provides 1× 10GE SFP+ port and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
Specifications
Specifications DS-P7001-04
| HARDWARE | |

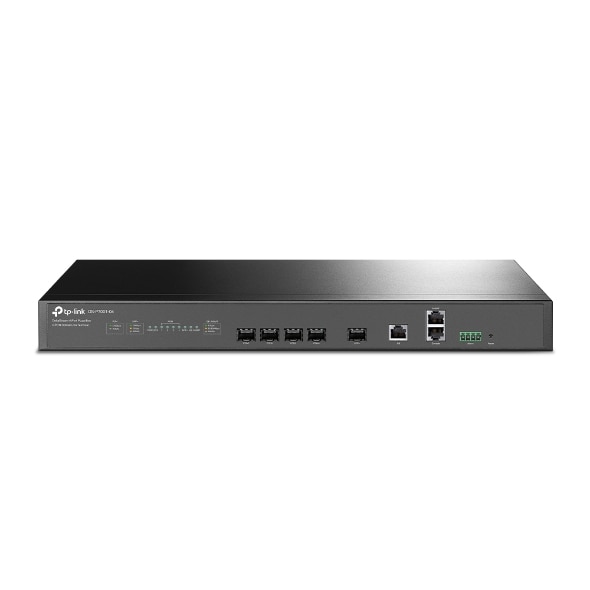

| Interface | • 4× 2.5G PON Ports • 1× 10 Gbps SFP+ Uplink Port • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved) |
| Button | Reset Button |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180× 44 mm) |
| Power Consumption | Max. 58W |

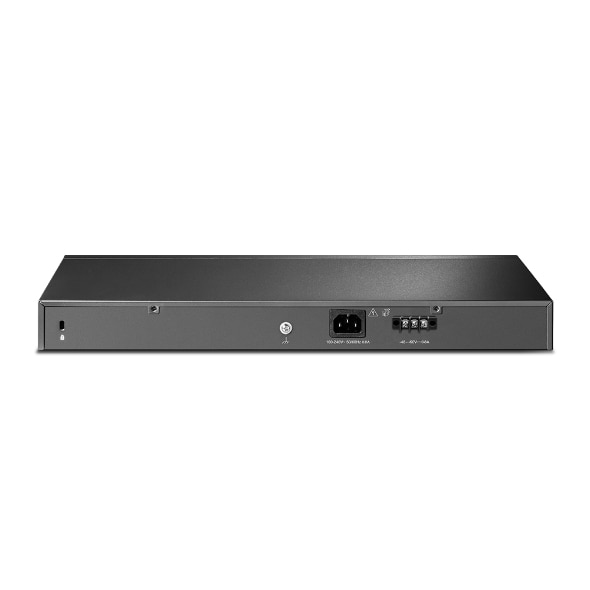

| Power Supply | Dual Power Supplies • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V |
| SOFTWARE FEATURES | |
| DHCP | • DHCP Server • DHCP Relay |
| Security | • ACL • 802.1x Authentication • ARP Inspection • IP Source Guard |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | • Rouge ONU Detection and Isolation • Uplink and Downlink Data Encryption |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | • IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP |
| Routing | Static Routing |
| Mulitcast | • IGMP Snooping • MLD Snooping |
| Centralized Management | • Large-Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi-Site Management • Intelligent Network Monitoring • Real-time Network Overview |
| OTHERS | |
| Certification | CE,FCC |
| Package Contents | • OLT Device • Power Cord and Console Cable • Installation Guide • Mouting Brackets, Screws and Rubber Feet |
| Environment | • Operating Temperature: 0°C~50°C (32°F~122°F) • Storage Temperature: -40℃~70℃(-40°F ~158°F) |
| GPON PORT ATTRIBUTE | |
| Transmission distance | 20km |
| Data rate | • Downstream: 2.5 Gbps • Upstream: 1.25 Gbps |
| Wavelength | • Tx: 1490 nm • Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
| Max. Splitting Ratio | 1:128 |
