Ubiquiti EdgePoint FiberProtect 16 RJ45 Ethernet ports and two SFP+ ports Switch

(0)No Reviews yet
  • SKU: EP-S16
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • User Guide:Download

Unknown ETA

Unknown ETA

Product Information

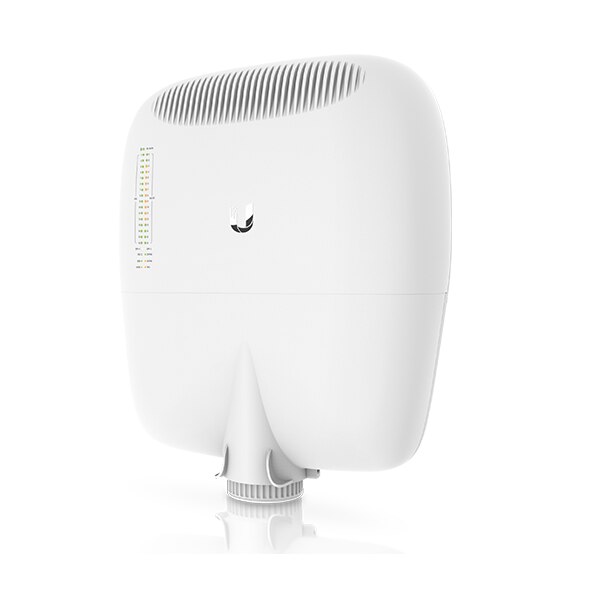

Ubiquiti Networks EP-S16

EdgePoint FiberProtect 16 RJ45 Ethernet ports and two SFP+ ports Switch

Breakthrough in Tower Deployment

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Purpose-Built for WISP Control

The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.

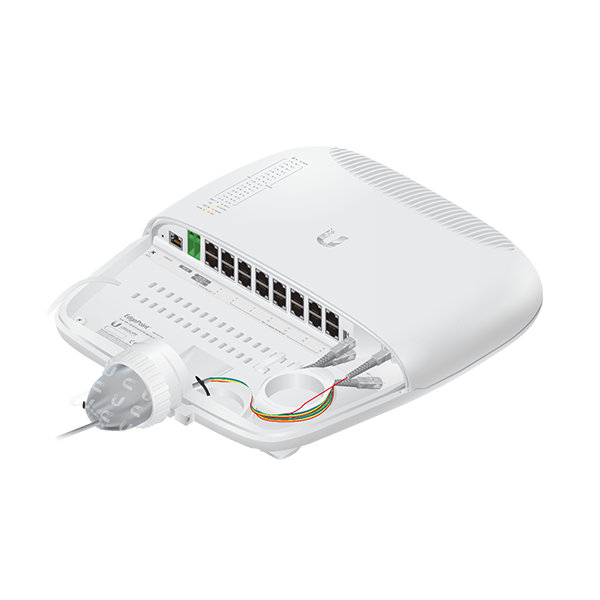

All-in-One Design

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

Advanced Routing Applications

Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.

Specifications

Specifications EP-S16

Dimensions
Dimensions With Wall-Mount
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight
With Wall-Mount
3.4 kg (7.50 lb)
3.8 kg (8.38 lb)
Max. Power Consumption40W (Excludes PoE Output)
Power Input(1) DC Terminal Block
or
(2) RJ45 (Ports 1 and 2)
(Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input54VDC, 6A
Passive PoE Input(2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.)
Passive PoE Output(4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
Power Monitoring(1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range56 to 42VDC
ButtonReset
LEDs
System
1 to 16
SFP
Power
Speed/Link/Activity,
PoE Speed/Link/Activity

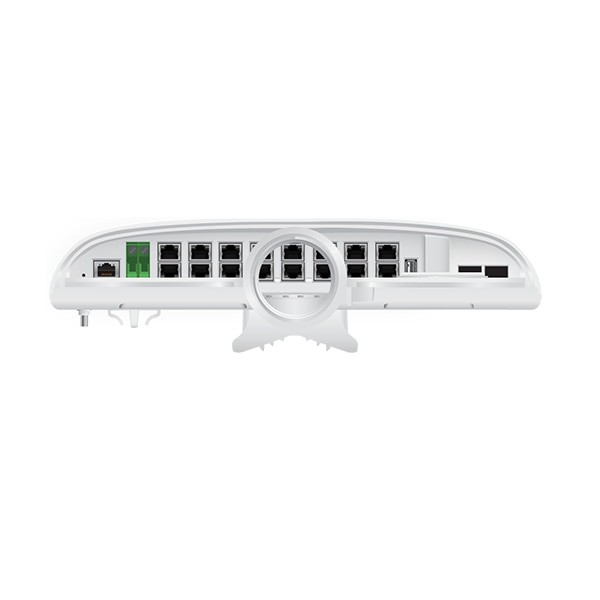

Ports
Serial Console Port
Data Ports

(1) RJ45 Serial Port
(16) 10/100/1000 RJ45 Ports
(2) 1/10 Gbps SFP+ Ports
ProcessorARM Cortex-A9 400 MHz
System Memory256 MB DDR3 RAM
Code Storage32 MB
CertificationsCE, FCC, IC

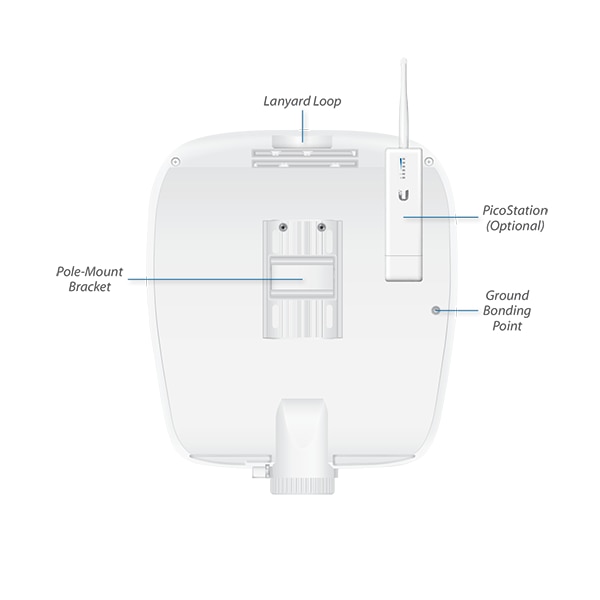

Pole/Wall MountYes
Operating Temperature-20 to 65° C (-4 to 149° F)
Operating Humidity10 to 90% Noncondensing
