Ubiquiti Outdoor 4-Port PoE Passthrough Switch
Product Information
Ubiquiti Networks N‑SW
Outdoor 4-Port PoE Passthrough Switch
Introducing the Ubiquiti Networks® NanoSwitch™, an unmanaged switch with four Gigabit Ethernet ports. For its total non‑blocking line rate, the NanoSwitch supports up to 4 Gbps.
Power Strip Simplicity for 24V Devices
Simply providing 24V 4-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.
PoE Passthrough

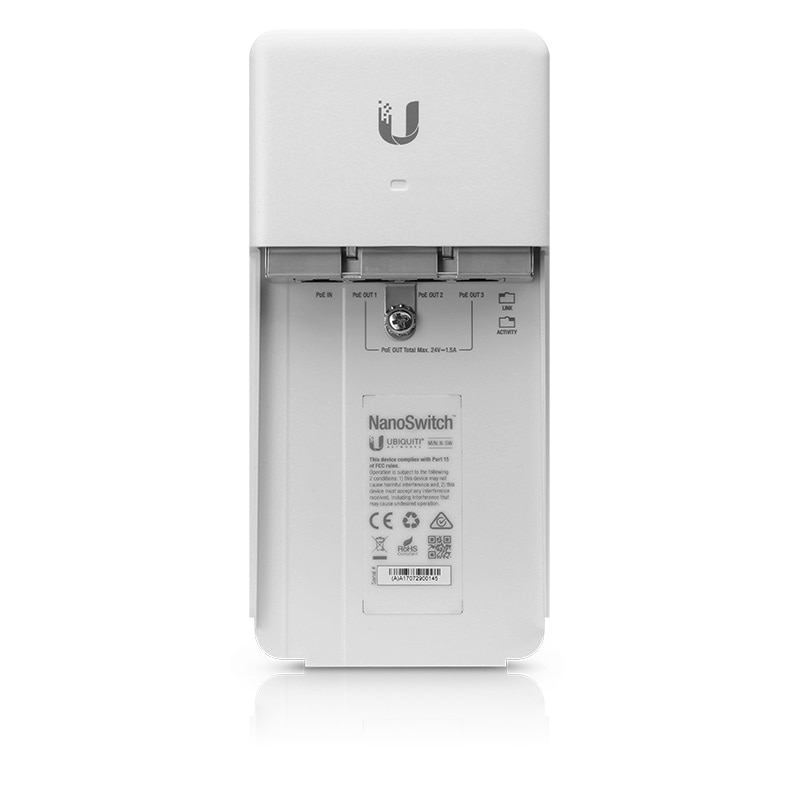

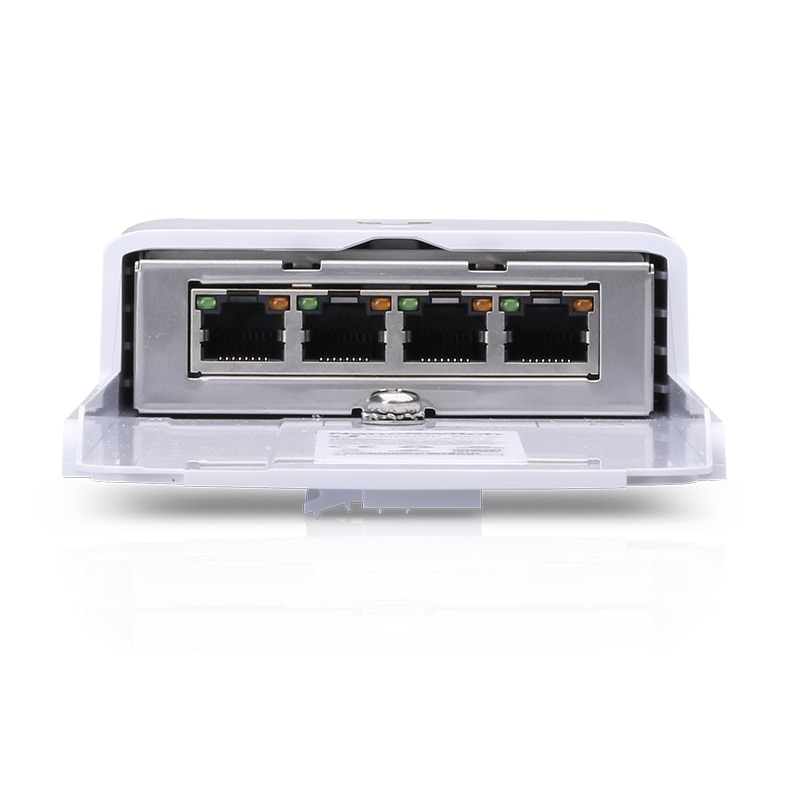

PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 4-pair PoE to power the switch. PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 36W PoE output.

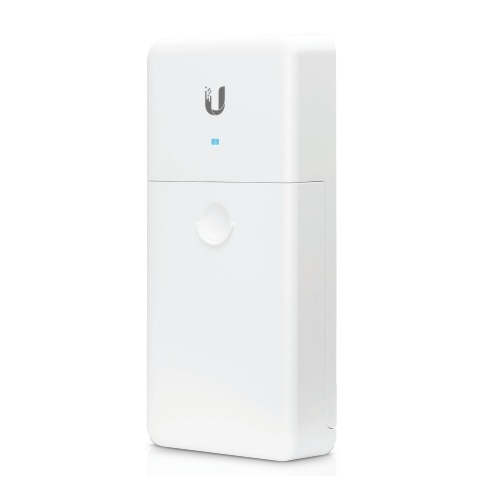

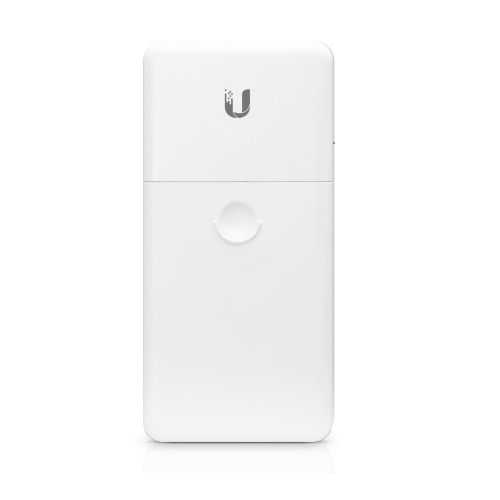

Designed for Outdoor Durability
The NanoSwitch features an outdoor weatherproof form factor. Operating Temperature: -30 to 70° C (-22 to 158° F).
Specifications
Specifications N‑SW
| Dimensions | 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28") |
| Weight | 271 g (9.6 oz) |
| Enclosure Characteristics | White Polycarbonate |
| Total Non-Blocking Line Rate | 4 Gbps |
| Typical Power Consumption | 1.5W |
| Passive PoE Max. Wattage per Port | 24V, 2-Pair, 1A per Port (24W) |
| Total Passive PoE Max. Wattage | 24V, 2-Pair, 1.5A for 3 Ports (36W) |
| Power Method | Passive 24V, 4-Pair PoE In |
| Passive PoE Voltage Range | 21.6 - 26.4V |
| LEDs | Speed/Link/Activity (All Ports) |
| Networking Interfaces | (4) 10/100/1000 Mbps RJ45 Ports |
| PoE Interfaces | Passive 24V PoE In |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Certifications | CE, FCC, IC |
