Ubiquiti UniFi Reader
- SKU: G2/G3 Readers
$139.00 to $159.00Select options
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

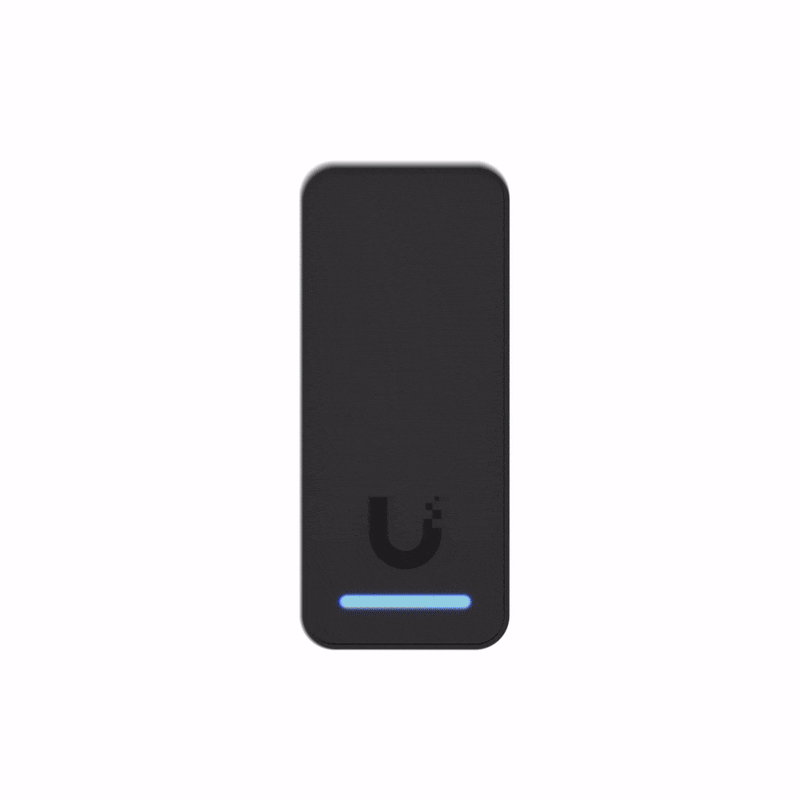

Ubiquiti Networks Reader

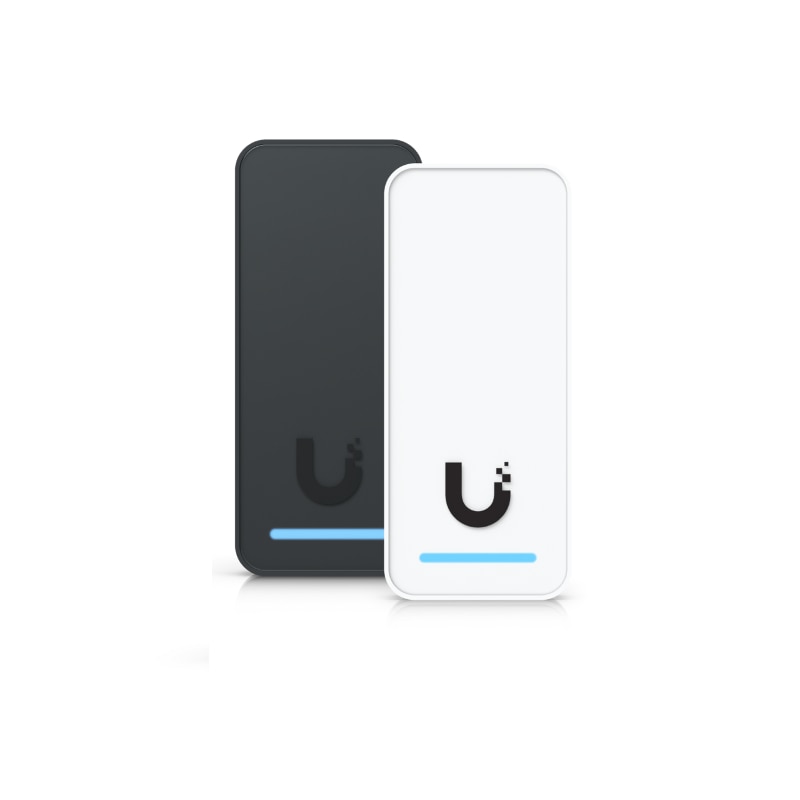

UniFi G2, G3 Reader
Compact second-generation and third-generation access reader with Apple Touch Pass support.
Features:
- Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass
- Supports hand-wave unlocking as a request-to-exit device
- Provides entry and exit greeting messages
- IP55-rated weather resistance (-30 to 45°C)

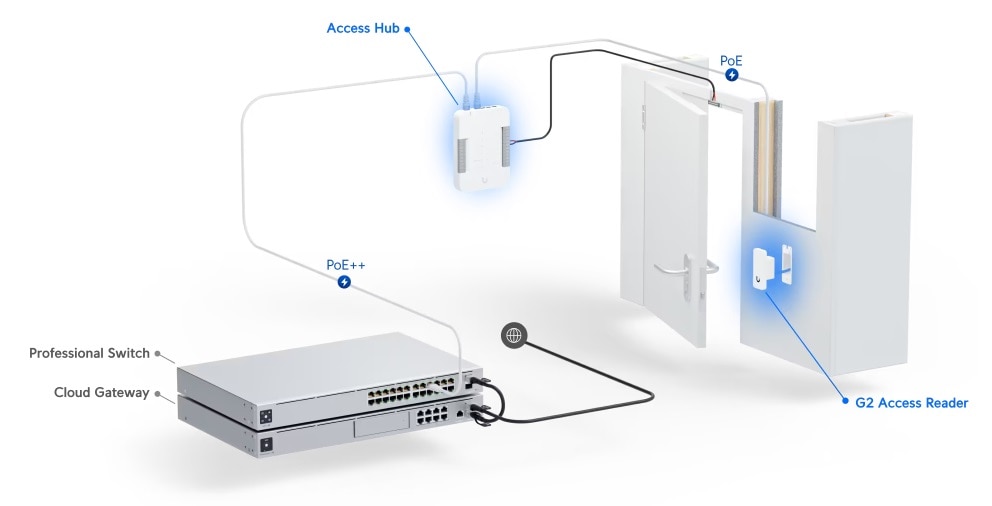

- Connects to UniFi Access Hub via PoE
Specifications
Specifications

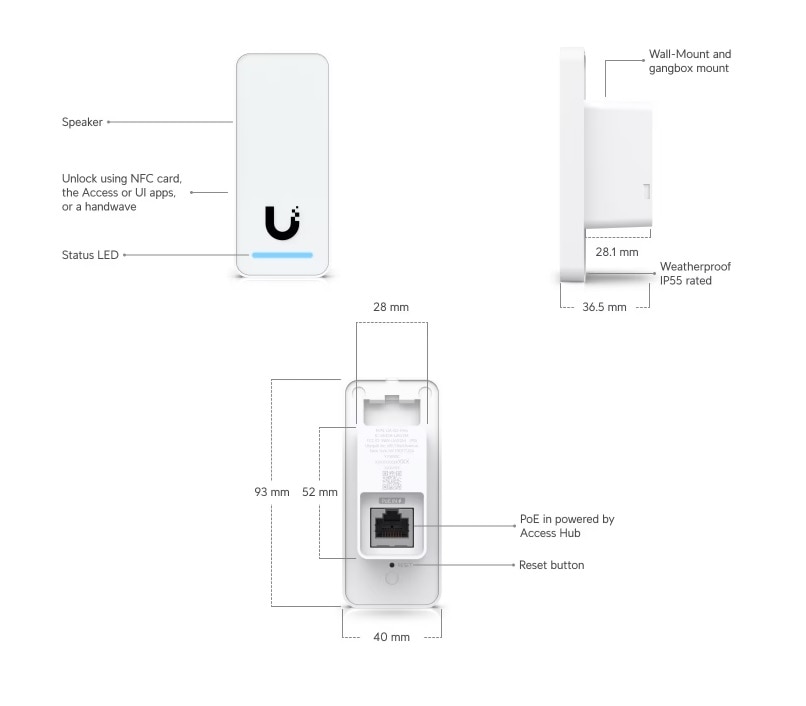

| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight | 82 g (0.18 lb) |
| Enclosure material | Polycarbonate, glass |
| Mounting material | Aluminum alloy |

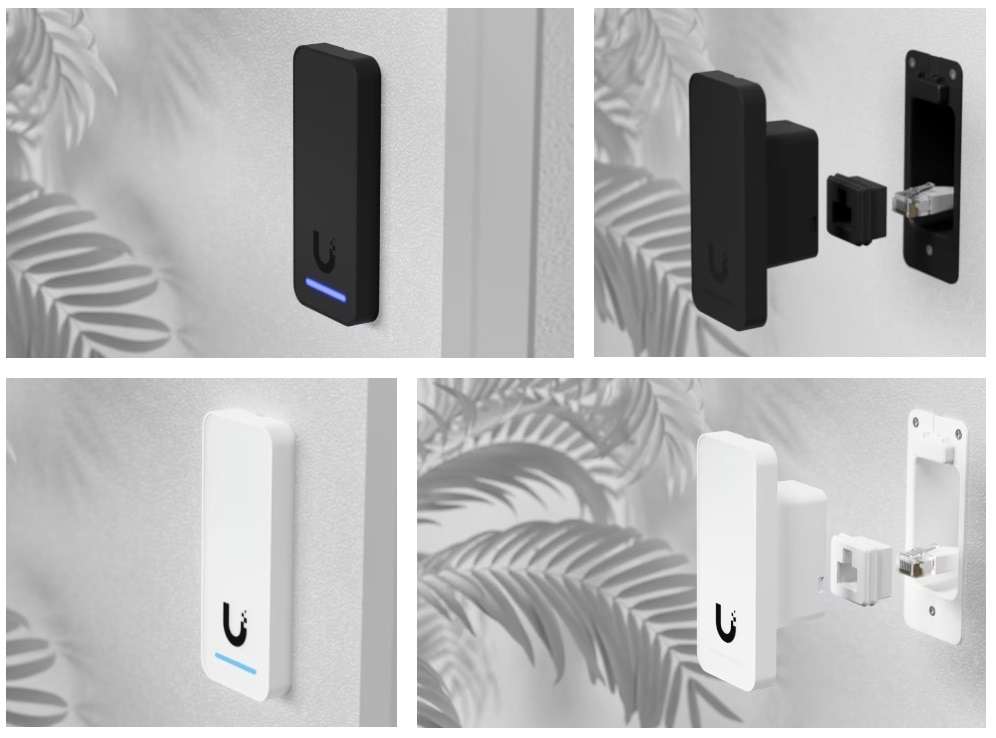

| Mounting | In wall, gang box |
| Weatherproofing | IP55 |
| Hardware | |

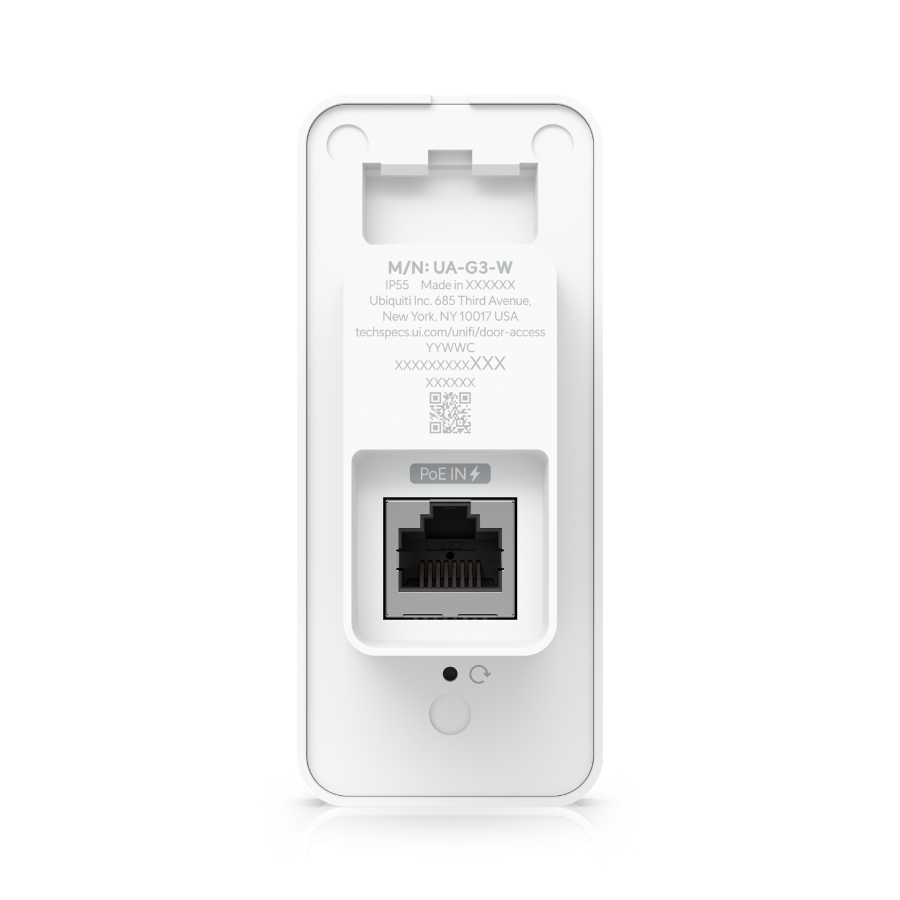

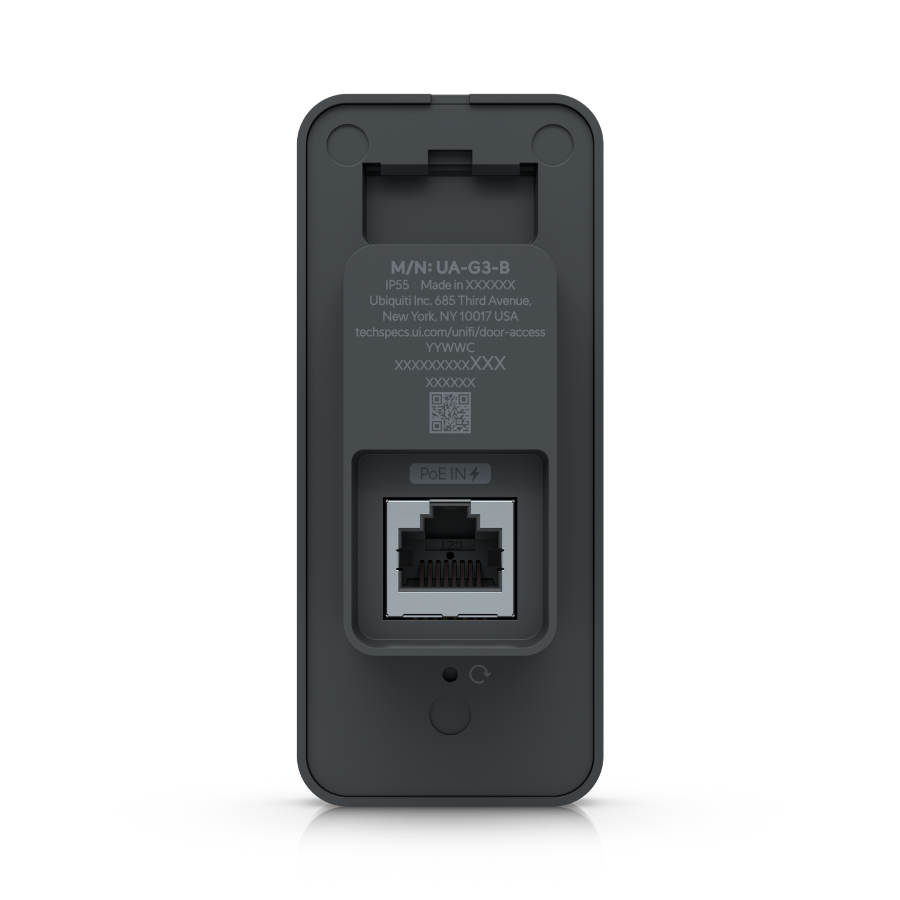

| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) 8 ohm, 0.7W |
| LEDs | (1) Status light (Learn more) |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | -30 to 45° C (-22 to 113° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3, V01 |
| Software | |
| Management application | UniFi Access: Version 3.0.15 and later |
