Ubiquiti Networks Enterprise Access Hub
- SKU: EAH-8
- Manufacturer: Ubiquiti Networks
Product Information

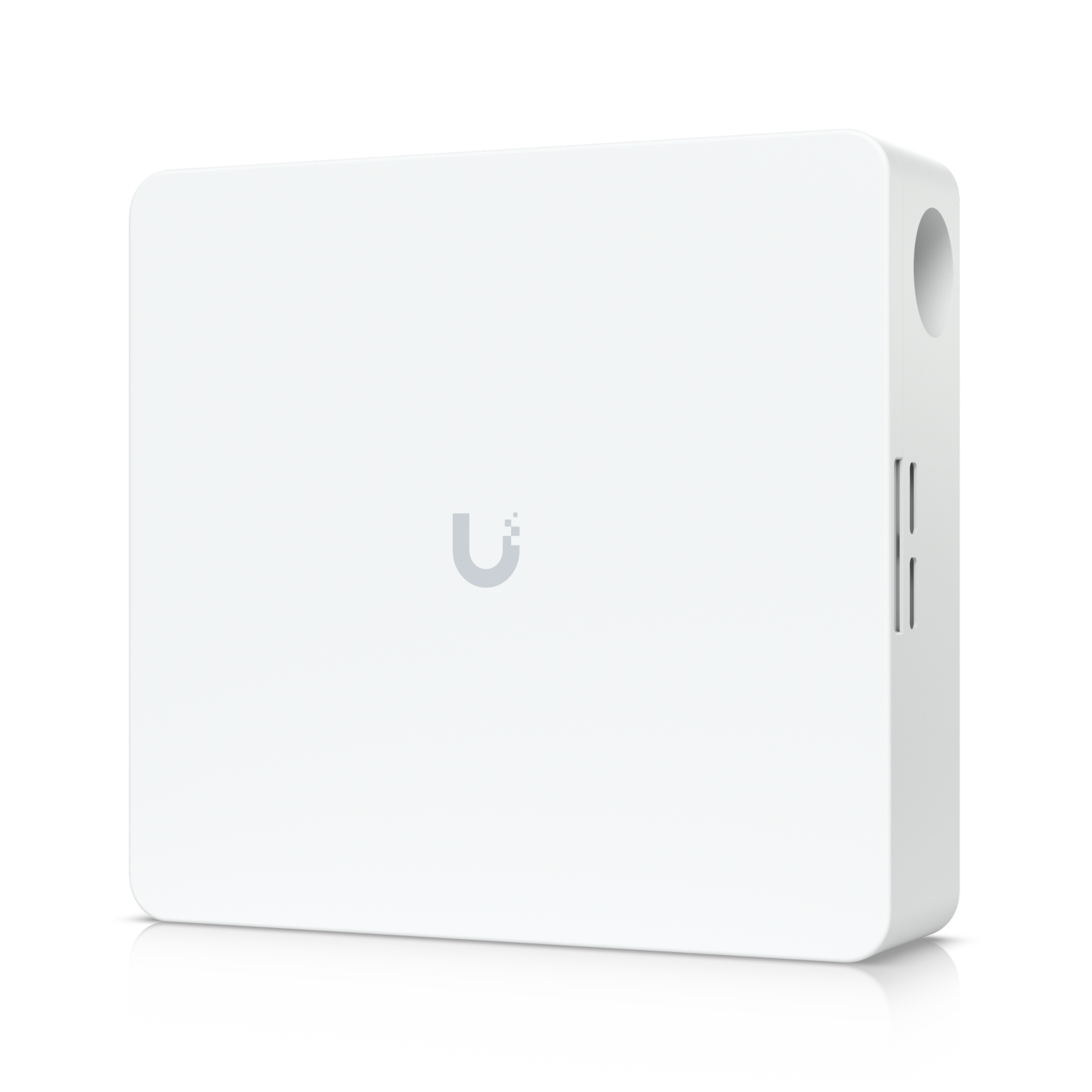

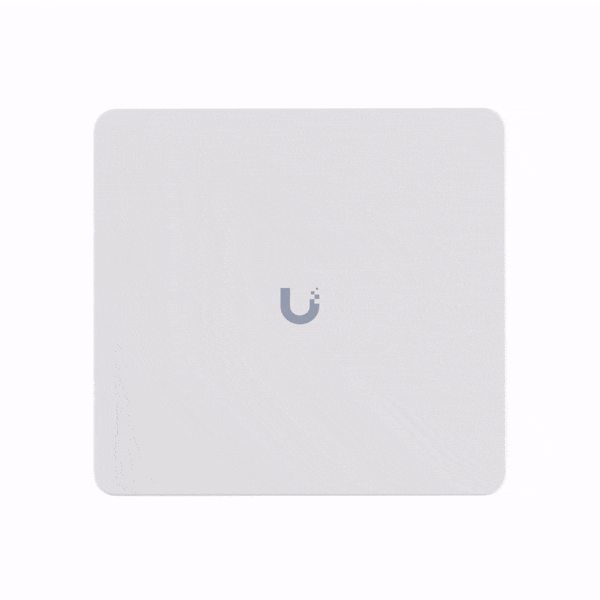

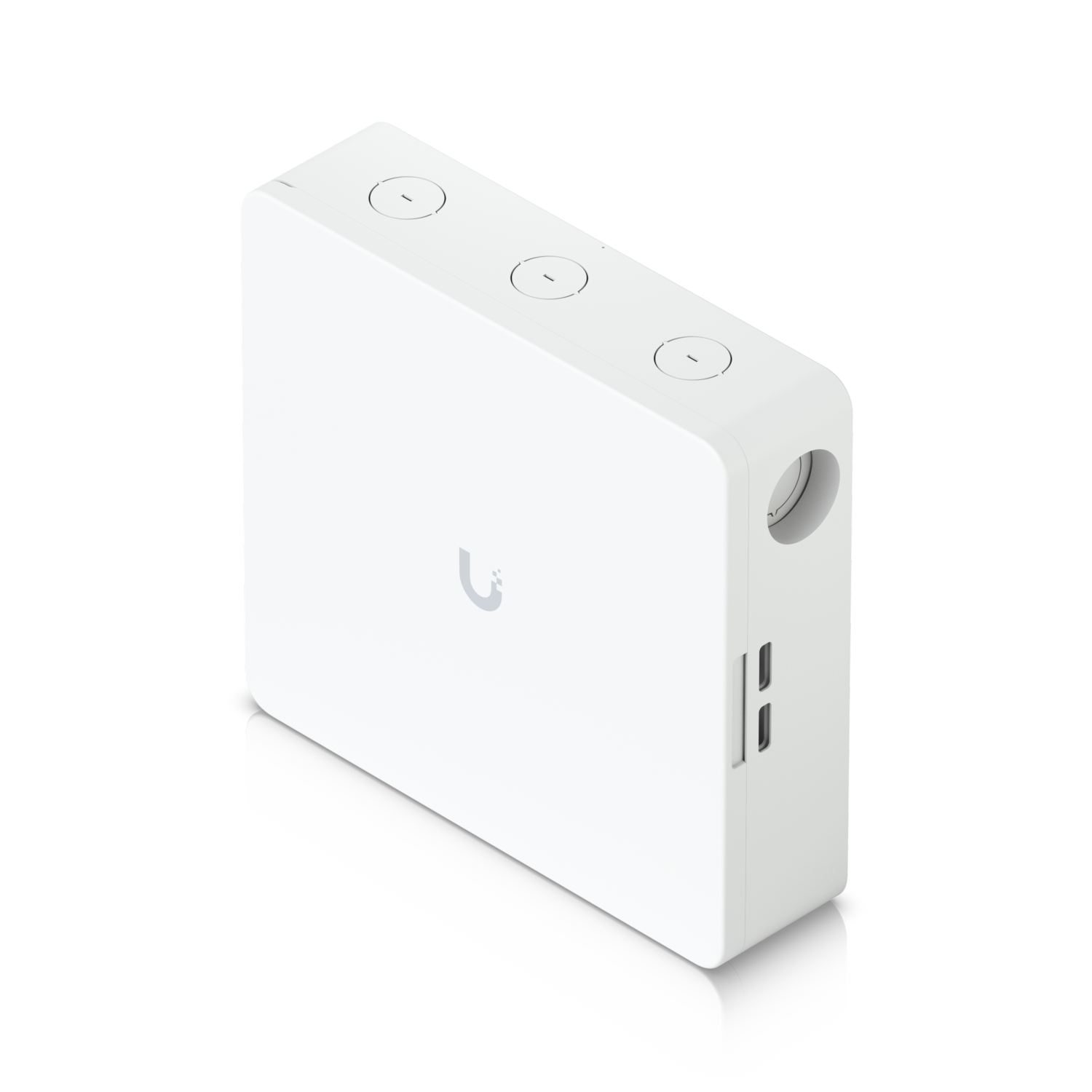

Ubiquiti Networks EAH-8
Enterprise Access Hub
Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

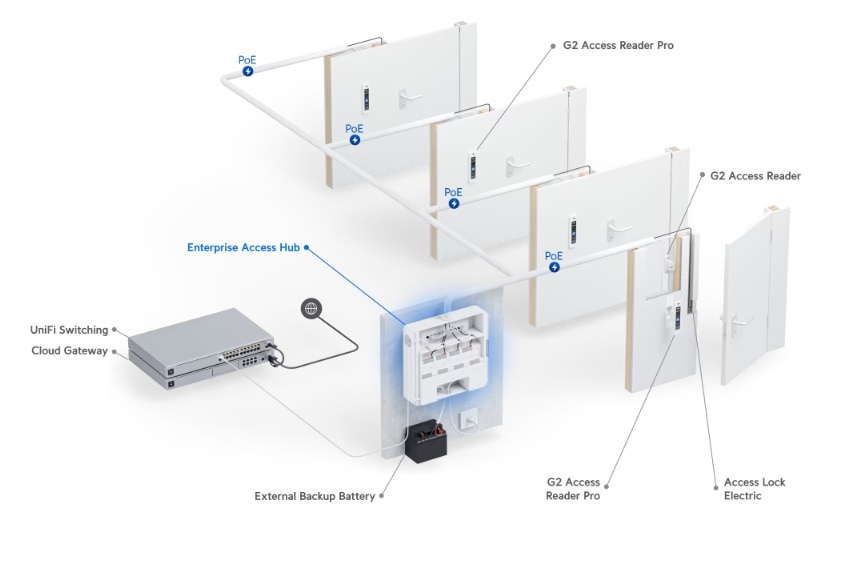

Elevate your security measures and streamline access management with the Ubiquiti Enterprise Access Hub (EAH-8), a powerful access control solution designed for enterprise-level applications. This robust hub seamlessly integrates with your existing access control infrastructure, providing centralized control over eight doors and offering a host of advanced features. Its eight lock terminals support both 12V and dry contact locks, ensuring compatibility with a wide range of access control systems. Additionally, eight dedicated inputs for push buttons, motion sensors, and door position sensors enable real-time monitoring and automated door control.
Safeguard against power outages with the integrated PP45 cable input for backup battery connection. This input supports a 32–48V DC Lead Acid Battery, ensuring uninterrupted operation even in the event of power disruptions. Enterprise Access Hub offers four AUX output relays for connecting external sirens, door openers, or chimes. These relays provide additional control options, allowing you to customize your access control system to suit your specific needs. Moreover, the eight PoE ports cater to Access Readers, simplifying installation and eliminating the need for separate power supplies.
This hub is certified by CE, FCC, and IC, ensuring compliance with international standards for safety and performance. Its design for indoor use only underlines its suitability for a wide range of enterprise environments where secure and reliable access control is paramount. Its represents a sophisticated solution for businesses looking to enhance their access control systems with state-of-the-art technology from Ubiquiti.

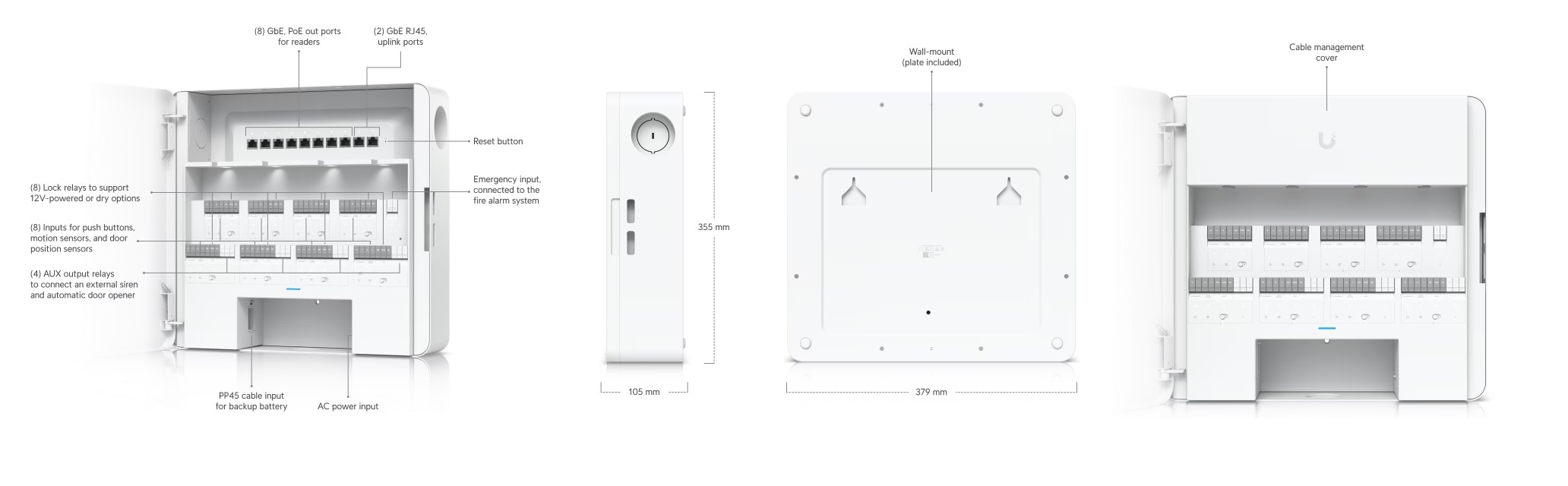

Features:

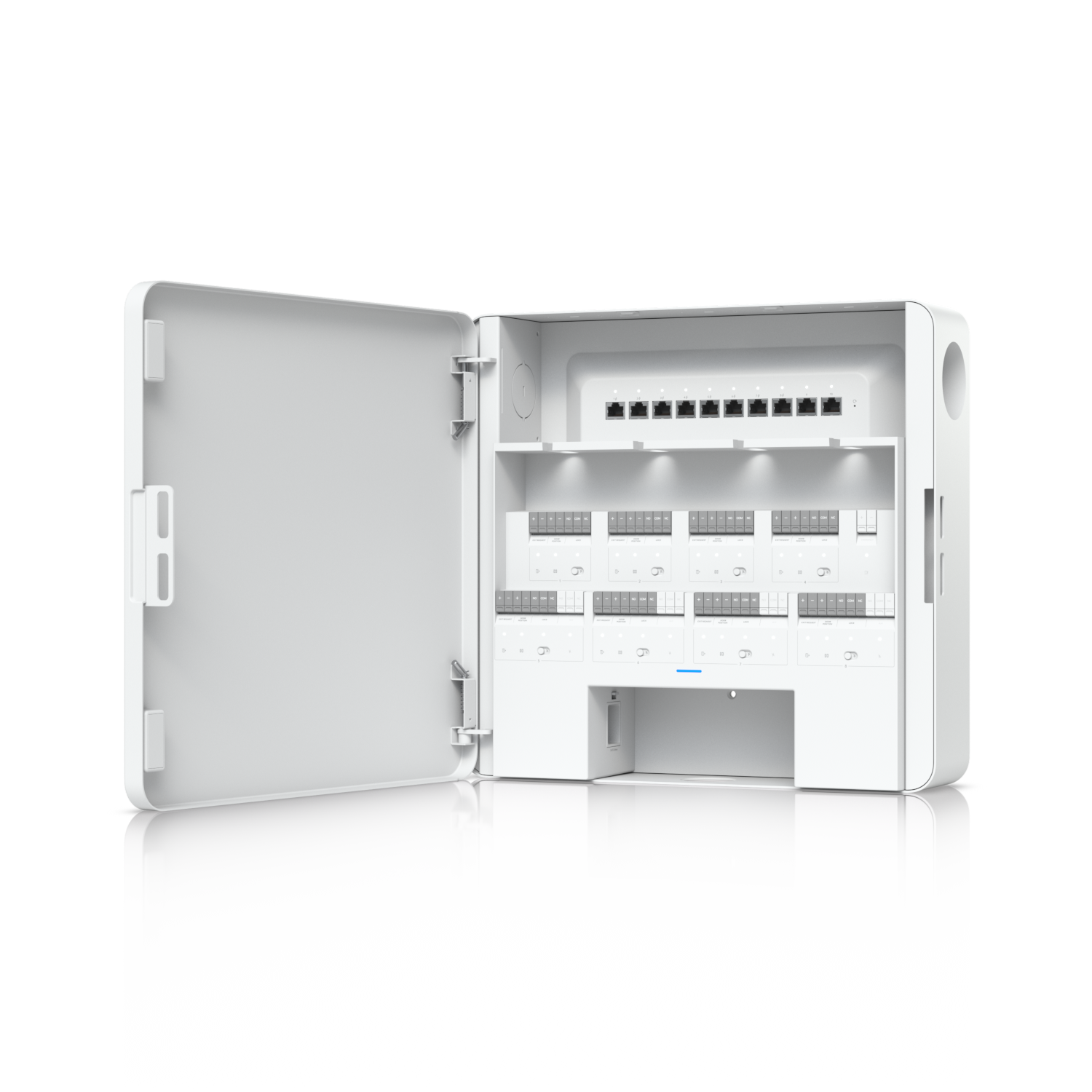

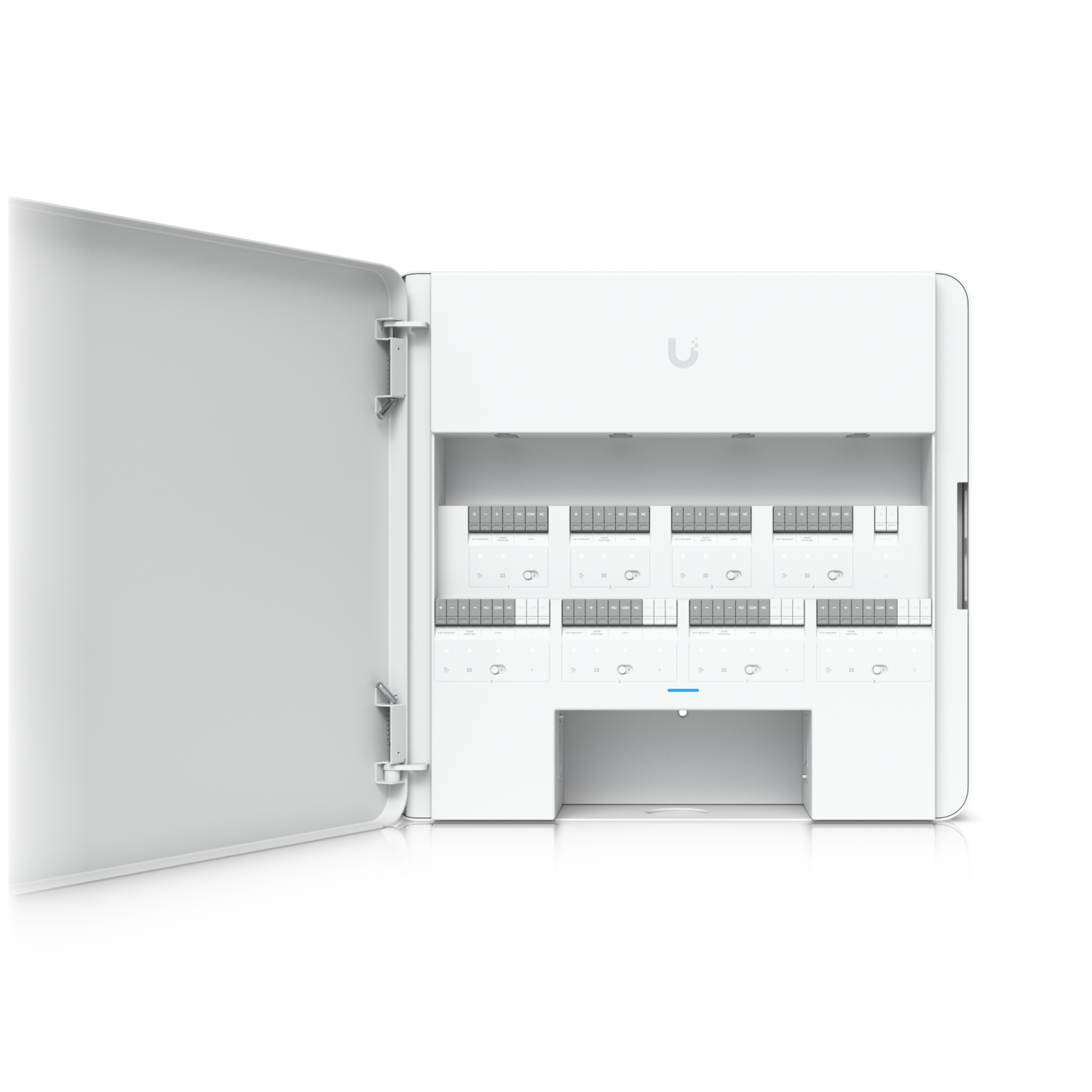

- (8) Lock terminals (12V or Dry)
- (8+8) Inputs for request-to-exit devices and door position sensors
- (8) PoE ports for Access Readers
- (4) AUX terminals for chimes, sirens, or door openers
- (1) Battery backup input (32–48V)
Specifications
Specifications EAH-8
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Weight | Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb) |
| Enclosure material | SGCC housing with PC cover |

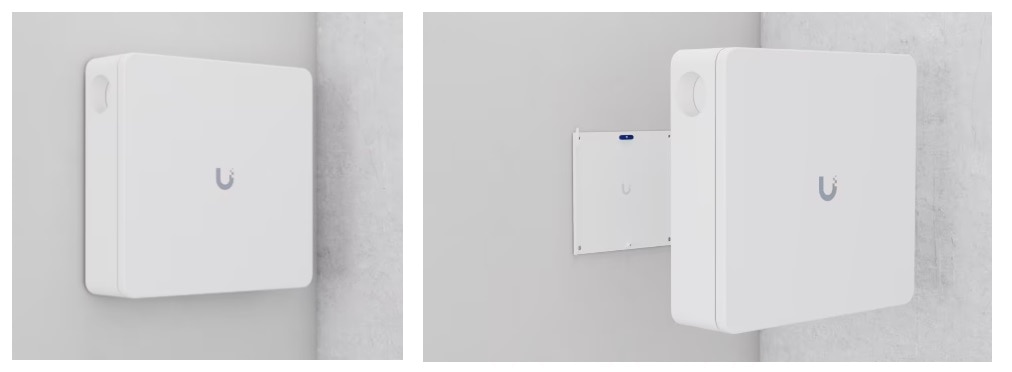

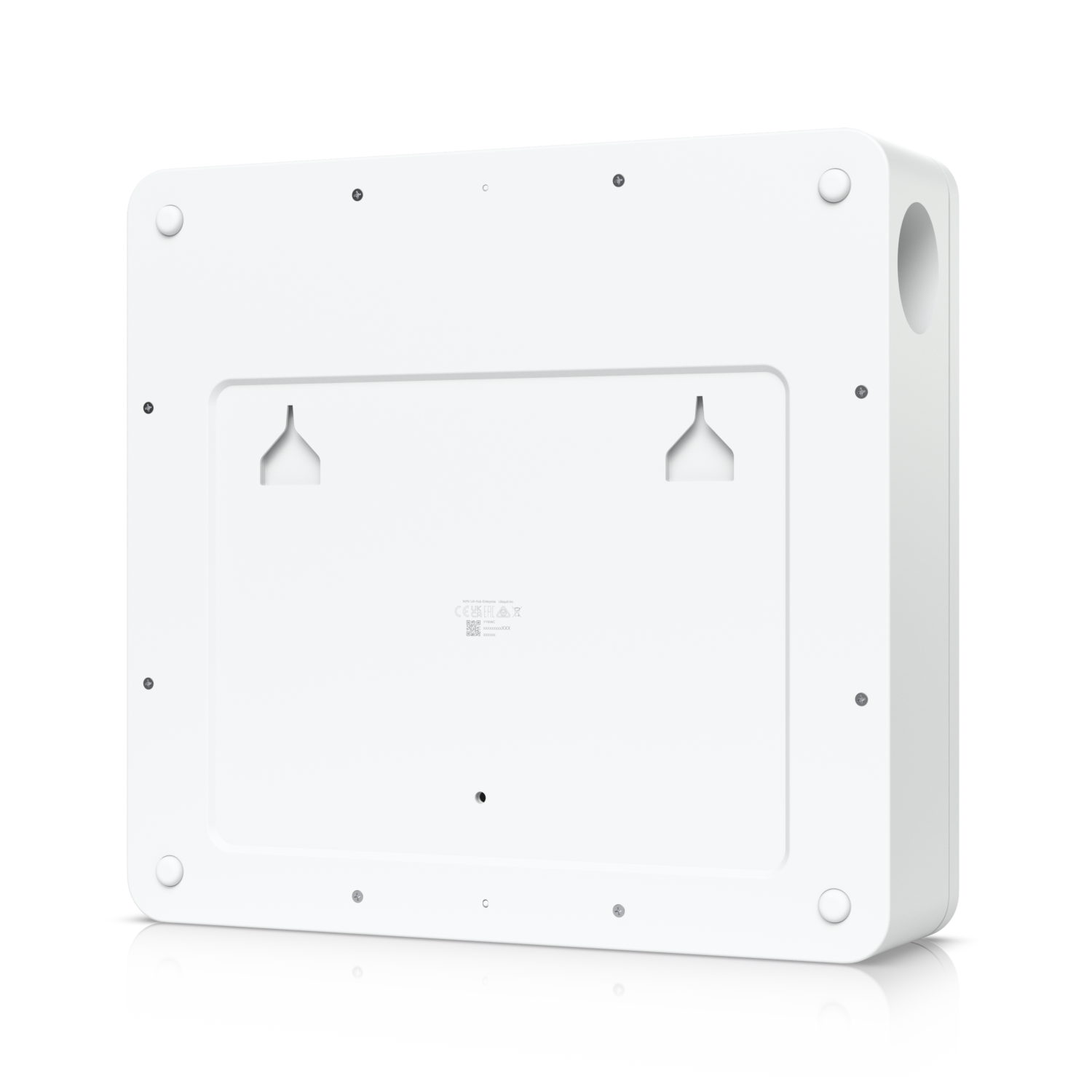

| Mounting material | SGCC wall mount plate |
| Hardware | |
| Networking interface | (10) 10/100/1000 Base-T |
| Power method | Universal input, 100–240V AC, Max. 4.4A, 50/60Hz 32–48V DC Lead Acid Battery, Max. 7.5A @32V |
| Power supply | AC/DC, internal |
| Max. power consumption | 240W |
| PoE interface | (8) PoE (Pins 1, 2+; 3, 6-) |
| Voltage range PoE mode | 44–57V DC |
| Total available PoE | 60W |
| Max. PoE wattage per port | 15.4W |
| LEDs | System: white/blue Output relays: steady white Ethernet: flashing white |
| Button | (1) Factory-reset |
| Digital input | (8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency |
| Dry output relay | (8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener) |
| Powered output relay | Lock: 12V DC, 1A/ Dry Aux: Dry only |
| Recommend max. cable length | 18 AWG UACC-Cable-DoorLockRelay length | 20 AWG length | 22 AWG length | 24 AWG length |
| UA-Lock-Electric (400mA) | 100 m (328 ft) | 66 m (217 ft) | 42 m (138 ft) | 25 m (82 ft) |
| UA-Lock-Magnetic-270kg (800mA) | 46 m (151 ft) | 30 m (98 ft) | 20 m (66 ft) | 12 m (29 ft) |
| UA-Lock-Magnetic-540kg (500mA) | 80 m (262 ft) | 51 m (167 ft) | 32 m (105 ft) | 20 m (66 ft) |
| Other locks (1A) | 36 m (118 ft) | 24 m (79 ft) | 15 m (49 ft) | 9 m (30 ft) |
| Operating environment | Indoor use only |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | EAH-8, Ver 01 |
| LED | |
| System | Steady blue: adopted, device is ready Steady white: pending adoption Blinking white/blue: upgrading firmware Breathing white: system initiating |
| Software | |
| Management application | UniFi Access: Version 1.22.17 and later |
