Ubiquiti UniFi CloudKey+
- SKU: UCK-G2-SSD
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks UCK-G2-SSD
UniFi CloudKey+ Plus Hybrid Controller w/ 1TB SSD Storage

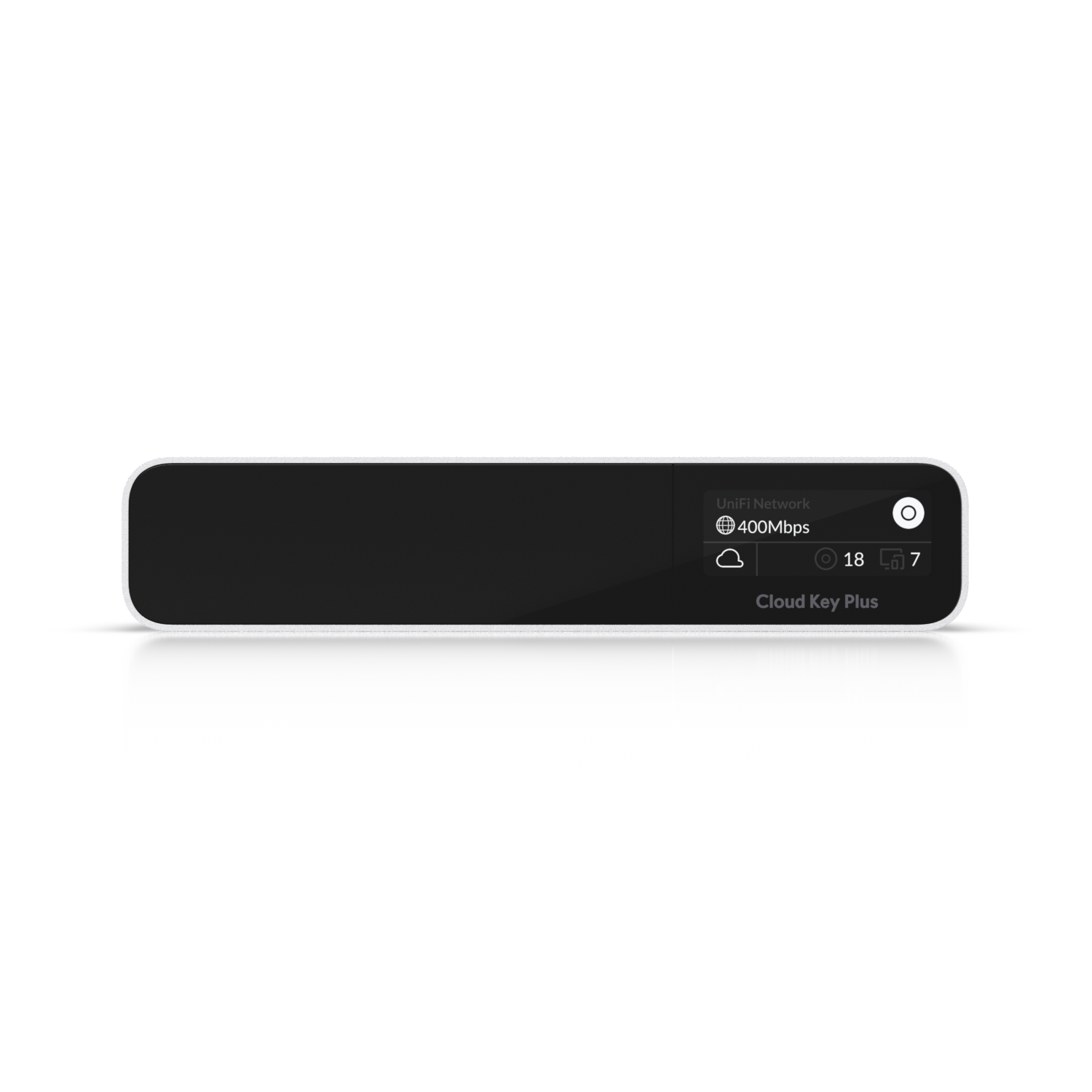

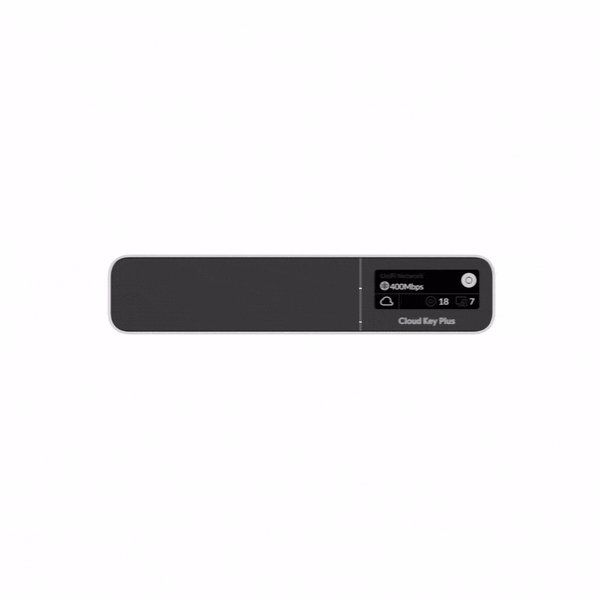

UniFi Cloud Key Gen2 Plus Hybrid Controller allows you to manage your UniFi networking and video devices simultaneously. Designed for easy deployment, the Cloud Key G2 Plus can be quickly configured over Bluetooth using the UniFi mobile applications. The front panel display shows vital system stats for your UniFi networking hardware and UniFi video cameras.
Powerful Multi-Application Management
This is a compact and efficient UniFi Console designed to connect directly to the UniFi Site Manager for seamless management of multiple applications. It includes the full UniFi application suite, enabling centralised control of all your UniFi devices.
Integrated 1TB SSD Storage
Featuring a pre-installed 1TB SSD, the UCK-G2-SSD offers robust and reliable storage for your UniFi data, ensuring quick access and enhanced performance for all your site management needs.
Flexible Power Options
The UCK-G2-SSD supports Power over Ethernet (PoE) for easy and flexible installation. Additionally, it offers an optional USB-C power input with Quick Charge 2.0/3.0 compliance (power adapter not included), giving you more choices for powering your device.
Bluetooth Setup
Enjoy a hassle-free installation process with Bluetooth connectivity, allowing for instant setup and configuration directly from your mobile device.
Features:
- Includes full UniFi application suite for device management
- Pre-installed 1TB SSD
- Connect and power using PoE
- Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only
- Bluetooth for instant setup
Specifications
Specifications UCK-G2-SSD
Mechanical | |

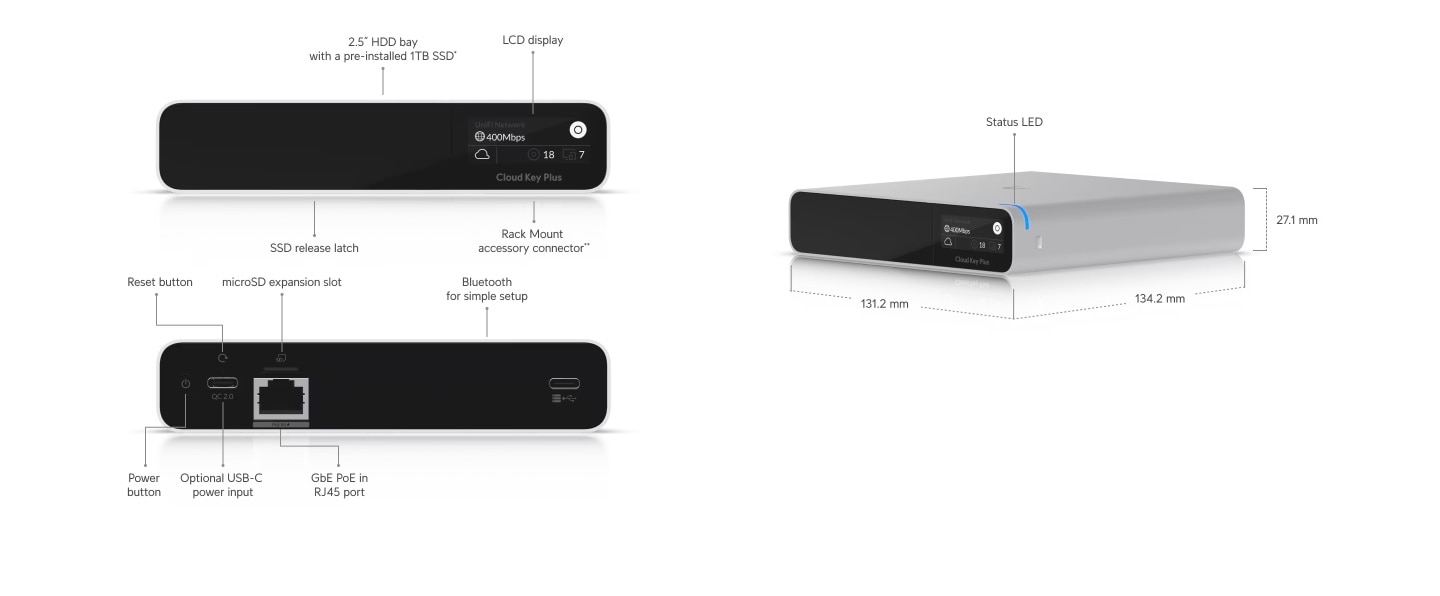

Dimensions | 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3") |
Weight | 560 g (1.2 lb) |
Enclosure material | Anodized aluminum |
Hardware | |
Processor | Octa-core Arm® Cortex®-A53 based chip |
Management interface | Ethernet Bluetooth |

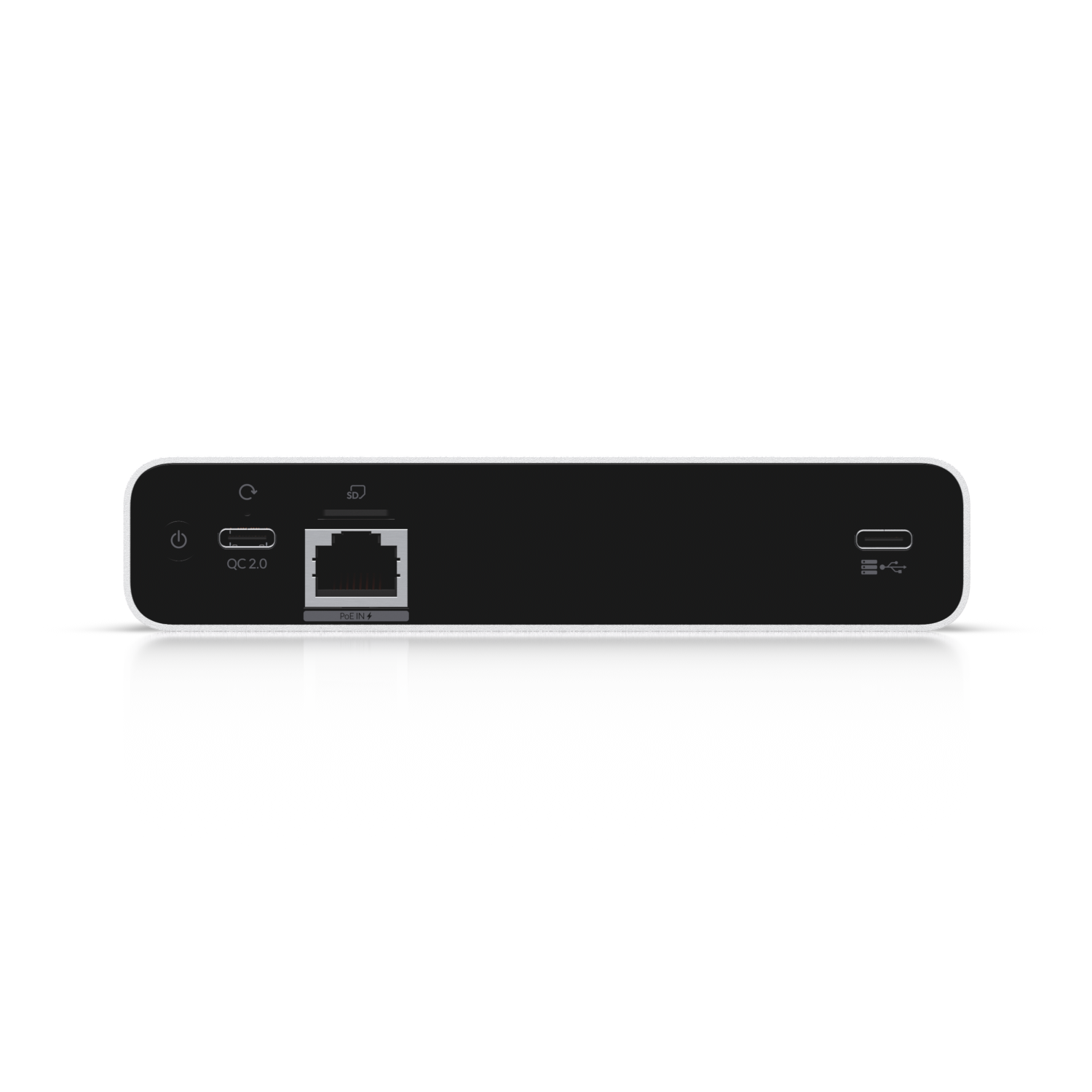

Networking interface | (1) GbE RJ45 port |
Memory | 32 GB eMMC 3 GB RAM |
SSD capacity | 1 TB 2.5" SATA SSD (user-upgradeable*) *CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported. |
Power method | PoE Quick charge 2.0/3.0 power adapter, 9V DC, 2A |
Max. power consumption | 9.6W |
Display | 1.42" gray-scale OLED |
LEDs | (1) Power: white/blue |
Buttons | (1) Power (1) Factory reset |
Ambient operating temperature | 0 to 35° C (32 to 104° F) |
Ambient operating humidity | 20 to 80% noncondensing |
Certifications | FCC, CE, IC |
