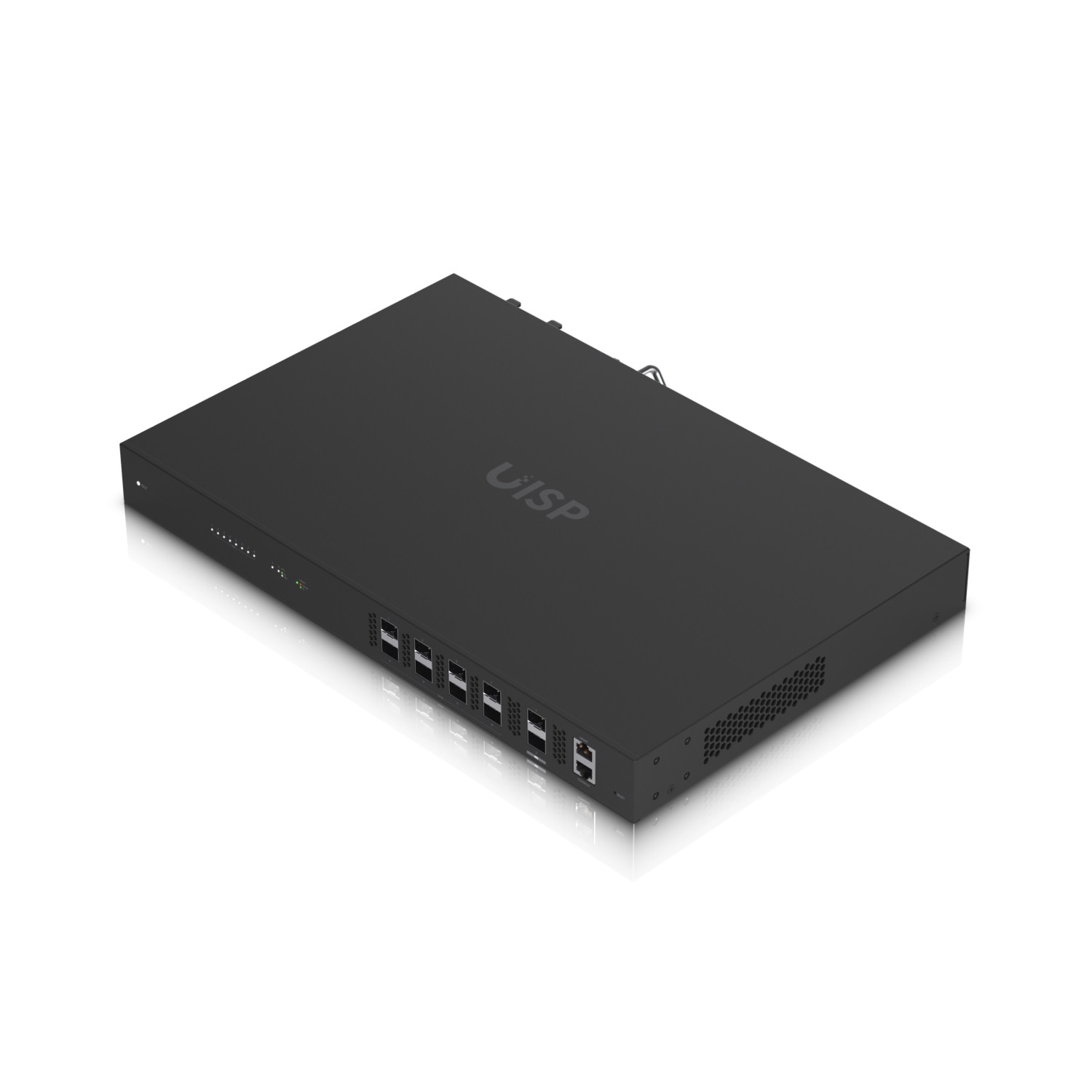

Ubiquiti 8-Port GPON Optical Line Terminal with SFP+

(0) No Reviews yet
  • SKU: UF-OLT
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$1,799.00

Specifications UF-OLT

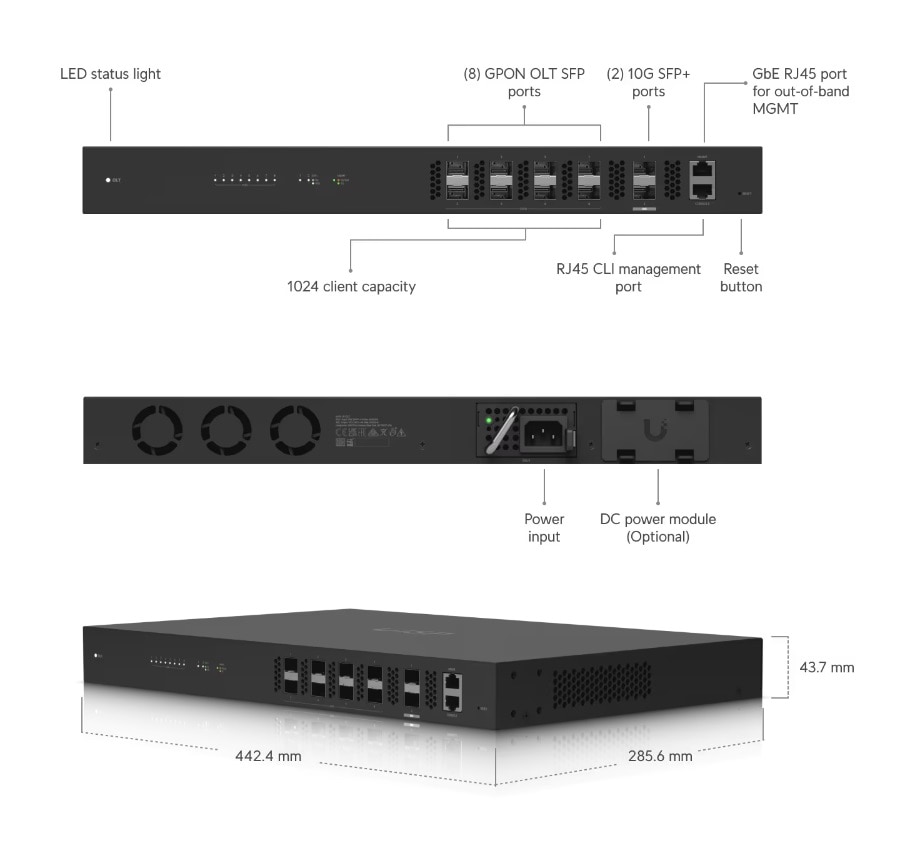

Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight (with Mount Brackets) 4.40 kg (9.7 lb) 4.495 kg (9.91 lb)
Networking Interfaces (8) GPON OLT SFP (2) 1G/10G SFP+
Concurrent Clients 1024 Registered ONUs/ONTs (128 per GPON Port)
Management Interfaces (1) Ethernet for Out-of-Band Management, (1) RJ45 Serial Console Port
GPON Speeds 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
Operating Wavelengths 1490 nm TX, 1310 nm RX
Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm
Range Physical Reach Logical Reach Max. Differential Fiber Distance 20 km 60 km 20 km (B+) /40 km (C+)

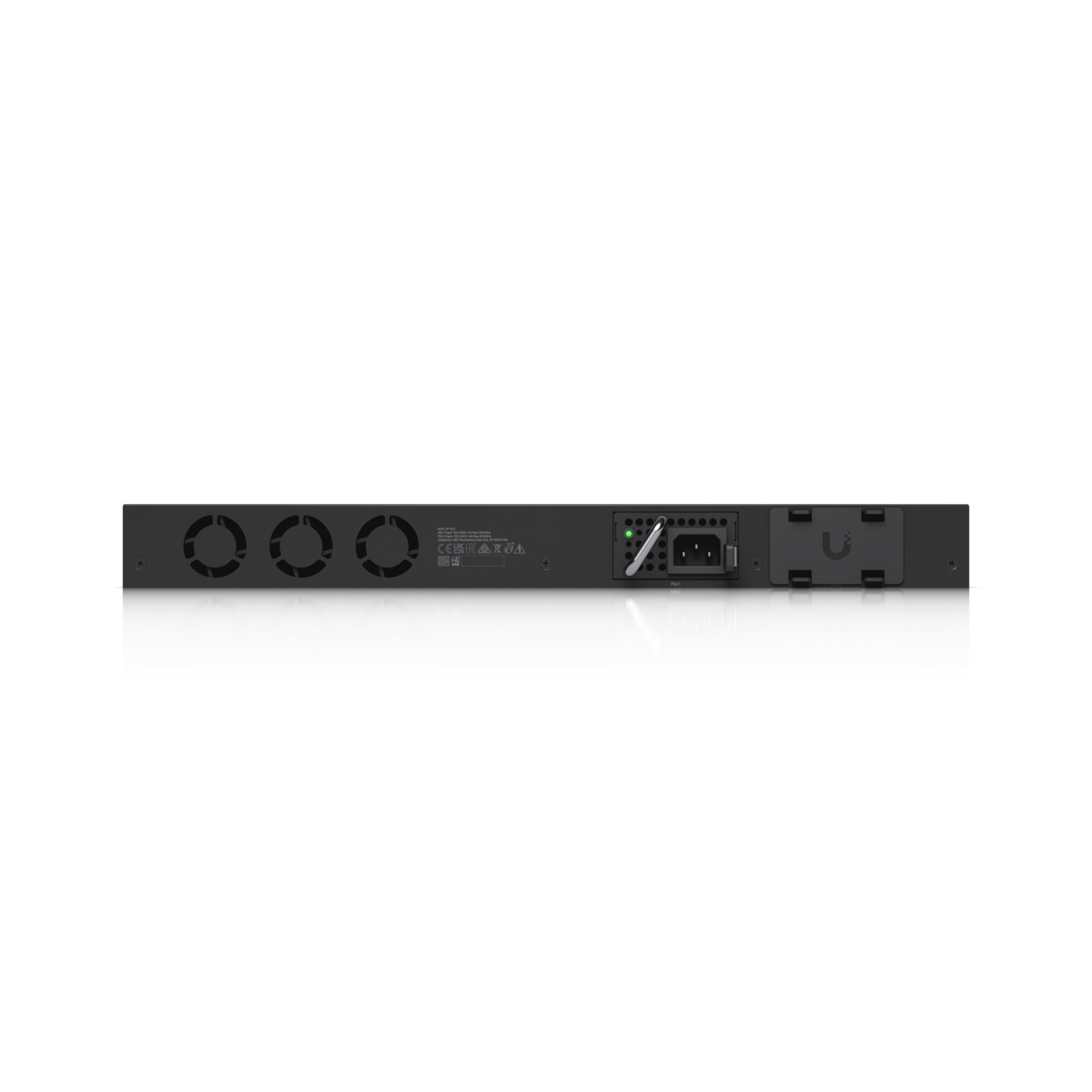

Power Method (2) PSU Module Bays
Power Supply (1) 54V 100W AC/DC PSU Module (Included)
Max. Power Consumption 40W (Excluding SFP Modules)
Operating Mode OLT 2/3 Ethernet Switch and GPON Core
Advanced QoS Supports 8 Priority Queues per User Port and Traffic Classification
Processor Specs MIPS 1004kc 880 MHz Dual Core
Memory Information 512 MB DDR3, 512 MB NAND
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

Ubiquiti Networks UF-OLT

UFiber GPON Optical Line Termina

The UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity.

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

Features:

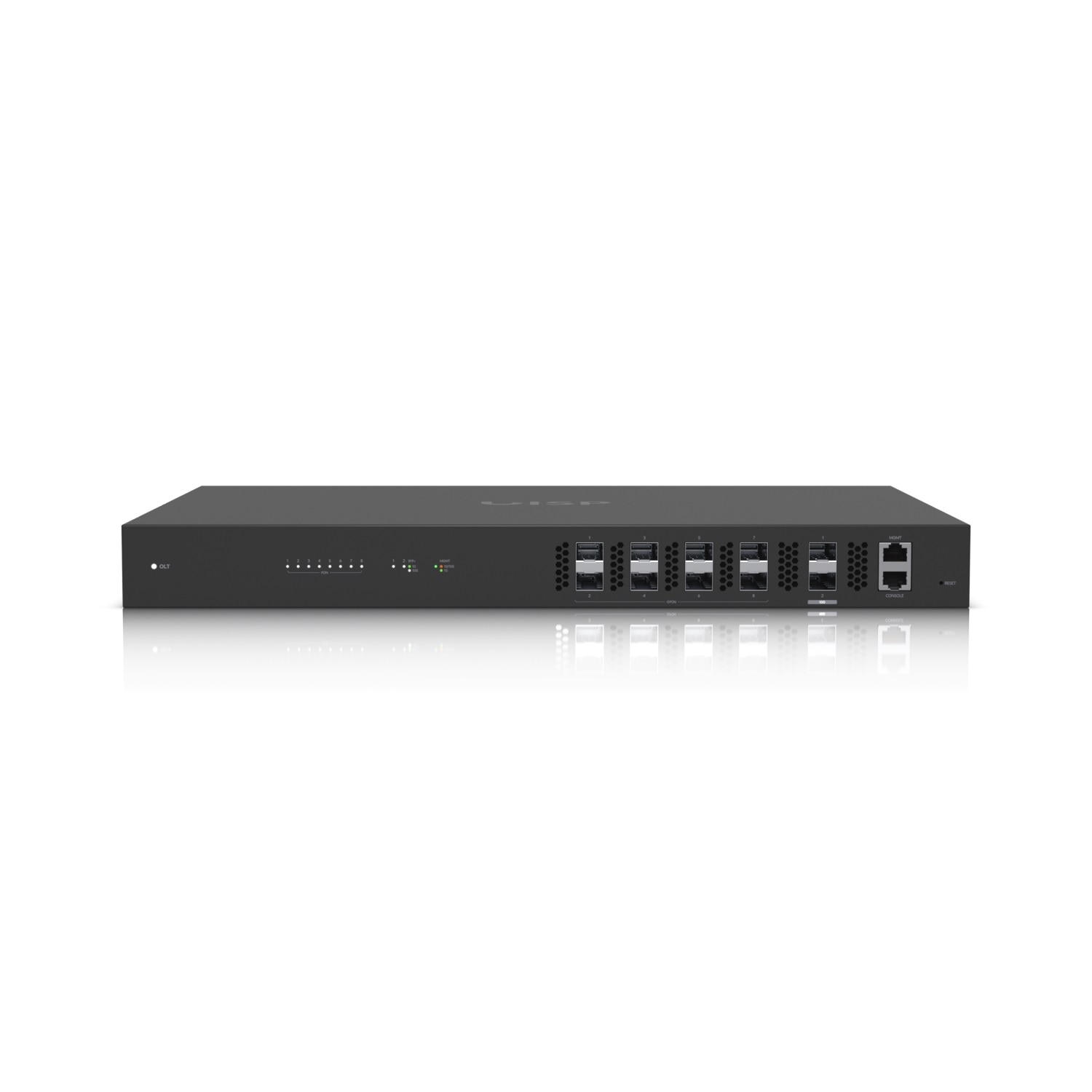

  • Ports: (8) GPON SFP Ports, (2) SFP+ Ports
  • Concurrent Clients: 1024 ONUs
  • GPON Range: Up to 20 km Link
  • GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
  • Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
  • Max. Power Consumption: 40W
  • Power Method: 54VDC PSU Module

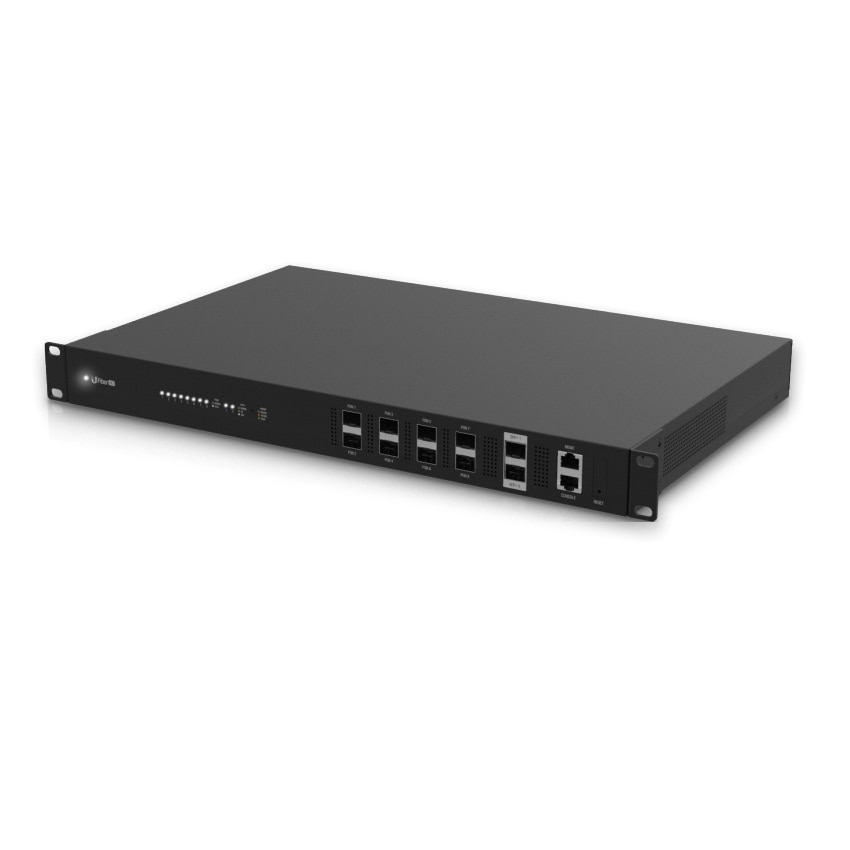

  • Mounting: 1U Rack-Mountable (Optional)
