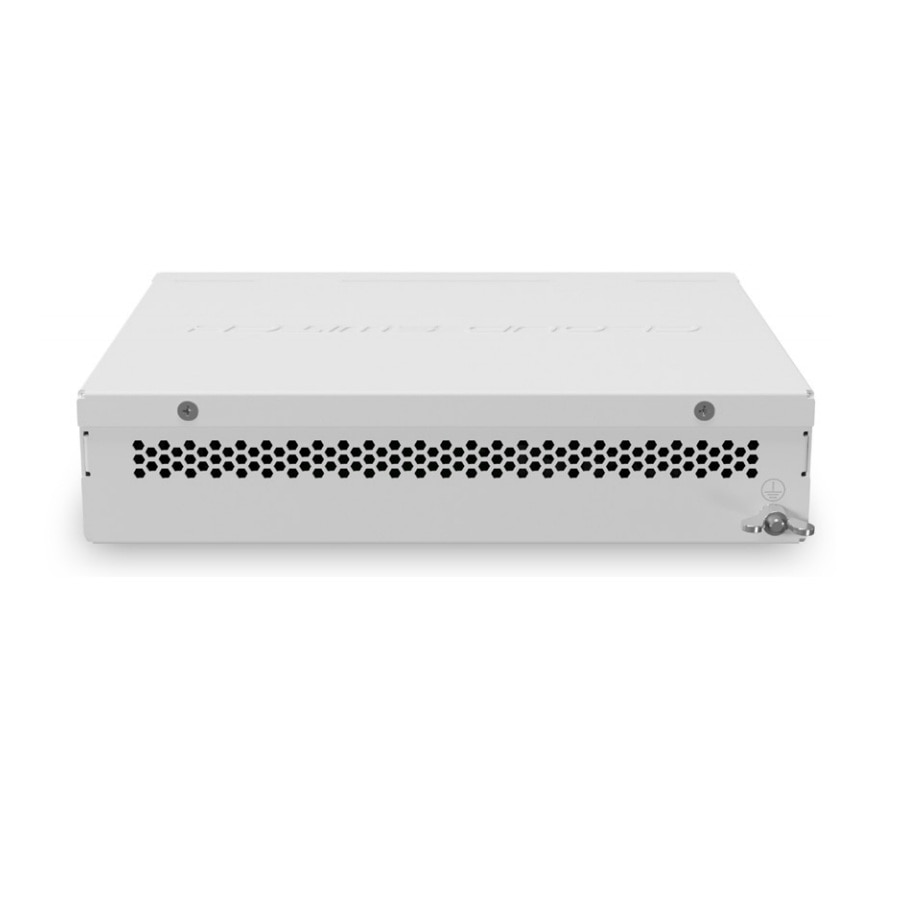

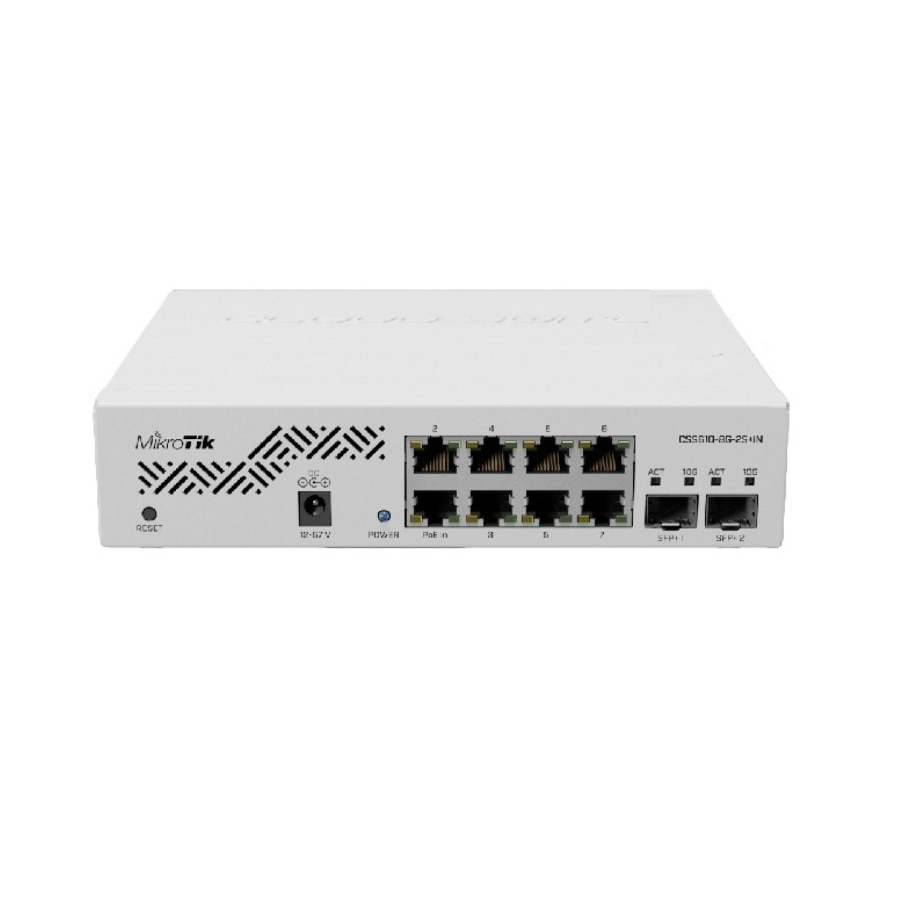

MikroTik CSS610-8G-2S+IN Cloud Smart Switch 610-8G-2S+IN with 8 x 1G Ethernet ports and 2 x 10G SFP+ ports

(0)No Reviews yet
  • SKU: CSS610-8G-2S+IN
  • Manufacturer: MikroTik
  • Data Sheet: Download

Product Information

MikroTik RouterBOARD CSS610-8G-2S+IN

Cloud Smart Switch 610-8G-2S+IN with 8 x 1G Ethernet ports and 2 x 10G SFP+ ports

Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective – this switch is an instant classic!

Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-toport forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.


Features:

  • 8 x Gigabit Ethernet ports
  • 2x SFP+ for 10G fibe
  • Port-to-port forwarding
  • MAC filtering
  • Traffic mirroring
  • Broadcast storm control

Specifications

Specifications CSS610-8G-2S+IN

Product code CSS610-8G-2S+IN
Switch chip model 88E6193X
Number of 1GbE ports 8
Number of 10G SFP+ ports 2
Dimensions 200 x 167 x 46 mm
Operating system SwOS
Operating temparature -20°C to +60°C
Powering
PoE-in Passive PoE
PoE-in input Voltage 12-57 V
Number of DC inputs 2 (PoE-in, DC jack)
DC jack input Voltage 12-57 V
Power adapter nominal voltage 24 V
Power adapter nominal current 0.8 A
Max power consumption without attachments 5 W
Max power consumption 11 W
Certification & Approval
Certification CE, FCC, IC
