MikroTik Cloud Router Switch CRS112-8P-4S-IN

MikroTik Cloud Router Switch with eight PoE-out ports

CRS112-8P-4S-IN is eight Gigabit RJ45 ports PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

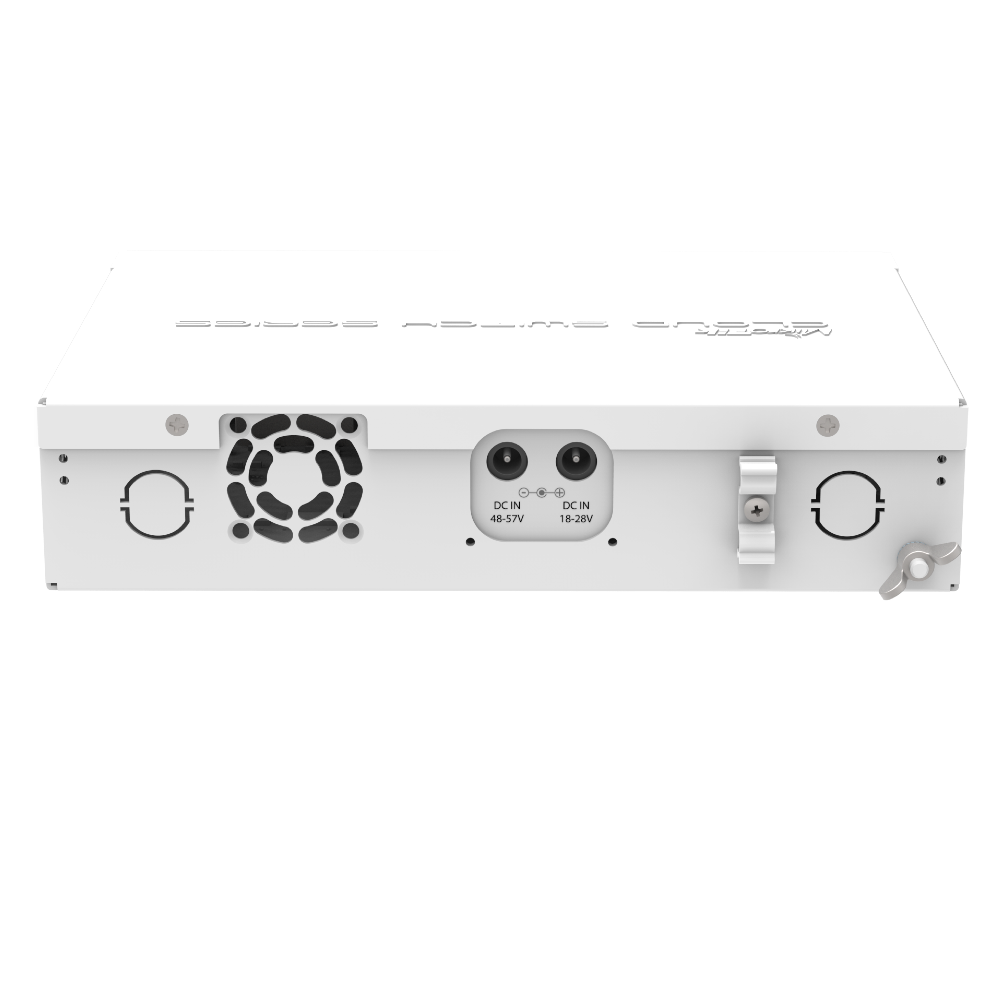

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Our CRS series combines a fully functional router and a managable switch with L3 features, it’s powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. IGMP snooping is also supported.

Switching features :

• Non-blocking Layer 2 switching capacity
• 16K host table
• IEEE 802.1Q VLAN
• Supports up to 4K simultaneous VLANs
• Port isolation
• Port security
• Broadcast storm control
• Port mirroring of ingress/egress traffic
• Rapid Spanning Tree Protocol
• Access Control List
• MikroTik neighbor discovery
• SNMP
• 9204-byte jumbo frames support
• IGMP snooping
• static link aggregation

Quick specifications:

• 8 Gigabit RJ45 Ports
• 4 SFP Ports
• Non-Blocking Throughput: 12 Gbps
• Switching Capacity: 24 Gbps
• Forwarding Rate: 17.8 Mpps
• Maximum Power Consumption: 10 W (without
PoE devices connected)
• Supports PoE+ IEEE 802.3at/af and 24 V
Passive PoE
• Quiet, Fanless Operation
• Desktop-Rackmount
