MikroTik RB4011iGS+RM

  • SKU: RB4011iGS+RM
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Block Diagram: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

(click to select)

Supported Device
Minim is an AI-driven WiFi management and IoT security platform for service providers.

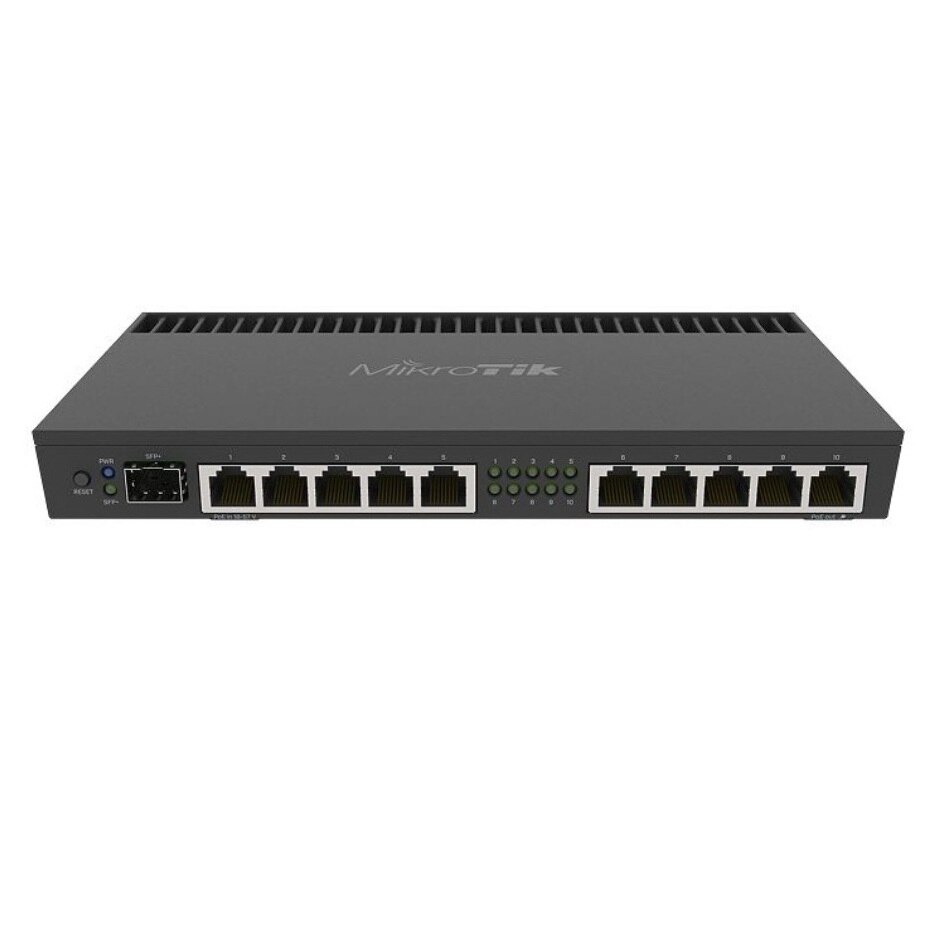

MikroTik RouterBOARD RB4011iGS+RM

MikroTik NAND 512 MB, 1GB RAM, CPU 4 core AL21400 1.4 GHz, RouterOS L5

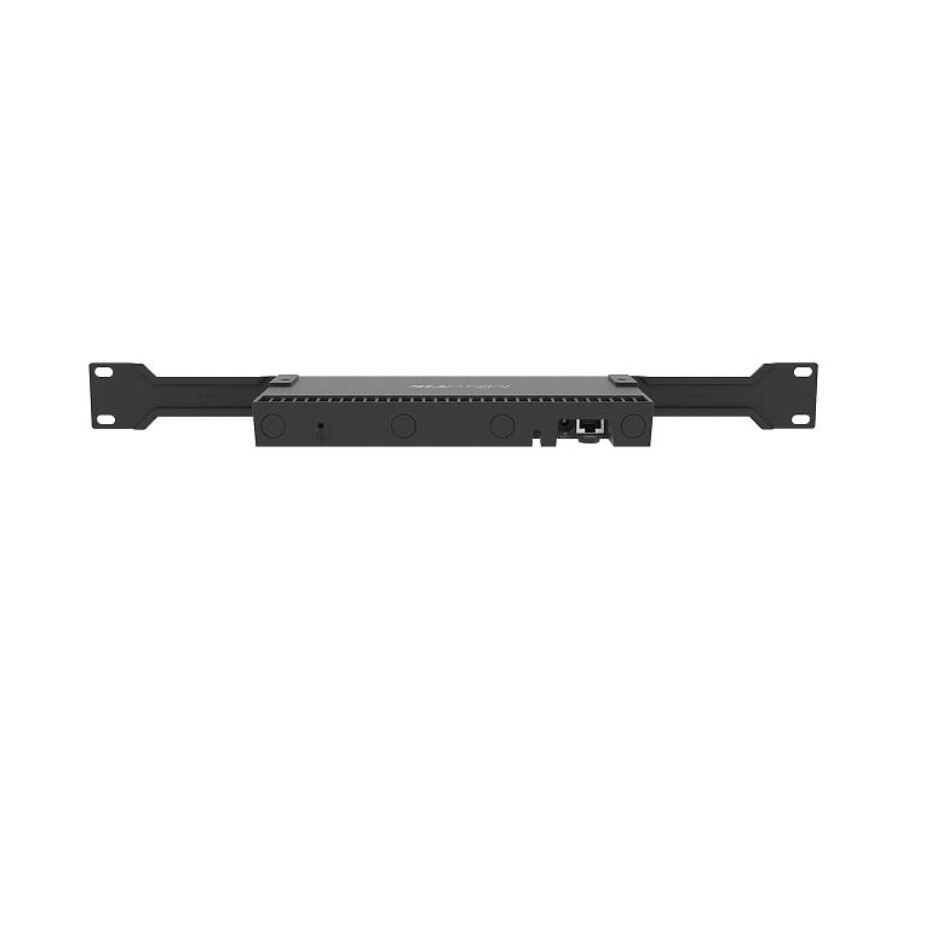

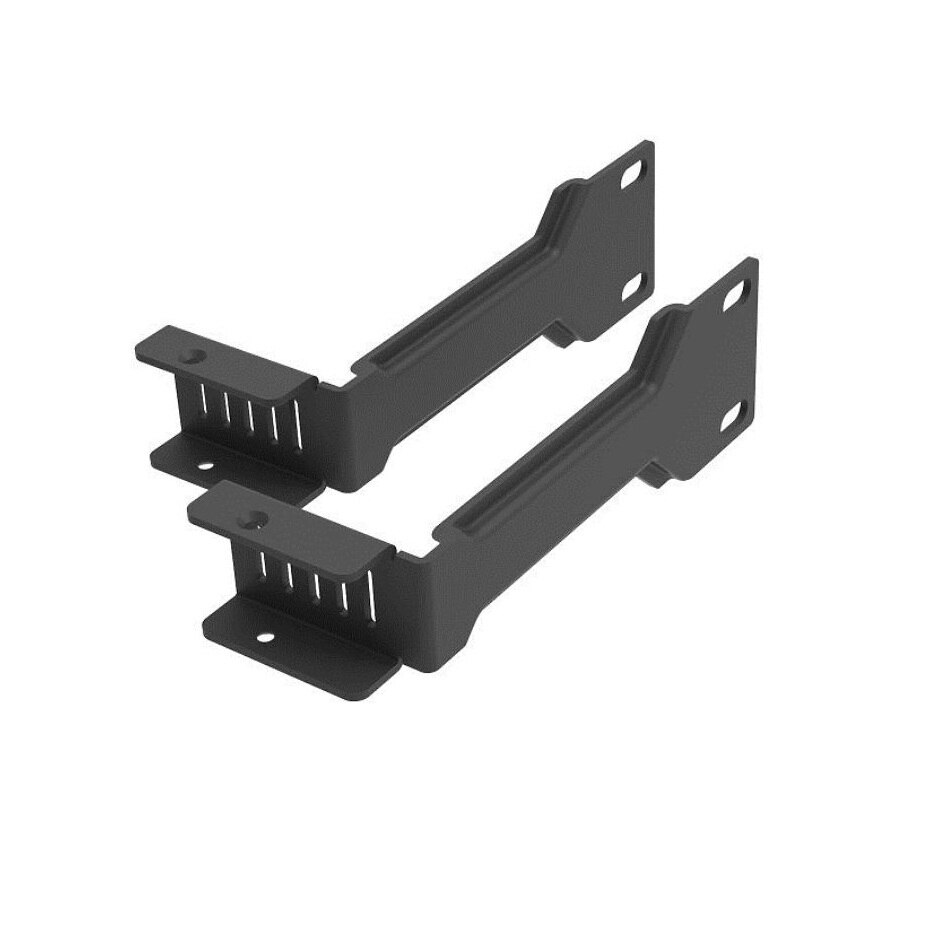

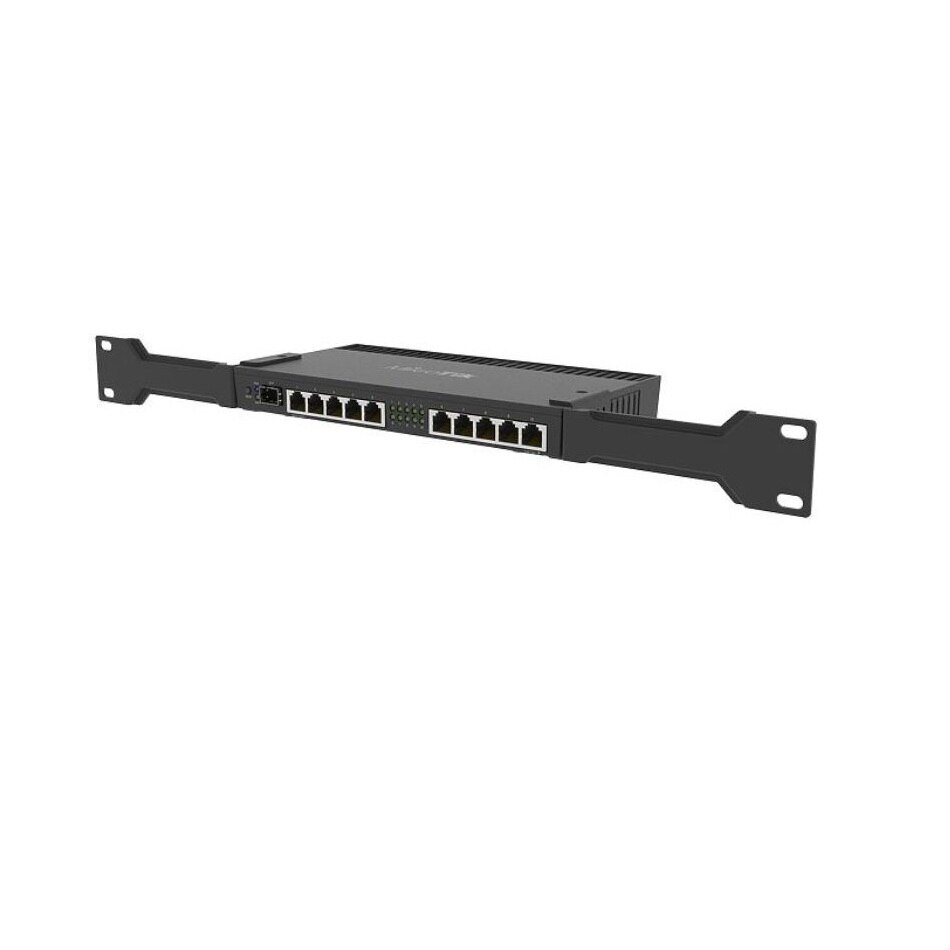

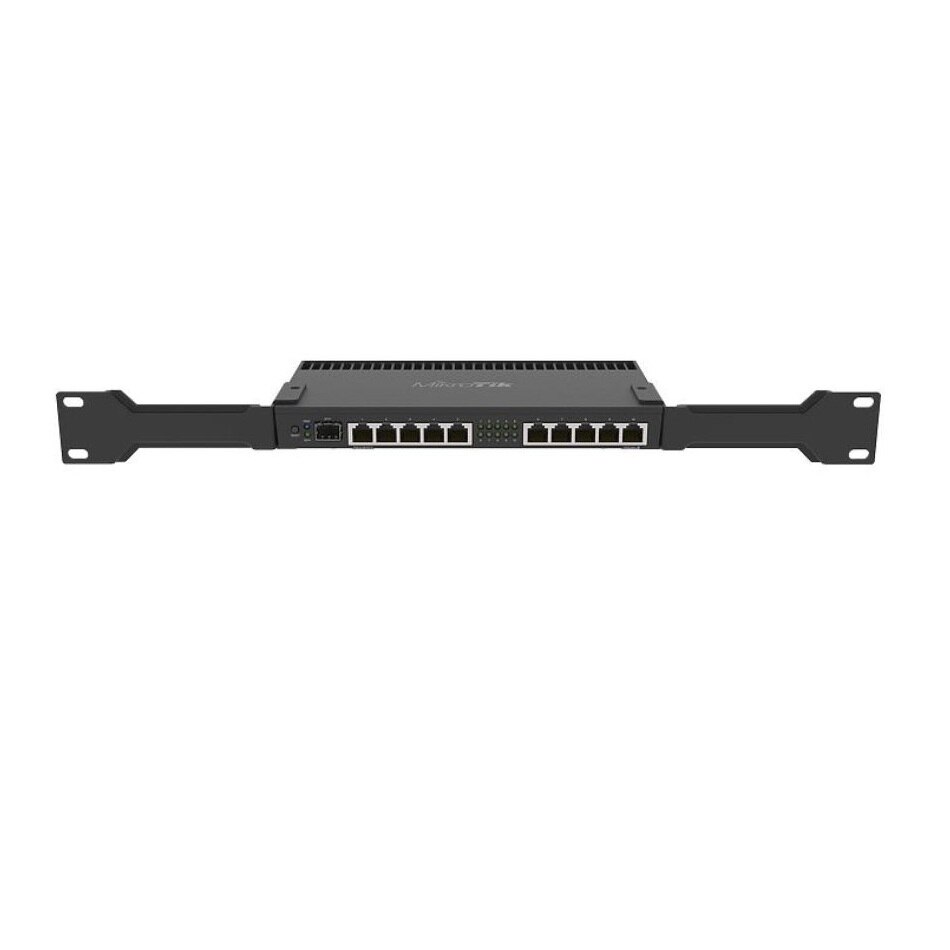

In addition to the ten 1 Gbps ethernet ports, an SFP+ port provides optional 10 Gbps connectivity through an SFP+ module (not included). All of this power, in a compact and professional looking solid metal enclosure in matte black. The ethernet model includes two rackmount ears, that will securely fasten the unit in standard 1U rack space.

Specifications RB4011iGS+RM

CPU 4 core AL21400 1.4 GHz
Size of RAM 1 GB
Storage NAND 512 MB
10/100/1000 Ethernet ports 10
SFP+ port 1
Switch chip model RTL8367SB
Power Jack 1
PoE in Yes (port 1), passive, 18 - 57 V
PoE out Yes (port 10), passive, up to 57 V
Max power consumption 18 W without PoE out, 33 W with PoE out
Supported input voltage 12 V - 57 V (jack)
Voltage Monitor Yes
PCB temperature monitor Yes
Operating temperature -40 C .. +45 C
Dimensions 228 x 120 x 30 mm
Serial port RJ45
License level 5
Operating System RouterOS
