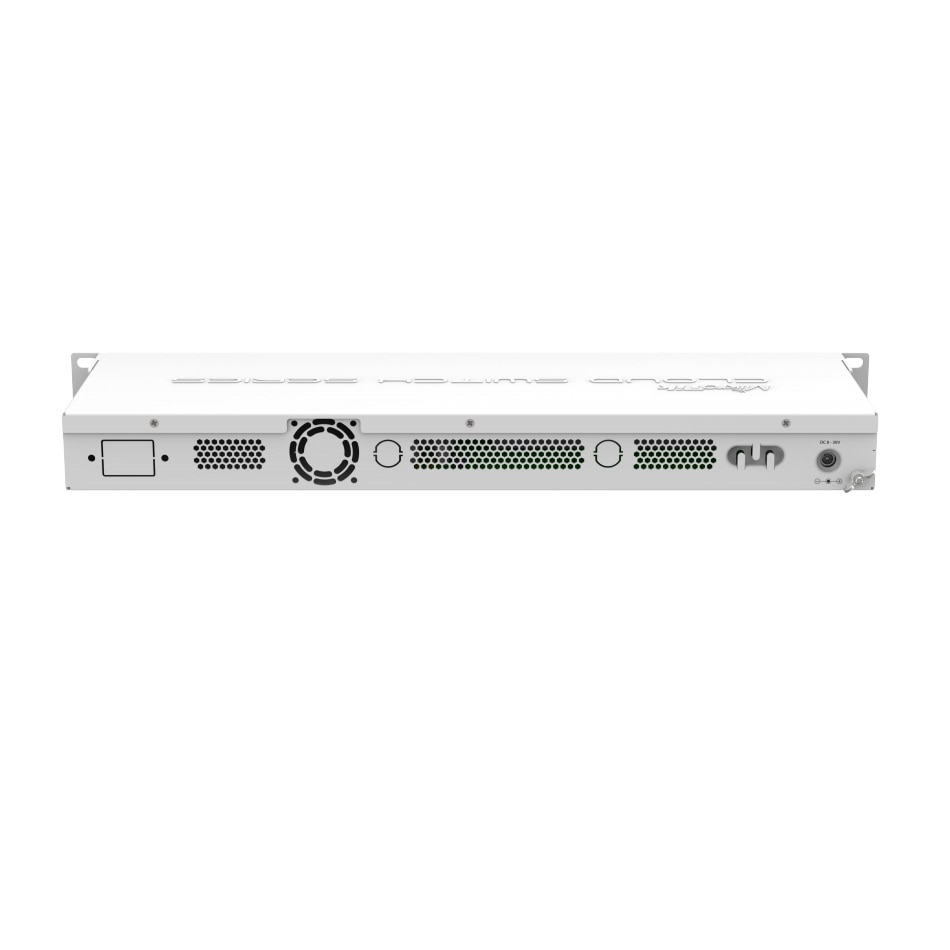

MikroTik CSS326-24G-2S+RM 24-port switch

(0)No Reviews yet
  • SKU: CSS326-24G-2S+RM

Product Information

Mikrotik RouterBOARD CSS326-24G-2S+RM

24-port switch CSS326-24G-2S+RM with SwitchOS, rackmount case

Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.


Features:

  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K simultaneous VLANs
  • Port isolation
  • Port security
  • Broadcast storm control
  • Port mirroring of ingress/egress traffic
  • Rapid Spanning Tree Protocol
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP v1
  • Web-based GUI

Specifications

Specifications CSS326-24G-2S+RM

Product codeCSS326-24G-2S+RM
Switch chip model98DX3216A1
Storage typeFlash
Storage size2 MB
10/100/1000 Ethernet ports24
SFP+ cages2
Operating systemSwOS
Supported input voltage12 - 30 V (jack or passive PoE)
Dimensions440 x 144 x 44 mm
Operating temperature-40°C .. +70°C tested
Max power consumption19 W
Serial portRJ45
