Mikrotik QME Advanced wall mount adapter for large point to point and sector antennas
US$9.70 US$10.00
- SKU: QME
- Manufacturer: MikroTik
- Data sheet: Download
Product Information

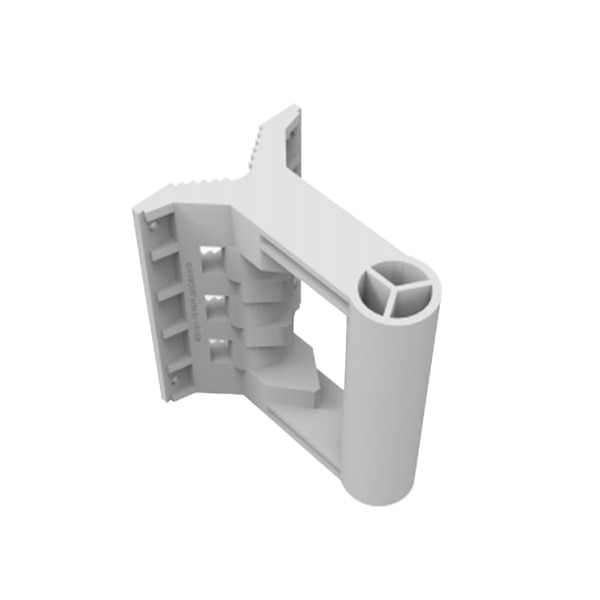

MikroTik RouterBOARD QME
QME quickMOUNT Extra for Large Antennas
The quickMOUNT extra is a advanced wall mount adapter for large point to point and sector antennas.
You can mount it on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. The quickMOUNT extra gives possibility to turn antenna within 190°.
With the quickMOUNT extra is compatible with our long range heavy antennas like 30dBi parabolic dish mANT 30 or 19dBi sector mANT 19s.
You can use the quickMOUNT extra with any pole mountable device with weight less than 8 Kg
Features:
- Simple and low cost
- Supports mANT, SXT, Omnitik, BaseBox, DynaDish or any other pole mountable device
- The adapter is very durable due to it’s special material composite - anvilNITE
Specifications
Specifications QME
| Dimensions | 4 x 5.3 x 5.9in (102 x 135 x 150mm) |
| Tube diameter | 1.38in (35mm) |
| Max Tube diameter | 2.76in (70mm) |
| Maximum supported antenna weight | 17.64lbs (8kg) |
| Angle turn | 190deg |
| Operating temperature | -40 to +104deg F (+/-40deg C) |
| Maximum wind load | 100N |
| Material | anvilNITE |
