MikroTik MTAD-5G-30D3-PA mANT30 PA

  • SKU: MTAD-5G-30D3-PA
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: 12 In Stock    (updated live)
    12 In stock at College Station

5 GHz 30dBi Dish Antenna

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accommodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

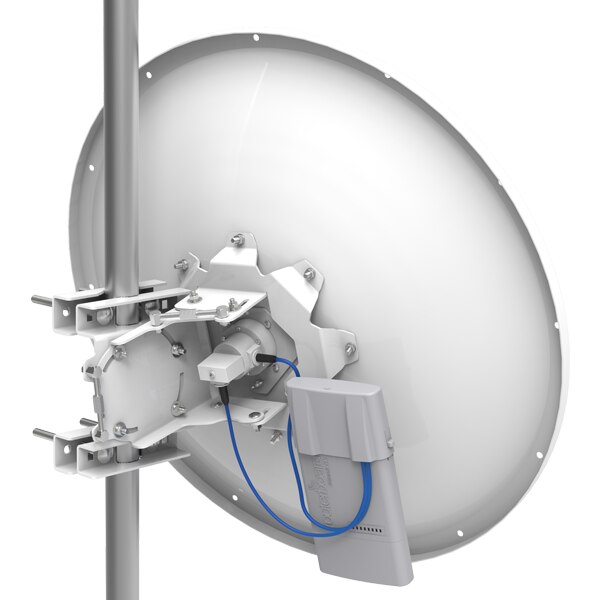

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Specifications MTAD-5G-30D3-PA

Electrical Specifications

Frequency Range4.7-5.875 GHz
Gain30dBi typically
Dual PolarizationVertical and Horizontal
3dB Beamwidth+/-2.5 deg
StandardsComplies with EN 302 326 DN1, DN2, DN3, DN5
VSWR≤ 1.4 type, ≤ 1.8 max
Port to Port Isolation>40dB min
Front-to-Back Ratio>30 dB
Cross Polarization>40 dB
Power Rating100 watts
Impedance>50 ohms
Elevation adjustment range+/- 15 deg

Physical/Environmental Specifications

Outdoor RatingETSI EN 300 019-2-4
Wind Survivability125mph (201kph)
Wind Load (125 mph)400 lbs, 174 lbs with radome
Connector (2)Type RPSMA
