MikroTik MTAS-5G-19D120 mANT 19S

  • SKU: MTAS-5G-19D120
  • Manufacturer: MikroTik
  • Data Sheet / Spec Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

MikroTik RouterBOARD MTAS-5G-19D120

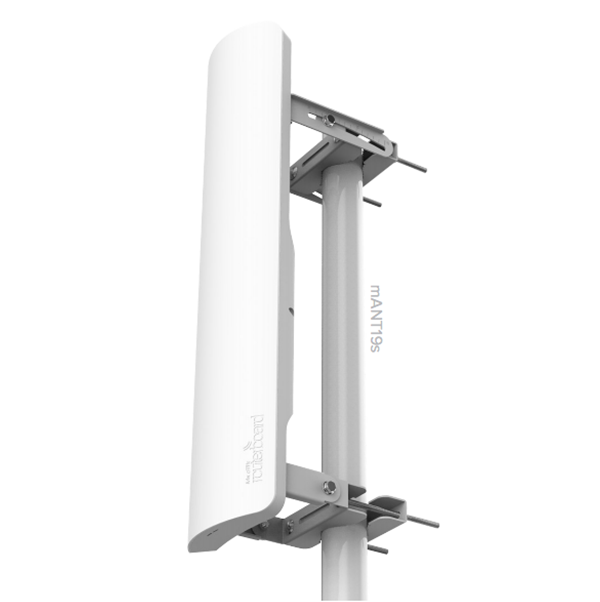

mANT19s 19dBi Antenna with 120 Degree Beamwidth with two RP-SMA Connectors

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

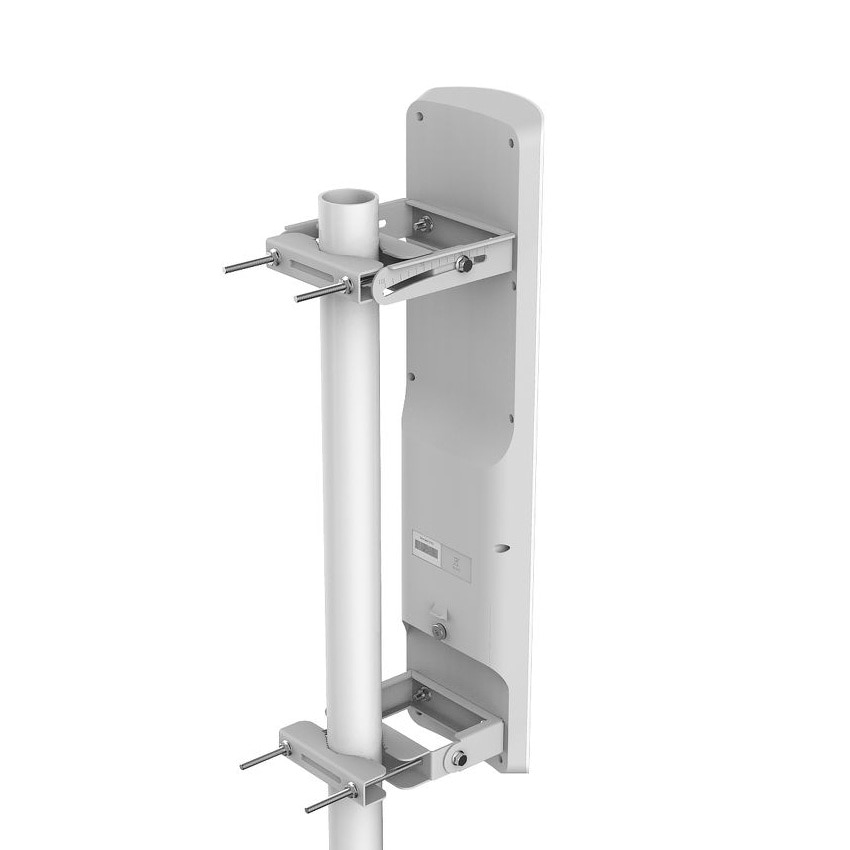

The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.

Specifications MTAS-5G-19D120

Antenna gain19dBi

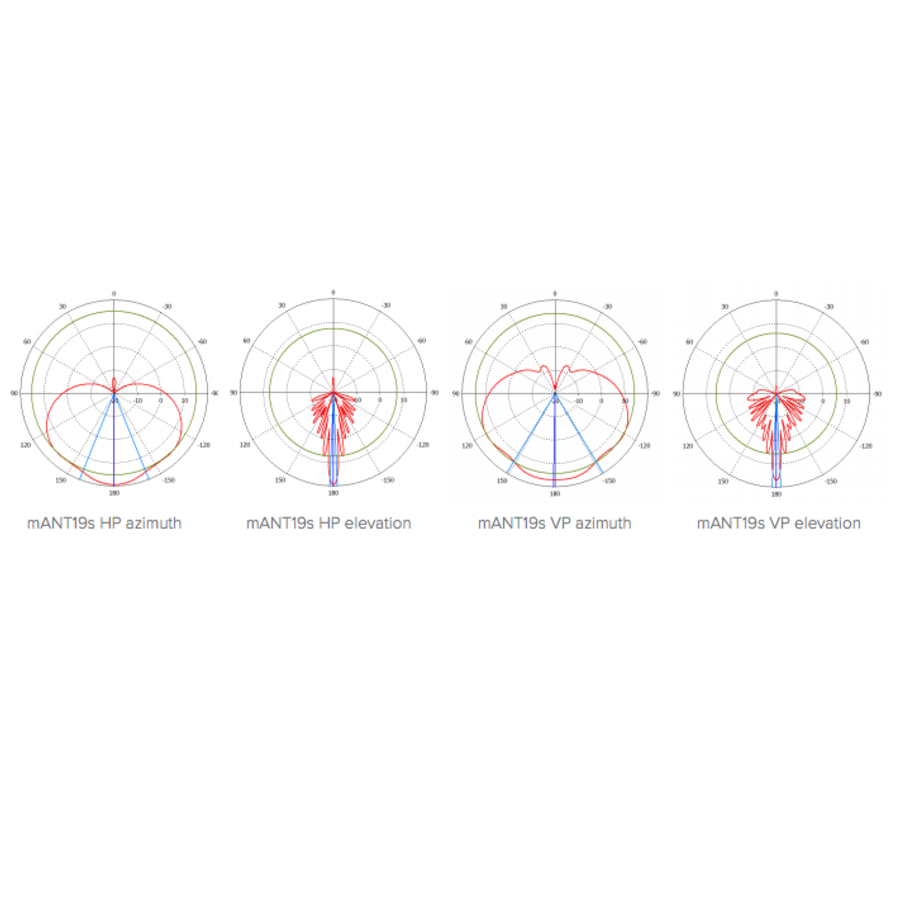

Beamwidth120 deg (azimuth) 5 deg (elevation)

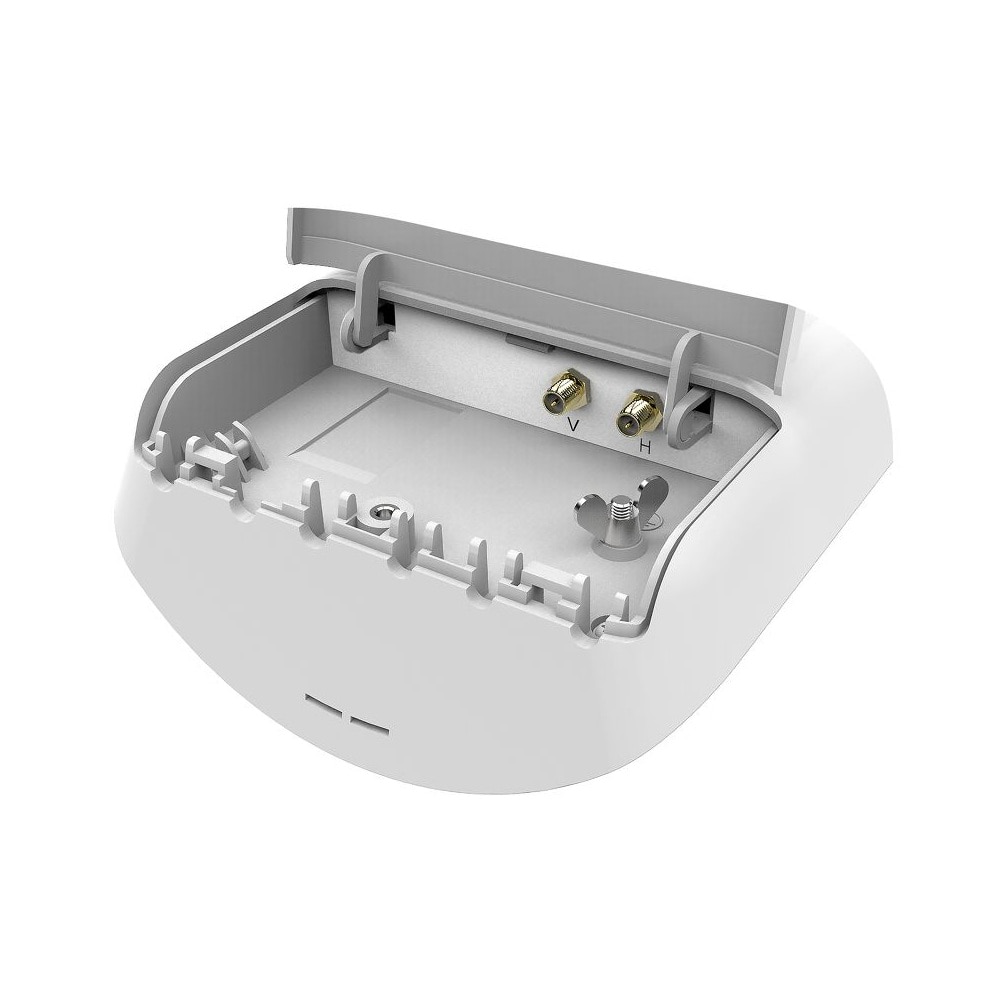

Connectortwo RP-SMA
Cross Polarization>30 dB
Diameter x Depth152 x 598 x 78 mm
Frequency Range5.17 - 5.825 GHz
Front-to-Back Ratio>30 dB
PolarizationVertical and horizontal
Port to Port Isolation>40 dB min
VSWR1.43 typ, 1.8 max
Weight1270 g
