  • MikroTik CRS318-1Fi-15Fr-2S-OUT Outdoor 18 port switch with 15 reverse PoE ports and SFP

MikroTik CRS318-1Fi-15Fr-2S-OUT Outdoor 18 port switch with 15 reverse PoE ports and SFP

(0)No Reviews yet
US$‎163.93 US$‎169.00
  • SKU: CRS318-1Fi-15Fr-2S-OUT
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide:Download
25 in stock
College Station
25 In stock

Product Information

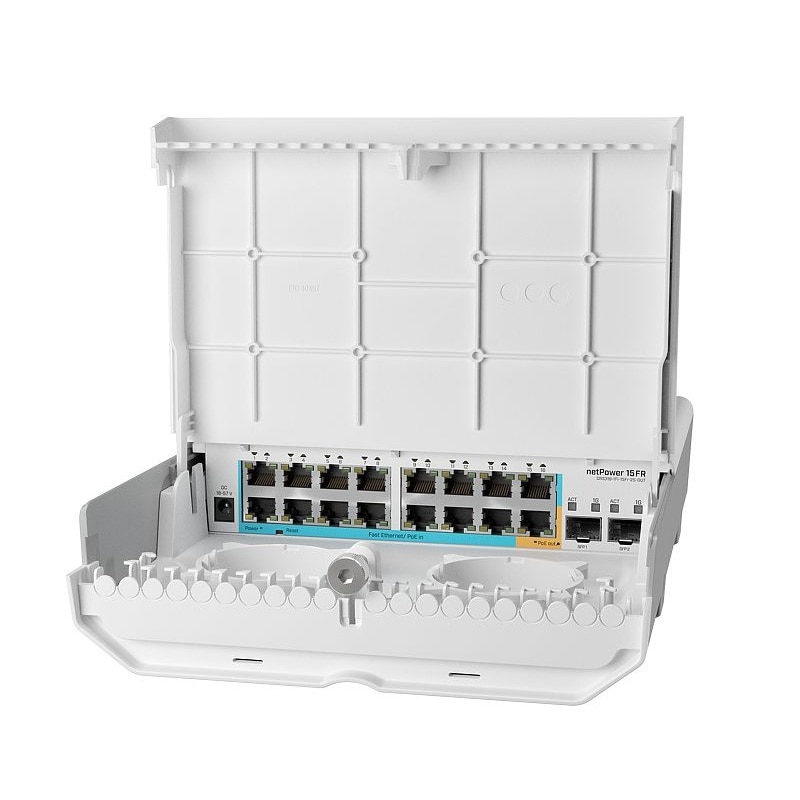

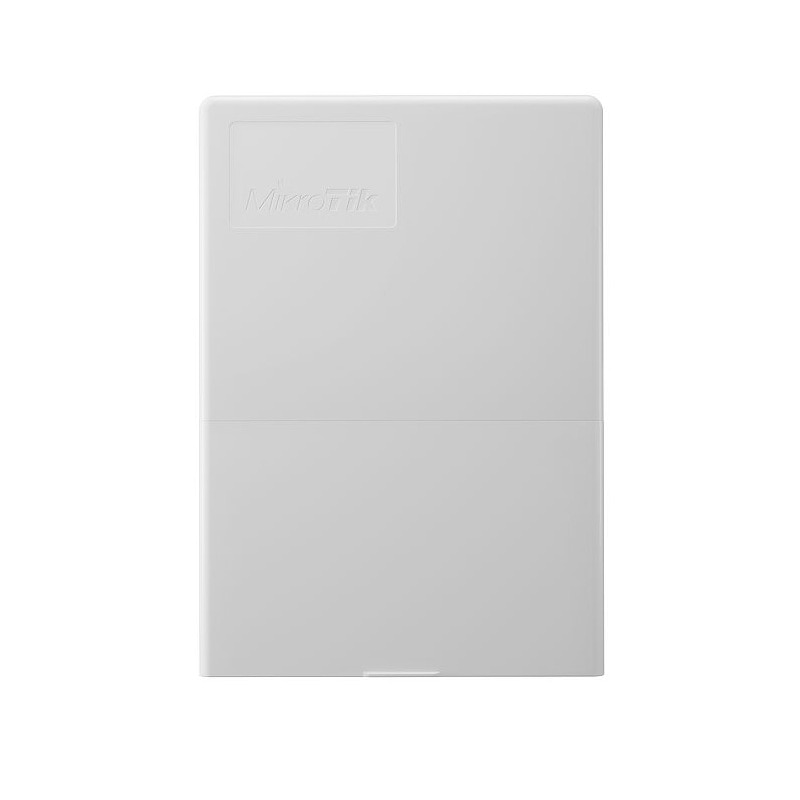

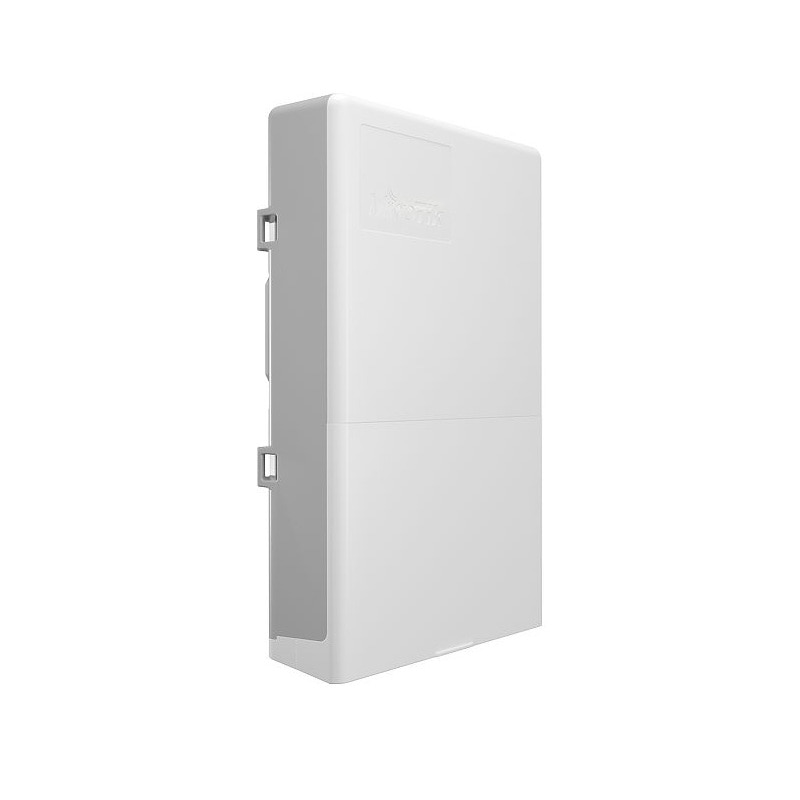

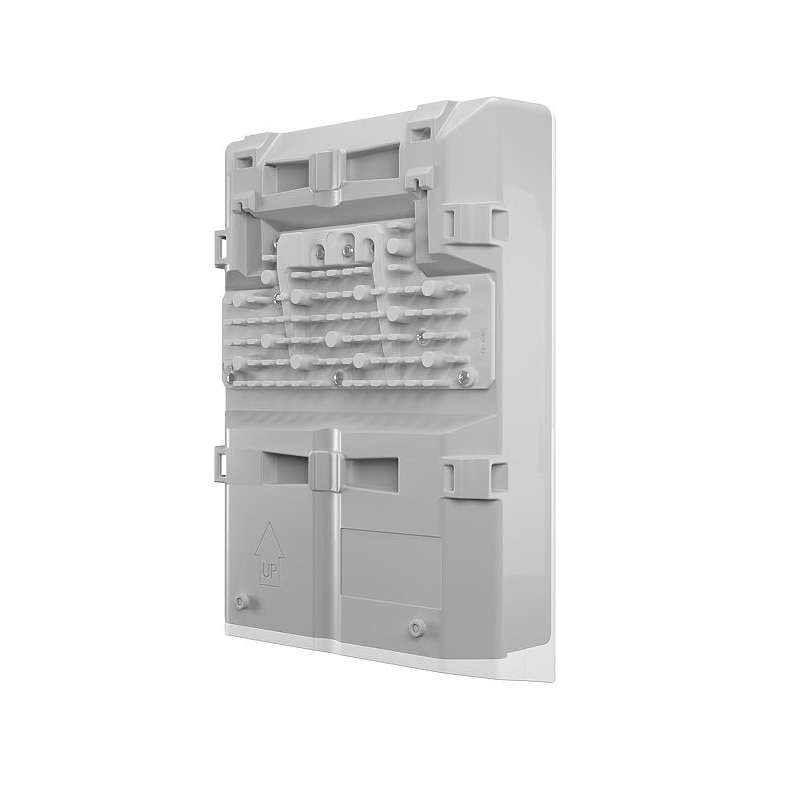

MikroTik RouterBOARD CRS318-1Fi-15Fr-2S-OUT

An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.


Specifications CRS318-1Fi-15Fr-2S-OUT

ArchitectureARM 32bit
CPU core count1
CPU nominal frequency800 MHz
Dimensions304 x 212 x 71 mm
License level5
Operating SystemSwOS / RouterOS (Dual boot)
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
Tested ambient temperature-40°C to 70°C
PoE inPassive PoE
PoE in input Voltage18-57 V
PoE-out portsEther15
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage18-57 V
Max out per port output (input > 30 V)0.5 A
PoE outPassive PoE
Max out per port output (input < 30 V)0.75 A
Max total out (A)0.75 A
Max power consumption29 W
Max power consumption without attachments10 W
10/100 Ethernet ports 16
SFP ports 2
CPU temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE/RED, EAC, ROHS
